EPSON PRODUCT SUPPORT BULLETIN

Date: 06/10/2009 Originator: DS

TIB #: PSB.2009.06.002 Authorization:

Reference: TI 09-08j Rev. A Total Pages: 8

Product(s): PowerLite 735c / 737c / 745c /755c/ 765c / 835p /1705/1715/1815/1825/7850p

/ 8300 with EasyMP.net option, Pro G5150/G5350 / 1725 / 1735W / 85 / 825 /

826W

Subject: Release of EMP NS Connection for Windows & Mac Upgrade from v2.50 to

v2.51

This bulletin was created to inform you of the release of the new version 2.51 of the

EMP NS Connection software.

Description of Change:

Improvements have been made to the EMP NS Connection utility.

Reason:

The improvements to NS Connection V2.51 are as follows

Improvements（V2.50 ( V2.51

Improvements Addition of 10 new languages: Arabic, Ukrainian, Romanian,

Indonesian, Croat, Slovak, Bulgarian, Malay, Vietnamese and Hebrew.

Addition of troubleshooting function (Windows Only)

When pressing the troubleshooting button, the

corresponding troubleshooting and error number is displayed

in the error message window.

•When experiencing problems with NS Connect, please report to

Epson the error number along with the failure information.

Error number

Page 1 of 8

PSB.2009.06.002

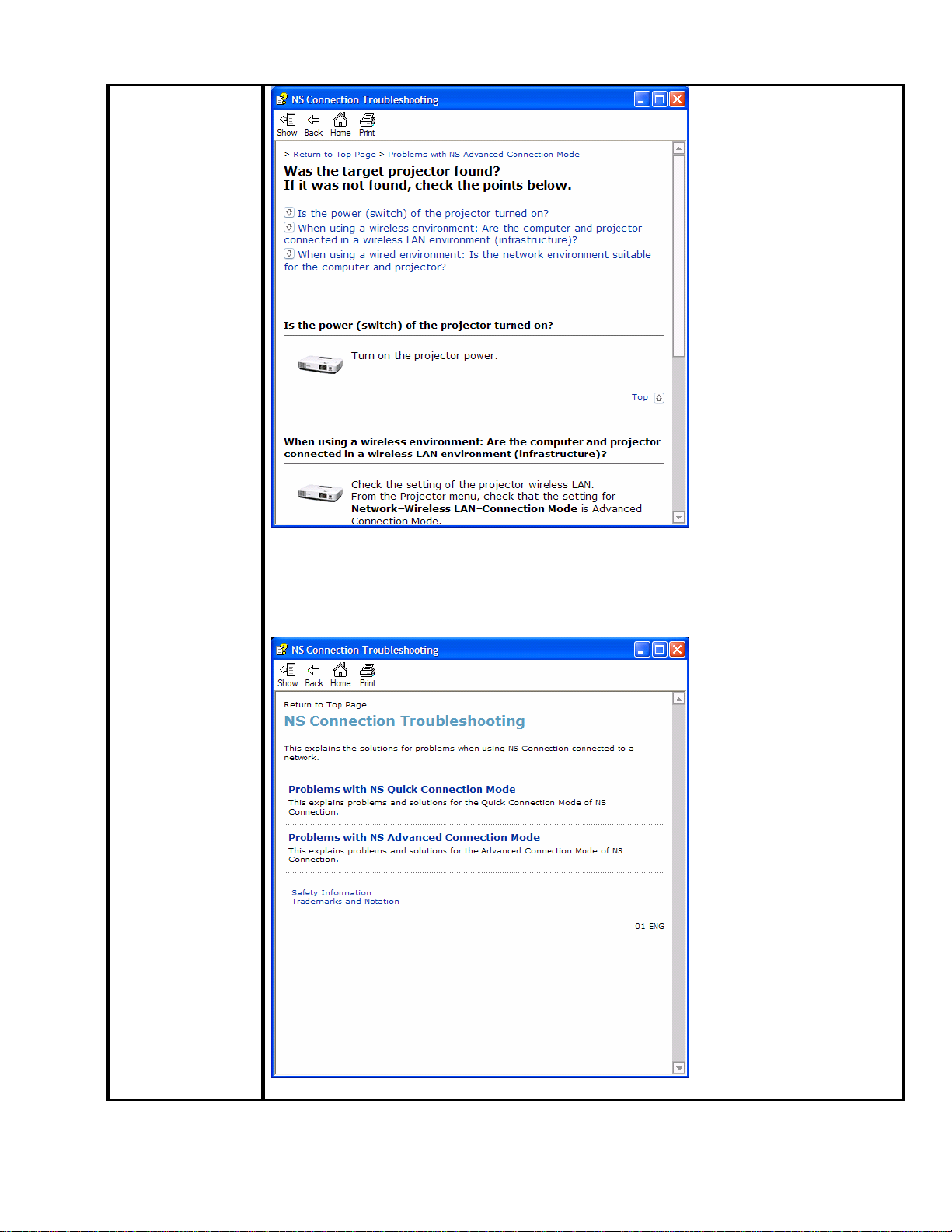

Also you can access troubleshooting by clicking Start ÆAll programs Æ

EPSON ProjectorÆEMP NS ConnectionÆEMP NS Connection V2.51

Troubleshooting.

Page 2 of 8

PSB.2009.06.002

Fixed error message displayed by the NVIDIA utility

Failure Symptom

When starting Quick Wireless/USB Display/NS Connection on a PC with

the built-in NVIDIA graphics chip (ex.ThinkPadT61 NVIDIA Quadro NVS

140M/NVIDIA Quadro FX 570M Display Driver), the NVIDIA utility

displays consecutive error messages. As a result, some PCs will

experience a lock-up.

Countermeasure

Hardware acceleration level is set to 3 when Quick Wireless/USB

Display/NS Connection are being used.

Limitation

By setting hardware acceleration level to “3”, the mouse cursor flickers

more visibly than the setting of “None”. This symptom can be avoided by

unchecking the box for Transfer Layered Window on the Adjustment

performance tab in the Set Options window of NS Connection.

Note: When NS connection is being used, and the hardware acceleration

setting is changed manually, at next startup, NS connection starts with

the same setting level of hardware acceleration.

Page 3 of 8

PSB.2009.06.002

Page 4 of 8

PSB.2009.06.002

Limitation All Operating Systems

•When using EAP type of security that consumes a lot of CPU resources,

projectors may disconnect from NS connection. The solution is to click

Set Options of NS Connection and set Adjust Performance to Fast.

•It takes more time for the PowerLite 1725 / 1735W / 1825 / Pro G5150 /

Pro G5350 projectors to disconnect from NS connection as compared to

the PowerLite 1705 / 1715 / 1815 projectors, due to the limitation of the

new OS (WindowsCE) on IM-X4 projectors.

•To avoid conflicts between the Quick Wireless and other makers’

utilities, when the Quick Wireless starts, this version stops services of

the other utilities listed in the attached file (Exhibit 1). When quitting

Quick Wireless, the other utilities resume their services.

•In the network environment using IEEE 802.11 b/g standards, the

wireless connection may drop under the following conditions. Due to

specification of wireless controllers, some wireless controllers don’t send

their beacon periodically. Even if a projector is connected to a PC via

wireless, if the projector doesn’t detect the beacon for 11b signal for a

certain period (30 – 60 seconds) from the PC , the projector judges that

there isn’t any PC using the11b signal in the network and switches to

communication with11g (default) signal. On the other hand the PC still

tries to communicate with 11b. As a result, the wireless connection

between the projector and the PC drops.

Solutions to this problem:

a. Establish a wireless communication between the PC and

projector via 802.11a signal.

Windows OS

•Due to a limitation of the module VLC for the Movie Sending mode

of the IM-X4 version projectors, when IM-X4 projectors display

MPEG2 and WMV images in Movie Sending mode via NSC V2.40,

fast-forward and rewind functions cannot be used. When IM-X3

projectors display MPEG2 via NSC V2.40, fast-forward and rewind

functions can be used.

Windows Vista OS

•Multi screen display function cannot be used

•Virtual display driver cannot be installed in PC.

•When UAC (User Account Controls) screen is being displayed, the

projected image pauses.

•The Motion picture of Windows photo gallery cannot be projected in full-

screen mode.

•Still images and motion pictures from Windows Media Center cannot be

projected in full-screen mode.

•Since NS Connection can capture Layered windows, the tool bar of NS

Connection is projected.

•

•When projecting images via NS Connection, mouse cursor might blink

depending on PC specification.

Macintosh OS

In case of uninstalling NSC V2.20 or later version, it is

possible to uninstall by following 2 methods.

- Delete by installer exclusively for NSC version which you

want to uninstall.

For example, when you want to uninstall NSC V2.40, you need

to use installer for NSC

V2.40. NSC V2.20 and later version can not be uninstalled

automatically by different

version installer.

- Delete manually.

System Requirements:

Windows 2000 SP4/ XP Home Edition/ XP Professional(32bit)

/Vista SP1 Home Basic / Home / Premium / Ultimate / Business

/ Enterprise(32bit) Mac OS X 10.3 minimum, OS

10.3.9/10.4.5/10.5.1 recommended

Windows: Mobile Pentium III 1.2GHz at least (Pentium

M1.6GHz at least recommended)

Mac: Power PC G3 900MHz at least recommended

CPU

Memory At least 256MB (At least 512MB recommended）

Available hard disk

space At least 20MB

Display Minimum- VGA(640×480), Maximum- UXGA (1600 x 1200)

16-bit color or more

Obtaining the Update:

Download epson13123.exe from www.epson.com to the version 2.50 update for NS

Connection.

The files are extracted and copied to C:\EPSON\epson13123_EMP_NS_Connection_251.

The user should be directed to this folder to find the bulletin. The program will automatically

install after the download file is extracted.

Note: on the Mac, the extraction process copies the epson13124_EMP_NS_Connection_251

folder to the desktop. The program and bulletin are inside this folder. The user will double-click

on NSCv2.51_Installer to start the installation process.

Software Upgrade History:

Version Release date Remarks

1.00 December 25,

2002 New release

1.10 January 1, 2003 Release for PowerLite 7850p

1.20 September 10, Improved the transfer rate specification for PowerPoint

Page 5 of 8

PSB.2009.06.002

2003 images

1.30 May 31, 2004 Support added for WPA and LEAP

1.31 June 18, 2004 Improved screen problem issue

1.32 January 18, 2004 Improved the internal function of connecting to the projector

1.40 April 1, 2005 •Addition of Presentation Mode and Interruption

Prevention function

•Able to present with video set for 32 bit color

•Function improvement with Excel and PowerPoint

•Improved ESSID search lockup prevention when

certain LAN adapters and drivers are used

2.00 2006/06/20 •Addition of multi screen display function

•Addition of movie sending mode

•- Improvement of connection and usability

2.10

2006/12/08 •Improvement in the ability to search projectors by

Automatic Search. (For Windows)

•Improvement in the operability of choosing projector.

•Improvement in operability and visibility of “Connect”

button.

•Preventing Virtual Display from being used as primary

display.

•Improvement in the ability of image processing speed.

(For Mac)

•- Change the packet size for a connection request

command used by Quick connection.

2.20 2006/05/29 EMP NS Connection V2.20 supports Windows Vista (Home

Basic

/Home Premium/Ultimate/Business/Enterprise).

2.30 Nov. 27, 2007 •Supported picture transfer for EMP-1825

•Improved wireless search and connection abilities.

•- Added video format supporting movie sending mode

2.40 Mar. 24, 2008 •EMP NS Connection V2.40 supports Windows Vista

Service Pack 1

•- Supports 24 languages

2.50 Jun.2,2008 Supported image transfer and virtual display of 1280 x 768

•Changed the operation method to prevent NS

connection from being blocked by Windows Firewall

Added another wireless LAN utility that NS connection

supports

2.51 Feb.9,2009 - Addition of supported models (PowerLite-85/825/826W)

- Addition of supported languages

- Addition of troubleshooting function (Only for Windows)

[Exhibit 1] Wireless LAN client list that NSC V2.30 and V2.40 stops their service

process

Page 6 of 8

PSB.2009.06.002

Manufacturer

Name Adapter Name Wireless LAN Utility

Name

D-Link Air Plus XTREMEG DWL-G650 D-Link AirPlus

XtremeG Utility (CD)

NETGEAR WN511T Smart Wireless Utility

Ver.1.1.5.9(CD)

BUFFALO Buffalo all products Client Manager 3

Ver.1.2.10(Web)

IBM ThinkPad products Access

Connection(Web) *1

Ver.4 or later

IBM ThinkPad products Access

Connection(Web) *1

Ver.3.71

Logitec Logitec LAN-WAG/U2 Wireless

LAN Adapter Logitec Wireless LAN

Client Utility

Linksys Wireless-G Notebook Adapter

v.5.0 WPC54G-JP setting

utility

NETGEAR WG511AJP NETGEAR WG511A

Smart Wizard

Ver3.2.3.306

NETGEAR WGM511 NETGEAR SMART

WIZARD -Wireless

Assistant WGM511 Ver

1.0.0.7

NETGEAR WPNT511 NETGEAR WPNT511

SMART WIZARD

Ver1.1.3.0

Linksys WPC300N Wireless-N Notebook

Adapter Wireless

Network Monitor v1.05

Linksys WPC54G Wireless-G Notebook

Adapter Wireless

Network Monitor Ver

3.1

Linksys WPC54GX4 Wireless-G Notebook

Adapter with SRX400

Setup Wizard V1.1

Linksys WUSB54GP Wireless-G Portable

USB Adapter WLAN

Monitor v1.05

Linksys WUSBF54G Wireless-G USB

Adapter with Wi-Fi

Finder

Supported by V2.30

NETGEAR WG511 v2

Page 7 of 8

PSB.2009.06.002

EPSON PRODUCT SUPPORT BULLETIN

Date: 04/20/2009 Originator: JAM

PSB #: PSB.2009.06.001 Authorization:

Reference: TI 09-05e Rev. A/B Total Pages: 5

Product(s): PowerLite 735c / Cinema 500 / 737c / 745c / 755c / 765c / 830p / 835p /

1705c / 1715c / 6100i / 6110i / 7800p / 7850p / 7900NL / 8300i / 8300i with

EasyMP.net module / 9300NL / 1815p / 1825 / 822p / 83c / 822+ / 83+ /

G5000 / Pro G5150 / Pro G5350 / Pro G5200W / 1725 / 1735W / 400W /

410W / 84 / 85 / 825 / 826W

PowerLite 61p / 81p / 82c / 821p / 1810 / 260d (Latin America) / 280d (Latin

America) with TCP/IP to Serial converter

Subject: Release of EMP Monitor for Windows version 4.30

This bulletin was created to inform you of the release of the new version 4.30 of the Epson

EMP Monitor software utility.

Description of Change:

Improvements have been made to the EMP Monitor software utility.

Note: For the PowerLite 61p / 81p / 82c / 821p / 1810 / 260d (Latin America) / 280d (Latin

America) models, a serial to TCP/IP conversion adapter is necessary. The function of Auto

Update does not work for these models. You need to manually click on refresh to get an

updated status of projectors.

Reason:

The improved points of version 4.30 are as follows:

Application EMP Monitor

Version

upgraded Version 4.22 ÆVersion 4.30

Improved

points (1) Addition of 7 new languages

-Indonesian, Croat, Slovak, Bulgarian, Malay, Vietnamese, and

Hebrew

Existing 27 languages

-Chinese (Traditional), Netherlands, Danish, Polish, Hungarian,

Czech, Romanian, Slovene, Norwegian, Swedish, Finnish, Russian,

Ukrainian, Greek, Turkish, Arabic (Windows NT4 does not support),

English, Japanese, French, German, Italy, Spanish, Portuguese,

Chinese (Simplified), Korean, Catalan, Thai

Page 1 of 4

PSB.2009.06.001

(2) Addition of Input Source (Only PowerLite 84 / 85 / 825 / 826W)

Previous version of EMP Monitor included USB Display, USB and LAN as

one source: EasyMP.

The input source buttons for USB display, USB, and LAN are available as

separate input sources as shown below:

- Old version - EMP Monitor V4.22

EMP Monitor V4.22

- New version - EMP Monitor V4.30

EMP Monitor V4.30

(3) New feature for the PowerLite 84 / 85 / 825 / 826W.

Displays projector’s serial number in the Menu settings

-The projector’s serial number is now displayed in the projector’s

menu under “info”,

-EMP Monitor can also display the projector’s serial number as

shown below:

Page 2 of 4

PSB.2009.06.001

Limitations When the PowerLite1725 / 1735W exhibit a Lamp Cover Open error state,

EMP Monitor cannot detect the error. The reason is that when the lamp

cover is opened, the primary power source that reports the error state to

EMP Monitor is turned off immediately. This is different from other models

which make the secondary power source turn off under the same condition.

Note: EMP Monitor Ver. 4.xx is not compatible with EMP Monitor Ver. 3.05 and earlier

versions. EMP Monitor Ver. 4.xx cannot read the setting files of EMP Monitor Ver. 3.05

and earlier versions.

System Requirements:

OS •Windows 98 SE / Me / NT 4.0 (SP6) *Except Arabic and

Hebrew / Windows 2000 Pro / XP Home Edition / XP

Professional (32 bit) / Vista Home Basic / Home Premium /

Ultimate / Business / Enterprise (32 bit) *Except Ukrainian /

Vista SP1 Home Basic / Home Premium / Ultimate /

Business / Enterprise (32 bit)

•Internet Explorer Ver. 5.0 or later must be installed

CPU Minimum: Pentium MMX 166 MHz (Recommended: Pentium II

233 MHz or higher)

Memory At least 64 MB (Recommended: 128 MB or above)

Available hard disk

space At least 50 MB

Display SVGA (800×600) or higher resolution, 32 bit or higher display

color

Obtaining the Update:

Download epson13055.exe from www.epson.com to get the version 4.30 update for EMP

Monitor. The files are extracted and copied to C:\EPSON\epson13055_emp_monitor_430.

This file is a self-extracting archive and will start the installation utility for EMP Monitor. Follow

the on-screen instructions during the installation process.

Page 3 of 4

PSB.2009.06.001

Andere Handbücher für 826W - PowerLite WXGA LCD Projector

Dieses Handbuch passt für folgende Modelle

Andere Epson Projektor Handbücher

Epson

Epson BrightLink 450Wi - Interactive Projector Bedienungsanleitung

Epson

Epson V11H268220 - PowerLite 1716 XGA LCD... Bedienungsanleitung

Epson

Epson PowerLite 1945W Technisches Datenblatt

Epson

Epson EMP-82 Bedienungsanleitung

Epson

Epson PowerLite 1825 Betriebsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Pro Z8000WUNL Referenzhandbuch

Epson

Epson EB-L570U Bedienungsanleitung

Epson

Epson EB-1925W Bedienungsanleitung

Epson

Epson BrightLink 455Wi Leitfaden

Epson

Epson PowerLite 760c Bedienungsanleitung

Epson

Epson EB-480 Bedienungsanleitung

Epson

Epson EH-TW9300W Bedienungsanleitung

Epson

Epson EMP-74 Bedienungsanleitung

Epson

Epson PowerLite 85 Bedienungsanleitung

Epson

Epson Ensemble HD 6100 - Home Cinema System Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 3010 Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 5010 Bedienungs- und Sicherheitshinweise

Epson

Epson 1815p - PowerLite XGA LCD Projector Bedienungsanleitung

Epson

Epson PowerLite 30C Bedienungsanleitung

Epson

Epson EB-925 Bedienungsanleitung

Epson

Epson PowerLite 1870 Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 6500 UB Bedienungsanleitung

Epson

Epson VS350W Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Bedienungsanleitung

JVC

JVC 1108TTH-AO-AO Bedienungsanleitung
