Epson EB-L735U Bedienungsanleitung

Specifications

Contents

■ Product Overview ……………………………………………………………………………………3

■ Dimensions ……………………………………………………………………………………………8

■ Dimensions with Ceiling Mount (ELPMB22) …………………………………………………… 12

■ Dimensions with Ceiling Mount (Low profile) (ELPMB30) …………………………………… 21

■ Interface …………………………………………………………………………………………… 24

■ Remote Control Operating Range (Wireless) ………………………………………………… 24

■ Screen Size and Projection Distance …………………………………………………………… 25

■ Supported Resolutions Table …………………………………………………………………… 31

■ Installation Angle ………………………………………………………………………………… 33

■ Installation Environment ………………………………………………………………………… 34

■ Monitoring and Control ………………………………………………………………………… 35

■ Image Quality Maintenance ……………………………………………………………………… 52

■ Cautions …………………………………………………………………………………………… 52

■ Disclaimer ………………………………………………………………………………………… 52

■ Product Overview

This projector comes with a variety of special features.

This manual explains the projector's technical specifications.

For details on how to use each feature, see the projector’s "User's Guide".

EB‑L735U/EB‑L730U/EB‑L720U/EB‑L635SU/EB‑L630SU

Product Specifications

Product name EB-L735U

EB-L730U EB-L720U EB-L635SU

EB-L630SU

System RGB liquid crystal shutter

LCD panel

Size (diagonal) 0.67"

Resolution 2,304,000 pixels

Pixel number (1,920 (W) × 1,200 (H) dots) × 3

Projection lens

F value 1.5 - 1.7 1.7

Zoom Optics (1.0 - 1.6) Digital (1.0 - 1.35)

Focus Manual

Lens shift

System Manual - Manual

Range

Maximum vertical direction:

Approx. ± 50%

Maximum horizontal

direction: Approx. ± 20%

Maximum vertical direction:

Approx. ± 50%

Maximum horizontal

direction: Approx. ± 20%

Light source

Type Laser diode

Output power

(maximum) 115.5 W

Wavelength 449 to 461 nm

Life expectancy*1 Approx. 20,000 hours (Light Source Mode: Normal, Quiet)

Approx. 30,000 hours (Light Source Mode: Extended)

Brightness*2 7,000 lm (Light Source Mode: Normal)

4,900 lm (Light Source Mode: Quiet, Extended)

6,000 lm (Light Source Mode:

Normal)

4,200 lm (Light Source Mode:

Quiet, Extended)

Contrast ratio*2 Over 2,500,000:1

(Dynamic Contrast: Normal, High Speed)

Color reproducibility Maximum of 1,070 million colors

Speaker 10 W (monaural)

Scanning

frequency

Analog Horizontal: 15 - 92 kHz

Vertical: 50 - 85 Hz

Digital Horizontal: 15 - 135 kHz

Vertical: 23.98/24/25/29.97/30/50/59.94/60 Hz

Operating

environment

Operating

temperature*3

At an altitude of 0 to 2,286 m: 0 to +45℃ (Humidity 20 to 80%, no condensation)

At an altitude of 2,287 to 3,048 m: 0 to +40℃ (Humidity 20 to 80%, no condensation)

Storage temperature -10 to +60℃ (Humidity 10 to 90%, no condensation)

Operating altitude Altitude 0 to 3,048 m

Power supply 100 - 240V AC ± 10% 50/60Hz 3.6 - 1.6 A

Power

consumption

Operating

100 to 120 V area 358 W (Light Source Mode: Normal, Custom)

267 W (Light Source Mode: Quiet, Extended)

220 to 240 V area 345 W (Light Source Mode: Normal, Custom)

258 W (Light Source Mode: Quiet, Extended)

Standing

Communication

On 2.0 W

Communication

Off 0.3 W

Dissipation BTU

(maximum) 100 to 120 V area 1217.2 BTU/h

Air flow (maximum) 95.0 CFM

Product name EB-L735U

EB-L730U EB-L720U EB-L635SU

EB-L630SU

Dimensions (W × H × D)

440 × 122 × 304 mm (not including raised section)

440 × 136 × 339 mm (including raised section) 440 × 136 × 334 mm

(including raised section)

Mass

Projector Approx. 8.4 kg Approx. 7.8 kg Approx. 8.4 kg

Ceiling mount

(ELPMB22) Approx. 3.5 kg

Ceiling mount (Low

profile) (ELPMB30) Approx. 3.5 kg

Ceiling pipe 450 (450

mm) (ELPFP13) 2.1 kg

Ceiling pipe 700 (700

mm) (ELPFP14) 2.6 kg

Noise level*2

Light Source Mode:

Normal 38 dB 39 dB 38 dB

Light Source Mode:

Quiet 27 dB 27 dB 27 dB

Items supplied Remote, 2 AA dry cell batteries (for remote control), power cord (approx. 3 m), cable

cover*4, warranty card, User's Guide set

*1 Approximate time before the brightness of the light source is reduced by half.

(Assuming the projector is being used in an environment containing airborne particles of 0.04 to 0.2 mg/m3. This is an approximate guide only and may change

depending on the projector’s usage and surroundings.)

*2 All average values for this product at time of shipping comply with the ISO 21118 international standards.

*3 When the surrounding temperature rises, the brightness of the light source is automatically reduced.

(Approx. 40℃ at an altitude of 0 to 2,286m and approx. 35℃ at an altitude of 2,287 to 3,048 m although these will vary depending on the usage environment.)

*4 Not included with the EB-L720U.

EB‑L630U/EB‑L530U/EB‑L520U

Product Specifications

Product name EB-L630U EB-L530U EB-L520U

System RGB liquid crystal shutter

LCD panel

Size (diagonal) 0.67"

Resolution 2,304,000 pixels

Pixel number (1,920 (W) × 1,200 (H) dots) × 3

Projection lens

F value 1.5 - 1.7

Zoom Optics (1.0 - 1.6)

Focus Manual

Lens shift

System Manual -

Range Maximum vertical direction: Approx. ± 50%

Maximum horizontal direction: Approx. ± 20% -

Light source

Type Laser diode

Output power

(maximum) 115.5 W 44 W × 2

Wavelength 449 to 461 nm

Life expectancy*1 Approx. 20,000 hours (Light Source Mode: Normal, Quiet)

Approx. 30,000 hours (Light Source Mode: Extended)

Brightness*2

6,200 lm (Light Source Mode:

Normal)

4,340 lm (Light Source Mode:

Quiet, Extended)

5,200 lm (Light Source Mode: Normal)

3,640 lm (Light Source Mode: Quiet, Extended)

Contrast ratio*2 Over 2,500,000:1 (Dynamic Contrast: Normal, High Speed)

Color reproducibility Maximum of 1,070 million colors

Speaker 10 W (monaural)

Scanning

frequency

Analog Horizontal: 15 - 92 kHz

Vertical: 50 - 85 Hz

Digital Horizontal: 15 - 135 kHz

Vertical: 23.98/24/25/29.97/30/50/59.94/60 Hz

Operating

environment

Operating

temperature*3

At an altitude of 0 to 2,286 m: 0 to +45℃ (Humidity 20 to 80%, no condensation)

At an altitude of 2,287 to 3,048 m: 0 to +40℃ (Humidity 20 to 80%, no condensation)

Storage temperature -10 to +60℃ (Humidity 10 to 90%, no condensation)

Operating altitude Altitude 0 to 3,048 m

Power supply 100 - 240V AC ± 10%

50/60Hz 3.8 - 1.7 A 100 - 240V AC ± 10% 50/60Hz 3.1 - 1.4 A

Power

consumption

Operating

100 to 120 V area

358 W (Light Source Mode:

Normal, Custom)

267 W (Light Source Mode:

Quiet, Extended)

301 W (Light Source Mode: Normal, Custom)

232 W (Light Source Mode: Quiet, Extended)

220 to 240 V area

345 W (Light Source Mode:

Normal, Custom)

258 W (Light Source Mode:

Quiet, Extended)

293 W (Light Source Mode: Normal, Custom)

223 W (Light Source Mode: Quiet, Extended)

Standing

Communication

On 2.0 W

Communication

Off 0.3 W

Dissipation BTU

(maximum) 100 to 120 V area 1217.2 BTU/h 1023.4 BTU/h

Air flow (maximum) 95.0 CFM

Dimensions (W × H × D) 440 × 122 × 304 mm (not including raised section)

440 × 136 × 339 mm (including raised section)

Product name EB-L630U EB-L530U EB-L520U

Mass

Projector Approx. 8.4 kg Approx. 8.2 kg Approx. 7.7 kg

Ceiling mount

(ELPMB22) Approx. 3.5 kg

Ceiling mount (Low

profile) (ELPMB30) Approx. 3.5 kg

Ceiling pipe 450 (450

mm) (ELPFP13) 2.1 kg

Ceiling pipe 700 (700

mm) (ELPFP14) 2.6 kg

Noise level*2

Light Source Mode:

Normal 38 dB 31 dB

Light Source Mode:

Quiet 27 dB 23 dB

Items supplied Remote, 2 AA dry cell batteries (for remote control), power cord (approx. 3 m), cable

cover*4, warranty card, User's Guide set

*1 Approximate time before the brightness of the light source is reduced by half.

(Assuming the projector is being used in an environment containing airborne particles of 0.04 to 0.2 mg/m3. This is an approximate guide only and may change

depending on the projector’s usage and surroundings.)

*2 All average values for this product at time of shipping comply with the ISO 21118 international standards.

*3 When the surrounding temperature rises, the brightness of the light source is automatically reduced.

(Approx. 40℃ at an altitude of 0 to 2,286m and approx. 35℃ at an altitude of 2,287 to 3,048 m although these will vary depending on the usage environment.)

*4 Not included with the EB-L520U.

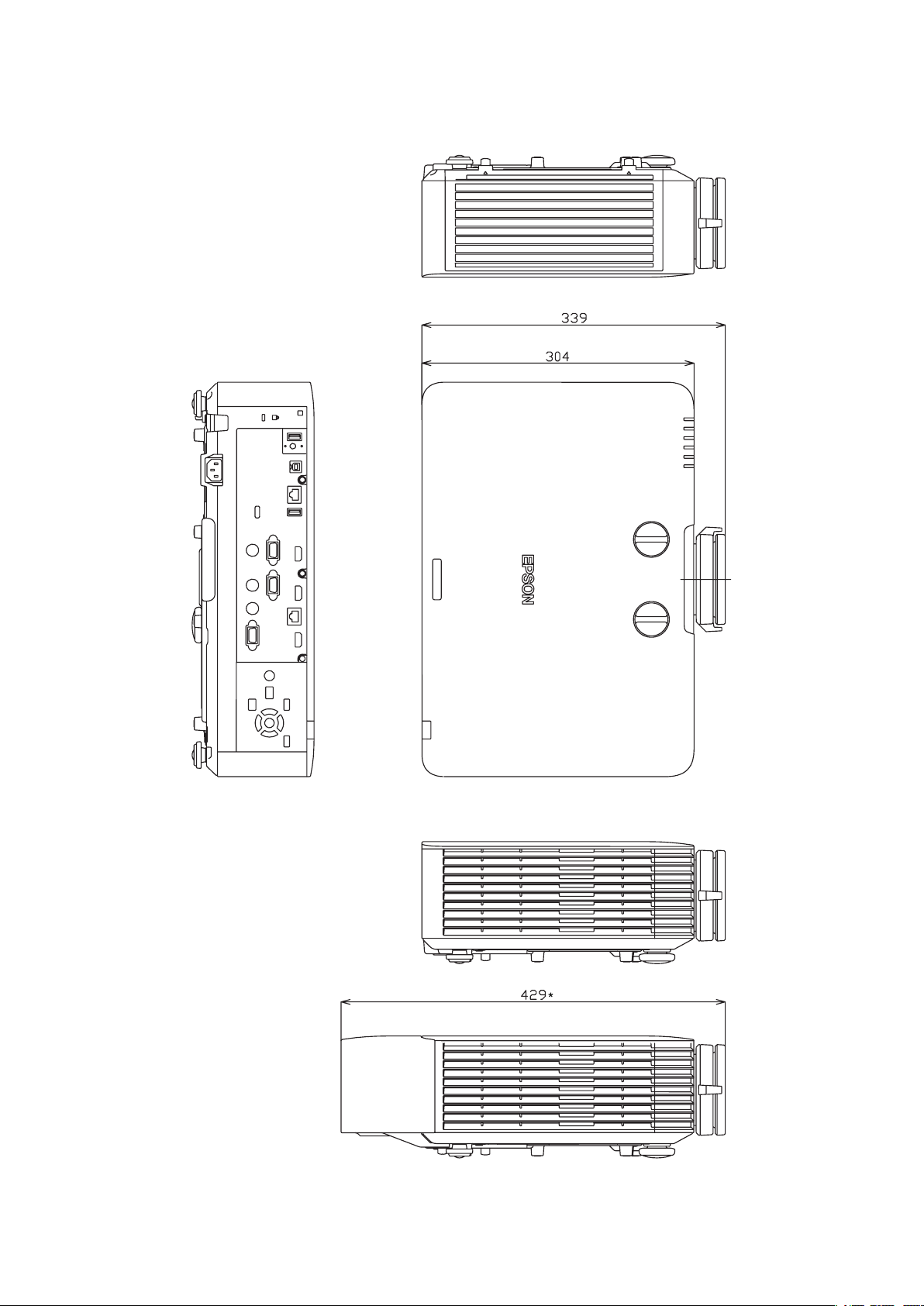

■ Dimensions

EB‑L735U/EB‑L730U/EB‑L720U/EB‑L630U/EB‑L530U/EB‑L520U [Units: mm]

*Dimensions when the cable cover is attached.

[Units: mm]

*1 Mounting section for optional mount.

*2 Mounting section for mount conforming to VESA standards (100 x 100 mm).

EB‑L635SU/EB‑L630SU

[Units: mm]

*Dimensions when the cable cover is attached.
