Epson ELP-3300 - Data/Video Projector Bedienungsanleitung

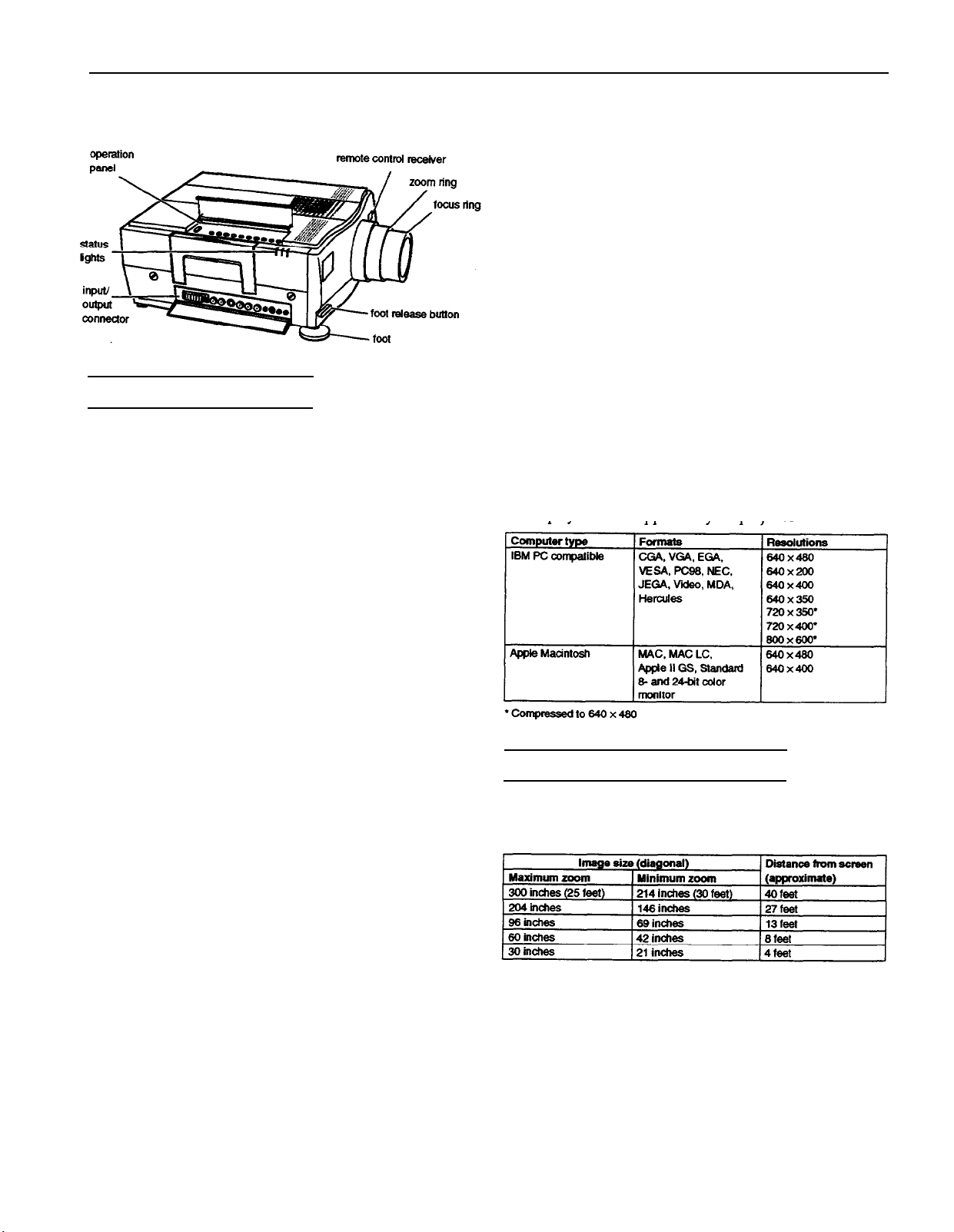

EPSON ELP-3300 Data/Video Projector

Data/Video Specifications

General

Type of display

Size of liquid

crystal panels

Resolution

Image size

Projection

distance

Remote control

range

Audio Amp

power

Optical

Aspect ratio

Zoom ratio

Projector Lamp

Model number

Type

Life

Power

Brightness

Dimensions

Height

Width

Depth

Weight

Poly-silicon Thin Film Transistor (TFT)

Active Matrix LCD

1.32 inches (33.6 mm)

640 (horizontal) x 480 (vertical) pixels

21 to 300 inches (.5 to 7 meters)

4 to 41 feet (1.2 to 12.4 meters)

33 feet (10 meters)

1W X 1W stereo

4 x 3 (horizontal x vertical)

1:1.4

MSCR150E3H

Metal halide

Typically 600 hours (w/ 50% minimum

illumination)

150W

330 ANSI lumens typical

5.9 inches (14.9 cm)

11.2 inches (28.5 cm)

16.3 inches (41.3 cm)

16.98 1bs (7.7 kg)

Electrical

Voltage l00-120VAC and 220-240VAC ± 10%

Rated frequency 50/60 Hz

Fuse type

Power

consumption

25OV, 6.3AT, 5 x 20 mm

220W (50W in standby mode)

100-120VAC

3.5

Amps,

50/60

220

240VAC

1.3

Amps,

50/60

Environmental

Temperature

Humidity

Operation: 41° to 104° F (5° to 40° C)

Storage: -4° to 140° F (-20° to 60° C)

Operation: 20 to 80% RH, non-condensing

Storage: 10 to 90% RH, non-condensing

Supported Monitor Displays

The projector displays images at a resolution of 640 x 480

pixels. When displaying a higher resolution image, the

projector compresses it to 640 x 480. The following table lists

the display formats supported by the projector.

Projector Placement Guidelines

The distance between the projector and the screen

determines the actual image size. Use the following general

guidelines to determine the proper distance.

4/96 ELP-3300 - 1

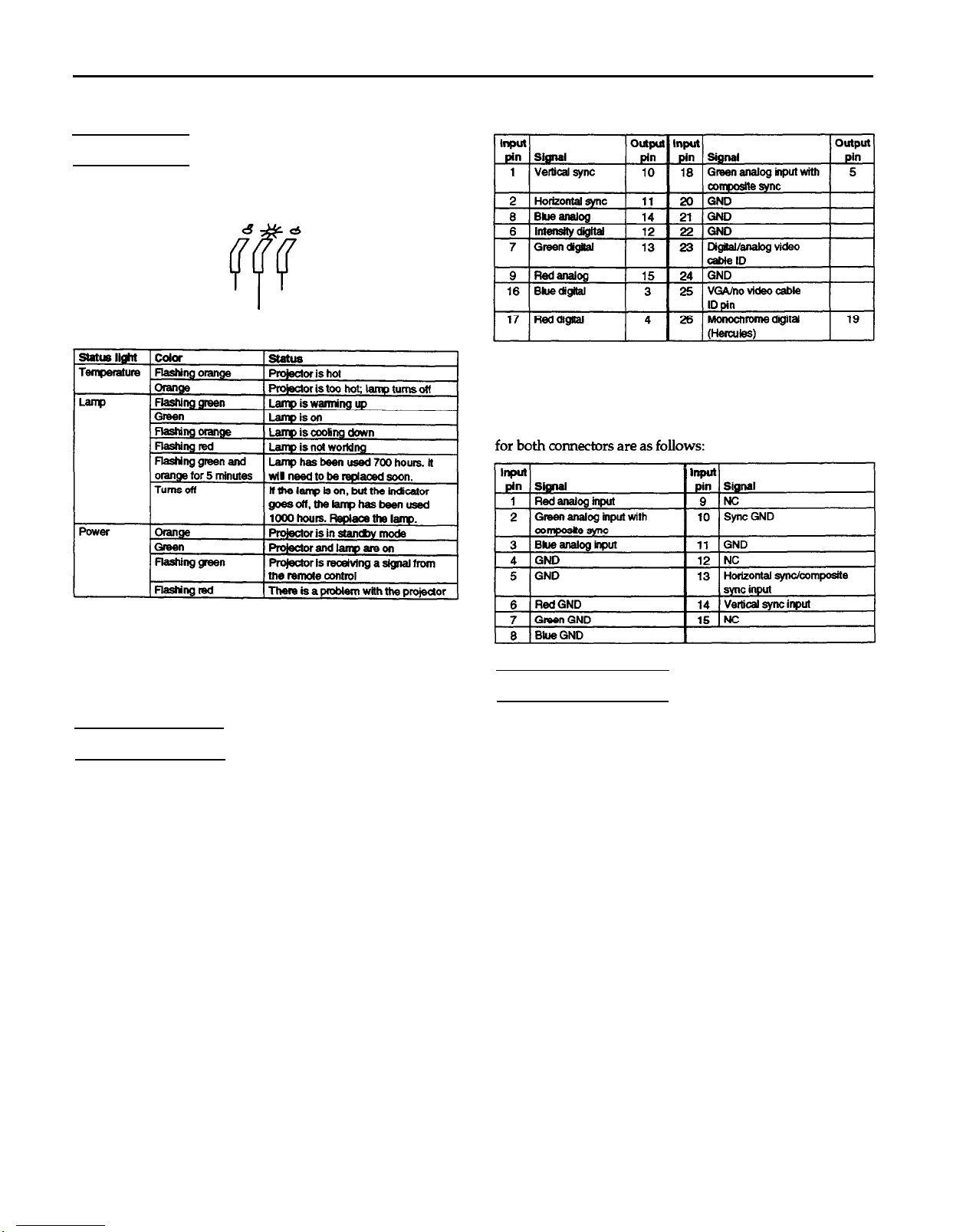

EPSON ELP-3300 Data/Video Projector

Status Lights

The status lights at the top of the projector monitor its

operation.

temperature light

power light

lamp light

To reset the lamp indicator after replacing the bulb, turn off

the projector, hold the ‘Menu” and ‘Sync-” buttons down

then turn the power switch back on. Continue to hold the

buttons down until all three monitor lights flash orange for

about 3 seconds. The lamp dectector is now reset.

Pin Assignments

The following tables describe the pin assignments for the

three connectors of the Y-cable: the LCD connector, the VGA

connector, and the Monitor connector. The pin assignments

for the VGA and Monitor connectors are identical.

LCD

connector pin assignments

The

LCD connector is a 26-pin D-style connector. Its pin

assignments are as follows:

VGA and Monitor connector Pin assignments

The VGA connector is a male video RGB, 15-pin micro-D

style connector, and the Monitor connector is a female video

RGB, 15-pin micro-D style connector. The pm assignments

Related Documentation

4005478

EPSON ELP-3300 Data/Video Projector

Owner's Manual

PL-ELP3300 EPSON ELP-3300 Data /Video Projector

Parts Price List

ELP-3300 - 2 4/96
