Epson EX3220 Bedienungsanleitung

EX3220/EX5220/EX5230/EX6220/EX7220/

VS230/VS330/VS335W User's Guide

EX3220/EX5220/EX5230/EX6220/EX7220/

VS230/VS330/VS335W User's Guide

Welcome to the EX3220/EX5220/EX5230/EX6220/EX7220/VS230/VS330/VS335W User's Guide.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features

Notations Used in the Documentation

Where to Go for Additional Information

Projector Part Locations

Projector Features

Your projector includes these special features:

Bright, high-resolution projection system

• VS330/VS335W: Up to 2700 lumens of brightness (white light output and color light output)

VS230: Up to 2800 lumens of brightness (white light output and color light output)

EX3220/EX5220/EX6220/EX7220: Up to 3000 lumens of brightness (white light output and color light

output)

EX5230: Up to 3500 lumens of brightness (white light output and color light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending

on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output

measured in accordance with ISO 21118.

• EX3220/VS230: Native resolution of 800 × 600 pixels (SVGA)

EX5220/EX5230/VS330: Native resolution of 1024 × 768 pixels (XGA)

EX6220/EX7220/VS335W: Native resolution of 1280 × 800 pixels (WXGA)

Flexible connectivity

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

• Wireless LAN module for projection, monitoring, and control via remote network computer

• PC Free photo slide shows via connected USB memory devices

• HDMI port for computer or video device connection

Easy-to-use setup and operation features

• Low total cost of ownership with longer lamp life

• Automatic vertical keystone correction and innovative horizontal keystone correction slider for flexible

projector placement

• 1.2× optical zoom ratio for improved zooming capability

(EX5220/EX5230/EX6220/EX7220/VS330/VS335W)

• Built-in closed captioning decoder

• Epson's Instant Off and Direct Power On features for quick setup and shut down

Product Box Contents

Additional Components

Optional Equipment and Replacement Parts

Warranty and Registration Information

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or

equivalent) when shipping.

Note: Your product may look different from the illustrations in this guide, but the instructions are the

same.

Make sure your projector box included all of these parts:

1 Projector

2 Remote control

3 Remote control batteries (two AA alkaline)

4 Power cord

5 VGA computer cable

6 USB cable (EX3220/EX5220/EX5230/EX6220/EX7220)

7 Carrying case (EX3220/EX5220/EX5230/EX6220/EX7220)

8 Wireless LAN module (EX5220/EX7220)

9 Wireless LAN module cover

10 French control panel stickers (included for Canada only)

11 Projector documentation CD

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional

components:

• To receive a composite video signal, you need an RCA-style video or A/V cable. See your local

computer or electronics dealer for purchase information.

• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local

computer or electronics dealer for purchase information.

• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You

can purchase one from Epson or an authorized Epson reseller.

• To receive an HDMI signal, you need a compatible HDMI cable. You can purchase one from Epson or

an authorized Epson reseller.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port.

Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not

support audio through the HDMI port.

• To project with audio from certain ports, you may need a commercially available audio cable

compatible with your device. See your local computer or electronics dealer for purchase information.

• To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video

output to the projector's VGA video port, you need to obtain an adapter. Contact Apple for compatible

adapter options.

Parent topic: Projector Features

Related references

Optional Equipment and Replacement Parts

Option or part Part number

Genuine Epson Replacement lamp (ELPLP78) V13H010L78

Replacement air filter (ELPAF32) V13H134A32

Wireless LAN module (ELPAP07) V12H418P12

Quick Wireless Connection USB key (ELPAP09) V12H005M09

Epson DC-06 document camera V12H321005

Epson DC-11 document camera V12H377020

Epson DC-20 document camera V12H500020

Universal projector ceiling mount ELPMBPJF

PixiePlus control system ELPSP10

Kensington security lock ELPSL01

AP-60 projector sound solution V12H329020

Accolade Duet ultra portable projector screen ELPSC80

ES1000 ultra portable tabletop projection screen V12H002S4Y

ES3000 ultra portable projection screen V12H002S3Y

Belkin PureAV HDMI audio video cable, 3 ft AV22300-03

Belkin PureAV HDMI audio video cable, 6 ft AV22300-06

Belkin PureAV HDMI audio video cable, 12 ft AV22300-12

Component-to-VGA video cable ELPKC19

BrightLink Solo interactive module (IU-01) V12H415020

Remote control 1599176

1-Year Extended Exchange Service Plan EPPEXPA1

2-Year Extended Exchange Service Plan EPPEXPA2

1-Year Extended Depot Repair Service Plan EPPFTPA1

2-Year Extended Depot Repair Service Plan EPPFTPA2

Parent topic: Projector Features

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Related tasks

Using the Projector Help Displays

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top

Projector Parts - Rear

Projector Parts - Base

Projector Parts - Control Panel

Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

Note: Your product may look different from the illustrations in this guide, but the instructions are the

same.

1 Exhaust vent

2 Lamp cover

3 Control panel

4 Focus ring (EX3220/VS230)

5 Kensington security lock slot

6 Air filter cover

7 Air filter and intake vent

8 Zoom ring (EX5220/EX5230/EX6220/EX7220/VS330/VS335W)

9 Focus ring (EX5220/EX5230/EX6220/EX7220/VS330/VS335W)

10 Remote receiver

11 A/V Mute slide (lens cover)

12 Front adjustable foot

13 Foot release lever

14 A/V Mute slide lever

15 Horizontal keystone slider

Parent topic: Projector Part Locations

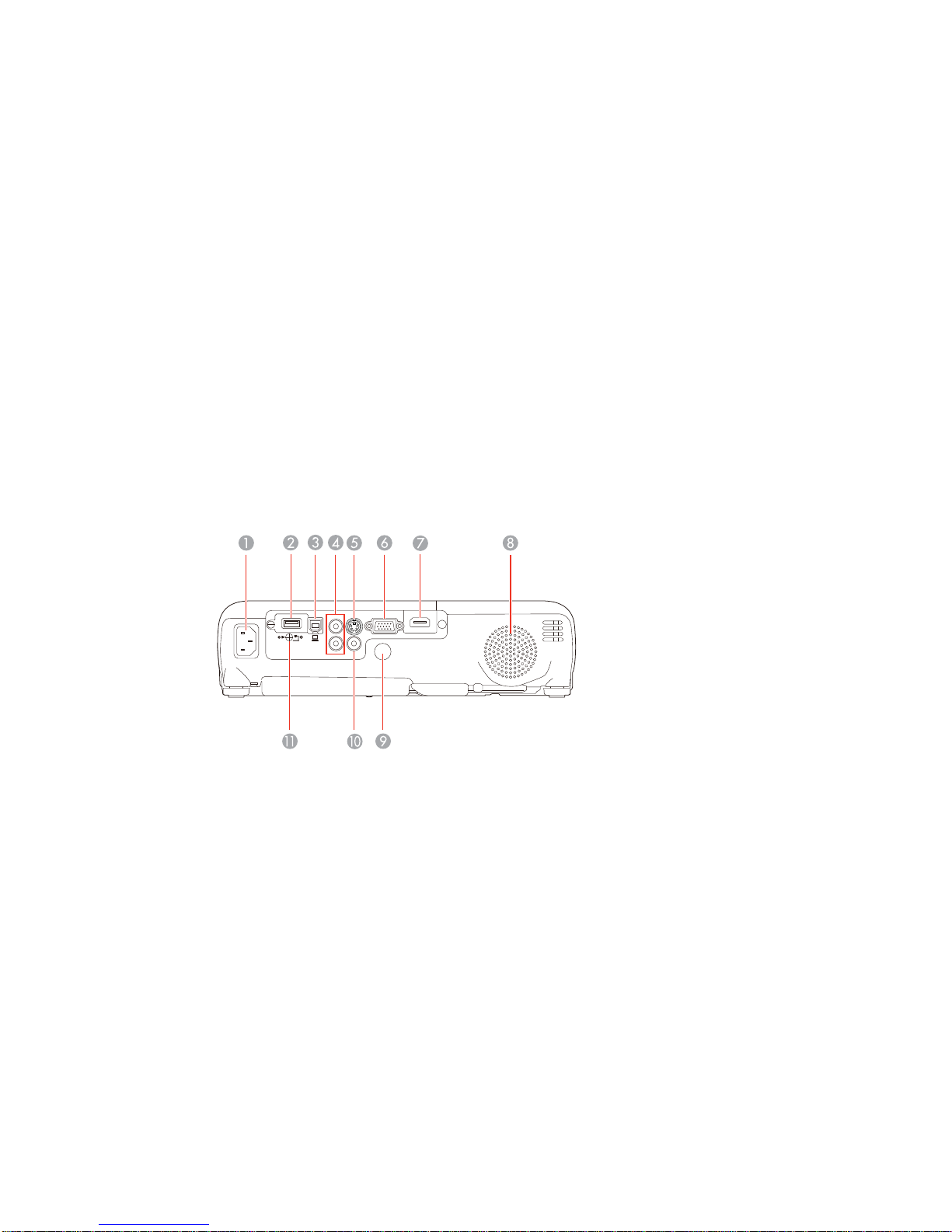

Projector Parts - Rear

1 AC input port

2USB-A/document camera/wireless LAN module port

3USB-B port

4Audio ports

5S-Video port
