Contents 3

Contents

Welcome! 5

Registration and Warranty 5

Projector Parts 6

Projector Controls 7

Optional Accessories 8

About This Manual 9

Getting More Information 9

Using the Projector 11

Choosing a Location 11

Adjusting the Picture 13

Controlling Your Presentation 15

Adjusting the Volume 15

Freezing the Action 15

Turning Off the Picture and Sound 15

Using the Projector’s Menu System 16

Changing Menu Settings 16

Adjusting the Appearance of the Picture 17

Using Advanced Picture Settings 19

Using On-screen Display Features 21

Customizing Projector Operation 22

Viewing Lamp Usage and Other Information 23

Restoring the Default Settings 24

Caring for the Projector 25

Cleaning the Lens 25

Cleaning the Projector Case 25

English

4Contents

Cleaning and Replacing the Air Filters 26

Replacing the Lamp 27

Resetting the Lamp Timer 29

Storing the Projector 29

Transporting the Projector 29

Problem Solving 31

What To Do When the Lights Flash 31

Solving Projector Problems 32

Solving Picture Problems 34

Where To Get Help 38

Specifications and Notices 39

Projector Specifications 39

Important Safety Information 42

FCC Compliance Statement 44

Declaration of Conformity 45

Epson America, Inc. Limited Warranty 45

Index 47

Welcome! 5

Welcome!

The Epson®PowerLite®Home 20 Theater Projector lets you enjoy high-quality projection in

the relaxing environment of your own home. It offers these powerful features:

■Adjustable color modes with built-in cinema filter for great viewing

■16:9 LCD panel for wide format projection

■Flexible setup configurations for front or rear projection and ceiling-mounted installation

■Short lens focus; you can project a 120-inch diagonal image with the projector just

10 feet away

■1200 ANSI lumens

■1000:1 contrast ratio

■Parental control through the projector’s child lock function

■Lock port for optional Kensington®MicroSaver®anti-theft device

■Toll-free two-year priority technical support

Registration and Warranty

The Epson PowerLite Home 20 projector comes with a basic two-year carry-in warranty. For

details, see page 45.

In addition, Epson offers free Extra Care Home Service during your warranty period. In the

unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired.

Instead, Epson will ship you a replacement unit anywhere in the United States or Canada,

usually via overnight delivery. See your Extra Care Home Service brochure for details.

We encourage you to please register your projector. To register, simply fill out the registration

card that came with your projector and mail it to Epson. Or you can register online at

http://www.epson.com/webreg. Registering also lets you receive special updates on new

accessories, products, and service.

6Welcome!

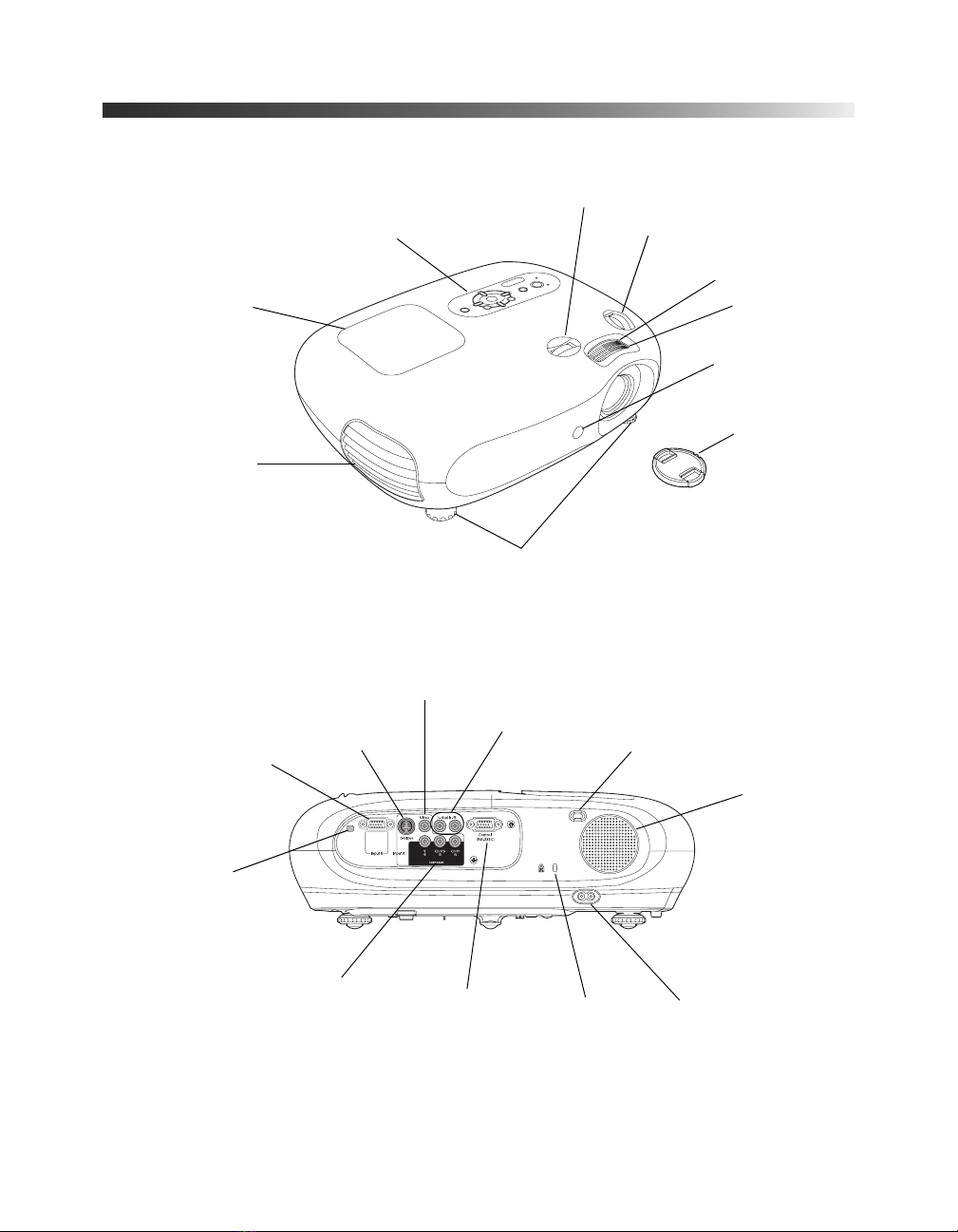

Projector Parts

Control panel

Infrared receiver

(for remote control)

Ventilation slots

Lens cover

Focus ring

Zoom ring

Adjustable

feet

Speaker

S-video port

Video port

(composite video)

Input B (computer)

Component video port

AC power inlet

Infrared receiver

Audio ports

Control port (for

service use only)

Vertical lens shift

Horizontal lens shift

Kensington

security lock

Lamp cover release slot

Lamp cover

Welcome! 7

Projector Controls

Power button

Turns the projector on and off

Power light

Indicates

operating status

Warning light

Alerts you to

problems

Keystone correction buttons

Adjust screen shape

Volume buttons

Adjust speaker volume

Menu button

Displays or hides

projector menus

Source button

Switches the

video input source

Esc button

Exits the current

function or menu

Aspect button

Changes the

picture’s aspect ratio

udlr Arrow buttons

Navigate menus

Enter button

Selects menu options

Source buttons

Switch between equipment

connected to the projector

Power buttons

Turn the projector

on and off Aspect button

Changes the picture’s

aspect ratio

Volume buttons

Adjust speaker volume

A/V Mute button

Turns off audio and video

ESC button

Exits the current function

or menu

Auto button

Optimizes computer images

Menu button

Displays or hides

projector’s menus

dlr Arrow and Enter buttons

Navigate menus and select menu

options

Picture buttons

Adjust brightness, contrast,

color temperature, and skin

tones. Also let you select a color

mode or recall memory settings.

Still button

Freezes the picture and sound

Keystone buttons

Adjust screen shape

8Welcome!

Optional Accessories

Epson provides the following optional accessories for the projector:

You can purchase these accessories from an Epson authorized reseller. To find the nearest

reseller, please call 800-GO-EPSON (800-463-7766). To purchase online, visit

www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for reseller

referral.

Product Part number

Replacement lamp ELPLP33

Air filter replacement ELPAF09

Customized carrying cases:

Samsonite®wheeled soft case

Samsonite soft shoulder bag

ELPKS35

ELPKS43

Ceiling mount

Suspension adapter

False ceiling plate

ELPHT020

ELPHTAPL

ELPHTFCP

Kensington security lock ELPSL01

S-video cable F8V308X25

Welcome! 9

About This Manual

See the Quick Setup sheet to connect the projector to your video or computer equipment.

This book contains information on using the projector, in addition to maintenance

instructions, troubleshooting tips, important safety instructions, specifications, and warranty

information.

Please follow these guidelines as you read through the manual:

Warnings: Must be followed carefully to avoid bodily injury.

Cautions: Must be observed to avoid damage to your equipment.

Notes: Contain important information about your projector.

Tips: Contain helpful projection tips.

Getting More Information

Need additional help? Take advantage of Epson’s automated support services 24 hours a day

at http://support.epson.com. Use this site to view FAQs (Frequently Asked Questions) or

product information and e-mail your questions to Epson support.

If you need more help, you can use the Epson PrivateLine®Support service. Call

(800) 637-7661 and enter the PIN on the PrivateLine support card that came with your

projector.

10 Welcome!
