ERGONOMIC EHL Bedienungsanleitung

In-Line Panel

Instruction Manual

EHL

IMPORTANT INFORMATION

• Toughenedglassiscompletelysafeforuseinourshowerenclosuresandbathscreens;providingourproductsareinstalledaccordingtoour

guidelines.

• Itisimportanttonotethattheglassmustnotbemountedor‘pinched’insuchawaythatwouldcauseastresspointtodevelopintheglass.In

addition,itmustnotbesubjecttoanysharpimpactorseveretemperatureuctuationwhichmayalsocauseastresspointtodevelopintheglass.

• Toughenedglassisphysicallyandthermallysignicantlystrongerthanstandardglass.Duringthetougheningprocessthestressescontained

withinanyglassarebalancedsoifintheunlikelyeventsituationanyoftheaboveoccursandtheglassbreaks,theglasswillshattersafelyinto

smallthumbnailsizedbluntfragments.

Component Check List: Supplied

Description Quantity

EndCap 1

InlinePanel 1

LowLevelBracingAssembly 1

ScrewCoverTrim 1

Fixing Kit Components

Description Quantity

No4x1/4”PanHeadScrews 3

2.5mmDrillBit 1

BrandingBadge(ifapplicable) 1

5mmAllenKey 1

Equipment Check List: Not Supplied

Description

Electric/Batterydrill

6mmMasonryDrill

SpiritLevel

Screwdriver

PipeCutters

Hacksaw

Pliers

SealantGun

BathroomSealant

TapeMeasure

Pencil

Pleasemakesurethepurchaser/enduser

completesandreturnstheguaranteecard

whichisenclosedwiththisproduct.Failure

tovalidatetheGuaranteewillmeanonlythe1

YearStatutoryGuaranteewillapply.

CONSUMER GUARANTEE

PRE-INSTALLATION CHECKS

1. Checkyouhavethecorrectproduct.Pleaselookatthelabelsonthesideoftheproductpackaging.

2. Checkalltheproductcomponentsareintheboxandthexingkits.

3. Unpackyourproductandhandleitwithcare.

4. Pleasechecktheproductfordefectsordamage,oncetheinstallationhascommencedwecannotacceptresponsibilityforanydefectsordamage.

5. Pleasetaketimetoreadtheseinstructionspriortoinstallingyourproduct.

6. Beforeyoucommenceanydrillingchecktherearenohiddenelectricalcablesand/orwaterpipes.

7. Noattemptshouldbemadetore-workthetoughenedsafetyglass.

8. Theinstallationoftheproductshouldbeperformedbytwopersons.

9. Itisstronglyrecommendedthatthewallstheproductisgoingtobeinstalledonarevertical.

10. Itisstronglyrecommendedtheproductisttedonatiledsurfaceorsimilarwaterproofsurface.

11. Itisstronglyrecommendedthewallsaretiledandgroutedbeforetheproductisinstalled.

12. Ifthewallsand/orthetrayarenotlevelyouwillnotachievemaximumadjustmentoftheproduct.

13. Picturesusedareforillustrationpurposesonly,productdesignsmayalterslightlyasaresultofcontinuingproductdevelopment.

14. WedonotstipulatewheretheEuropeanStandardKiteMarkshouldbepositionedontheglasswhenbeingfactoryassembled.

15. Pleasenotethatsomenaturalmistingmayoccurwhenyouremovethisproductfromitspackaging,duetotheadditionoftheglassprotectionpre-

coating.Ifthisdoesoccurthiscaneasilyberemovedwithasoft,drycloth.

Ref:EHL-July2012

Step 1 - Inserting Door and Panel

1. LiftthedoorontothetrayandlocateintotheWallProle.

2. ApplyabeadofsealantthewidthoftheWallProlewherethe2ndprolewillmeetthetiledwallandtray.

3. Locatethe2ndWallProleontotheendoftheInlinePanel.

4. LifttheInlinePanelontothetrayandlocatefullyintotheverticalaluminiumofthedoor.

5. Screwxthe2ndWallProletothewall(makesuretheproleiscompletelyverticalusingaspiritlevel).

6. LifttheInlinePaneluptobeabletoaddabeadofsealanttotheinsideoftheWallProle

• You will need the assistance of someone when doing this procedure.

• Failure to carry out Stages 2 and 6 can result in serious water damage and will not be covered under the

terms of the guarantee.

IMPORTANT:Makesuresteps1to4oftheDoorInstallationGuidearecompletedbeforettingyourInline

Panel(Thedoorimageusedintheseinstructionsisanexampleonly).BesuretoremovetheblackTransit

Capsbeforeproceeding.

↓

①

②

③

④ ⑤

⑥

↓

③

↓

④

⑥

↓

②

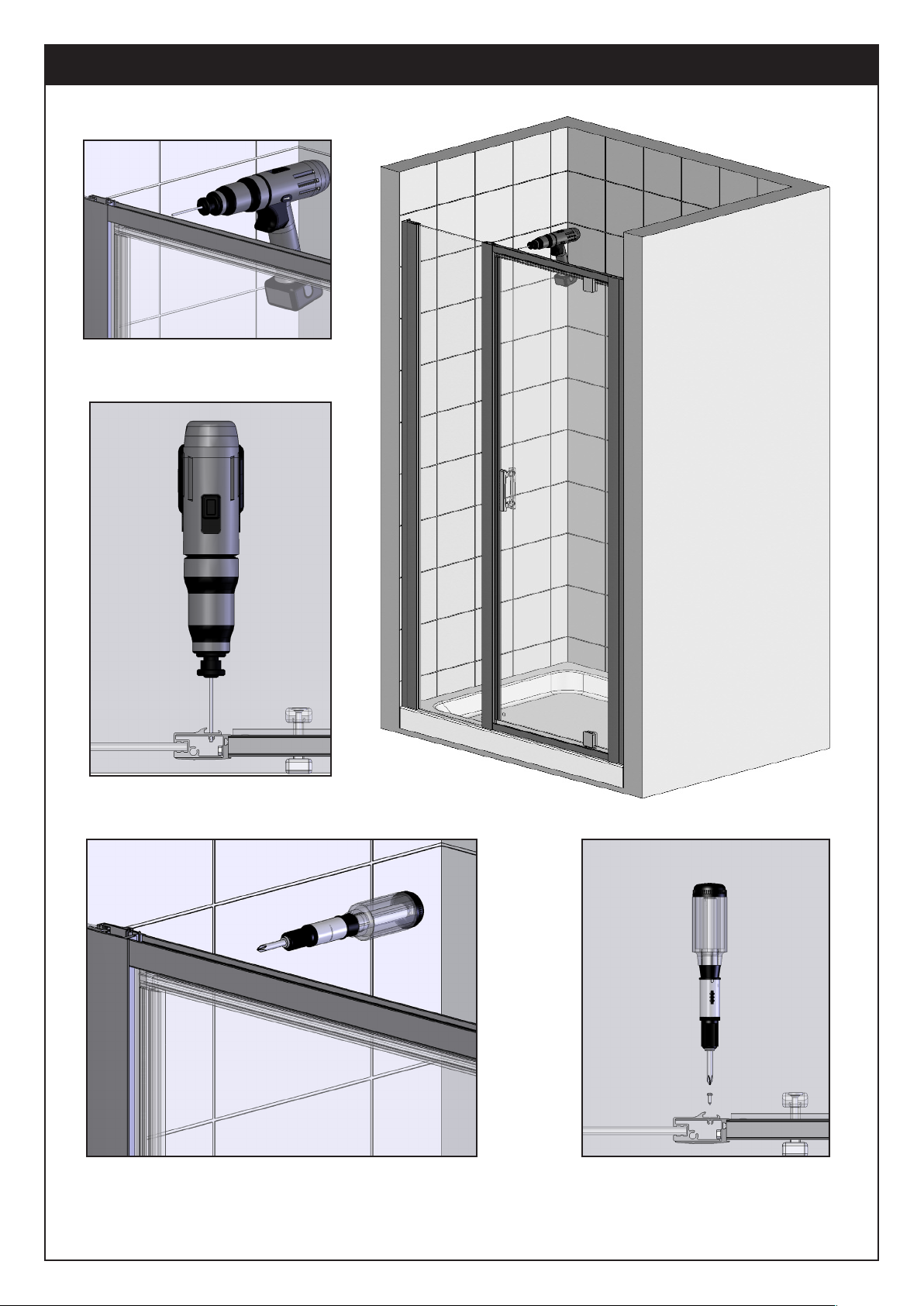

Step 2 - Fixing Panel and Door

1. MakesuretheDoorandInlinePanelprolesarelocatedcorrectlyandarelevelatthetopandbottom.

2. Drillthroughthepre-drilledholeswiththe2.5mmdrillbit(supplied).

3. ScrewttheDoorandInlinePaneltogetherusingtheNo4x1/4”screws.

②

③ ③

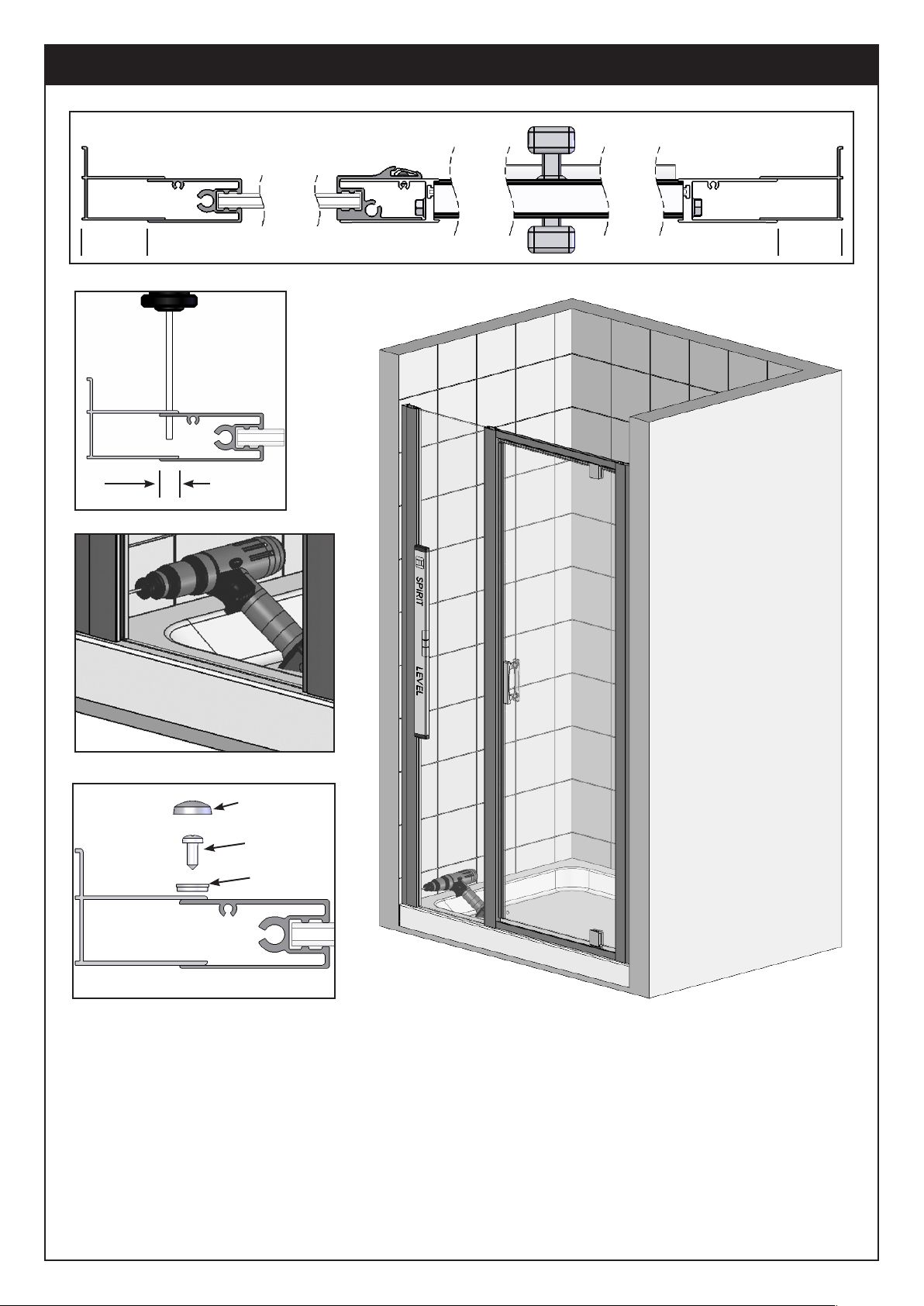

Step3-FixingPanelandDoortoWallProles

1. CentretheDoorandInlinepanelbetweentheWallProles.

• NOTE:Aminimumof10mmisrequiredbetweentheInlinePanel/DoorandWallProlesforxing.

2. MakesuretheInlinePanelandDoorarecompletelyverticalusingaspiritlevel.

• Prior to drilling/screwing the Inline Panel and Door refer to the Door installation guide to understand the

 Doorttingandadjustmentrequirements.

3. DrillthroughtheWallProleintothePanelverticalwiththe2.5mmdrillbit(supplied),makesurethatthe

InlinePanelandDoorremaincompletelyverticalduringthisprocedure.

• You will need the assistance of someone when doing this procedure.

4. FitthebasesonthescrewsandfastentheWallProleandInlinePaneltogether,pushttheCoverCaps.

• ItmaybebenecialtoapplysomepressuretotheDoorandInlinePanelassemblyandcheckthedoor

 operationpriortoxingthedoorside.

③

①

Equal Equal

10mm

minimum

④CoverCap

Screw

Base

⑥

Step 4 - Bracing

1. MeasurethedistancefromthebackwalltotheoutsidefaceoftheInlinePanelGlass.

2. Deductthatmeasurementfrom1038mm,shortentheBraceBarbythenewamount(see*Exampleabove)

3. PlacetheserratedendofthestraightsectionintotheLowLevelbraceassemblyandfastentogetherby

tighteningtheSetScrew,slidetheWallCupontheoppositeendtocompletetheBraceBarassembly.

4. PositionthefullbracingassemblyontotheInlinePanelGlass,donotxatthisstage.LoosentheAllen

screwintheLowLevelbraceassemblysothatitcanbeturnedtoachievethecorrectangle.

• There should be no metal parts touching the glass, the spacers must be used.

5. SlidethewholeassemblyuptothetiledwalltodeterminethepositionoftheWallCup,markusingapencil.

6. UnscrewtheinsertfromtheWallCupandpositionitcentrallyonthepencilmark.Markthroughtheslotfor

thepositionofthescrewholethatistobedrilled.

7. Drilltheholeusinga6mmMasonryDrill(notsupplied)andttheWallPlug.

8. Fixtheinserttothewallusinga40mmscrew(supplied).ScrewtheWallCupontotheinsertuptothewall.

9. PlacetherestoftheBraceBarassemblyontothepanelandintotheWallCup,checkthateverythingis

placedcorrectly(includingspacersbeingtted)thentightenallthescrewswiththeAllenKeys(supplied).

• Thereis35mmofadjustmentintheBraceBarassemblytoallowforcorrectadjustment.

• The Brace Bar must be level, use a Spirit Level and ensure the bubble is in the middle of the two lines.

• Thepanelmustbeverticallylevel,useaSpiritLevelandadjustthebracingtoachievethis.

③

⑧ ⑦

LowLevelBrace

WallCup

SerratedEnd

Straight

Section

Set

Screw

⑤

NOTE:TheStraightSectionoftheBraceBarassemblymayneedshortening,ifsouseahacksaworsimilar.

ItisIMPORTANTthatitisshortenedattheWallCupend-besuretoremoveallburrsandsharpedges.

BraceBar(*Exampleonly)

GivenDimension 1038mm

Walltooutsideofglass *878mm

ReduceBraceBarby *160mm

②

Step 5 - Fitting Screw Cover, Caps and Sealing

1. FittheScrewCoverTrim(ifyouhaveroomthiscanbesliddownfromthetop).

• CuttheCovertrimsushwiththetopoftheverticalprolesusingaStanleyknifeorsimilar,pleasetake

care when cutting.

2. FittheTopCapstothetopoftheDoor/Panel.

• On the vertical between the Panel and Door it may be necessary to remove a front leg on the Panel side.

3. UsingagoodqualitysealantsealbothsidesoftheWallProlesverticallyinsideandoutsidewherethey

meetthetiledwalls.

4. Sealtheenclosurehorizontallythefulllengthtothetray/wetroomoorontheoutsideonly.

• IMPORTANT: Failure to follow Stages 3 and 4 may result in serious water damage and will not be covered

under the terms of the guarantee.

• Do not seal the inside of the enclosure horizontally.

• Please allow 24 hours for the sealant to fully cure before using the enclosure.

5. PlacetheBrandingBadge(ifapplicable)onaprominentnonemovingpartofaluminium..

②

↓

①

③

Spare Parts

Part No. Description Q’ty Part No. Description Q’ty Part No. Description Q’ty

1EndCap 111 21

2WallCupAssembly 112 22

325mmBraceBar 113 23

4ExpandableJoint 114 24

5LowLevelBracing 115 25

6InlinePanel 116

7ScrewCoverTrim 117

8 18

9 19

10 20

If you need to replace any damaged parts please see illustration below for parts list then

call Customer Relations on 01325 328033/328034

TROUBLE SHOOTING GUIDE

Problem Solution

Leaking 1. Checkthetrayhasbeensealedcorrectlypriortoinstallationoftheenclosure(Step1in

theDoorInstructions).

2. Checktheinsidegaphasbeensealedcorrectlybetweenthetrayandwallproles(Step

2intheDoorInstructionsandStep1intheseInstructions).

3. Checkthatthebaseoftheenclosureissealedtothetrayontheoutsideonly(Step5).

4. Checktoseeifbothwallproleshavebeensealedverticallyinsideandoutsidewhere

theymeetthetiledwall(Step5).

5. Checkthatthebaseoftheenclosurehasn’tbeensealedtothetopofthetrayonthe

insideofthecubicle.(Step5).

Important: This enclosure should be water tested conforming to BS EN 14428

Enclosure Alignment 1. Checkthattheenclosureisttedontoatiledwallorasimilarsealedsurface(Step1in

theDoorInstructions).

2. Checkthatthewallproleshavebeentted15mmfromthefrontoutsideedgeofthe

tray(Step2intheDoorInstructions).

3. Checkthatthewallproleshavebeenttedcompletelyvertical(thebubblemustbein

thecentreofthetwolinesonaspiritlevel-Step2intheDoorInstructions).

4. Checktheenclosureiscompletelyverticalandlevel(Step1intheDoorInstructions).

Door not Operating

Smoothly

1. Checkthatthetrayiscompletelylevel(thebubblemustbeinthecentreofthetwolines

onaspiritlevel).

2. Checkthatthewallproleshavebeenttedcompletelyvertical(thebubblemustbein

thecentreofthetwolinesonaspiritlevel).

Some important information to help you Maintain your product.

Thefollowinginformationisallyouneedtokeepyourproductlookingnew.

Cleanyourproductusingamilddetergentdilutedinwaterandthenpolishedoffusingasoftcloth.

Ifyouliveinahardwaterarea,periodicallycleanyourproductusinga50/50solutionofwhitevinegarandwater.The

solutionshouldbeleftontheenclosureforapproximately5minutesthenrinsedoffusingwarmwater.Thismethodof

cleaningshouldremovelimescaleresidue.

Simple Maintenance

Ourproductsaregenerallymaintenancefree,howeveritmaybenecessarytolubricatewheelassembliesandother

movingpartsfromtimetotime.

Itisstronglyrecommendedthataqualitysiliconesprayisused.

A list of Don’t’s:

1. Don’tuseacidicbasedproductswhichareunsuitableforcleaningenamelsurfaces.

2. Don’tuseabrasivecleanersorcleanersusingbleachorsolvents,theseproductswilladverselyaffectthenishof

thealuminiumproles.

3. Don’tusescouringpads,powderoranysharpinstrumentswhencleaningtheenclosure.

Shouldyouexperienceanyproblemsduringinstallationpleaserefertothe

TroubleShootingGuideorcontactCustomerRelationson:

+44 (0) 1325 328033/328034

Toenablecustomerrelationstoprovideyouwithanexcellentlevelofserviceitisimportantthatyou

quoteyourproductCodeandReferenceNumber-thesecanbefoundontheGuaranteecard.
