CAUTION

WARNING

SAFETY INFORMATION

This manual contains important information on the installation, use and care of your

appliance. Please read this manual carefully before use. Follow instructions and keep the

manual for future reference.

The appliance is speciﬁcally constructed for domestic use and is therefore suitable for

the refrigeration and storage of fresh and frozen food and the production of ice-cubes.

The appliance has not been designed or manufactured for professional use. Esatto

declines all responsibility for damage deriving from improper use of the appliance. The

refrigerator has undergone the necessary tests on the tightness of the refrigeration circuit

and complies with the safety regulations.

WARNING

The WARNING symbol indicates information that concerns your personal safety

CAUTION

The CAUTION symbol indicates information on avoiding damage to the appliance

R600a

R600a WARNING LABEL

·This appliance contains a small quantity of flammable, non-synthetic R600a

refrigerant.

·Ensure that the tubing of the refrigerant circuit is not damaged during

transportation and installation.

·Ensure careful installing, handling and disposing to avoid safety hazards. If

accidental damage occurs, keep the appliance away from open ﬁres or devices

that produce sparks, unplug the appliance and call an authorised service agent.

Thoroughly ventilate the room in which the appliance is situated for several

minutes.

·Leaking refrigerant may cause eye injuries or could ignite.

·Hydrocarbon refrigerants have excellent refrigerant properties, minimal global

warming potential and no ozone depletion potential.

·Hydrocarbon refrigerants cannot be ‘retrofitted’ to an appliance that has not been

designed and approved to use that type of refrigerant.

·The room for installing the appliance must be at least 1m³ per 8g of refrigerant.

The amount of refrigerant in the appliance can be found on the rating plate

attached to the appliance.

R600a Refrigerant Warning

R600a

SAFETY INFORMATION

·Young children should be supervised to ensure that they do not play with the

appliance.

·Packing (e.g. plastic wraps, polystyrene etc.) can be dangerous for children.

There is a risk of suffocation. Keep packaging materials away from children.

Most of the packing material used is recyclable. Please separate the plastic and cardboard

and dispose through your local recycling depot or place in appropriate recycling collection

bins.

If disposing of this appliance, please contact your local authority for safe disposal. Incorrect

disposal may cause injury to the user or ﬂammable gases may cause environmental

damage. Remove the doors, cut off the main cable, break or remove spring or bolt catches to

prevent children from getting trapped or harming themselves.

WARNING

Safety of children

-The refrigerator is designed to operate on a single phase power supply within a voltage

range of 220-240V/50Hz.

-Do not allow any sharp objects to come in contact with the refrigerant system to avoid

damage to the refrigerant circuit.

-This product is for indoor use only.

-Do not place electrical items or cooking equipment nearby. Keep away from substances

which could cause ignition and ensure good ventilation is always available.

-Do not use electrical appliances inside the food storage compartments of the appliance

unless they are the type recommended by the manufacturer .

-Do not place objects on top of the appliance which are magnetic, heavy or ﬁlled with

water.

-If the supply cord is damaged, it must be replaced by authorised service personnel,

service agent or similarly qualiﬁed persons in order to avoid a hazard.

-Do not store flammable, explosive, volatile and highly corrosive materials in the

refrigerator. Containers with ﬂammable gases or liquids can leak at low temperature.

There is a risk of explosion or ﬁre.

-Do not splash water on the appliance. It may cause malfunction or electric shock.

-Do not place or operate any electrical appliance in the refrigerator.

-Always switch off and unplug the appliance before cleaning.

-This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

Safety Precautions

Information on disposal

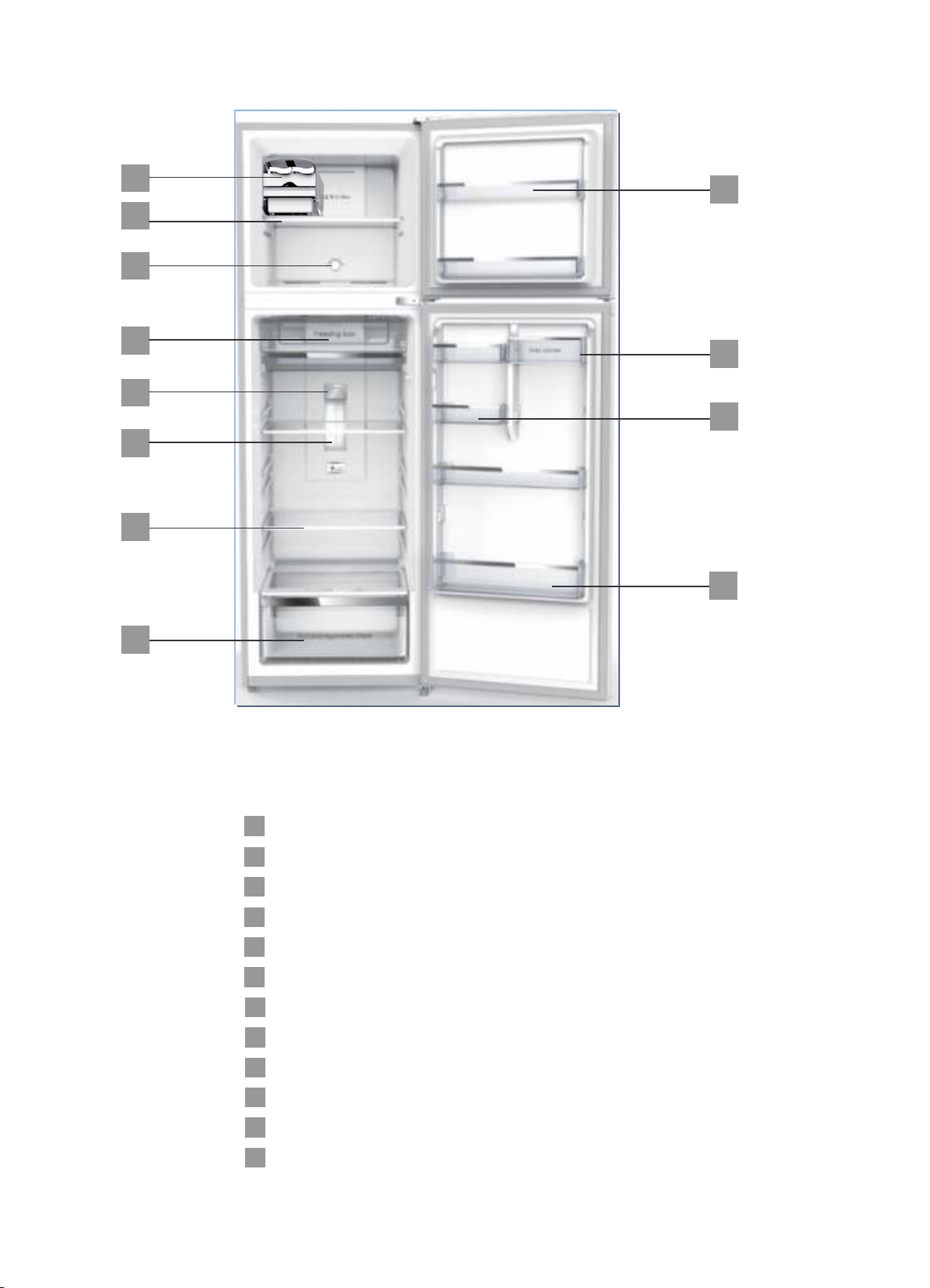

IDENTIFYING PARTS OF THE FRIDGE

Removable twist ice maker

Freezer glass shelf

Knob of freezing ventilation door

Deli compartment

Refrigerator temperature control panel

Refrigerator LED light

Refrigerator glass shelf

Fruit & vegetable drawer

Freezer door bin

Refrigerator sealed door bin

Refrigerator small bottle bin

Refrigerator large bottle bin with egg bracket

NOTE: Photo for reference only. The interior of different model may vary slightly.

TRANSPORTING

Remove all packaging material and adhesive tape before using your new refrigerator. This

includes the foam base and all adhesive tape holding the refrigerator accessories inside and

outside.

Clean both the inside and outside of the refrigerator with a soft cloth and lukewarm soapy

water.

Keep the refrigerator upright and avoid squeezing or vibration during

transport. Avoid a slanting angle over 45 degrees during handling.

Avoid the door or top cap from being under excessive stress when

moving, otherwise it may become deformed.

Positioning your refrigerator

Place your refrigerator in a well ventilated area away from a heat source and direct sunlight.

Do not install the refrigerator in a damp or wet location as this may cause damage to the

insulation and result in leakage. Condensation may also build up on the outer cabinet

causing rust.

Use the front two adjustable feet to level the refrigerator. Rotate the feet in a clockwise

direction to raise the refrigerator and anti-clockwise to lower. Ensure the refrigerator slightly

tilts backwards so that the drawers and doors self-close to provide a consistent closed seal.

There should be a clearance of at least 300mm from the top of

your refrigerator, and 50mm from either the sides of the

refrigerator (or) the back of the unit. If the refrigerator is to sit

ﬂush with the cabinetry, then a 50mm clearance must be

available to allow the doors to open freely and enable the

removal of bins and shelves.

The minimum clearance recommended at each side is 5mm,

if this is the case the doors must sit proud of the cabinetry by

50mm (not ﬂush). A 5mm side clearance will require 50mm of

airspace at the back of the unit to allow for adequate

ventilation.

50mm

5mm

DOOR

5mm

50mm

CAUTION

Allow for adequate ventilation around your refrigerator

INSTALLATION

Do not connect your refrigerator to the power supply immediately after it is placed

vertically. You should keep it standing for at least 3 hours before connection to let it

settle.

50mm

Minimum

recommended

airspace around

refrigerator

REVERSING THE DOOR

WARNING

Please ensure the refrigerator is unplugged from the main power source and any

items are removed from inside the refrigerator and door bins before reversing the

door.

Follow below steps to reverse the door from the supplied position.

1. Remove the top right hinge cover.

2. Remove the top hinge with screw driver.

3. Remove the F-door.

4. Remove the middle hinge with screw driver.

5. Remove the R-door.

6. Remove the lower hinge with screw driver.

7. Remove the hinge shaft cover, middle beam hole cover, and

the adjustable feet.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

REVERSING THE DOOR

8. Install the adjustable feet to the right side in front of the

refrigerator, mount the lower hinge subassembly to the left

side in front of the refrigerator.

9. Remove the hinge bushing and door stop of the R-door and

F-door with screw driver, and install them to the other side of

the doors.

10. Install the R-door onto the lower hinge.

11. Use a screw driver to mount the middle hinge to the left side

of the middle beam in front of the refrigerator.

12. Install the F-door onto the middle hinge.

13. Use a screw driver to mount the top hinge to the left side of

the top of the refrigerator.

14. Mount the top left hinge cover to the top hinge, mount the

hinge shaft cover to the top right of the refrigerator, mount

the middle beam hole cover to the right side hole of the

middle beam.

Step 8

Step 9

Step 11

Step 12

Step 13

Step 14

Step 10

OPERATING INSTRUCTIONS

Controlling the temperature

Refrigerator temperature:

The temperature of the freezer can be controlled manually

by adjusting the knob of freezing ventilation door (page 4

item 3). Turn to Normal position for normal use or turn the

knob clockwise for colder temperature.

Freezer temperature:

Temperature level setting key

Level 1 Level 2 Level 3 Level 4 Level 5

Press SET key to select temperature from level 1 to

level 5 (coldest). The refrigerator will run under the

setting temperature after 15 seconds automatically.

When the refrigerator is powered on, all temperature

level LED will light on for 3 seconds, and then the

current setting temperature level displays.

NOTE: Where there is no failure, the LED light

displays current setting temperature level. On the

occurrence of a failure, the corresponding LED light

will give a combined display of failure code (see

failure code section below).

Failure code

The following table is a list of the fault indicators and corresponding alarms.

Status of corresponding indicators

/Temperature control LED

Failure

Refrigerator compartment temperature sensor failure

Freezer compartment temperature sensor failure

Ambient temperature sensor failure

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Esatto Kühlschrank Handbücher

Esatto

Esatto EUF268W Bedienungsanleitung

Esatto

Esatto EUL237S Bedienungsanleitung

Esatto

Esatto ETM292X Bedienungsanleitung

Esatto

Esatto EBF69W Bedienungsanleitung

Esatto

Esatto ETM203W Bedienungsanleitung

Esatto

Esatto EBF112W Bedienungsanleitung

Esatto

Esatto EBM325W Bedienungsanleitung

Esatto

Esatto EBF95W Bedienungsanleitung

Esatto

Esatto EBF129W Bedienungsanleitung

Esatto

Esatto EBM529W Bedienungsanleitung

Esatto

Esatto ETF366W Bedienungsanleitung

Esatto

Esatto EUL237W Bedienungsanleitung

Esatto

Esatto EBM325W Bedienungsanleitung

Esatto

Esatto ECF142WE Bedienungsanleitung

Esatto

Esatto EUF268W Bedienungsanleitung

Esatto

Esatto ETM236S Bedienungsanleitung

Esatto

Esatto ESBS460S Bedienungsanleitung

Esatto

Esatto EBF129W Bedienungsanleitung

Esatto

Esatto EBF196W Bedienungsanleitung

Esatto

Esatto EMF87B Bedienungsanleitung

Esatto

Esatto EBF91S Bedienungsanleitung

Esatto

Esatto ECF198WE Bedienungsanleitung

Esatto

Esatto EBF91B Bedienungsanleitung

Esatto

Esatto ETM239X Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
