Eskimo ES 3047 Bedienungsanleitung

ES 3047/ES 3047 inox

9 place settings

10 place settings

half-load function

9 place settings

10 place settings

half-load function

To review the section on troubleshooting Tips

will help you to solve some common problems

by yourself .

Dear Customer,

Please carefully read this manual before using the

dishwasher, it will help you to use and maintain the

dishwasher properly.

Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions,

Operating Instructions, Installation Instructions and

Troubleshooting Tips, etc.

The manufacturer, following a policy of constant

development and updating of the product, may

make modifications without giving prior notice.

This user manual shall also be got from the

manufacturer or responsible vendor.

Keep it to refer to it at a later date.

If you can not solve the problems by yourself ,

please ask for the help of professional technicians.

Dishwasher Features.................................... ...3

A Water Softener...........................................4、

Filtering System.............................................13

Caring for the Dishwasher...............................14

B Loading the Salt into the Softener.................5、

C Fill the Rinse Aid Dispenser.........................5、

D Function of Detergent .................................6、

Wash Cycle Table...........................................11

Turning on the Appliance................................11

Change the Programme..................................12

At the end of the Wash Cycle...........................12

Positioning the Appliance...............................15

Water Connection..........................................16

About Power Connection................................15

Start of dishwasher........................................17

Before calling for service.................................18

Error codes...................................................19

Technical information.....................................20

Control Panel...................................................3

Recommengation...........................................9

For washing in the dishwasher the

folliwing cutlery/dishes..................................9

Attention before or after loading the

Dishwasher Baskets......................................9

Removing the Dishes................................. ...9

The Method Loading Normal Dishware......... ...10

1-1

This appliance is intended to be used in household

and similar applications such as:

-staff kitchen areas in shops, offices and other

working environments;

-farm houses;

-by clients in hotels, motels and other residential type

environments;

-bed and breakfast type environments.

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision

or instruction concerning use of the appliance in a

safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children

without supervision. For EN60335-1

This appliance is not intended for use by persons

(including children )with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge ,unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety. For IEC60335-1

This appliance is for indoor use only, for household

use only.

To protect against the risk of electrical shock, do not

immerse the unit, cord or plug in water or other liquid.

Please unplug before cleaning and maintenance the

appliance .

Use a soft cloth moisten with mild soap, and then use

a dry cloth to wipe it again.

（）

When using your dishwasher,

follow the precautions listed below:

1-2

This appliance must be earthed. In the event of a

malfunction or breakdown, earthing will reduce the risk

of anelectric shock by providing a path of least

resistance of electric current. This appliance is equipped

with a cord having an equipment-earthing conductor

and a grounding plug.

The plug must be plugged into an appropriate outlet that

is installed and earthed in accordance with all local

codes and ordinances.

Improper connection of the equipment-earthing

conductor can result in the risk of an electric shock.

Check with a qualified electrician or service

representative if you are in doubt whether the appliance

is properly grounded.

Do not modify the plug provided with the appliance;

If it does not fit the outlet.

Have a proper outlet installed by a qualified electrician.

Do not abuse, sit on, or stand on the door or dish rack of

the dishwasher.

Do not operate your dishwasher unless all enclosure

panels are properly in place.

Open the door very carefully if the dishwasher is

operating, there is a risk of water squirting out.

Do not place any heavy objects on or stand on the door

when it is open. The appliance could tip forward.

When loading items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal;

1-3

2) Warning: Knives and other utensils with sharp points

must be loaded in the basket with their points down or

placed in a horizontal position.

Check that the detergent powder is empty after

completion of the wash cycle.

Do not wash plastic items unless they are marked

dishwasher safe or the equivalent.

For plastic items not so marked, check the manufacturer's

recommendations.

Use only detergent and rinse additives designed for

an automatic dishwasher.

Never use soap, laundry detergent, or hand washing

detergent in your dishwasher.

Children should be supervised to ensure that they do not

play with the appliance.

The door should not be left open, since this could increase

the risk of tripping.

If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified

person in order to avoid a hazard.

During installation, the power supply must not be

excessively or dangerously bent or flattened.

Do not tamper with controls.

The appliance is to be connected to the water mains using

new hose sets and that old hose-sets should not be reused.

The maximum number of place settings to be washed

is 10.

The maximum permissible inlet water pressure is 1MPa.

The minimum permissible inlet water pressure is 0.04MPa.

Dispose of the dishwasher packaging material

correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard

international abbreviations:

PE for polyethylene, e.g. sheet wrapping material

PS for polystyrene, e.g. padding material

POM polyoxymethylene, e.g. plastic clips

PP polypropylene, e.g. Salt filler

ABS Acrylonitrile Butadiene Styrene, e.g. Control

Panel .

Packaging material could be dangerous for children!

For disposing of package and the appliance please

go to a recycling centre. Therefore cut off the power

supply cable and make the door closing device

unusable.

Cardboard packaging is manufactured from recycled

paper and should be disposed in the waste paper

collection for recycling.

By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences

for the environment and human health, which could

otherwise be caused by inappropriate waste handling

of this product.

For more detailed information about recycling of this

product, please contact your local city office and your

household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted

municipal waste. Collection of such waste separately

for special treatment is necessary.

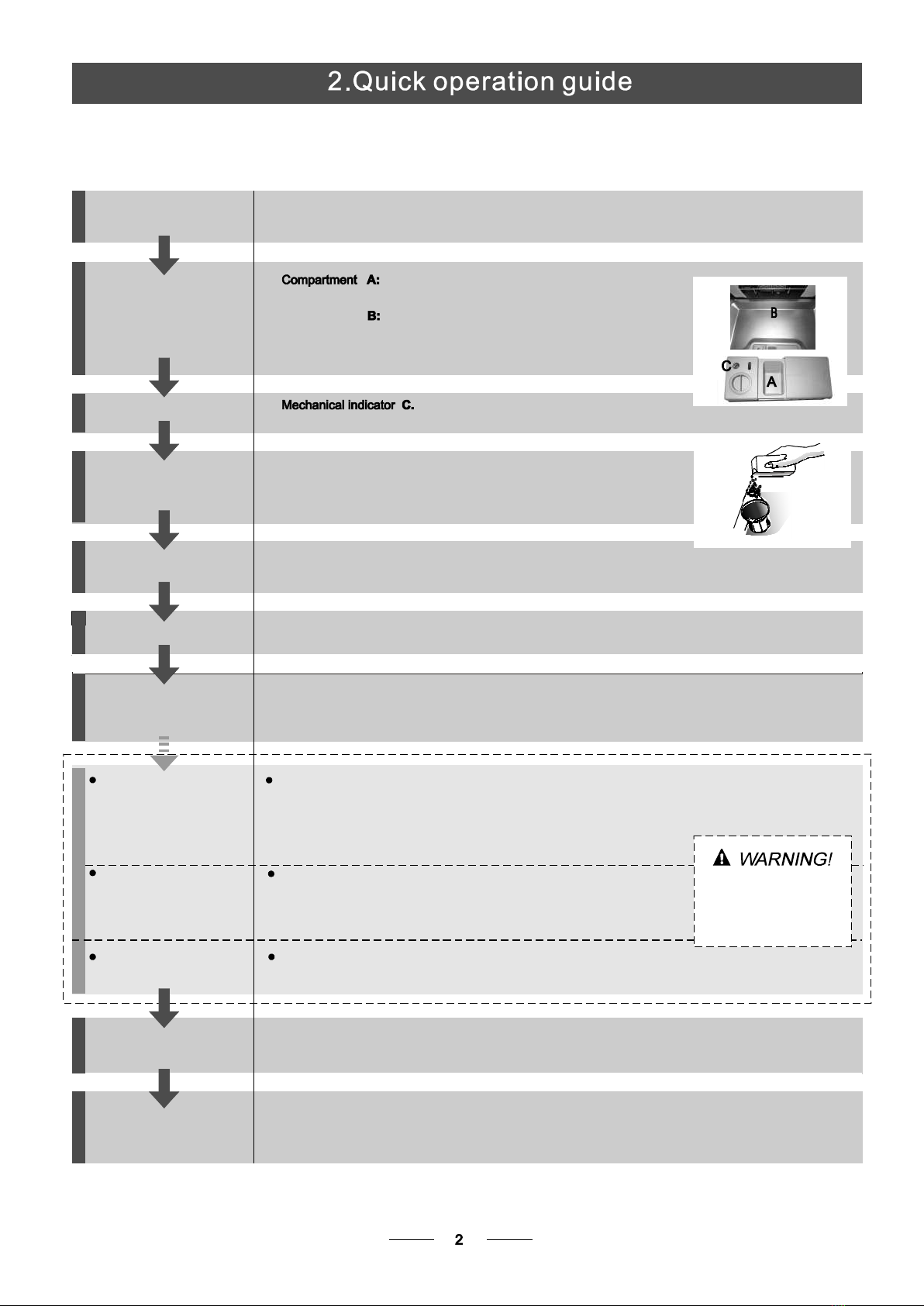

For detailed operating method read the corresponding content on the instruction manual.

With each wash cycle.

Compartment

For programmes with pre-wash only.

(Follow the user instructions!)

Electric indicator on control panel (if provided).

Check the rinse aid level

(On models with water softener system only.)

Electric indicator on control panel (if provided).

If there is no salt warning light in the control panel

(for some models), you can estimate when to fill the salt into

the softener by the number of cycles the dishwasher has run.

Check the regeneration

salt level

Load the baskets

Select a programme

Turn on the water tap and press the Start/Pause button. The machine will start working

after about 10 seconds.

Running the dishwasher

Switch off the appliance

Turn off the water tap,

unload the baskets

Fill the detergent dispenser

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling

the dishes and utensils while they are still hot and more susceptible to break.

They will also dry better.Unload the appliance, starting from the lower basket.

Changing the programme

Add forgotten dishes in the

dishwasher.

Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,

then load the baskets. Refer to the dishwasher loading instructions.

Close the door, Press the Programme button until the selected programme lights up.

( See the section entitled Operationg instruction )“ ”

When the working cycle has finished, the buzzer of the

dishwasher will sound 8 times, then stop.

Turn off the appliance using the ON/OFF button.

If the appliance is switched

off during a wash cycle.

Open the door carefully.

Hot steam may escape

when the door is opened!

If the appliance is switched off during a wash cycle, when switched

on again, please re-select the washing cycle and operate the dishwasher

according to the original Power-on state ).

Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.

1.Press the start/pause button to stop the machine.

2.Open the door.

3.Add the forgotten dishes.

4.Close the door, then press the start/pause button, the dishwasher will

start running again.

1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent

may have already been released and the water already drained. If this is the case, the detergent

dispenser must be refilled.

2. Press the Start/Pause button then press the program button for more than 3 seconds to cancel the

running programme.

3. Select a new programme.

4. Restart the dishwasher.

611

Back View

Front view

Lower basket

Salt container

Dispenser

Cup shelf

Spray arms

Filter assembly

Inlet pipe connector

Drain pipeUpper basket

Cutlery rack

Inner pipe

910

before using it for the first time.

To get the best performance from your dishwasher, read all operating instructions

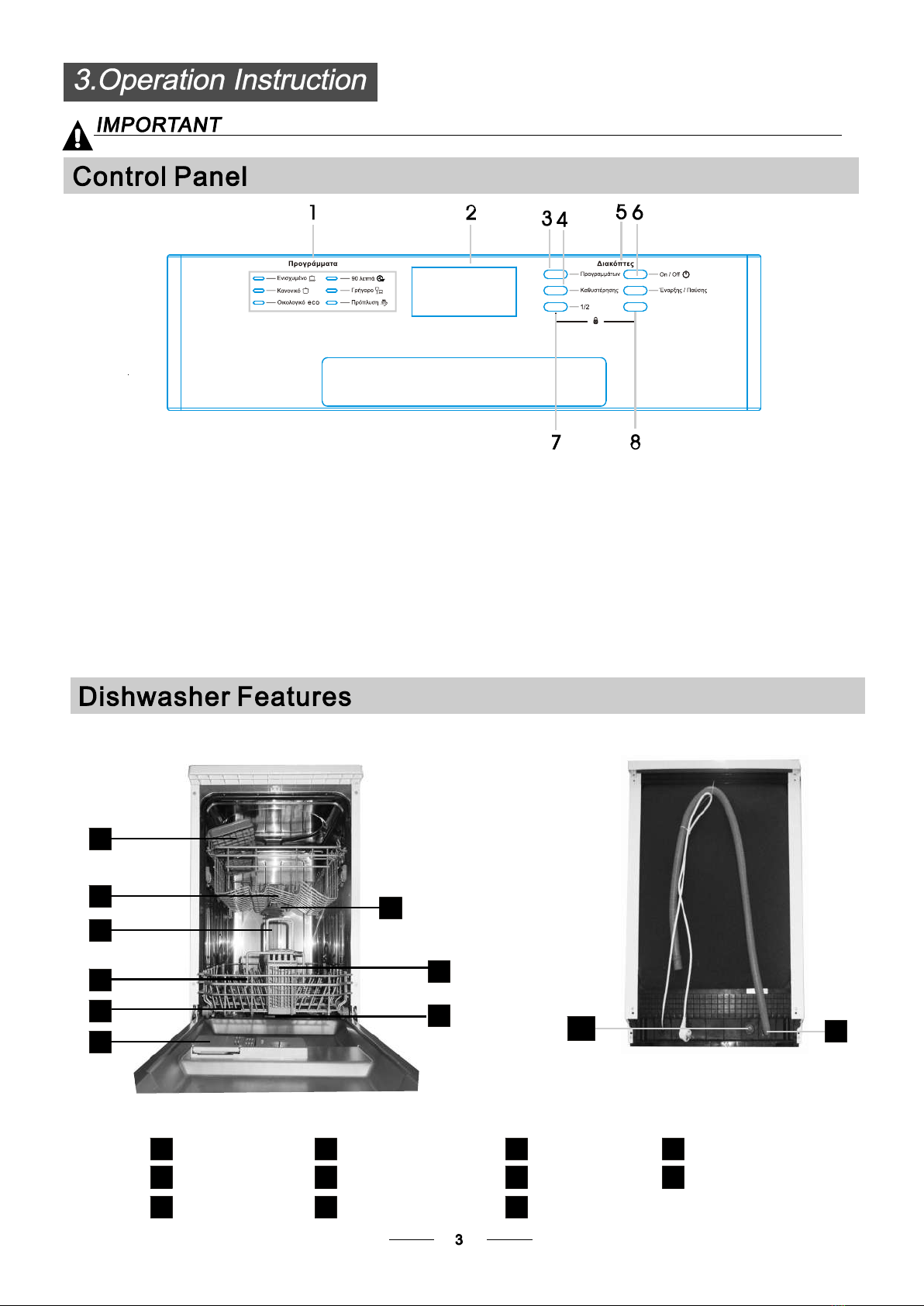

6.Start /Pause button: To start the selected

washing program or pause the washing program

when the machine is working.

5.Power Button: To turn on/off the power supply. 8.Child lock button: press the two buttons

simultaneously to lock the program.

4.Delay Button : To Press the button to delay.

3.Program Button : To Press the button to select

appropriate Program.

1. Program indicators: to show which

program you have chose;

2.Display screen: to show the reminding time

and the state(running state, delay time etc )

7.Half load functions Button: To select Half load

functions. (With this Half load function you can

only use it when you have only about or less than

6 place setting dish wave, and you will see less

water and energy consumption , can only be used with

Intensive, Normal, Eco and 90min .)

WATER SOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will

form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate

lime and minerals from the water.

If your model does not have any water softener, you may skip this section.

Before using your dishwasher for the first time:

A. Set the water softener

B. Add 1.5Kg dishwasher salt and then full fill the salt container with water

C. Fill the rinse aid dispenser

D. Fill in detergent

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have

a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority

can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of

the water used. This is intended to optimise and customise the level o f salt consumption.

Contact your local water board for information on the hardness of your water supply.

Please follow the steps below for adjustment in salt consumption.

Clark: British degree

fH: French degree

DH: German degree

dH=1.25 Clarke=1.78 fH=0.178mmol/l1

The manufactory setting: H3(EN 50242)

1. Switch on the appliance;

2. Press the Start/Pause button for more than 5 seconds to start the water

softener set model within 60seconds after the appliance was

switched on;

3. Press the button to select the proper set according to

your local environment, the sets will change in the following

sequence: H1->H2->H3->H4->H5->H6;

4. Press the On/Off button or no operation for 5 seconds to end the set up model.

Start/Pause

dH mmol/l

0~5 0~0.94

6-11

1.0-2.0

12-17 2.1-3.0

0~6

7-14

15-21

Clarke

WATER HARDNESS

Selector Position

Salt consumption

(gram/cycle)

18-22 22-28 3.1-4.0

23-34 4.1-6.0

29-42

35-55

0~9

10-20

21-30

31-40

41-60

61-98 43-69 6.1-9.8

1. The salt container must only be refilled when the salt warning light in the control panel comes on.

Depending on how well the salt dissolves, the salt warning light may still be on even though the

salt container is filled.

If there is no salt warning light in the control panel (for some Models),you can estimate when to fill

the salt into the softener by the cycles that the dishwasher has run.

2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained

in the following:

Attention!

Only use salt specifically designed for the use in dishwashers! Every other type of

salt not specifically designed for the use in a dishwasher, especially table salt, will

damage the water softener. In case of damages caused by the use of unsuitable

salt the manufacturer does not give any warranty nor is liable for any damages caused.

Only fill with salt just before starting one of the complete washing programs.

This will prevent any grains of salt or salty water, which may have been spilled,

remaining on the bottom of the machine for any period of time, which may cause

corrosion.

Full fill the salt container with water,It is normal for a small amount of water to come out of the

salt container.

AAfter the lower basket has been removed, unscrew and remove the cap from the salt container.

BPlace the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.

DAfter filling the container , screw the cap tightly back clockwise.

EThe salt warning light will stop being after the salt container has been filled with salt.

FImmediately after filling the salt into the salt container, a washing program should be started

program Otherwise the filter system, pump or other important parts of the machine may be damaged

by salty water. This is out of warranty.

(We suggest to use a short

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Eskimo Spülmaschine Handbücher

Eskimo

Eskimo ES 605 DW Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
