Essence Security ES700SK2 Bedienungsanleitung
Essence Security International Ltd. FCC ID:YXG-ES700SK2
IC:11061A-ES700SK2
Page 1 of 6
PHOTOGRAPHS OF INSTALLATION
This document contains 5 photographs
Essence Security International Ltd. FCC ID:YXG-ES700SK2
IC:11061A-ES700SK2
Page 2 of 6
The user receives the Smoke Detector without the batteries and a Wall Mount separated. The
Wall Mount shall be installed on the wall ((photograph No. 1).
For installation, the user must hold the device and insert the 2 batteries at the rear side of the
detector (photograph No. 2), where the label is located.
The sample of the detector installation on the wall is shown in the following photographs No 3
to No.5.

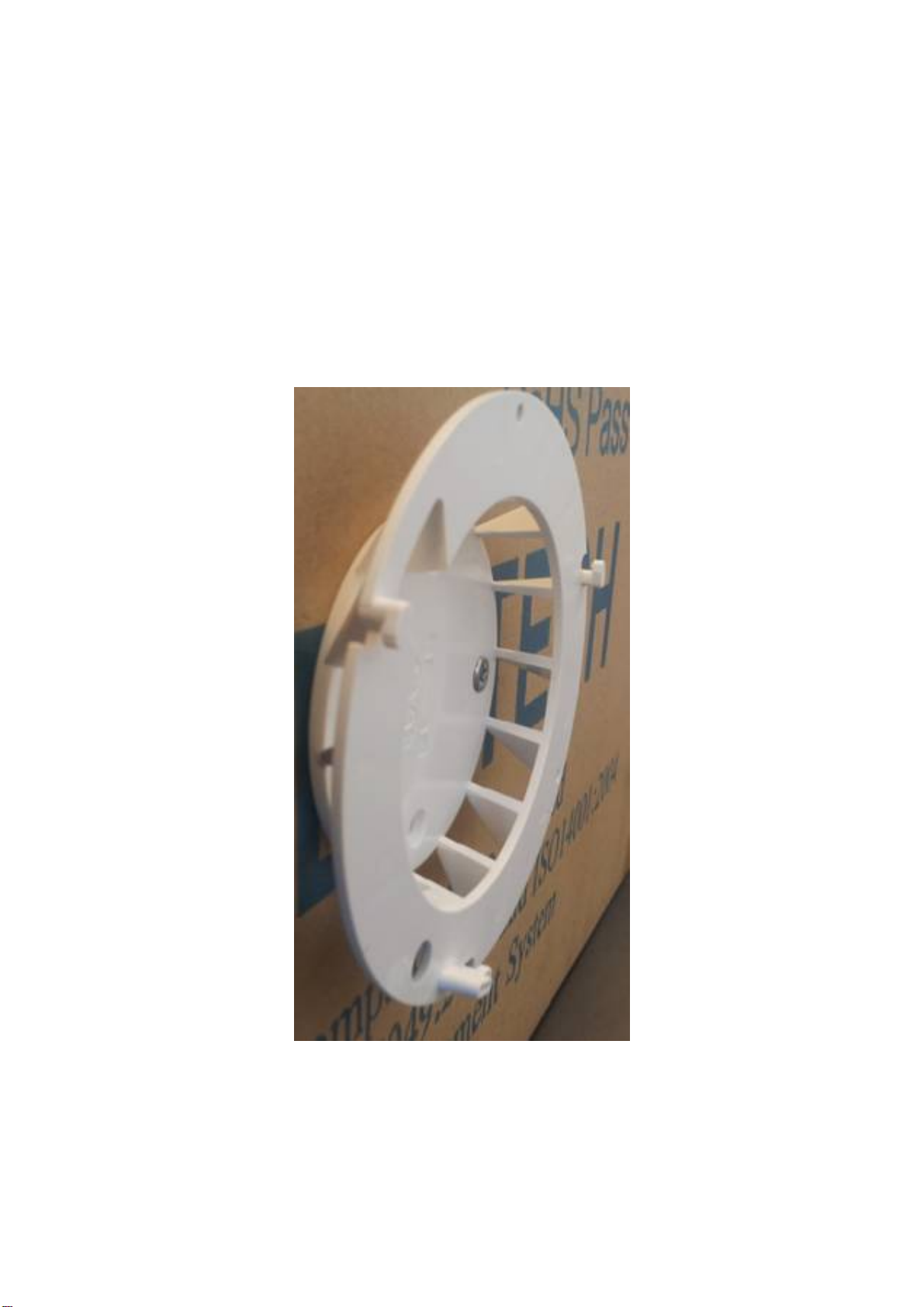

Photograph No.1
ES700SK2 smoke detector wall mount
Essence Security International Ltd. FCC ID:YXG-ES700SK2
IC:11061A-ES700SK2
Page 3 of 6

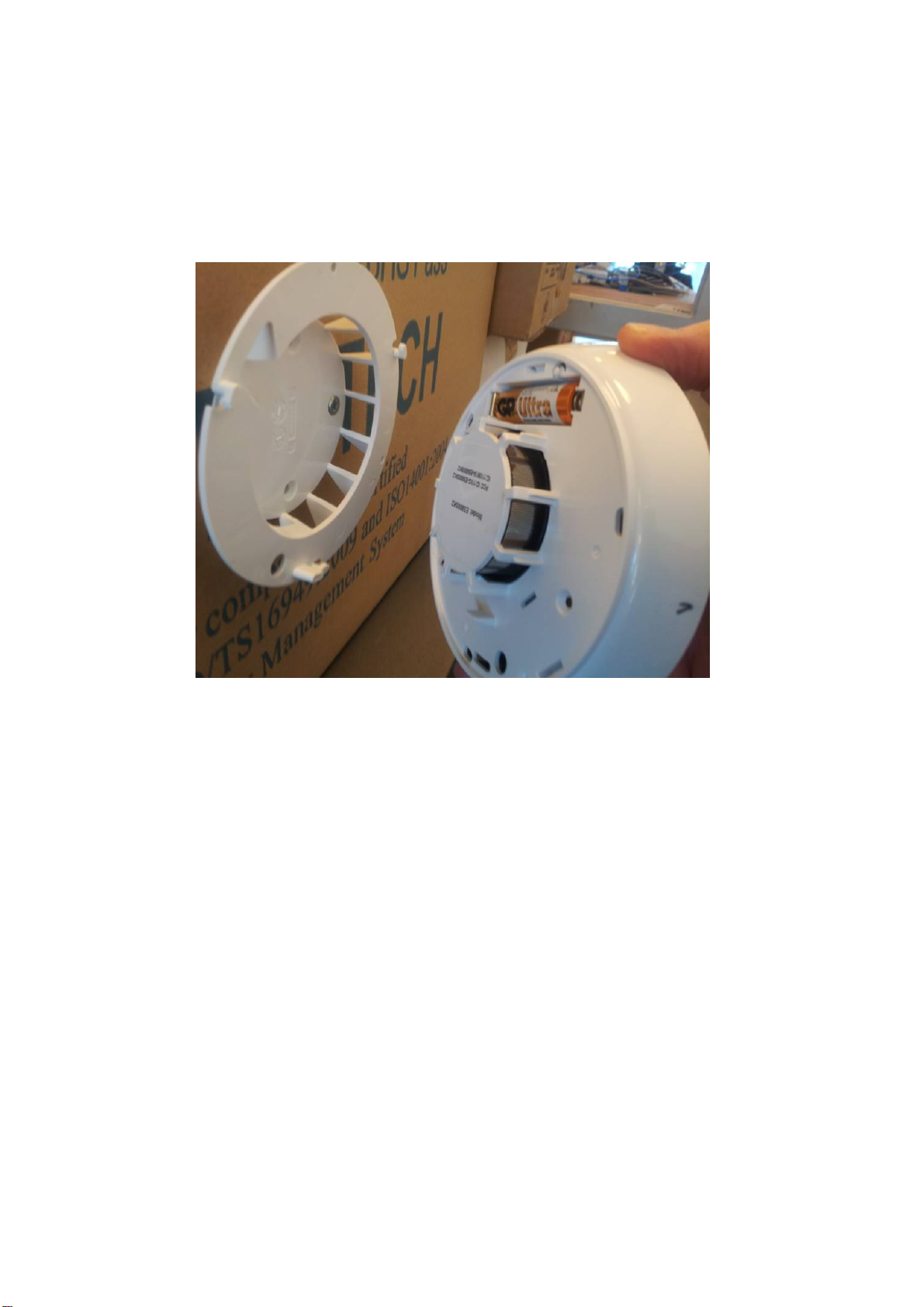

Photograph No.2
ES700SK2 smoke detector with a label view
Essence Security International Ltd. FCC ID:YXG-ES700SK2
IC:11061A-ES700SK2
Page 4 of 6

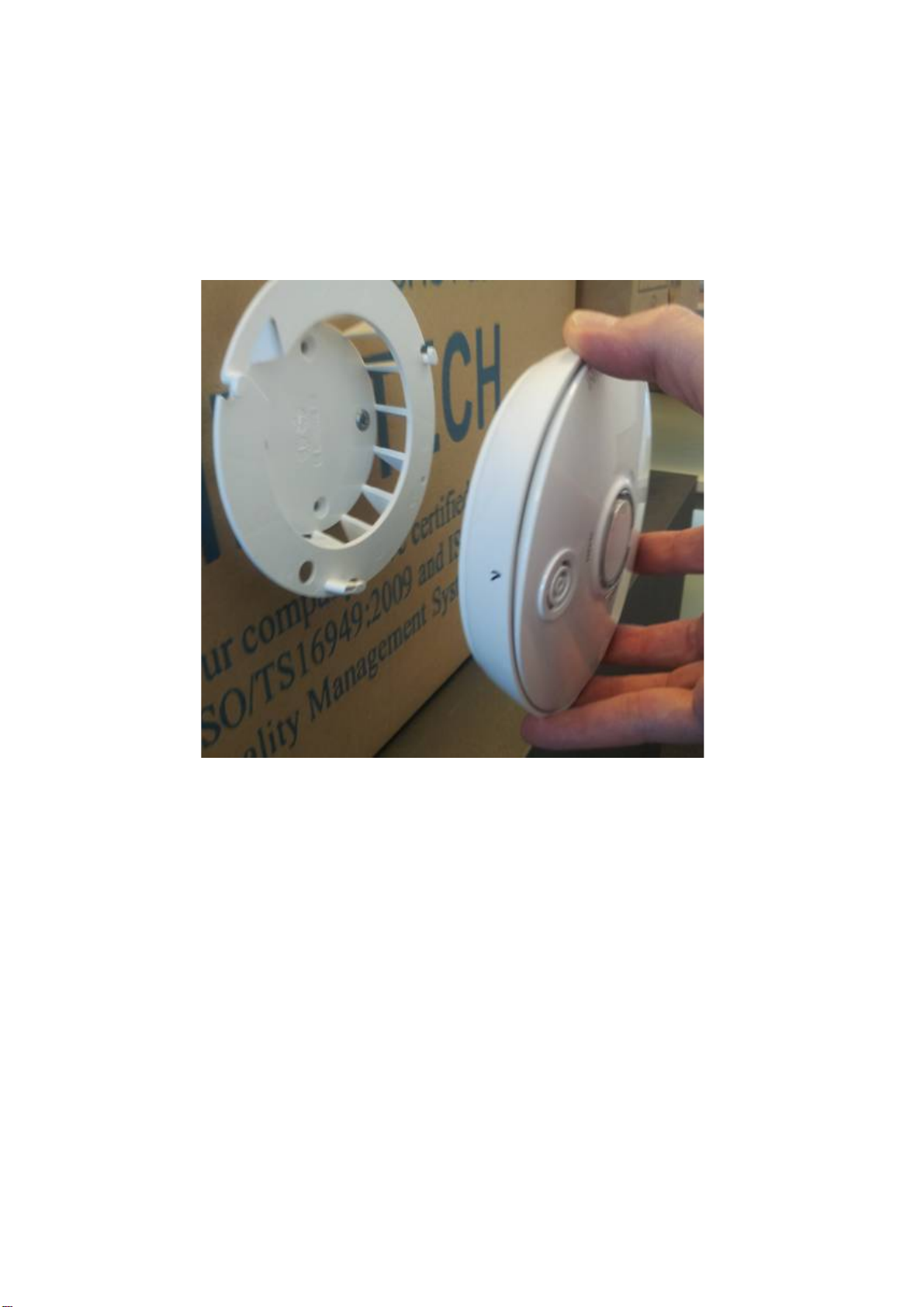

Photograph No.3
ES700SK2 smoke detector installation
Essence Security International Ltd. FCC ID:YXG-ES700SK2
IC:11061A-ES700SK2
Page 5 of 6

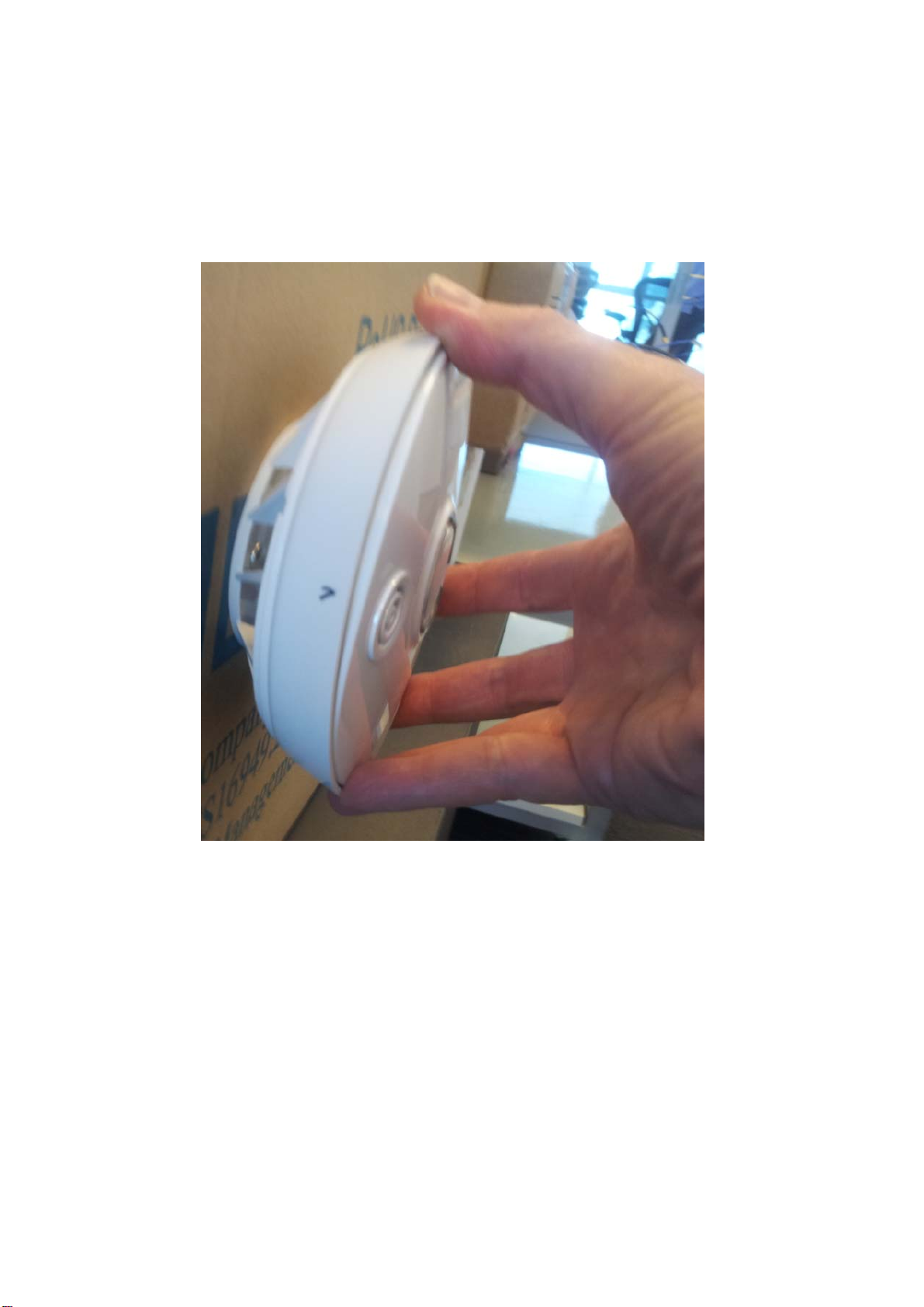

Photograph No.4
ES700SK2 smoke detector installation
Essence Security International Ltd. FCC ID:YXG-ES700SK2
IC:11061A-ES700SK2
Page 6 of 6

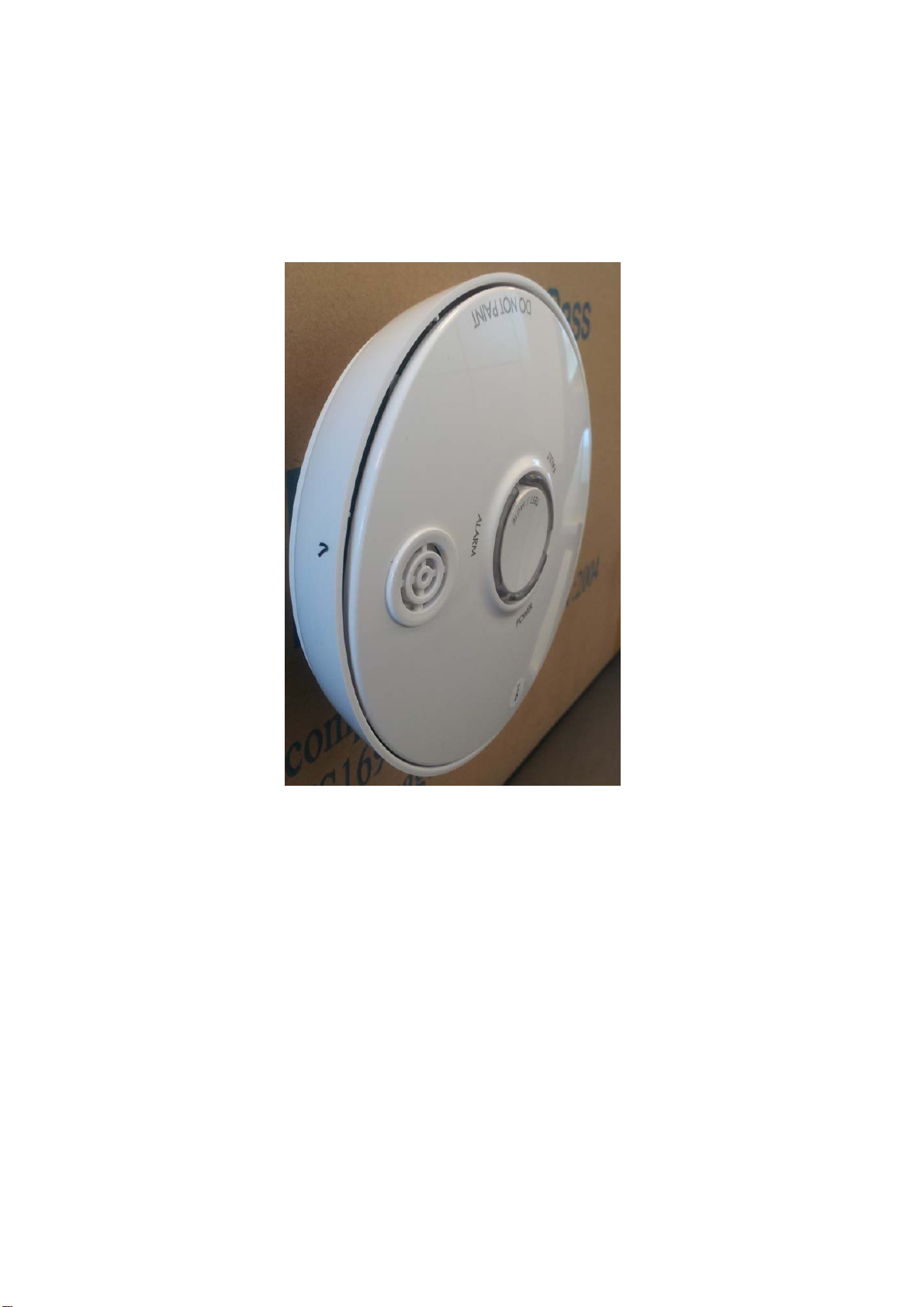

Photograph No.5
ES700SK2 smoke detector installed
