Estate TEDL640AW0 Bedienungsanleitung

c1992 WHIRLPOOL CORPORATION

MODEL

W−White, N−Almond

11−92 Litho in U.S.A.

ELECTRIC DRYER

TEDL640AW0

Part No. 4377008

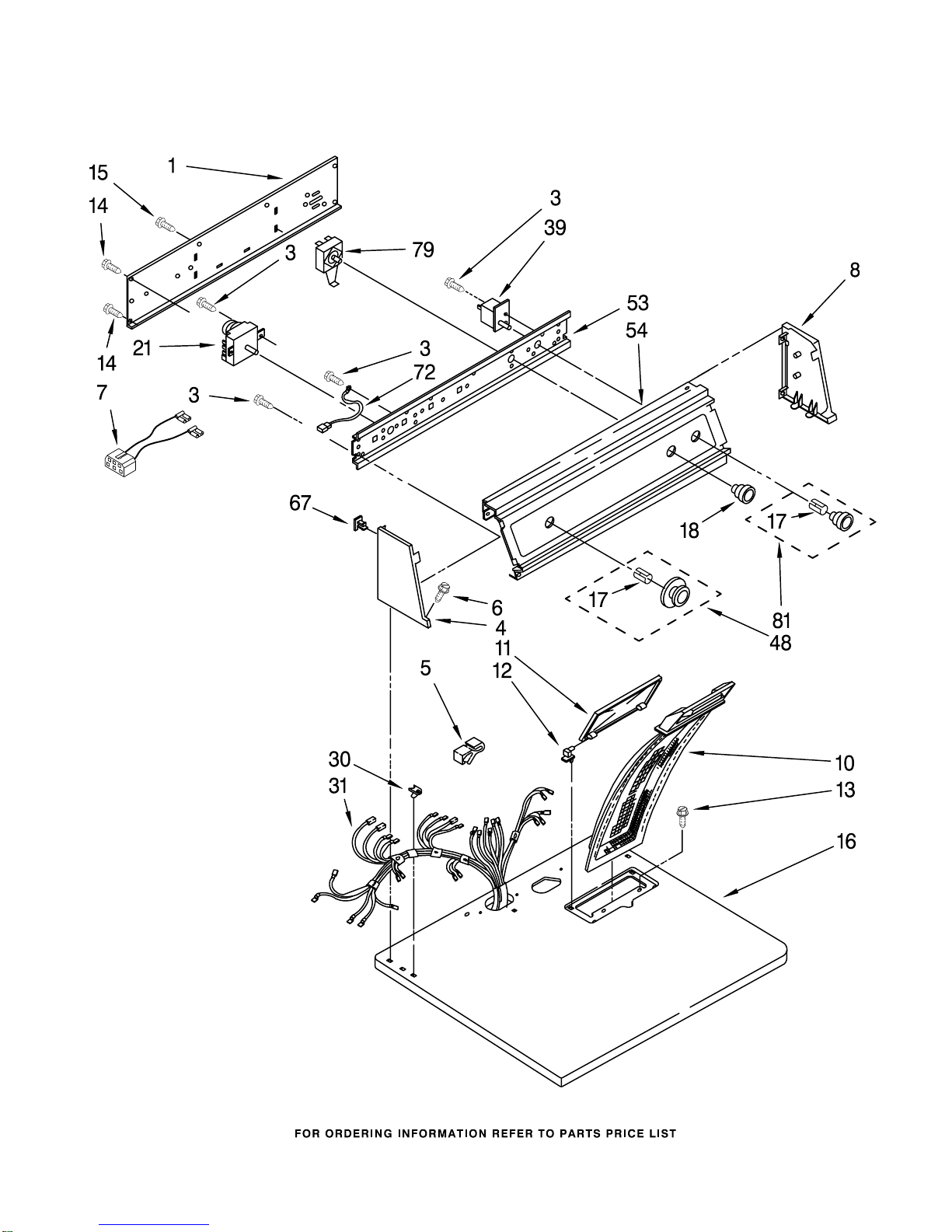

TOP AND CONSOLE PARTS

For Model: TEDL640AW0

4377008

TOP AND CONSOLE PARTS

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS OPTIONAL PARTS NOT INCLUDED

PAINTS

PAINT, TOUCH−UP (1/2 oz.)

PAINT, PRESSURIZED SPRAY

(13 oz.)

PAINT,BULK (1 qt.)

For Model: TEDL640AW0

4377008

1 3397545 Panel, Rear

Console

3 3390646 Screw,

8−18 x 5/16

4 3358016 Cap, End (L.H.)

5 689180 Clip, Retainer

6 3353145 Screw, Console

7 3396028 Wire Jumper

Assembly

8 3357998 Cap, End (R.H.)

10 337448 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 693994 Screw (4)

15 693995 Screw (2)

16 Top

3396022 White

3396023 Almond

17 688805 Clip

18 3393270 Control Knob,

Temperature

21 3396215 Timer, 60 HZ.

30 357213 Nut, Push−In (2)

31 3396219 Harness, Wiring

39 660936 Switch,

Push−To−Start

692021 (Alt.)

48 3391827 Timer Knob

Assembly

53 3396293 Bracket, Control

54 3397311 Panel, Control

67 689559 Clip, Push−On (4)

72 690853 Wire, Ground

79 3354281 Switch,

Temperature

81 3388125 Knob, Push

To Start

LIT3396300 Use & Care Guide

LIT3393229 Instructions,

Installation

LIT4377008 List, Service Parts 72017 White

72107 Almond

350930 White

350956 Almond

350938 Primer, Gray

350941 Leveler (Thinner)

799344 White (Uncut)

978883 Almond (Uncut)

LIT677818 Dryer

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

CABINET PARTS

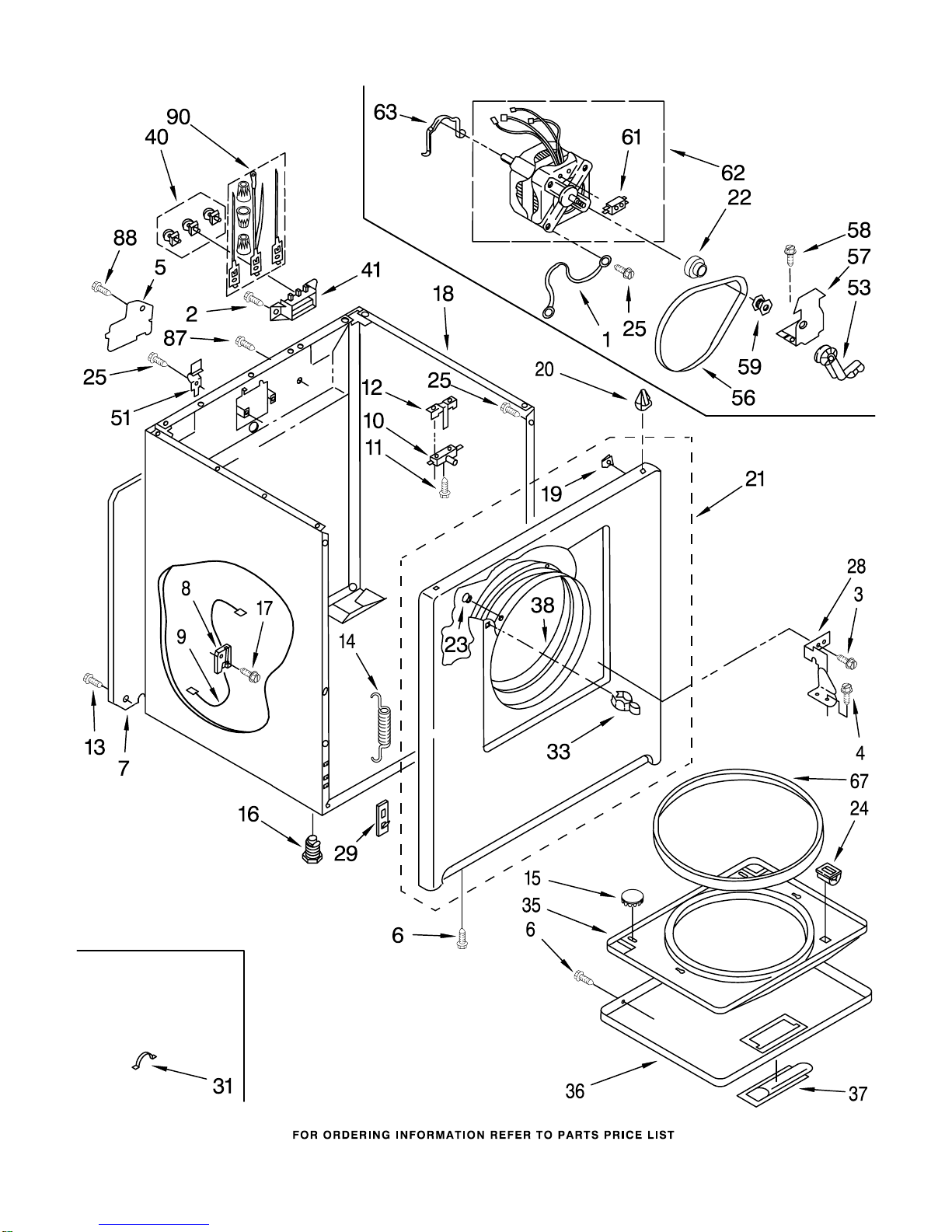

For Model: TEDL640AW0

4377008

CABINET PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 690236 Wire, Ground

(Motor)

2 3393008 Screw, 10−16 x 1/2

3 339493 Screw

4 688160 Screw,

8−15 x 1/2

5 690893 Cover, Terminal

Block

6 694091 Screw

7 346368 Panel, Rear

8 337182 Guide, Cable(L.H.)

337183 Guide, Cable(R.H.)

9 230131 Cable, Door (2)

10 347207 Switch, Door

11 98129 Screw,

6−20 x 1−3/8 (2)

12 691581 Lever, Door Switch

13 693994 Screw, Rear Panel

Mounting

14 337186 Spring, Door

15 660975 Plug

16 3392100 Foot, Dryer (4)

17 339493 Screw

18 Cabinet

3394109 White

3394110 Almond

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 Full Front

Panel Assembly

337464 White

689525 Almond

22 3393657 Belt Restrainer

23 685203 Clip, Felt Pad

24 690081 Catch, Door

25 343641 Screw, 10−16 x 1/2

28 238456 Hinge, Door (R.H.)

238460 Hinge, Door (L.H.)

29 3394083 Clip, Front

Panel (2)

31 98997 Clip, Harness

33 696144 Strike, Door

35 695953 Door, Rear

36 Door Front

348737 White

689485 Almond

37 Handle, Door

690270 White

690271 Almond

38 349462 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 690261 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt,

5/16−18 x 3/4

59 3389627 Pulley, 60 Hz.

61 3388235 Switch, Motor

62 3391888 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

343481 (Alt.)

685441 (Alt.)

67 3390734 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

88 693995 Screw, 10−16 x 1/2

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

For Model: TEDL640AW0

4377008

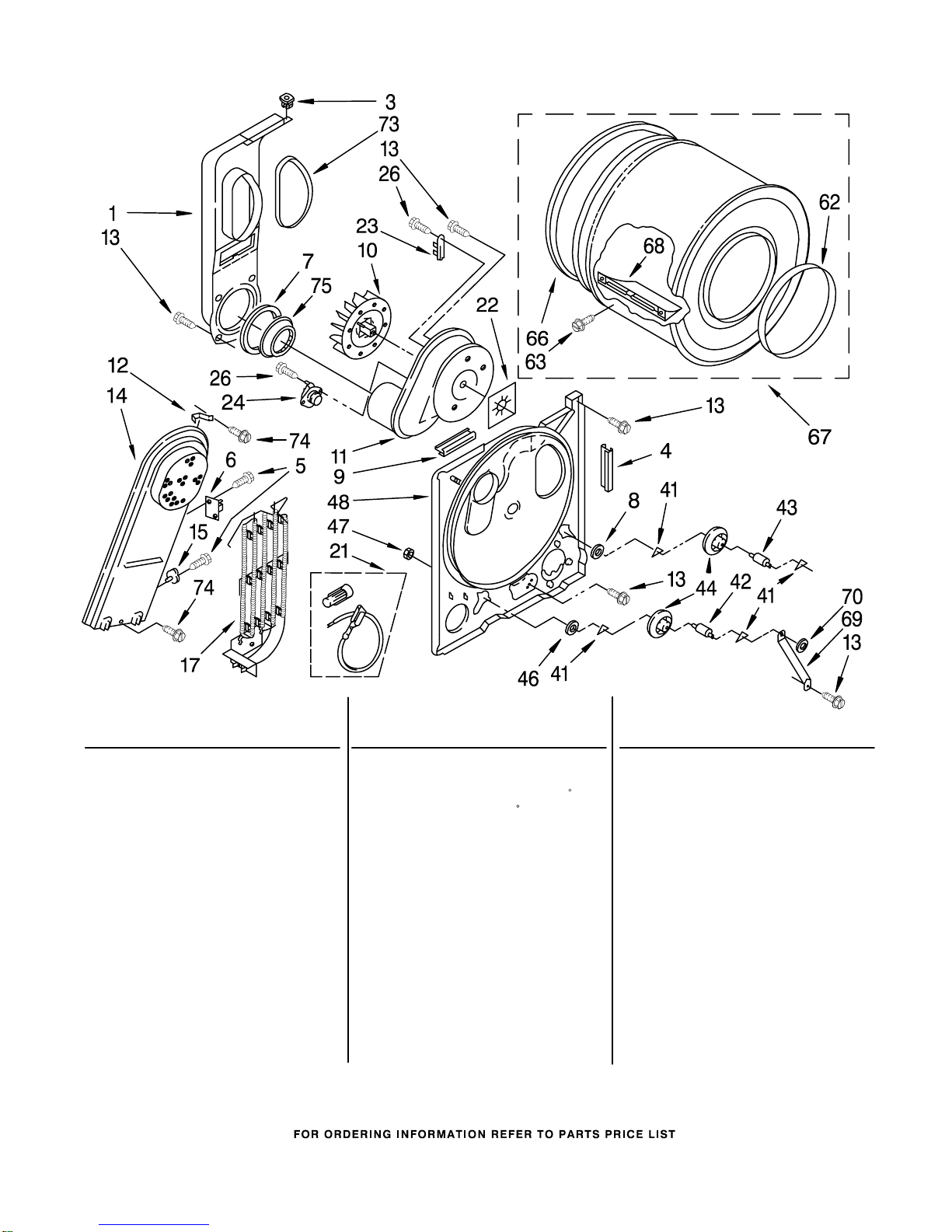

BULKHEAD PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: TEDL640AW0

4377008

1 694283 Lint Chute Assembly

3 98460 Nut, Push−In (2)

4 686889 Pad, Cabinet

5 90767 Screw, 8 x 3/8

6 3389946 Thermal, Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

8 3388703 Washer, Support

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 337272 Clip

13 343641 Screw, 10−16 x 1/2

14 695547 Box, Heater

15 3390291 Thermostat,

High Limit 250 F

(121.1 C) (60 Hz.)

17 660982 Element, Heater

(For 240 Volt

Installation)

693300 (Alt.)

696579 (Alt.)

693062 (Alt.)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

22 3392123 Seal, Blower Shaft

23 3392519 Fuse, Thermal

24 3387134 Thermostat,

Internal−Bias

26 695239 Screw, 8−18 x 3/8

41 690997 Ring, Tri

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 3389901 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 685775 Bulkhead

62 3394508 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 695584 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal

74 687128 Screw, 10−16 x 1/2

75 696302 Shield, Exhaust
