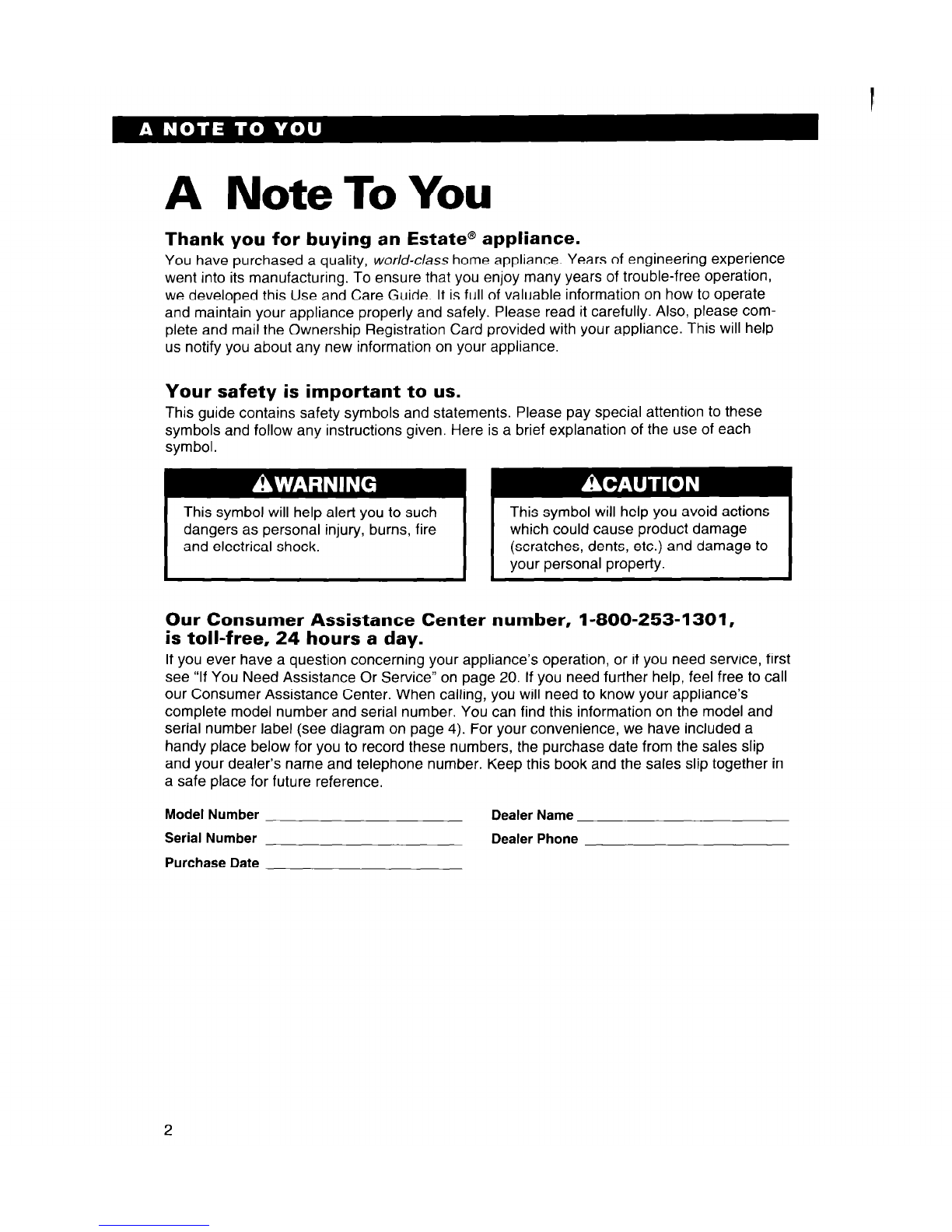

A Note To You

Thank you for buying an Estate@ appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable information on how to operate

and maintain your appliance properly and safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

Our Consumer Assistance Center number, 1-800-253-l 301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 20. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip

and your dealer’s name and telephone number. Keep this book and the sales slip together in

a safe place for future reference.

Model

Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

To reduce the risk of fire, electrical shock, or injury when

using your refrigerator, follow these basic precautions:

garage a few days.”

If you are getting rid of your old refrig-

erator, do it safely. Please read the

enclosed safety booklet from the Asso-

ciation of Home Appliance Manufactur-

ers. Help prevent accidents.

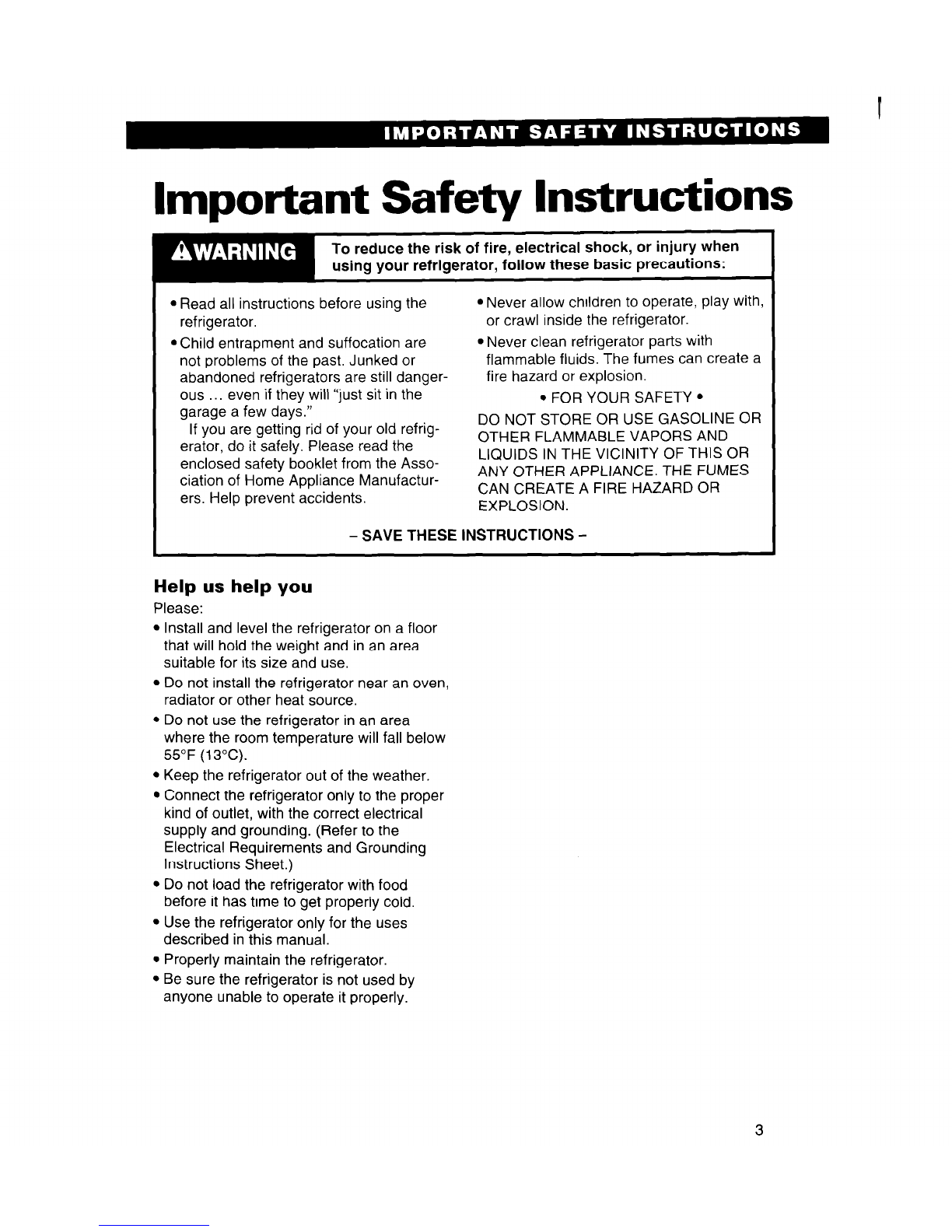

l Read all instructions before using the l Never allow children to operate, play with,

refrigerator. or crawl inside the refrigerator.

l Child entrapment and suffocation are l Never clean refrigerator parts with

not problems of the past. Junked or flammable fluids. The fumes can create a

abandoned refrigerators are still danger- fire hazard or explosion.

ous even if they will “just sit in the . FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding. (Refer to the

Electrical Requirements and Grounding

Instructions Sheet.)

l Do not load the refrigerator with food

before it has time to get properly cold.

l Use the refrigerator only for the uses

described in this manual.

. Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like. The model you pur-

chased may have all or some of the parts and features shown and they may not match the

illustration exactly. This manual covers several models.

Control panel

REFRIGERATOR EXTERIOR MOISTURE CONTROL FREEZER

I I I I

Refrigerator Exterior moisture Light Freezer

control control switch control

Model lT18HA (shown) and lTl8HD

Ice cube

trays -

Control

panel\

Model and

serial

number label

(on side wall)

Meat drawer -

Crisper cover

(glass on

lTl8HA,

plastic on

Trl8HD)

Crispers A

(behind base

grille)

- Freezer shelf

Utility

R compartment

Adjustable

1 shelves

(2 full-width

wire shelves

on lTl8HD)

- Base grille

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning your refrigerator .................5 Installing it properly ...........................6

Plugging it in .......................................5 Leveling it ............................................6

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

Cleaning your refrigerator

Removing packaging materials

NOTE: Do not remove any permanent

Remove tape and any inside labels (except instruction labels inside your refrigerator. Do

the model and serial number label) before not remove the Tech Sheet fastened under

using the refrigerator. the refrigerator at the front.

To remove any remaining glue:

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 14 and 15.

l Rub briskly with your thumb to make a ball,

then remove.

l Soak area with liquid hand-dishwashing

detergent before removing glue as de--

scribed above. Do not use sharp instru-

ments, rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage the

material. See “Important Safety Instruc-

tions” on page 3.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

3-prong grounding

type wall receptacle ,

3-pro

grounding plug

Installing it properly

1. Allow % inch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the hinge side of the refrigerator is to be

against a wall, you might want to leave

extra space so the door can be opened

wider.

3. The refrigerator can be flush against the

back wall.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Front

Right to raise;

left to lower

Use a

screwdriver

Remove base grille. (See page 12.)

To raise front, turn screw clockwise.

To lower front, turn screw counterclock-

wise.

Check with level.

Replace base grille. (See page 12.)

roller to adjust

Using Your Refrigerator

In This Section

Page

Setting the controls ............................7

Changing the control settings ...........8

Adjusting the refrigerator shelves ....g

Removing the meat drawer

and cover .............................................9

Removing the crispers

and crisper cover ..............................10

Removing the freezer shelf ..............10

Using the ice cube trays ..................10

Page

Using the optional

automatic ice maker .........................11

Changing the light bulbs .................12

Removing the base grille .................12

Reversing the door swing ................13

Understanding the

sounds you may hear .......................13

Saving energy ...................................13

FREEZER

WARMER COLDER b

Exterior moisture control

The Exterior Moisture Control operates

electric heaters around the door openings.

These heaters help keep moisture from

forming on the outside of the refrigerator

cabinet.

l Use the OFF setting when humidity is low.

l Use the ON setting if moisture forms on

the outside of the refrigerator cabinet.

EXTERIORMOISTURECONTROL

OFF ON

Changing the control settings

If you need to adjust temperatures in

refrigerator or freezer, use the settings listed

in the chart below as a guide. If you have

questions, call our Consumer Assistance

Center number. 1-800-253-l 301.

l Adjust the Refrigerator Control first.

l Wait at least 24 hours between adjust-

ments.

l Then adjust the Freezer Control if needed.

CONDITION:

Refrigerator

section

too warm

REASON:

l Door opened often

l Large amount of food added

l Room temperature too warm

RECOMMENDED

CONTROL SElTINGS:

Refrigerator 6

Freezer D

Freezer

section

too warm

l Door opened often

l Large amount of food added

l Very cold room temperature

(can’t cycle often enough)

Refrigerator 4

Freezer A

Refrigerator

section

too cold

l Controls not set correctly Refrigerator 2

for your conditions Freezer A

Ice not

made fast

enough

l Heavy ice usage

l Very cold room temperature

(can’t cycle often enough)

Refrigerator 4

Freezer A

Both

sections

too warm

l Door opened often

l Large amount of food added

l Very warm or very cold room

temperatures

Refrigerator 6

Freezer C

Adjusting the refrigerator shelves

Adjust the shelves to match the way you use

your refrigerator. Glass shelves are strong

enough to hold bottles, milk and other heavy

food items.

To remove shelves:

Remove items from shelf.

2. Tilt shelf up at front.

3. Lift back of shelf.

4. Pull shelf straight out.

To replace shelves:

Guide the rear shelf hooks into the slots

in the shelf supports on cabinet wall.

2. Tilt shelf up at front until hooks drop into

slots. Lower front of shelf to level position.

Removing the meat drawer and cover

Model lT18HA

To remove the meat drawer:

Slide meat drawer out to the stop.

2. Lift front of meat drawer.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Tilt front of cover up.

2. Lift back of cover.

3. Pull cover straight out.

4. Replace cover in reverse order.

Model lTl8HD

To remove the meat drawer:

Slide the drawer straight out to the stop.

2. Lift the front.

3. Slide drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Remove the meat drawer.

2. Tilt front of cover up.

3. Pull cover up and out.

Pull out to the stop,

lift the front and pull

again.

Lift the front,

then the back.

Pull out to the stop, lift

the front and pull again.

continued on next page

To replace the cover:

1. Fit bottom notches of cover over rear and

center cross bars of shelf.

2. Lower cover into place.

3. Replace the meat drawer.

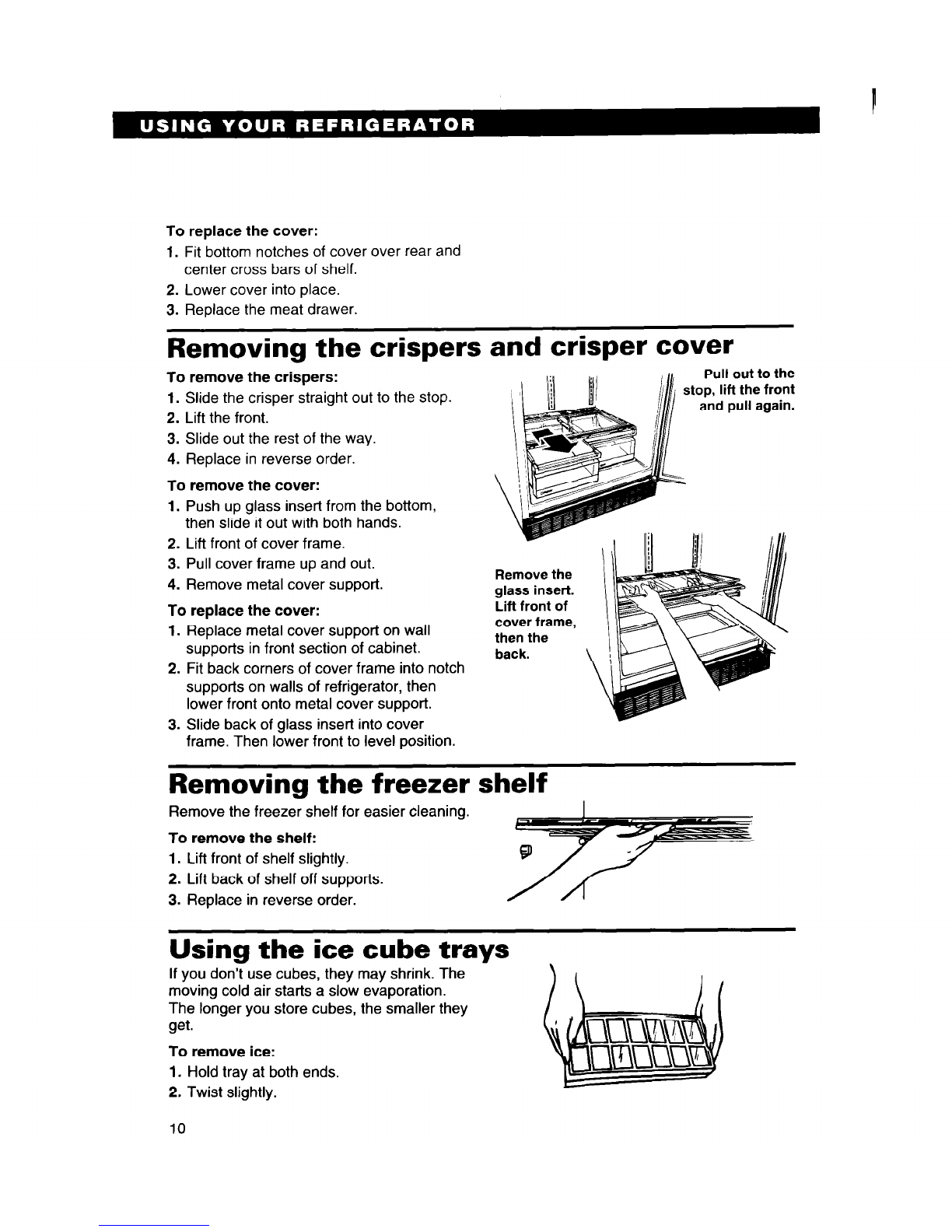

Removing the crispers and crisper cover

To remove the crispers:

1. Slide the crisper straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Push up glass insert from the bottom,

then slide it out with both hands.

2. Lift front of cover frame.

3. Pull cover frame up and out.

4. Remove metal cover support.

To replace the cover:

1. Replace metal cover support on wall

supports in front section of cabinet.

2. Fit back corners of cover frame into notch

supports on walls of refrigerator, then

lower front onto metal cover support.

3. Slide back of glass insert into cover

frame. Then lower front to level position.

Pull out to the

Remove the

Lift front of

cover frame,

Removing the freezer shelf

Remove the freezer shelf for easier cleaning.

To remove the shelf:

1. Lift front of shelf slightly.

2. Lift back of shelf off supports.

3. Replace in reverse order.

Using the ice cube trays

If you don’t use cubes, they may shrink. The

moving cold

air starts a

slow

evaporation.

The longer you store cubes, the smaller they

get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Estate Kühlschrank Handbücher

Estate

Estate REFRIGERATOR Bedienungsanleitung

Estate

Estate TS25CGXTD Gebrauchsanweisung

Estate

Estate T8TXNGFW Gebrauchsanweisung

Estate

Estate TT14DKXSQ Gebrauchsanweisung

Estate

Estate 2318600 Bedienungsanleitung

Estate

Estate 2316077B Bedienungsanleitung

Estate

Estate TS25AQ Bedienungsanleitung

Estate

Estate TT14DKXSQ Bedienungsanleitung

Estate

Estate RS25AQXFN00 Bedienungsanleitung

Estate

Estate TT14DKXK Gebrauchsanweisung

Estate

Estate T4TXNWFWQ00 Bedienungsanleitung

Estate

Estate WF-NL300 Bedienungsanleitung

Estate

Estate REFRIGERATOR Bedienungsanleitung

Estate

Estate TT18CK Bedienungsanleitung

Estate

Estate TVF15NRGW00 Bedienungsanleitung

Estate

Estate TS25CGXTD04 Bedienungsanleitung

Estate

Estate TS22AFXK Gebrauchsanweisung

Estate

Estate REFRIGERATOR Bedienungsanleitung

Estate

Estate TS25CGXTD Bedienungsanleitung

Estate

Estate 2201578 REV A Bedienungsanleitung

Estate

Estate TT14DKXSQ Montageanleitung

Estate

Estate TS25AFXKS04 Bedienungsanleitung

Estate

Estate LT14EK Bedienungsanleitung

Estate

Estate REFRIGERATOR Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
