Etec BDV7186 Bedienungsanleitung

MODEL: BDV7186

Before attempting to connect, operate or adjust this player, please read these instructions completely.

And then put this manual in a safe place for future reference.

7" DVD BOOMBOX

WITH CD/AM/FM STEREO

AND REMOTE

USER MANUAL

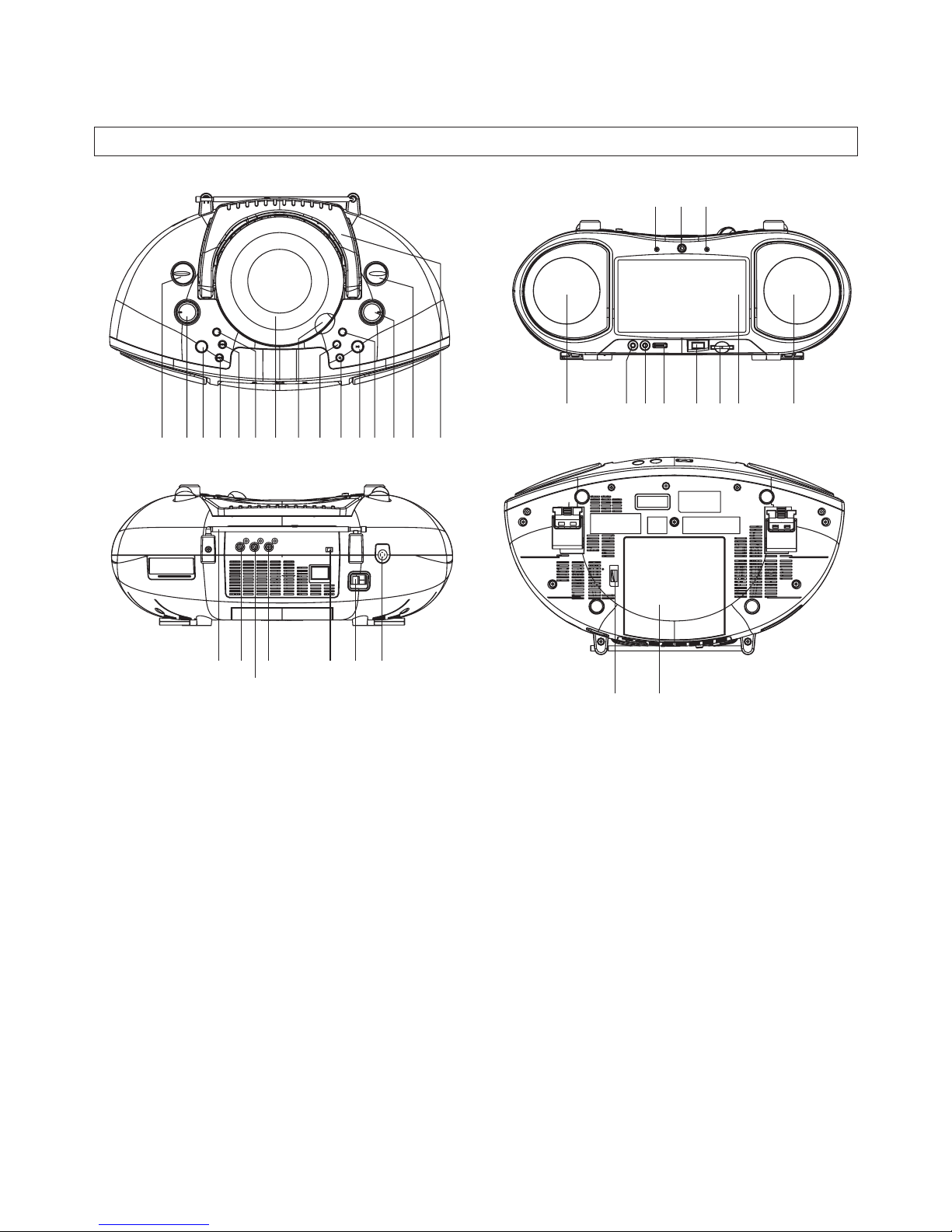

Illustration of the Controls/Jacks On the Main Unit

Main unit

1. FUNCTION CONTROL

2. BAND CONTROL

3. VOLUME CONTROL

4. TUNING CONTROL

5. MODE BUTTON

6. FAST FORWARD BUTTON

10. BASS BOOST BUTTON

11. CD DOOR

12. CD DOOR OPEN TAB

13. FAST REVERSE BUTTON

14. STOP BUTTON

15. SPEAKERS

16. MICROPHONE INPUT

17.

18. USB 2.0 PORT

19. LCD DISPLAY

20. HANDLE

21. POWER INDICATOR

22. REMOTE SENSOR

23. FM STEREO SIGNAL INDICATOR

24.

25.

26. AUDIO OUTPUT-RIGHT JACK

27. AC SOCKET

28. HEAD

29.

30.

31. DISPLAY ON / OFF SWITCH

32.

33. SD / MMC CARD SLOT

34. 3.5mm AUX-IN JACK

PREVIOUS BUTTON

PLAY / PAUSE BUTTON

NEXT BUTTON

MICROPHONE LEVEL

TELESCOPIC ANTENNA

VIDEO OUTPUT JACK

PHONES JACK

BATTERY COMPARTMENT

AC VOLTAGE SELECTOR (FOR DUAL VOLTAGE

VERSION AND AT BOTTOM OF UNIT )(OPTIONAL)

AUDIO OUTPUT-LEFT JACK

15 16 17 18 19

2221

1357910

11 12 13 14 86 4220

24 25

27 28

2930

34 33

Basic connection



It is recommended to be connected to a multi-system TV.

Ensure that this player and other equipment to be connected

to the unit are in the standby or off mode and disconnect

the AC power cords before commencing connection.

Do not block ventilation holes of any piece of the equipment

and arrange them so that air can circulate freely.

Read through the instructions before connecting other

equipment.

Ensure that you observe the color coding when connecting

audio, video cables.

When playing a DVD, be sure the LCD display switch is in

the ON position or no picture will be seen.

During DVD play, the TV volume may be at a lower level

than during TV broadcasts, etc. If this is the case, adjust the

volume to the desired level.

If the DVD / CD player is connected to the TV through a

video cassette recorder, the picture may not be viewed

normally on some DVDs. If this is the case, do not connect

the player via the VCR.

Important

Note:

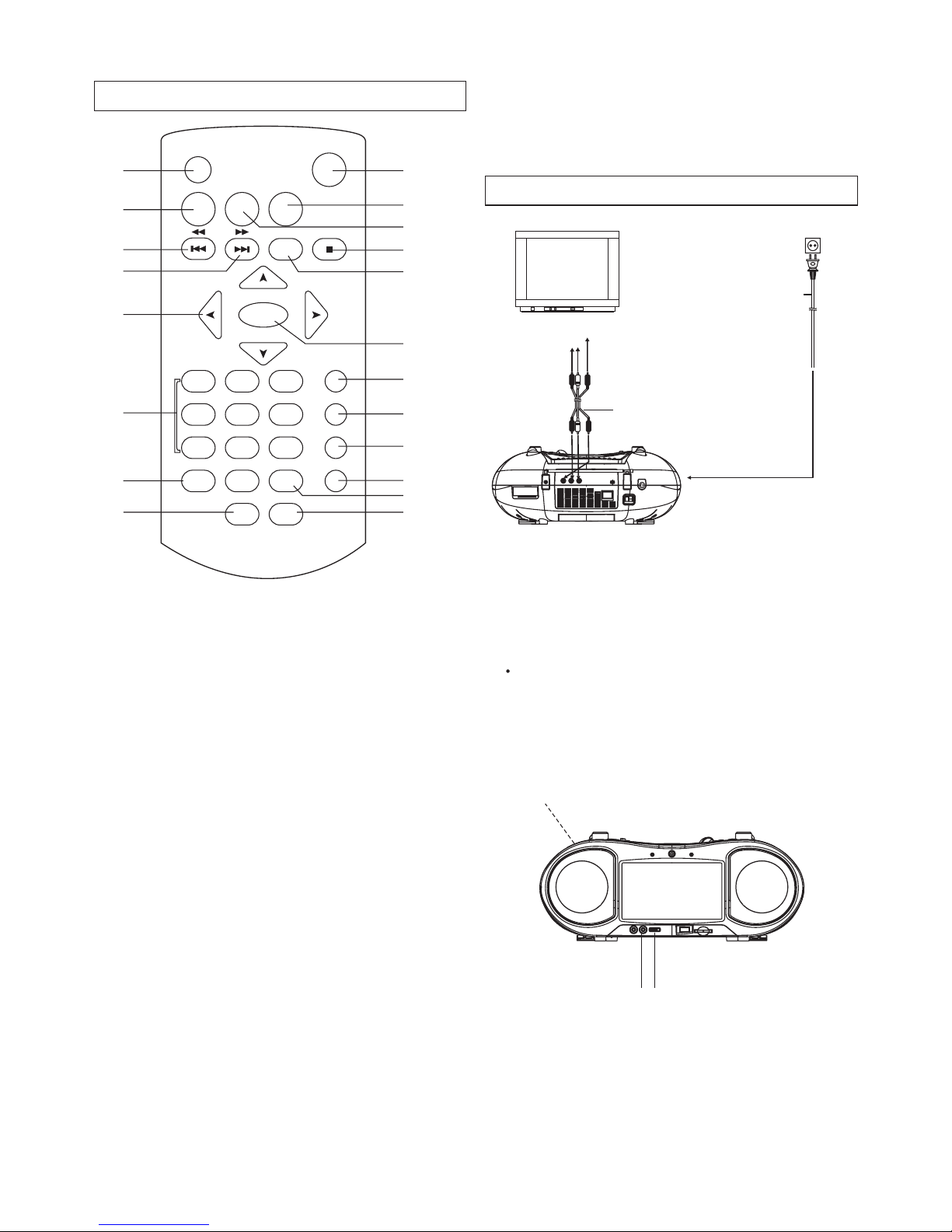

Connecting to a TV set

To power outlet

AC power cord

1. DISPLAY button

2. TITLE button

3. PREV & F.REV button

4. NEXT & F.FWD button

5. NAVIGATION buttons

6. NUMERIC buttons

7. ANGLE button

8. PROGRAM button

9. MUTE button

10. SETUP button

11. MENU button

12. STOP button

13. SLOW button

14. OK (PLAY / PAUSE) button

15. SUBTITLE button

16. AUDIO button

17. SEARCH button

18. REPEAT button

19. ZOOM button

20. CLEAR button

Remote control unit

DISPLAY

TITLE MENU SETUP

MUTE

SLOW

SUBTITLE

AUDIO

REPEAT

ANGLE ZOOM

123

456

789

820

PLAY/PAUSE

STOP

PROGRAM CLEAR

To video input connector (yellow)

To audio input connectors (red, white)

Video/audio cable

CONNECTING MICROPHONE

AND HEADPHONE

Connect one Microphone to MIC jack.

1Connect the Microphone.

2Adjust the MIC Volume to proper level that you

want.

3Connect one headphone to phone jack.

ÜThe AC plug is used as disconnect device, the disconnect

device shall remain readily operable.

ÜThe apparatus shall not be exposed to dripping or splashing

and no objects filled with liquids, such as vases, shall be

placed on the apparatus.

REPEAT BUTTON

Press REPEAT button during play, it will repeat play one

chapter / title or repeat all(for DVD disc), or repeat play a track

or all tracks (for CD), or repeat the the specified points (A-B).

1. Press PROGRAM during playback to display the program

menu.

2. Select location(s) to be memorized via navigation buttons and

then enter desired Titles / Chapters numbers via numeric

buttons.

Note: Inputting leading zero is not necessary.

Example: Track 3, press "3"

Track 12, press "1" and then "2"

Track 21, press "2" and then "1"

SEARCH FOR PREFERRED SCENE

1. Press SEARCH button during play and highlight the item to

be played (Title, Chapter, or Chapter time)by navigation

buttons

2. Input the desired number or time via the numeric buttons.

3. Press OK button to confirm and the playback from the

located scene starts.

4. To exit search menu, press SEARCH button directly.

PROGRAM PLAY(UP TO 16 MEMORIES)

3. To start programmed playback, select PLAY on the menu;

pressing PROGRAM button again to exit programming.

4. To clear programmed items, select the items and then press

CLEAR button on the menu. To clear all items, select the

<CLEAR> on the menu, and then press OK button on remote

control.

5. You can also cancel program mode by clearing all the items

in the program menu.

ZOOM PLAY

NOTE: When no soundtrack languages are recorded,

pressing this button will not work.

Press the ZOOM key continuously to zoom in the picture by 2,

3, and 4 times, zoom out by 1/2, 1/3, 1/4 normal size.

Press this key once more when the picture is at 1/4 size to

return to the normal size display.

Scroll to view the enlarged picture using Navigation buttons.

When the player is in operation, press DISPLAY button

continuously on the remote control, the screen will

display parts of information(current disc type, title number,

chapter number, playtime, audio language, audio type, subtitle

language and multi angle, etc) in a sequence.

It is possible to change the audio soundtrack language to a

different language from the one selected at the initial settings

(This operation works only with discs on which multiple audio

soundtrack languages are recorded).

Press AUDIO button during DVD disc play, the sound track

language changes with the current sound track number

shown on the TV screen.

Press ANGLE button during playback to display the number of

angles being played and then select a desired angle to view the

scene.

Note: only the DVDs shot with multi-angle scenes have this

function.

Press SUBTITLE button during playback, the subtitle language

shown on the screen will change as a response to each press;

When the desired language appears, release the button to view

the subtitle in that language.

Note: this function only works on the DVDs recorded with multi-

language subtitles.

During playback, press MENU button to return to main menu

(DVD).

TITLE button: Play the title (DVD)

Load the MP3 / MPEG 4 disc onto the disc tray and the TV

screen will show all its folders after a few seconds.

2. Select the folder you want by the navigation buttons and then

press OK button to confirm.

3. The files in this folder are displayed and select your favorable

song via navigation buttons and press OK button to start

playback.

Press NEXT and PREV button to select track directly.

Press REPEAT button change play mode.

REPEAT 1- repeat one file.

REPEAT DIR- repeat all tracks in the current album

REPEAT ALL- repeat all tracks in current disc.

REPEAT OFF-cancel repeat modes.

ON SCREEN DISPLAY INFORMATION

CHANGING AUDIO SOUNDTRACK LANGUAGE(DVD)

MULTI-ANGLE VIEWING (DVD ONLY)

CHANGING SUBTITLE LANGUAGE (DVD ONLY)

PLAYING A MP3 AUDIO OR MPEG4 VIDEO DISC



KODAK PICTURE CD / JPEG CD PLAYBACK

Slide show of Kodak Picture CD after being loaded begins

automatically;

Folders of JPEG picture CD after being loaded are displayed on

the TV screen; use the navigation buttons to select the desired

folder and then press OK button to confirm.

The files in this folder are displayed and you can select your

favorite pictures using the up / down navigation buttons and

press OK button to start playback.

Preview of the picture will be displayed while you scroll across

the file names.

OPERATIONS

PREPARATION

Power on the TV set and select video input mode.

Power on the audio system which is connected to the player.

Press NEXT SKIP or PREV SKIP button once during play to

skip a chapter (DVD) or a track (CD) ahead or backwards.

During playback, press and hold the F. FWD button or F. REV

button several times to scan the disc forward or backward at

2X, 4X, 8X, 20X normal speed.

Press PLAY button to resume normal play.

Press STOP button during playback to stop playback; the

player activates its resume function when STOP is pressed in

STOP mode; press PLAY button again, playback resumes at

the point it stopped previously; open the disc tray or press the

STOP button one more time to clear the resume function.

GET STARTED

ADJUSTING THE VOLUME

SKIP AHEAD OR BACK

1. Turn on the player and switch the FUNCTION CONTROL to

DVD/CD/AUX position.

2. Lift open the disc tray.

3. Place a disc onto the disc tray.

4. Press the cover closed and playback starts automatically.

5. When a menu screen appears on the TV, move the navigation

buttons or press the numeric buttons to select a preferred track

number, then press OK button to start playback.

Manually turn the VOLUME control to increase or decrease the

volume.

Press SLOW button on the remote control during playback, the

disc will be played at 1/ 2 normal speed at first, each time this

button is pressed, the play speed becomes slower (down to

1/7 normal speed.)

Press PLAY button, normal play will resume.

RAPID ADVANCE / REVERSE

STOP PLAYBACK

SLOW-MOTION PLAY (DVD)

INITIAL SETTINGS

Initial settings page is for you to make your preferred settings

up for your player. Once the initial settings are done they are

retained in the internal memory of the player until otherwise

modified.

1. Press SETUP button.

2. Use the navigation buttons to select the menu item you want

to modify, press OK button to confirm.

3. Sub-menu settings will be displayed on the screen.

4. Use the navigation buttons to make these change, press OK

to confirm.

5. Use navigation buttons to switch to another menu selection

on the main setting page.

6. Press SETUP button to exit.

COMMON PROCEDURES FOR INITIAL SETTINGS

KODAK PICTURE CD / JPEG CD OPERATIONS

1. PLAY MODES

SKIP TO NEXT / PREVIOUS PICTURE

PICTURE ROTATIONS

PICTURE FLIPS

PICTURE ZOOM IN / OUT

SLIDE SHOW TRANSITION MODES

Press REPEAT button during play to change the play modes.

REPEAT 1- repeat one file

REPEAT DIR- repeat all pictures in the current album

REPEAT ALL- repeat all pictures in current disc.

REPEAT OFF- cancel repeat modes.

During playback, press STOP to enter preview mode.

Press NEXT button to skip to the next picture or PREV

button to the previous picture.

If no key is pressed for a few seconds, it will skip to next

picture automatically.

Press RIGHT and LEFT navigation buttons to rotate the picture

Clockwise and anti-clockwise respectively.

Press UP navigation button to flip the picture vertically.

Press DOWN navigation button to flip the picture horizontally

Press ZOOM button continuously ,the picture zooms in by 2, 3,

4 times or zooms out by 1/2, 1/3, 1/4 the original size.

Press this button once more when the picture getting 1/4 size

to return to the normal play.

If the picture is enlarged, you may use the navigation buttons to

view blocked parts of the picture.

During slide show playback, press the PROGRAM button to

cycle through to select one of the following modes to play.

WIPE TOP

WIPE BOTTOM

WIPE LEFT

WIPE RIGHT

DIAGONAL WIPE LEFT TOP

DIAGONAL WIPE RIGHT TOP

DIAGONAL WIPE LEFT BOTTOM

DIAGONAL WIPE RIGHT BOTTOM

EXTEND FROM CENTER H

EXTEND FROM CENTER V

COMPRESS TO CENTER H

COMPRESS TO CENTER V

WINDOW H

WINDOW V

WIPE FROM EDGE TO CENTER

RANDOM

NONE

1. SYSTEM SETUP

EXTERNAL MEMORY MEDIA OPERATION (USB/MMC)

Prepare the player for External Memory media operation

NOTE:

Insert a USB data traveller into the USB port and slide the

FUNCTION to the DVD position;

Press MODE button on the main unit continuously until the

player enters USB mode;

An icon of READING shows in the LCD and after the USB is

successfully detected and read, the track number as a total

shows in the LCD;

Press PLAY / PAUSE button to begin playback from track

Number 1.

The player can successfully play the music files with

USB 1.0 and USB 2.0 storage device.

Insert an SD/MMC card into the card slot ;

Press MODE button on the main unit continuously until the

player enters SD/MMC mode.

COLOR AND BRIGHTNESS ADJUSTMENT(FOR THE LCD

SCREEN)

Press MODE button once on the main unit to switch the

function between USB/CARD and DVD, press and hold MODE

button to adjust the color intensity ,brightness and contrast

respectively and use skip buttons to adjust.

SYSTEM SETUPSYSTEM SETUP

TV SYSTEM

DEFAULT

EXIT SETUP

TV TYPE

PASSWORD

RATING

LCD MODE

1.1 TV SYSTEM

NTSC / PAL/ AUTO

1.2 LCD MODE

1.3 TV TYPE-

4:3PS :

4:3LB :

16:9 :

1.4 PASSWORD

- it is used to select the TV mode.

Options:

Please select this option as per your TV set.

- It is used to select the LCD MODE.

Options: 4:3 or 16:9

it is used to select the TV scan mode, please set

as per your TV set.

Options: Normal Pan & scan mode

Normal Letter box mode

16:9 wide screen mode

- input password to unlock the system. The

steps are as follows:

1.4.1 Enter SYSTEM SETUP, select the PASSWORD item by

scrolling the down navigation button, and then press the

right navigation button to select the input box.

RADIO OPERATION

1. Turn the FUNCTION CONTROL to the RADIO position,

2. Select the desired band with the BAND switch.

the

POWER Indicator will light up

4. The built-in AM antenna and external FM TELESCOPIC

ANTENNAare directional.

5. Adjust the volume level to a comfortable listening level.

6. To turn off the radio, turn the FUNCTION switch to OFF

position.

NOTES:

NOTE: When external headphones / earphones are connected,

the sound to the unit's main speakers will be muted.

TO PLAY THE RADIO

STEREO HEADPHONE JACK

Astereo headphone jack has been provided on the back of the unit

so that you can listen to the unit without disturbing others. To use

this jack, plug in the headphones / earphones (not included) and

adjust the VOLUME control to a comfortable listening level.

3. Tune to the desired station by rotating the TUNING control

(Move the control back and forth until you get the strongest

clearest sound).

When receiving an FM broadcast, fully extend the

TELESCOPIC ANTENNA and position for the best

reception.

For AM broadcasts, rotate the whole set until the best

reception is heard.

If a particular FM (STEREO) station is weak, or you hear

too much background noise, try moving the position of

the band selector switch to the FM (MONO) position. This

can often result in a much clearer reception.

When the band selector switch is set to FM STEREO and

a stereo broadcast is being received, the FM STEREO

indicator on the top of the unit will be lit.

2. LANGUAGE SETUP

LANGUAGE SETUPLANGUAGE SETUP

OSD LANGUAGE

AUDIO LANG

SUBTITLE LANG

MENU LANG

EXIT SETUP

2.1 OSD LANGUAGE - It is used to select different On Screen

Display language for different user.

2.2 AUDIO LANG -

2.3 SUBTITLE LANG-

2.4 MENU LANG -

select preferred audio language.(DVD only,

need disc software support)

Select preferred subtitle language.

(DVD only, need disc software support)

Select preferred disc menu language.

(DVD only, need disc software support)

SPEAKER SETUPSPEAKER SETUP

DOWNMIX

EXIT SETUP

3. VIDEO SETUP

VIDEO SETUPVIDEO SETUP

BRIGHTNESS

CONTRAST

HUE

SATURATION

EXIT SETUP

3.1 BRIGHTNESS-- to set the brightness for the display.

Options: 0/2/4/6/8/10/12

Options:

3.2 CONTRAST-- to set the contrast effect for display.

3.3 HUE-- to set the color impression for display.

3.4 SATURATION-- to set the saturation level for display.

0/2/4/6/8/10/12

Options: -6/-4/-2/0/+2/+4/+6

Options: 0/2/4/6/8/10/12

4. SPEAKER SETUP

4.1 DOWNMIX

Options: Left / Right mix mode

Select this option if you don't have a 5.1

channels amplifier.

LT/RT-

STEREO-

1.4.2 Input user's password"0000" to unlock it, in this case,

select the input box again to change the password by

inputting another new four numeric numbers and then press

SELECT button to confirm. When the password is changed,

you need to input the new one to unlock the system.

1.4.3 If you forget your own password, use the master

password "8200" to unlock it.

: If wrong password was input in unlock status, the

system will lock.

Set the rating of this player. If you want to change

the rating of parental lock, please input the password to

unlock first.

Options: 1 KID SAFE/2G/3PG/4PG13/5PG-R/ 6R /

7 NC-17 / 8 ADULT

Reset to factory settings.

Options: RESTORE

NOTE

1.5 RATING -

1.6 DEFAULT -

TROUBLESHOOTING



Hold the disc by the edge so the surface will not be soiled with finger prints. Finger prints, dirt and scratches can

cause skipping and distortion.

Do not write on the label side with a ball-point pen or other writing utensils.

Do not apply benzene, thinner, and liquid that prevents against static electricity.

Be careful not to drop or bend the disc.

Install only one disc on the disc tray.

Do not try to close the disc tray when the disc is not installed properly.

Be sure to store the disc in it's case when not in use.

DISC HANDLING PRECAUTIONS

If your DVD player does not seem to be functioning properly, check the items below before you contact an authorized service center

Symptom Check

Make sure the AC cord is securely plugged into an AC outlet.

Turn the power off and then back on.

Check that the battery is inserted in the and direction properly.

The battery may be flat. Replace it with a new one.

Check that the signal transmission is directed at the remote control sensor on the DVD player.

Remove the obstacle between the remote controller and remote control sensor.

Check that the A/V cables are securely connected.

Check that the disc is a DVD (region number 1 or all), DVD-RW or AUDIO CD.

Do not use a disc that has scratches or dirt.

Check that the label-side of the disc is facing up.

The pick-up lens of the DVD player may be dirty. Contact the service center for lens cleaning.

Check that the TV channel is set to VIDEO or AV if viewing with a TV.

Power does not turn on or

suddenly turns off.

Remote control won't work

No picture or sound

Check that the LCD display is turned on.

Check that the display panel is open. If it is closed, audio will not be output to the speakers.

Check the volume setting. If set to zero, turn up volume level.

Check that the headphones are plugged into the PHONES socket.

Speakers cannot be used with the headphones.

Check that the battery is properly installed and AC Adapter is properly connected.

Use a disc without scratches or dents.

No picture

No sound

No picture and sound

Distorted video or sound

ETEC LIMITED 90-DAY WARRANTY

We warrant this product to be free from defects in material and workmanship under normal

use for a 90-day period after purchase. We will repair or replace the unit free of charge

should it become defective under this warranty, providing you submit proof of purchase (sales

slip) along with the unit and all accessories.

During the initial 90-day period after original purchase, we will service or exchange, at no

charge. To obtain warranty service or replacement within the duration of the 90-day warranty,

return the product freight prepaid to the address below.

ETEC USA

823 Old Settlers Trail

Suite 100

Hopkins, Minnesota 55343

Please enclose a copy of the sales receipt with the date of purchase and provide a detailed

description of the problem. Failure to enclose required information will result in delay of your

shipment. Please allow 4-6 weeks for product service or replacement.

This warranty does not cover any product, which has been subject to damage due to an act

of nature, misuse, neglect, accident, abuse, commercial use, or modification of, or to, any

part of the product, including the antenna. Damage to external devices such as speakers and

other memory devices are not covered nor is the cost incurred in shipping the unit for

warranty repair. Under no circumstances shall ETEC USA, be liable for any loss (direct,

indirect, incidental, foreseen, unforeseen, special or consequential) or for any damage arising

out of, or in connection with, the use of this product.

UNDER NO CIRCUMSTANCES WILL ETEC USA BE LIABLE FOR ANY INCIDENTAL OR

CONSEQUENTIAL DAMAGES.

This warranty does not cover re-manufactured units, or product sold ‘As Is’.

This warranty is valid only in the United States and grants specific legal rights.

Inhaltsverzeichnis

Andere Etec Tragbares Stereo-System Handbücher

Etec

Etec EFL240 Bedienungsanleitung

Beliebte Tragbares Stereo-System Handbücher anderer Marken

Panasonic

Panasonic RXDS520 - RADIO CASSETTE W/CD Bedienungsanleitung

LG SB159ST Bedienungsanleitung

Philips

Philips AZ305 Bedienungsanleitung

Manta

Manta BBX002 Bedienungsanleitung

Sony

Sony ZS-BTG900 Bedienungsanleitung

Memcorp

Memcorp Disney DB3000-P Bedienungsanleitung

Sharp

Sharp GF-800HS Bedienungsanleitung

Philips

Philips AZ 2760 Bedienungsanleitung

Hyundai

Hyundai H-1443 Bedienungsanleitung

Grundig

Grundig RR 300 CD Bedienungsanleitung

Insignia

Insignia NS-BCDCAS1 Bedienungsanleitung

Philips

Philips AZ380W Bedienungsanleitung

Sony

Sony ZS-S10CP Installationsanleitung

AudioSonic

AudioSonic 42373117 Bedienungsanleitung

Akai

Akai A60009 Bedienungsanleitung

Sony

Sony HCD-E301 Bedienungsanleitung

Memorex

Memorex MW5554 Bedienungsanleitung

Panasonic

Panasonic RXDS16 - RADIO CASSETTE W/CD Bedienungsanleitung
