ETEKCITY EK6015 Originalbetriebsanleitung
Thank You!
Thank you for purchasing the EK6015 Digital Kitchen
Scale by Etekcity. We are dedicated to providing our
customers with quality products for building a better living.
Should you have any questions or concerns about using
your new product, feel free to reach out to our helpful
customer support team at (855) 686-3835 or by email
at [email protected]. We hope you enjoy your new
product!
3
Package ContentsTable of Contents
Specifications
Weight Capacity 176 oz / 11 lb / 5000 g / 5000 mL
Units oz / lb:oz / fl’oz / g / mL
Measurement
Increments
0.05 oz / 1 g / 1 mL
Auto-Off 120 seconds
Backlight
Auto-off
30 seconds
Power 2 x 1.5V AAA batteries
Dimensions 7.3 x 5.7 x 0.6 in
(186mm x 145mm x 15.5mm)
Safety Information
Function Diagram
Set-Up
Operation
· General Operation
· Zero / Tare Function
· Unit Conversion
· Automatic Power Off
· Manual Power Off
Battery Replacement
Troubleshooting
Warranty Information
Customer Support
4
5
6
7
7
8
9
10
10
10
11
12
14
1 x Digital Kitchen Scale
1 x Quick Start Guide
2 x 1.5V AAA batteries (Pre-installed)
Safety Information
Important Safety Information
4
IMPORTANT: Please read and comply with all of the instructions and warnings provided in this manual
before using the product. Failure to comply with the instructions and warnings provided herein may
result in inaccurate results and/or damage to the product itself.
•
•
•
•
•
•
•
•
•
Always place the scale on a hard, dry and flat
surface before measurement in order to
ensure accuracy.
DO NOT exceed the 5000g weight capacity.
An overload indicator will appear on the LCD
display if the limit is exceeded.
DO NOT immerse the scale in water or
corrosive liquids. If a liquid is spilled on the
scale platform, immediately wipe the scale
clean with a soft cloth in order to avoid
potential damage to the scale.
•When replacing batteries, make sure to insert
them under the correct polarity as indicated
within the battery compartment.
DO NOT mix new and used batteries to power
the device.
This scale is not intended for commercial or
heavy-duty use.
When not in use, store the scale in a cool, dry
environment.
To clean, wipe the platform surface with a
damp soft cloth.
If the scale fails to turn on, check whether the
batteries are installed correctly. Replace the
batteries if necessary.
If the scale is not in use for an extended
period of time, take out the batteries to
extend the scale service lifetime.
•Replace the batteries if the low-battery
indicator is displayed in order to ensure the
highest accuracy.
Function Diagram
1. LCD Display
2. Power / Auto-Tare
3. Unit Selection
4. Battery Compartment
5. Anti-Skid Padding
3
132 5
4
5

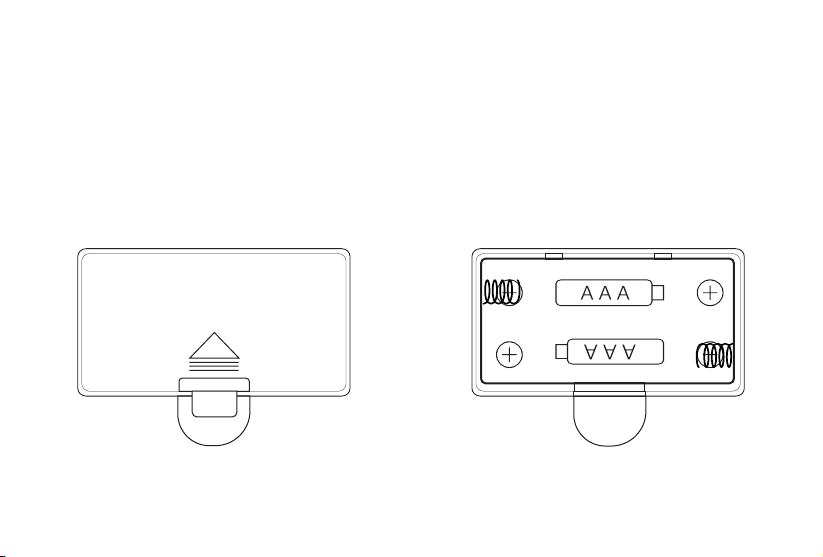

Set-Up
1.
3. Reapply the battery compartment cover.
6
The included AAA batteries are preinstalled in the
scale.
Open the battery compartment cover located
on the backside of the scale.
2. Remove the plastic strip from the battery
compartment to allow the batteries to power
the device.
7
Operation
General Operation
1.
2.
3.
4.
Place the scale on a flat and level hard
surface for measurement.
Place the object of measurement on the
center of the weighing platform.
Allow the scale to adjust to the weight of the
object for a few seconds before it displays
the final measured reading on the LCD screen.
Press the ON/OFF button to turn on the
scale. Wait until the screen displays zero
before measuring.
Turn on the scale and wait for the screen to
display zero. If the screen does not display
zero automatically, press the Z/T button to
auto-adjust to zero.
Place the desired object which is to be
excluded, on the center of the measuring
platform.
Press the Z/T button to tare the current
weight of the object. The screen should now
display zero.
8
Zero / Tare Function
1.
2.
3.
The tare function allows you to measure objects
in a container without having to include the
container’s weight in the final measurement.
Place the desired item(s) to be weighed on
the center of the measuring platform or
within the tared container to calculate the
net weight of the desired item(s).
9
4.
Unit Conversion
To change the unit of measurement, press the
UNIT button until the LCD display indicates the
desired unit of measurement.
Open the battery compartment cover on the
backside of the scale.
Take out the used batteries and dispose them
properly.
Install new 1.5V AAA batteries, taking note
of the correct polarity displayed in the
battery compartment.
10
Automatic Power Off
1.
2.
3.
4. Reseal the battery compartment.
Manual Power Off
Battery Replacement
For battery power conservation, the display
backlight will automatically power off after 30
seconds of inactivity. Additionally, the scale itself
will automatically power off after 2 minute of
inactivity.
Press and hold the ON/OFF button for 2 seconds
to manually turn off the digital scale at any time.
