EtherWAN EX48050-00B Bedienungsanleitung

Hardened Web-Smart High Power PoE Ethernet Switch

Quick Start Guide

This quick start guide describes how to install and use the Hardened

Web-Smart High Power PoE (Power over Ethernet) Ethernet Switch. This is

the switch of choice for harsh environments constrained by space.

Physical Description

The Port Status LEDs and Power Inputs

User’sManual 1

Hardened Web-Smart High Power PoE Ethernet Switch

LED State Indication

Steady Power on.

Power1

Power2

Power3 Off Power off.

Steady Power redundant system failure occurred.

Fault Off Power redundant system failure is not occurred.

10/100Base-TX, 100Base-FX/BX

Steady A valid network connection established.

Link/ACT

Flashing Transmitting or receiving data.

ACT stands for ACTIVITY.

Steady Valid port connection at 100Mbps.

10/100 Off Valid port connection at 10Mbps.

Steady Powered Device (PD) is connected.

PoE Off Powered Device (PD) is disconnected.

Power Input Assignment

Power3 55VDC DC Jack

＋55VDC

Power2

－Power Ground

＋55VDC

Power1

－Power Ground

Earth Ground

Terminal Block

Relay Output Rating 1A @ 24VDC

Relay Alarm Assignment

FAULT

*Warning signal disable for following:

The relay contact closes if Power1 and Power2 are

both failed but Power3 on.

The relay contact closes if Power3 is failed but

Power1 and Power2 are both on.

2 User’sManual

Hardened Web-Smart High Power PoE Ethernet Switch

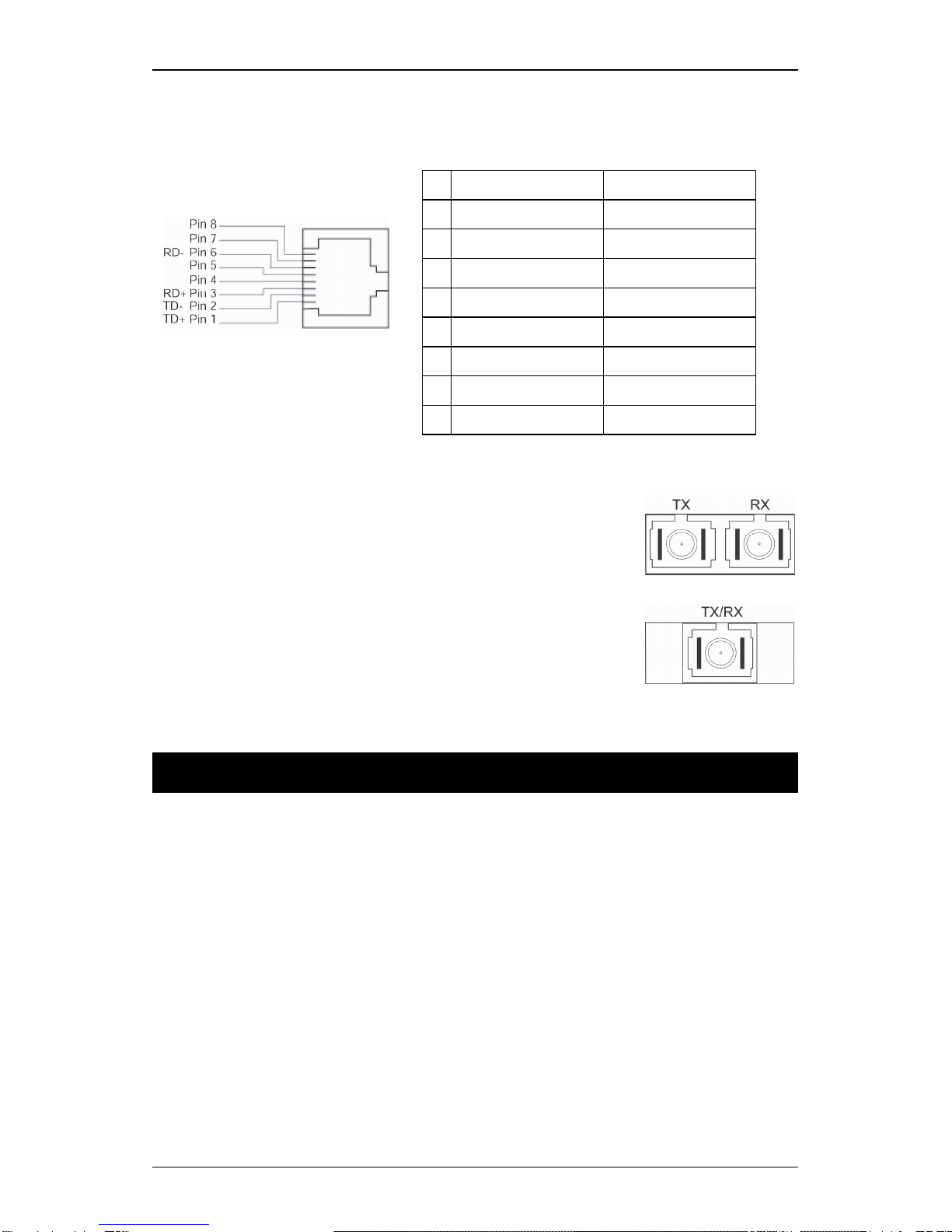

The 10/100Base-TX and 100Base-FX/BX Connectors

The 10/100Base-TX Connections

The following lists the pinouts of

10/100Base-TX ports.

Pin PoE Ports (Port 1-4) Non-PoE Port (Port 5)

1 Output Transmit Data + Output Transmit Data +

2 Output Transmit Data - Output Transmit Data -

3 Input Receive Data + Input Receive Data +

4 Positive (VCC+)

5 Positive (VCC+)

6 Input Receive Data - Input Receive Data -

7 Negative (VCC-)

8 Negative (VCC-)

The 100Base-FX Connections

The fiber port pinouts

The Tx (transmit) port of device I is connected to the Rx (receive) port of

device II, and the Rx (receive) port of device I to the Tx (transmit) port of

device II.

The WDM 100Base-BX Connections

The fiber port pinouts

Only one optical fiber is required to transmit and receive data.

Functional Description

zMeets NEMA TS2 Environmental requirements such as temperature,

shock, and vibration for traffic control equipment.

zMeets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity

for industrial environment.

zManageable via Web browser interface.

zPort 1 – 4 support Power over Ethernet (PoE) Power Sourcing

Equipment (PSE).

zHigh Power PoE design up to 30W.

zSupports 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps,

full/half-duplex. Auto MDI/MDIX.

z100Base-FX: Multi mode/Single mode SC or ST type. 100Base-BX:

WDM Multi mode/Single mode SC type.

User’sManual 3

Hardened Web-Smart High Power PoE Ethernet Switch

zSupports 1024 MAC addresses. Provides 512K bits memory buffer.

zAlarms for power and port link failure by relay output.

zPower Supply: Redundant 55VDC Terminal Block power inputs and

55VDC DC JACK with optional 100-240VAC external power supply.

zOperating voltage and Max. current consumption: 2.36A @ 55VDC.

Power consumption: 130W Max.

z-40℃to 75℃(-40℉to 167℉) operating temperature range. Tested for

functional operation @ -40℃to 85℃(-40℉to 185℉).

zSupports Wall and Desktop Mounting installation.

Web Configuration

zLogin the switch:

Specify the default IP address (192.168.1.10) of the switch in the web

browser. A login window will be shown as below:

4 User’sManual

Hardened Web-Smart High Power PoE Ethernet Switch

zEnter the factory default user name: admin.

Enter the factory default password: admin.

Then click on the “OK” button to log on to the switch.

User’sManual 5

Hardened Web-Smart High Power PoE Ethernet Switch

6 User’sManual

Preface

This manual describes how to install and use the Hardened

Web-Smart High Power PoE Ethernet Switch. This switch

introduced here is designed to deliver full scalability with

web-based management functions. Capable of operating at

temperature extremes of -40℃to +75℃, this is the switch of

choice for harsh environments constrained by space.

Port 1 to port 4 on this switch supports Power over Ethernet

(PoE) Power Sourcing Equipment (PSE) and can detect a

Powered Device (PD). Using external 55VDC power inputs

through Terminal Block or Power Jack, data and power can

be transmitted to a Powered Device (PD) over the same

twisted-pair Ethernet cable through port 1 to port 4 on the

switch.

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

Features on the Hardened Web-Smart High Power PoE Ethernet Switch

zIllustrative LED functions

zInstallation instructions

zManagement Configuration

zSpecifications

Hardened Web-Smart High Power PoE Ethernet Switch

User’sManual 7

Table of Contents

Quick Start Guide 1

PHYSICAL DESCRIPTION 1

The Port Status LEDs and Power Inputs 1

The 10/100Base-TX and 100Base-FX/BX Connectors 3

FUNCTIONAL DESCRIPTION 3

WEB CONFIGURATION 4

Preface 6

Table of Contents 7

Product Overview 9

HARDENED WEB-SMART HIGH POWER POEETHERNET SWITCH 9

PACKAGE CONTENTS 9

PRODUCT HIGHLIGHTS 10

Basic Features 10

FRONT PANEL DISPLAY 11

PHYSICAL PORTS 12

SWITCH MANAGEMENT 12

Web-based browser interface 12

Installation 13

SELECTING A SITE FOR THE SWITCH 13

CONNECTING TO POWER 13

Redundant DC Terminal Block Power Inputs 13

55VDC DC Jack 14

Alarms for Power and Port Link Failure 14

CONNECTING TO YOUR NETWORK 15

Cable Type & Length 15

Cabling 15

Switch Management 17

MANAGEMENT ACCESS OVERVIEW 17

WEB MANAGEMENT 18

Web-Based Browser Management 19

LOGGING ON TO THE SWITCH 19

UNDERSTANDING THE BROWSER INTERFACE 21

ADMINISTRATOR 23

Authentication Configuration 23

System IP Configuration 24

System Status 25

Load Default Setting 26

Firmware Update 27

Reset Device 28

PORT MANAGEMENT 29

Hardened Web-Smart High Power PoE Ethernet Switch

8 User’sManual

Port Configuration 29

Bandwidth Control 30

Broadcast Storm Control 31

Max. Packet Length 32

Port Alarm Setting 33

VLAN SETTING 34

Multi to 1 Setting 34

Tag Based VLAN 35

Port Based VLAN 36

QOSSETTING 37

Class of Service Configuration 37

High Priority Queue Configuration 38

Customization Diffserv 39

POE 40

PoE System Settings 40

PoE Port Settings 41

PoE Scheduling 42

PORT SECURITY 44

CONFIGURATION BACKUP/RECOVERY 45

LOGOUT 46

Specifications 47

Hardened Web-Smart High Power PoE Ethernet Switch

Product Overview

Hardened Web-Smart High Power PoE Ethernet

Switch

Front and Back View

Package Contents

When you unpack the product package, you shall find the

items listed below. Please inspect the contents, and report

any apparent damage or missing items immediately to your

authorized reseller.

•The Hardened Web-Smart High Power PoE Ethernet Switch

•User’s Manual

User’sManual 9

Hardened Web-Smart High Power PoE Ethernet Switch

10 User’sManual

Product Highlights

Basic Features

zMeets NEMA TS2 Environmental requirements such as temperature,

shock, and vibration for traffic control equipment.

zMeets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity

for industrial environment.

zManageable via Web browser interface.

zPort 1 – 4 support Power over Ethernet (PoE) Power Sourcing

Equipment (PSE).

zHigh Power PoE design up to 30W.

zSupports 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps,

full/half-duplex. Auto MDI/MDIX.

z100Base-FX: Multi mode/Single mode SC or ST type. 100Base-BX:

WDM Multi mode/Single mode SC type.

zSupports 1024 MAC addresses. Provides 512K bits memory buffer.

zAlarms for power and port link failure by relay output.

zPower Supply: Redundant 55VDC Terminal Block power inputs and

55VDC DC JACK with optional 100-240VAC external power supply.

zOperating voltage and Max. current consumption: 2.36A @ 55VDC.

Power consumption: 130W Max.

z-40℃to 75℃(-40℉to 167℉) operating temperature range. Tested for

functional operation @ -40℃to 85℃(-40℉to 185℉).

zSupports Wall and Desktop Mounting installation.
