ETMPACK TX4 Bedienungsanleitung

TX4

Intelligent InkjetPrinter

Instructions

WARNING AND NOTE：

1. Do not plug or take out ink cartridge when machine is in printing;

Do not set parameters when machine is in printing;

When machine is in printing, any operation will damage core board.

2. If machine finishes working, take out cartridges at once and cap it well.

3. Please turn off machine with correct steps: click Power→Shut down→Press red

power button on right side.

4. Please don’t put machine in wet conditions.

5. When clean machine, keep away from water, and do not use chemical solvent.

6. Do not use hard objects to crash machine in case of damage.

Common problems and ways of handling

1)Please check ink remaining；

2)Please check whether print setting and systems setting parameters are accurateor

not;

3)Please check whether nozzle surface, and use dust-free tissue to clean it.

Content

1. Diagram........................................................................................................................................................................ 1

2. Parameters...................................................................................................................................................................2

3. Main UI..........................................................................................................................................................................3

4. File manage................................................................................................................................................................. 4

4.1 Edit file................................................................................................................................................................ 4

4.1.1 Input Text................................................................................................................................................. 4

4.1.2 Input Time................................................................................................................................................4

4.1.3 Input Counter/ serial number................................................................................................................5

4.1.4 Input logo/ image....................................................................................................................................5

4.1.5 Input bar code......................................................................................................................................... 6

4.1.6 Input QR code.........................................................................................................................................6

4.2 Load File............................................................................................................................................................. 7

5. Settings.........................................................................................................................................................................8

5.1 Print Settings......................................................................................................................................................8

5.1.1 Styles 8

5.1.2 Nozzle Offset...........................................................................................................................................9

5.1.3 Nozzle setting......................................................................................................................................... 9

5.2 Counter Setting................................................................................................................................................10

5.3 System Settings...............................................................................................................................................11

5.4 Administer.........................................................................................................................................................12

6. Parameters of Different Ink Type............................................................................................................................ 13

7. Packing List................................................................................................................................................................14

8. Editing Info Examples...............................................................................................................................................15

9. Multi-nozzles combination printing examples.......................................................................................................16

Dear customers:

Thank for your trust for our TX4 intelligent inkjet printer. For better to use this machine, please read

this instruction carefully, as it will help you learn convenient and correct operation about this

machine. Otherwise the mistaken or incorrect operation may bring unnecessary trouble for you.

Diagram

1. USB interface

2. RS232

3. Power adapter interface

4. Power button

5. Interface for connecting sensor

6. Interface for connecting print nozzle

7. Interface for connecting external encoder

Controller and print nozzle

Parameters

Model

TX4

Nozzle

TIJ 2.5 Thermal foaming nozzle

Operating system

Linux

CPU

Quad core 1.4Hz

DPI

600 maximum

Screen size

7 inch

Language

English, Chinese, Turkish, Arabic, Korean, Italian,

Shape features

Aluminum alloy

Dimension

Controller: 185 * 125 * 34mm, Print nozzle: 138*100 *136 mm

Net weight

Controller: 0.58 KG, Print nozzle:1.5KG

Printing height

50.8mm (12.7*4mm)

Printing distance

2-5mm

Print content

Text, time, batch number, serial number, logo, Bar code, QR code,

DM code

Storage

the system can store more than 1000 message (external USB

make the information transfer in a free way)

Printing length

2000 characters for each message, no limitation on length

Printing speed

90m/min

External interface

USB, Photoelectric interface, RS232, Encoder interface

Power

consumption

50 W

Voltage

110V~240V AC input, 12V/4A DC output

Working

environment

Temperature: 10℃-45℃（The Best 20℃-30℃）; Humidity: 5%-

85% non-condensed

Printing material

board, carton, stone, pipe, cable, metal, plastic product, electronic,

the fiber board, light steel keel, aluminum foil, etc.

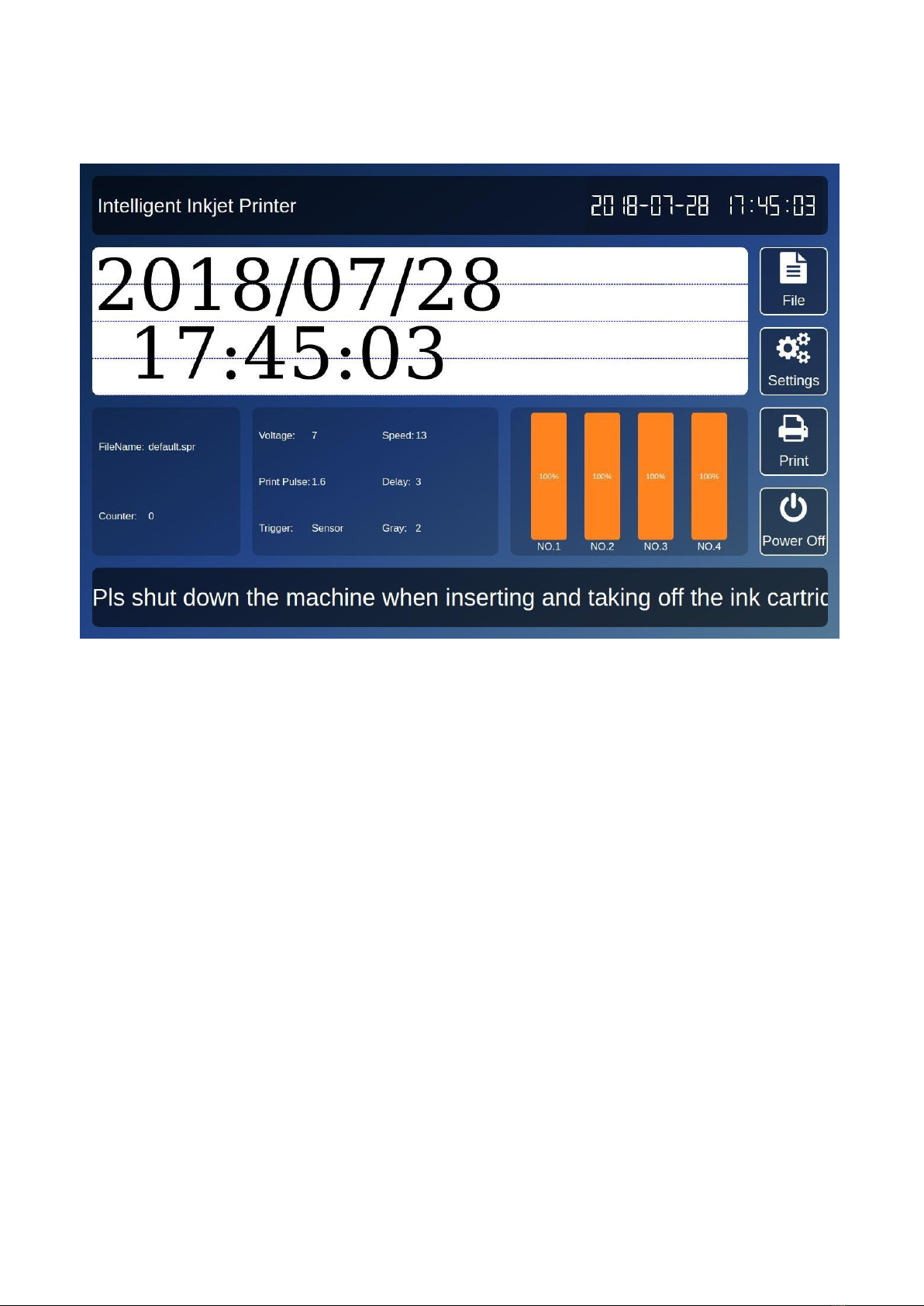

Main UI

File: Edit, load and delete files

Settings: Printing settings, System Settings, Maintenance, Administer.

Print: Click Print, it will turn red to start printing, and click again it will turn to white to stop

printing.

Power: Click Power to shut down machine, notice to press power button on the right side

Note:

①Please follow the steps to shut down machine：click Power→shut down(wait for black

screen)→press power button on the right side;

②Please stop printing before revising any parameters. Keep machine in a non-working state.

File manage

4.1 Edit file

4.1.1 Input Text

Click Text to input text, number or symbol → Click content to input text → Finish → adjust

font and size as needed→ adjust position → Save/ SaveAs → input file name → OK.

4.1.2 Input Time

Click Time (windows will pop up system time)→ click User-defined to set time format as

need →OK → Save or Save As. (click Type to choose quick set time format)

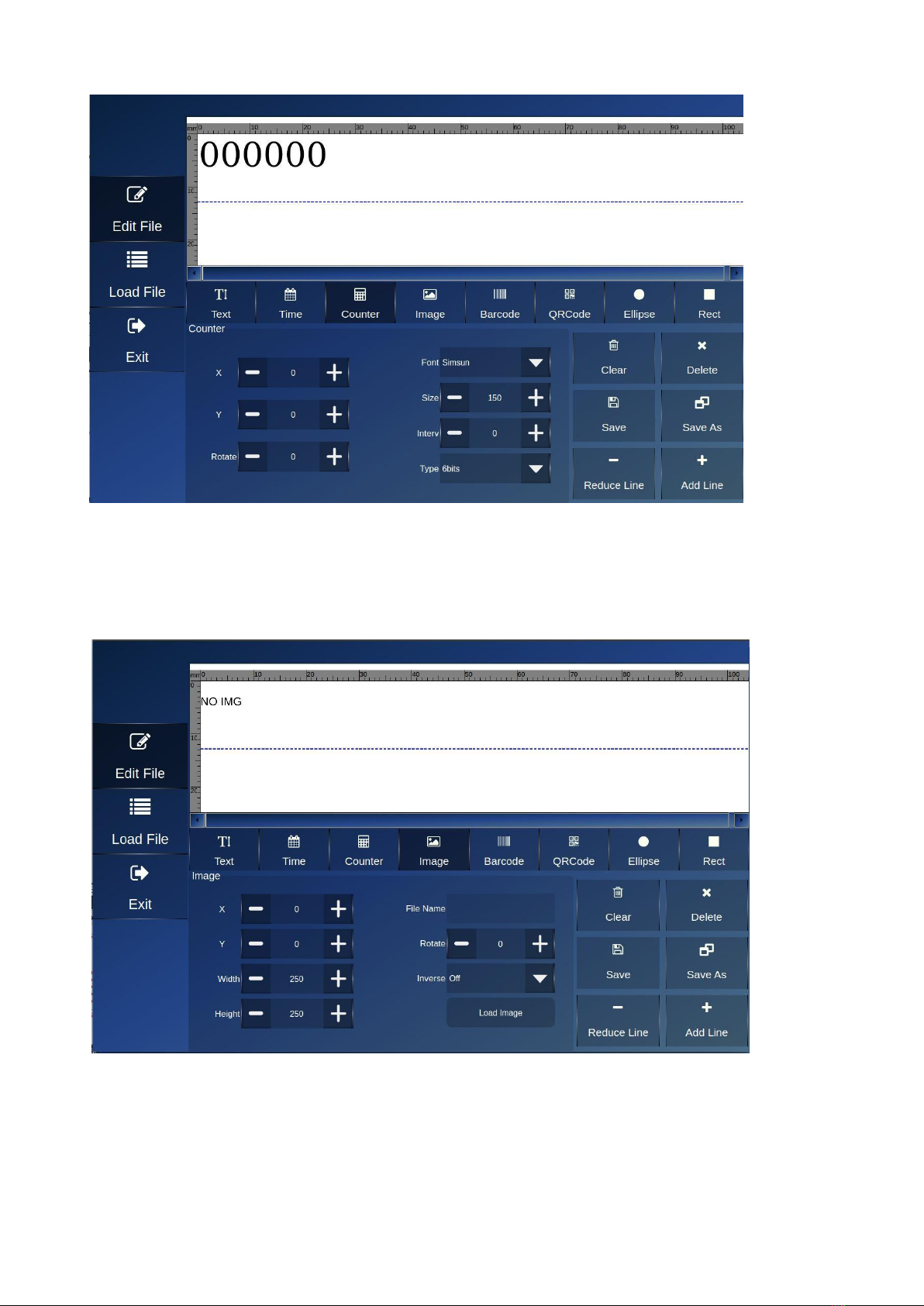

4.1.3 Input Counter/ serial number

Click Cnt, set type and size as need. One file could contain two different counters. Could set

counter parameters in settings.

4.1.4 Input logo/ image

Insert USB disk with picture →File → Edit File → Image → Load → U Disk → choose the

picture → To Load(copy the picture to local) → Local →choose the picture →OK →adjust

size and position →Save/ Save As → input file name →Exit.

Note:

①Please copy picture to machine storage first, then repeat loading from local storage.

②Any pictures should be saved as monochrome BMP in computer before save in file.

③Edit file contains picture (machine can’t print picture directly.)

4.1.5 Input bar code

Click barcode →Edit (choose barcode type and input code number) → Finish → Save or

SaveAs

4.1.6 Input QR code

Click QR code →Edit (input code content) → Finish → Save or Save As

Note: the size of could be adjusted through Scale, resolution could be adjusted through

Level. M7 could print QR code from data base by USB disk.

4.2 Load File

①Delete File: Delete File from local list.

②Load File: Load files from local storage or U disk list.

③Clear File: Delete all files

④Edit File: Revise files which have existed in local list.
