Eton Scorpion II Bedienungsanleitung

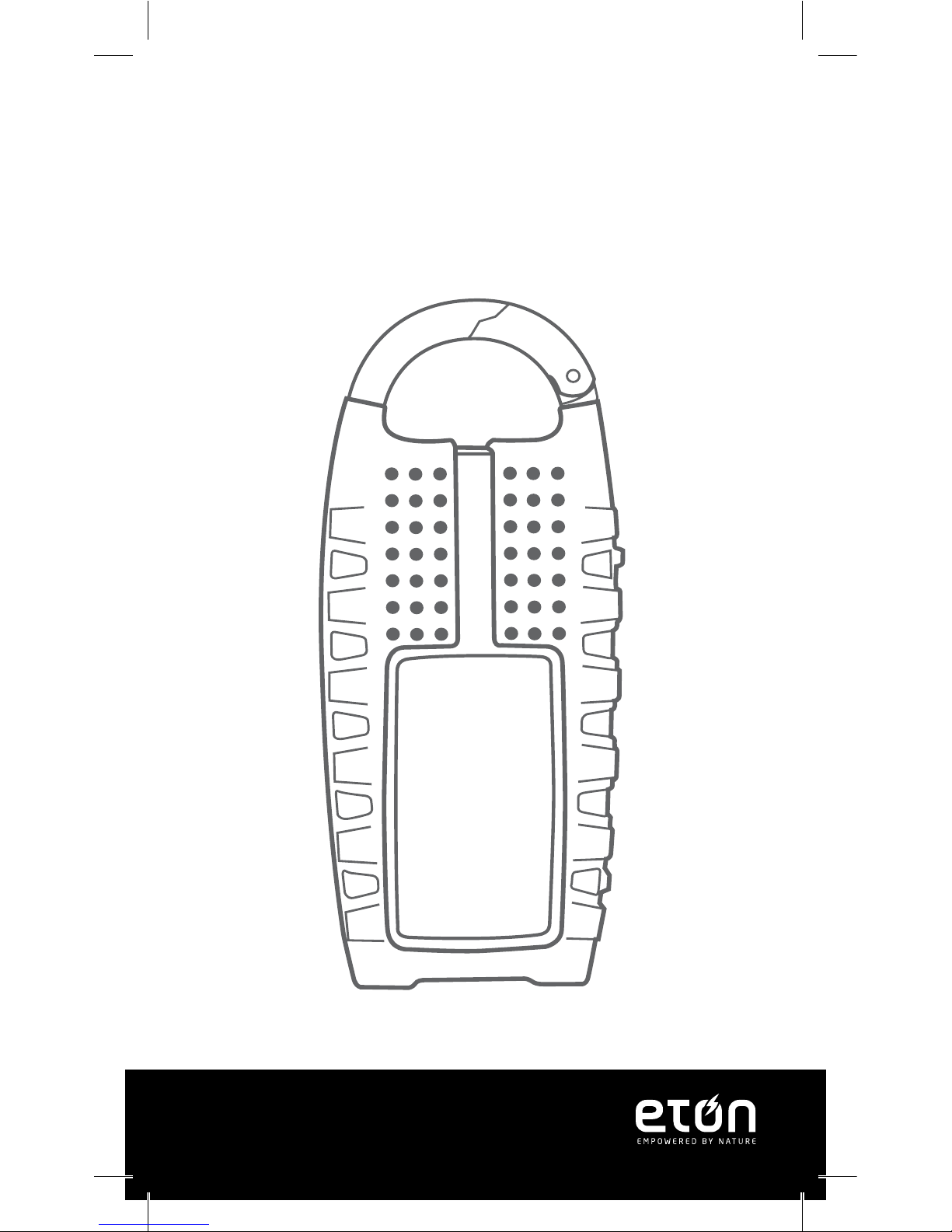

SCORPION II

OWNER’S MANUAL

SCORPION II OWNER’S MANUAL

MEET THE SCORPION II

Thank you for purchasing the Etón Scorpion II. We want you to

thoroughly enjoy the use of this product. To take advantage of

its many excellent and unique features, we urge you to carefully

read the user’s manual.

SCORPION II OWNER’S MANUAL

FEATURES:

Hand Crank

Bottle opener

(for use with standard

bottles)

LED light

USB OUT -

Phone charging

Headphone output

Carabiner

Antenna

Solar panel Micro USB

charging port

This Product is IPX-4 Splashproof

Water resistant to IEC60529 IPX4. It is not waterproof and should not be submerged in water.

1 Flashlight ON/OFF

2 Tune up

3 Tune down

4 Power ON status LED

5 Battery Charge Indicator

6 Volume up

7 Volume down

8 Mode selector

9 Radio Power ON/OFF

AMPM FM WB

MHz

KHz

CELL

1 2 3 4 5 6 7 8 9

1X 1X

SCORPION II OWNER’S MANUAL

KEY OPERATIONS

POWER

Press POWER button to turn on the unit press again to turn off.

Selecting Mode

Press Mbutton to choose WB, FM or AM listening or cell phone

charging mode. Scroll up/down on tuning buttons to tune into

your radio station. To select WB station for your area. Scroll up/

down tuning buttons until you hear weather information for

your area.

VOL ▲/ VOL ▼

Press VOL +/- to increase/decrease volume level, press and hold

to speed up adjustment.

TUNING ▲/ TUNING ▼

In [Radio mode], press TUNING ▲/▼to adjust frequency, press

and hold it to auto tune into the next available station.

LIGHT Operation

Press LIGHT button once to turn on the ashlight, press it again

to turn off.

CELL Phone Charging

Plug your phone’s USB charging cable into the USB out port on

the Scorpion II and plug the other end into your phone. Press

SCORPION II OWNER’S MANUAL

and release M button until ‘CELL’ appears on the screen to start

charging. Press Mbutton again to stop charging and re-enter

radio mode.

Note: The radio will turn off while you are charging your phone.

EARPHONE JACK

Plug in earphones (not included). A mono signal is sent to both the

left and right channels of the headphones.

SETTING THE CLOCK

1. Press and hold “M” button

Hours will ash

2. Press ▲ to change hour

3. Toggle to minutes by pressing “M” button

Minutes will ash

4. Press ▲to change minutes

SCORPION II OWNER’S MANUAL

12 HOUR TO 24 HOUR

1. Press and hold “M” button until the hours digits begin to

ash.

2. Press and release the “M” button two times, the number “12”

will be displayed.

3. Press ▲button to toggle between “12” and “24” hour time

mode

4. After 5 seconds, clock will be set.

SCORPION II POWER OPTIONS

800 mAh Lithium Battery

Charge the lithium battery via the included micro-USB cable.

Both the solar panel and the crank will automatically charge to

the lithium battery.

Solar Charging

When placed in sunlight, it will automatically start

charging the lithium battery. Battery indicator on screen

will show unit is charging.

Crank Charging

Crank for 4 minutes to get 1 minute of talk time on most smart

phones or 10-15 minutes of radio time.

SCORPION II OWNER’S MANUAL

NEED HELP?

Check our website for FAQ’s for the SCORPION II.

www.etoncorp.com

OR CONTACT US

Etón Corporation

1015 Corporation Way, Palo Alto, CA 94303, USA

1-800-872-2228 (U.S.)

650-903-3866 (worldwide)

M-F, 8:00AM-4:30PM, Pacic Standard Time

www.etoncorp.com.

WARNING

• Do not expose this appliance to rain or moisture.

• Do not submerge or expose for extended period to water.

• Only operate within specied temperature range (0 °C to

40 °C).

• Unplug immediately if liquid has been spilled or any

object has fallen into the apparatus.

• Clean only with a dry cloth. Do not use detergents or chemical

solvents as this might damage the nish.

• Unplug and disconnect external antennas during lightning

storms.

• Do not remove cover [or back].

• Refer servicing to qualied service personnel.

SCORPION II OWNER’S MANUAL

ENVIRONMENT

Disposal

According to the European Directive 2002/96/EC all electrical

and electronic products must be collected separately by a local

collection system.

Please act according to your local rules and do not dispose of your

old products with your normal household waste.

Please dispose of all types of batteries per your Government,

State or Local rules and/or regulations. If you are unsure, please

call the appropriate local authority to nd out how to dispose of

them safely and help protect the environment.

WARRANTY REGISTRATION

To ensure full warranty coverage or product updates, registration

of your product should be completed as soon as possible after

purchase or receipt.

PLEASE GO TO

http://www.etoncorp.com/productregistration to register

your product.

LIMITED WARRANTY

Retain your proof of purchase or the receipt. Limited Warranty

information can be viewed at www.etoncorp.com in the Support

section.

SCORPION II OWNER’S MANUAL

SERVICE FOR YOUR PRODUCT

To obtain service for your product, we recommend

rst contacting an Etón service representative at 800-872-2228

US or (650) 903-3866 for problem determination and trouble-

shooting. If further service is required, the technical staff will

instruct how to proceed based on whether the radio is still under

warranty or needs non-warranty service.

WARRANTY

If your product is still in warranty and the Etón service

representative determines that warranty service is needed, a

return authorization will be issued and instructions for shipment

to an authorized warranty repair facility. Do not ship your radio

back without obtaining the return authorization number.

NON-WARRANTY

If your product is no longer under warranty and requires service

our technical staff will refer you to the nearest repair facility

that will be able to best handle the repair.

For service outside of North America, please refer to the

ditributor information included at time of purchase/receipt.

GUIDE DE L’UTILISATEUR DU SCORPION II

DÉCOUVREZ LE SCORPION II

Merci d’avoir acheté le Scorpion II. Nous vous souhaitons de

profter pleinement de son utilisation. Pour profter de ses

nombreuses et excellentes caractéristiques uniques, nous vous

invitons à lire attentivement ce manuel de l’utilisateur.
