Attach the Repeater
The EZ SMART Repeater is useful for setting up for repeatable cross-cuts and rip-cuts, eliminating the need for
repeated use of a measuring tape. It is often used in conjunction the EZ SMART Smart S uare, as part of the
EZ SMART Cabinetmaker Woodworking System. However, the Smart S uare is not completely necessary for its
functioning. Used with a section of EZ SMART Guide Rail, the Repeater serves a dual role as a story stick and
as a stop for precise cuts. If a single Repeater is used without the Smart S uare, it is recommended to clamp
the Guide Rail to the work surface using optional EZ SMART Wood Clamps to hold the Guide Rail to the cut-
line. Using a second Repeater (sold separately) allows the Guide Rail to be used without clamping to make
s uare cuts.
Extension
Knobs
Arm Adjustment
Knobs
Flip Stop
Tighten
small
knobs
Attach the Second Repeater
The second Repeater is installed so that
the Repeater arm is on the same side of
the Guide Rail as the first Repeater arm.
Install the Repeater so that arm is
located on cutting side of the Guide Rail
Eurekazone, LLC 1904 NE Jacksonville Rd Ocala, FL 34470
Phone (352) 620-2262 Fax (352) 620-2576 techsupport@eurekazone.com www.eurekazone.com v14-01
Page 1

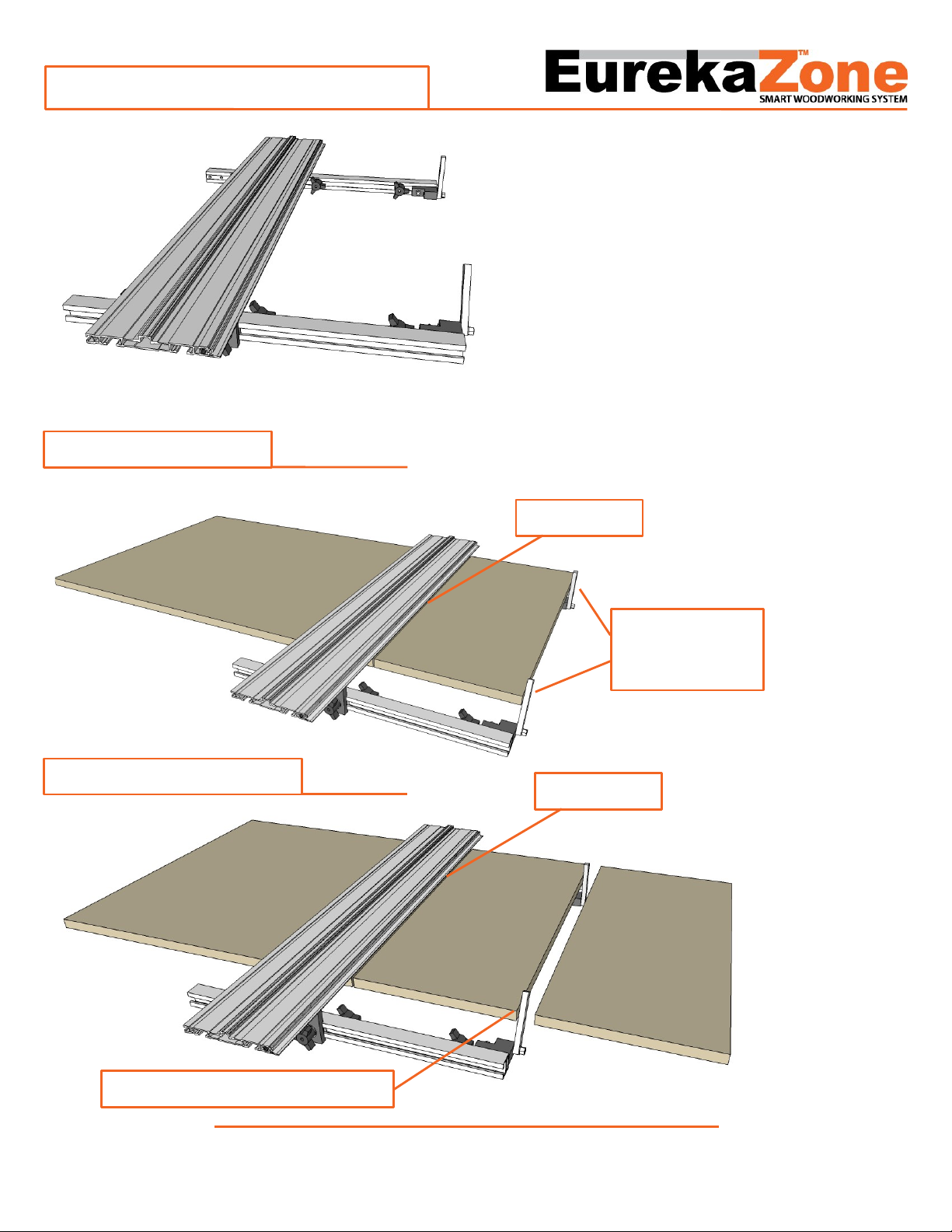

Using the Repeater
●Capacity (width): 40” (right and left)
●Capacity (length): limited only by length of
Guide Rails
●Once the Repeaters are set to a particular
dimension, no further measuring is needed to
make multiple workpieces of the same size.
Cutting the First Piece
Cutting the Second Piece
Both Repeaters
set to same
dimension
Cut Line #1
Material moved against Repeaters
Cut Line #2
#1
#1
#2
