Eurotech COM-1460 Bedienungsanleitung

Embedded

EmbeddedEmbedded

EmbeddedDNA

DNADNA

DNA

PC/104-Plus CPU Module

User’s Manual

Rev. 1.0 Sep. 2002

COM-146

2 PC/104-Plus – COM-1460 Module

ABOUT THIS MANUAL

This manual is meant for engineers and programmers who wish to develop systems based on the Eurotech

COM-1460 PC/104-Plus module. It contains the module’s technical specifications, and describes the connections

and firmware/software.

It also describes how to install, configure and troubleshoot the COM-1460 module.

Via J. Linussio 1

33020 AMARO (UD)

ITALY

Phone: +39 0433 485 411

Fax: +39 0433 485 499

web: http://www.eurotech.it

e-mail: mailto:sales@eurotech.it

NOTICE

Although all the information contained herein has been carefully verified, Eurotech S.p.A. assumes no

responsibility for errors that might appear in this document, or for damage to property or persons

resulting from an improper use of this manual and of the related software. Eurotech S.p.A. reserves the

right to change the contents and form of this document, as well as the features and specifications of its

products at any time, without notice.

Trademarks and registered trademarks appearing in this document are the property of their respective owners

PC/104-Plus – COM-1460 Module 3

Conventions

The following table lists conventions that are used throughout this guide.

Icon Notice Type Description

Information note Important features or

instructions

Warning

Information to alert you to

potential damage to a program,

system or device or potential

personal injury

(This page is intentionally left blank.)

Contents

Conventions.................................................................................................................................................... 3

Contents............................................................................................................................................................ 5

Chapter 1 Product Overview....................................................................................................................... 7

COM-1460 module’s functional blocks........................................................................................................... 8

Product Definition ........................................................................................................................................... 8

COM-1460 PC/104-Plus Module characteristics .....................................................................................8

Chapter 2 Jumper Description.................................................................................................................... 9

Jumper Layout and Configuration ................................................................................................................ 10

Chapter 3 Connectors Description........................................................................................................... 13

Connectors Layout ....................................................................................................................................... 14

J1, J2 for the ISA Bus and J3 for the PCI Bus ............................................................................................. 15

The ISA BUS.......................................................................................................................................... 15

The PCI BUS ......................................................................................................................................... 15

How to connect the COM-1460 to other PC/104 & PC/104-Plus devices: the stack assembly ............ 15

J7, J8, J9 for Firewire ................................................................................................................................... 17

J10 for Main Power....................................................................................................................................... 17

Chapter 4 Troubleshooting ....................................................................................................................... 19

Common Problems and Solutions................................................................................................................ 20

Troubleshooting a PC/104-Plus System ...................................................................................................... 20

Technical/Sales Assistance.......................................................................................................................... 20

6 PC/104-Plus – COM-1460 Module

Returning For Service................................................................................................................................... 21

Appendix......................................................................................................................................................... 25

A.1 Electrical and Environmental Specifications...................................................................................... 26

Operating Characteristics ...................................................................................................................... 26

Absolute Maximum Ratings ................................................................................................................... 26

MTBF ..................................................................................................................................................... 27

A.2 Mechanical Dimensions..................................................................................................................... 28

Module Dimensions ............................................................................................................................... 28

A.2 Safety Summary ................................................................................................................................ 29

Ground the Instrument........................................................................................................................... 29

Do Not Operate in an Explosive Atmosphere........................................................................................ 29

Keep Away From Live Circuits............................................................................................................... 29

Use Caution When Exposing or Handling the CRT............................................................................... 29

Do Not Substitute Parts or Modify Equipment ....................................................................................... 29

Observe Dangerous Procedure Warnings............................................................................................. 29

Flammability........................................................................................................................................... 29

EMI Caution ........................................................................................................................................... 30

CE Notice............................................................................................................................................... 30

Disclaimer of Warranty .......................................................................................................................... 30

Notice..................................................................................................................................................... 30

Reliability................................................................................................................................................ 30

Life Support Policy ................................................................................................................................. 30

Glossary.......................................................................................................................................................... 31

Acronyms and Abbreviations ....................................................................................................................... 37

Chapter 1 Product Overview

The COM-1460 is a PC/104-Plus module with 3 Firewire channels.

For a complete list of Eurotech products please go to our web site: http://www.eurotech.it/

In the following paragraphs you will find a description of the COM-1460 characteristics.

8 PC/104-Plus – COM-1460 Module

COM-1460 module’s functional blocks

The figure below shows the functional blocks diagram of the module.

TSB41LV03A

PCI BUS

ISA BUS

(For pass

through only)

signal

CTR-1460

Module

Firewire3 Firewire2 Firewire1

Physical

Interface

Link

Interface

PCI4450

Figure 1. Functional blocks of the COM-1460 module

Product Definition

COM-1460 PC/104-Plus Module characteristics

 PC/104-Plus Form Factor: 90 X 96 mm (3.6”X3.8”), height 15 mm (0.6”)

 PCI/ISA compliant with the PC/104-Plus standard

 3 Firewire connectors

 1 External Power Connector

 Low power consumption.

 High reliability.

Chapter 2 Jumper Description

This chapter shows the jumpers layout and explains how to set up the jumpers.

10 PC/104-Plus – COM-1460 Module

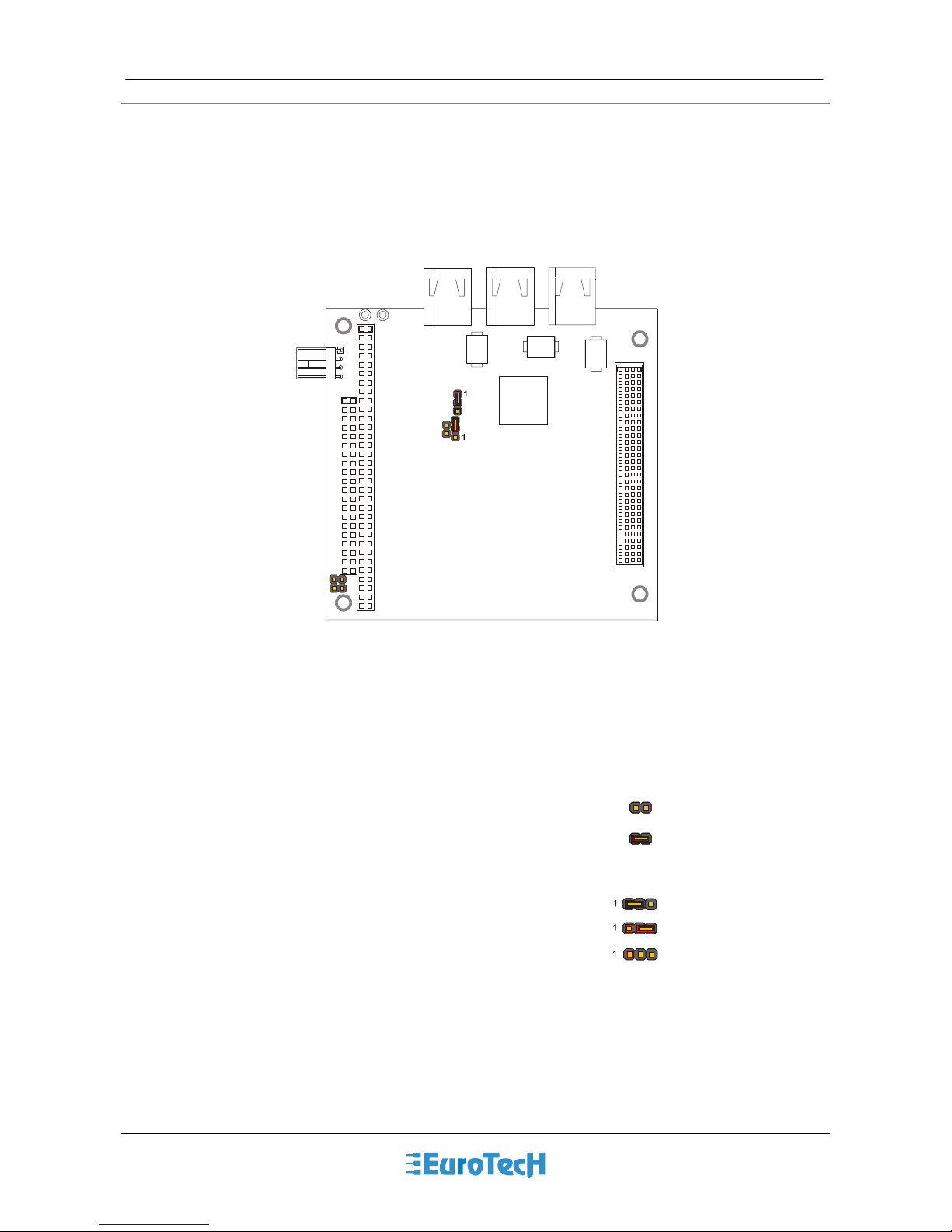

Jumper Layout and Configuration

The figure below shows the jumper layout of the COM-1460 module.

In the figure below, the jumpers are indicated as JP followed by the jumper's number, while pin 1 of every

three pin jumper is indicated by a red square pad.

JP3

JP2

JP5

JP4

JP1

Figure 2. Jumpers on the COM-1460 module

The following jumpers are located on the module:

Three 2-pin jumpers which can be set as follows:

 pin 1 and pin 2 not connected (which will be indicated as ‘Open’)

 pin 1 connected to pin 2 (which will be indicated as ‘Closed’)

Two 3-pin jumpers which can be set as follows:

 pin 1 connected to pin 2 (which will be indicated as ‘1-2’)

 pin 2 connected to pin 3 (which will be indicated as ‘2-3’)

 no pins connected (Open). This setting is not allowed

= 2-3

= 1-2

= Open

= Closed

= Open
