EUTHANEX SmartBox M1TSFF2C-FM Bedienungsanleitung

Auto CO2System

Models M1TSFF2C-FM

4/21/2020

877-559-0159 Toll Free Euthanex Corp. / E-Z Systems Inc.

610-559-0159 Phone P.O. Box 3544

610-821-3061 Fax Palmer, PA 18043

www.euthanex.com [email protected]m

TABLE OF CONTENTS

Disclaimer ____________________________________ 3

System Overview _______________________________ 4

Saftey________________________________________ 5

System Setup __________________________________ 6

Operating the System ___________________________ 13

Changing Operating Specifications _________________ 20

Troubleshooting _______________________________ 30

EMC / EMI.

This equipment has been tested and found to

comply with the limits for a Class A Equipment,

pursuant to part 15 of the FCC rules.

IEC 61326-1:2005 / EZ 61326-1:2006

DISCLAIMER

THIS MANUAL MUST BE READ BEFORE SETTING UP AND OPERATING THE AUTO CO2

SYSTEM. The user should be thoroughly familiar with the contents of this manual prior to using the

system with animals. Only technicians that are properly certified should operate the Auto CO2System.

The user/owner of this equipment shall have the sole responsibility for any damage or injury resulting

from operation that is not in accordance with the authorized instructions. This includes, but is not limited

to, operating the equipment outside of recommended safety levels, variation from specified operating

instructions and not following standard laboratory safety procedures when working with anesthetic

agents and volatile compressed gases.

The system and its components must only be modified or repaired by Euthanex-authorized service

technicians. Improper modification or repair may result in danger to personnel, harm or death to animals

and/or equipment damage. The user/owner of this equipment shall have the sole responsibility for any

damage or injury resulting from improper maintenance and repair that is not done by authorized

maintenance and repair personnel.

Parts that have failed, in whole or in part, exhibit excessive wear, are contaminated or are otherwise at

the end of their useful life, should not be used and should be replaced with parts supplied by Euthanex

Corporation. Tampering with the controller unit by unauthorized personnel voids all warranties and

specifications. The manufacturer assumes no responsibility for any malfunction or failure of the unit if

tampering is suspected.

SMARTBOX FIXED FLOW SYSTEM OVERVIEW

The SmartBox Fixed Flow M1-TSFF Auto CO2System is an advanced automated euthanasia unit that

has been developed specifically for euthanizing small rodents. The system incorporates three key

components, the SmartBox Fixed Flow Controller, the M1 Chamber and the Exhaust Blower. The

system works with preset timings that assure humane and efficient levels of CO2. Gas flow rate is set at

the source (fixed flow), while the timings are controlled by the automated controller unit. The

controller does not impact the flow rate, but delivers gas at the rate that is output by the source.

The TSFF Controller operates in preset automated stages:

1) Gas Flow: Flow rate is set to conform to the AVMA guidelines for humane

euthanasia. CO2flows into the top chamber and anesthetizes the animals with minimal

stress. While the animals are anesthetized, the gas flow continues and increases the

chamber’s CO2concentration to euthanizing level.

2) Dwell Time: Gas flow shuts off and the chamber remains fully charged to assure

euthanasia of all animals.

3) Optional 2nd Gas Charge can be set for each species registered in system.

4) Evacuation Time: Onboard blower evacuates CO2out of the chamber and into the in-house

exhaust system and then shuts off after the chamber is fully purged. All gas is completely

purged from the chamber, making it safe for personnel to remove cages at the completion

of the cycle.

The lightning flash with an arrowhead

symbol within an equilateral triangle, is

intended to alert the user to the presence of

uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Do not clean by spraying liquid directly onto

unit.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer's

instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other

unit that produce heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A

polarized plug has two blades with one

wider than the other. A grounding type plug

has two blades and a third grounding

prong. The wide blade or the third prong

are provided for your safety. If the provided

plug does not fit into your outlet, consult an

electrician for replacement of the obsolete

outlet.

10. Protect the power cord from being walked

on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the unit.

11. Unplug this unit during lightning

storms or when unused for long periods of

time.

12. Refer all servicing to qualified service

personnel. Servicing is required when the

unit has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or objects

have fallen into the unit, the

unit has been exposed to rain or

moisture, does not operate normally, or has

been dropped.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the product.

Warning!

•To reduce the risk of fire or electric shock,

do not expose this unit to rain or

moisture.

•Use line cord supplied with the product.

•Be advised that different operating voltages

require the use of different types of line

cord and attachment plugs. The unit was

shipped with the requested plug. If the

installation requirements change please

•This equipment should be installed near the

socket outlet and disconnection of the device

should be easily accessible.

•Do not install in a confined space.

•Do not open the unit - risk of electric shock

inside.

Caution: You are cautioned that any change or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

Service

•There are no user-serviceable parts inside.

•All service must be performed by qualified

personnel.

Voltage

100-240 v ac 50-60hz 5 amp Max (auto

select)

Pressure

175 psi max to inlet

Temp

0 to 40°C <> 10 to 85% RH (no

condensation)

SYSTEM SETUP

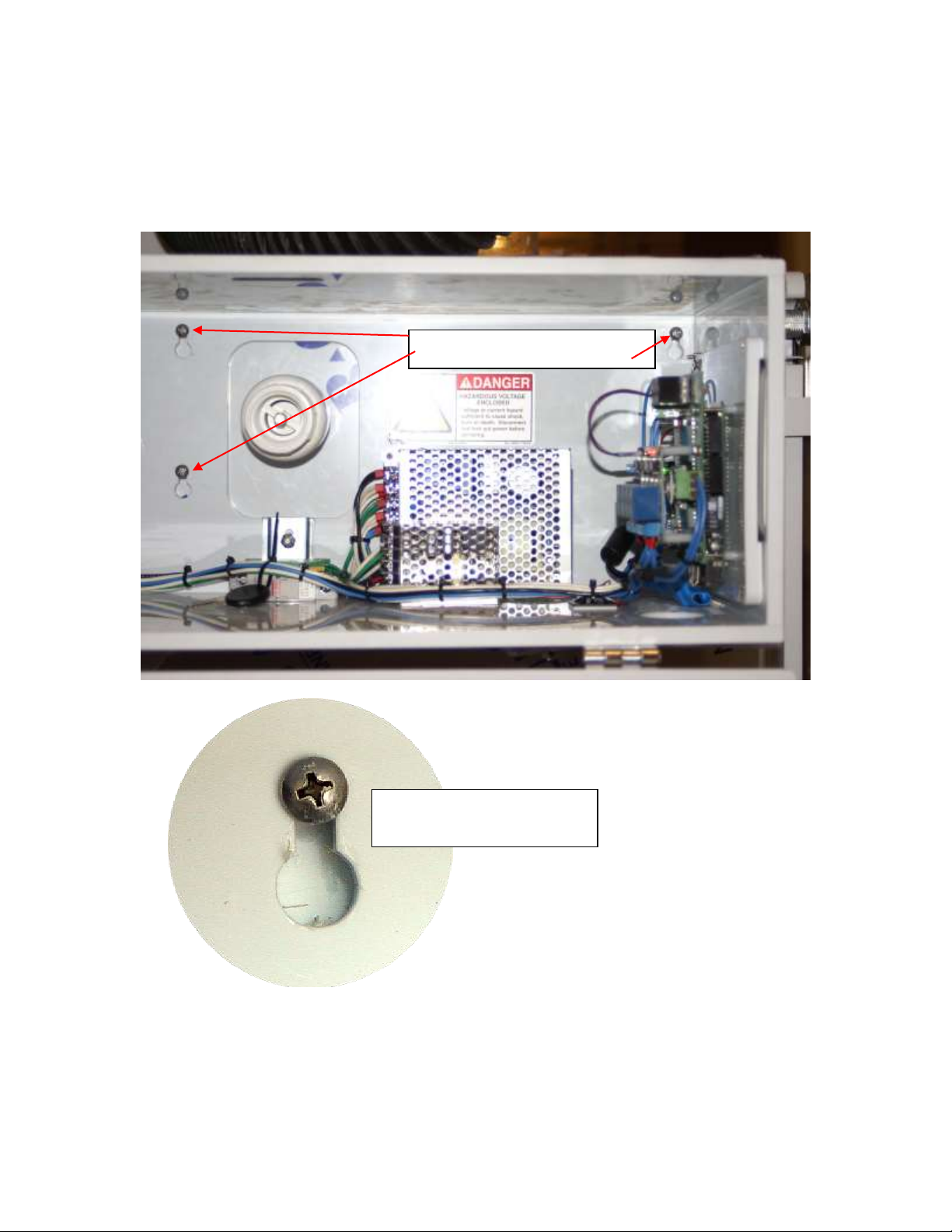

1) The SmartBox controller is attached to the top M1 chamber utilizing the four keyholes on the back

of the controller. Note: The chamber door must be opened to hang controller.

Align the keyholes with the four screws on the left side of the chamber. Push in and slide down to

secure. The screws may be tightened for permanent mounting.

Screw mounts on chamber side

Controller keyhole mounted

on chamber screw

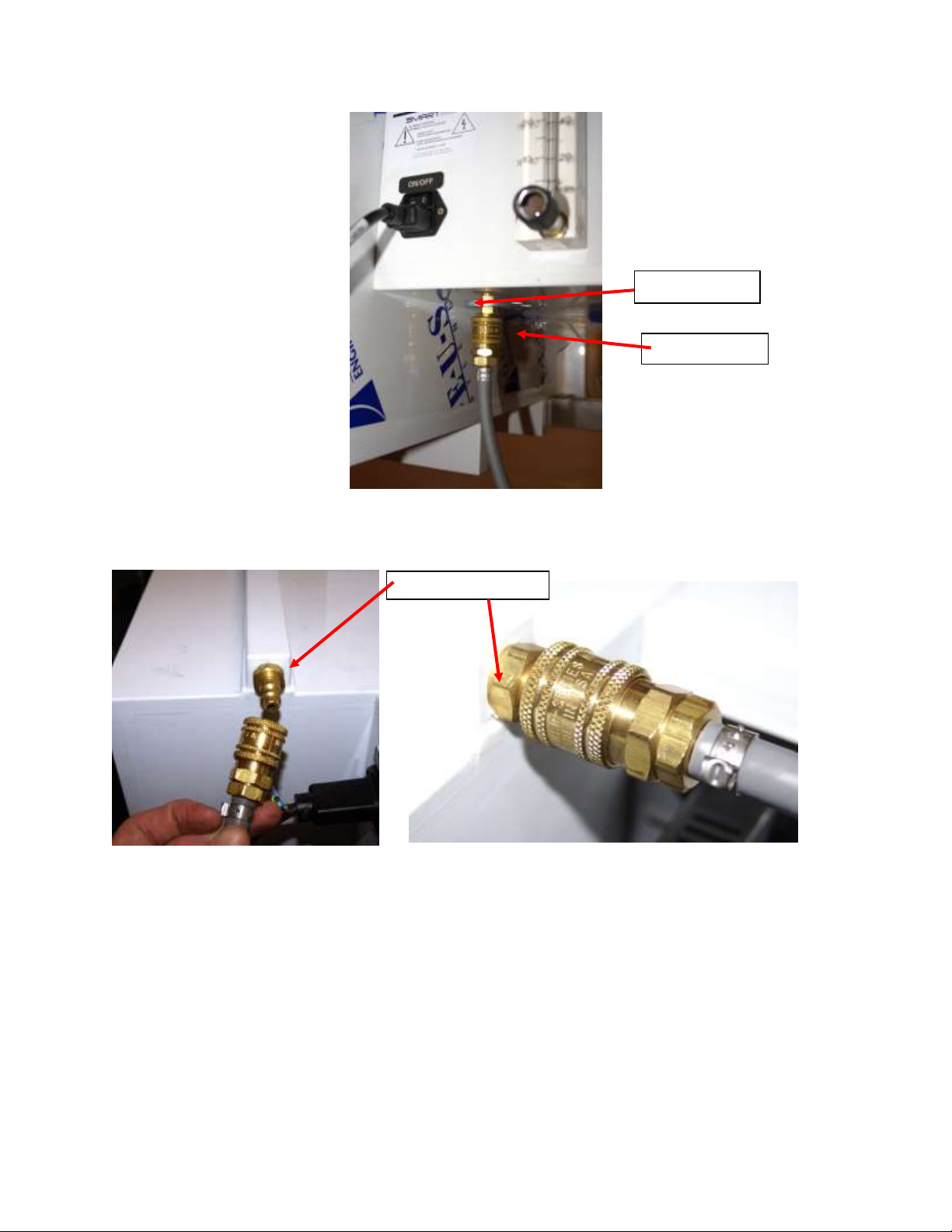

2) On the bottom of the SmartBox side control box is a brass CO2input fitting that must be connected

to the CO2supply. For Tank supply gas see step #9 and for house see step #12.

3) On the side of the M1 chamber is a brass CO2input fitting that must be connected to the CO2supply

line that is coming out of the side control box. Do this for each chamber in the system.

CO2Input Hose

CO2Input Connection

ConnCpmme.

CO2Input Fitting

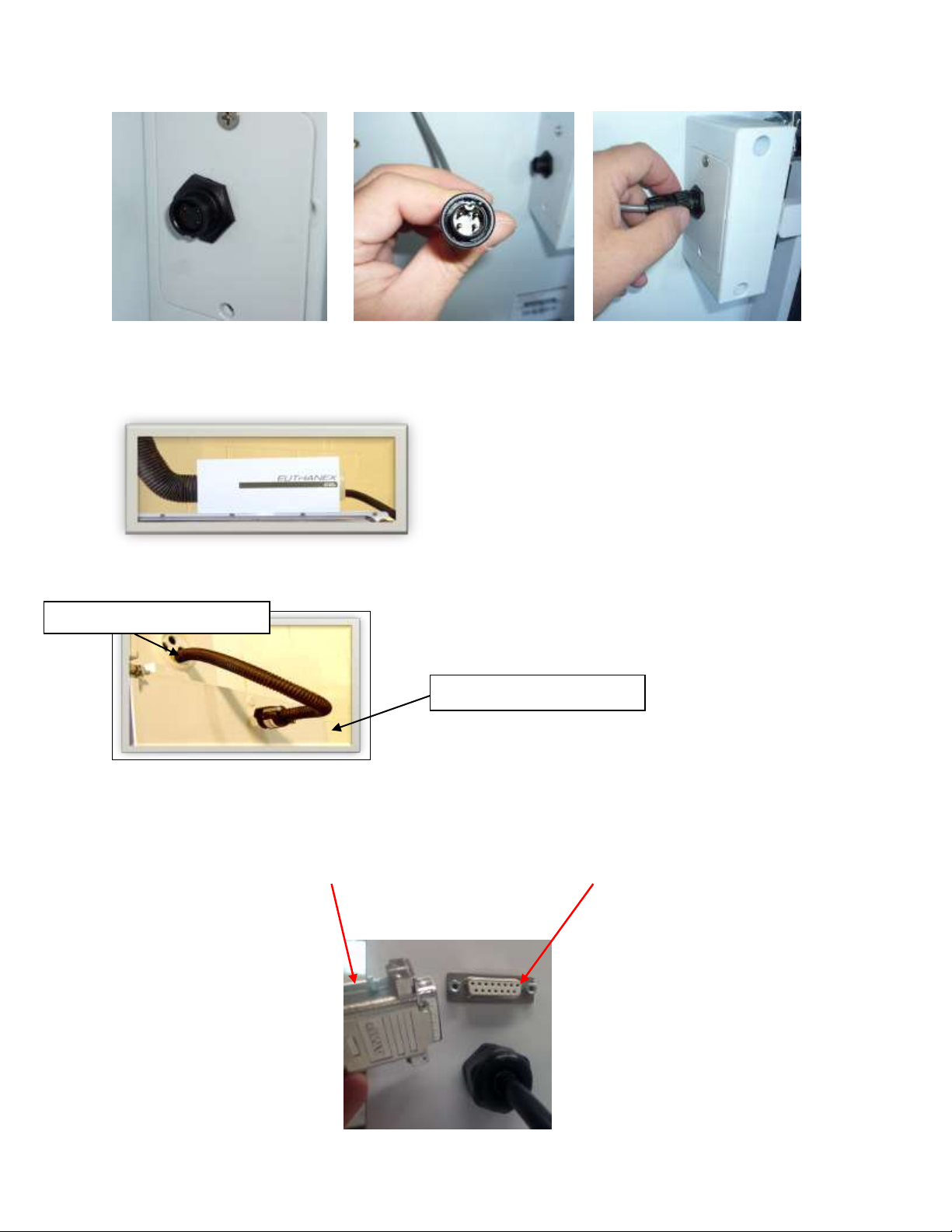

4) TSFF-2C/3C Models Only are equipped with the ESC safety lock microswitch that allows the second

and third chamber to lock when in use. Use the four pin connector to attach to the back of the ESC.

5) Rest the exhaust blower on top of the chamber. The large 4” exhaust hose must be on left and the 1”

intake hose on the right.

6) Attach the 1” intake hose from the blower to the “CO2Out” on the right side of top chamber. The

clamp connector fastens by pulling the two clamps away from chamber. Do this for each chamber in

the system.

Connect the data cable 15 pin connector that is from the side control box to the female 15 pin

connector on the exhaust blower box next to the power

CO2Input to Exhaust Blower

CO2Output from Chamber

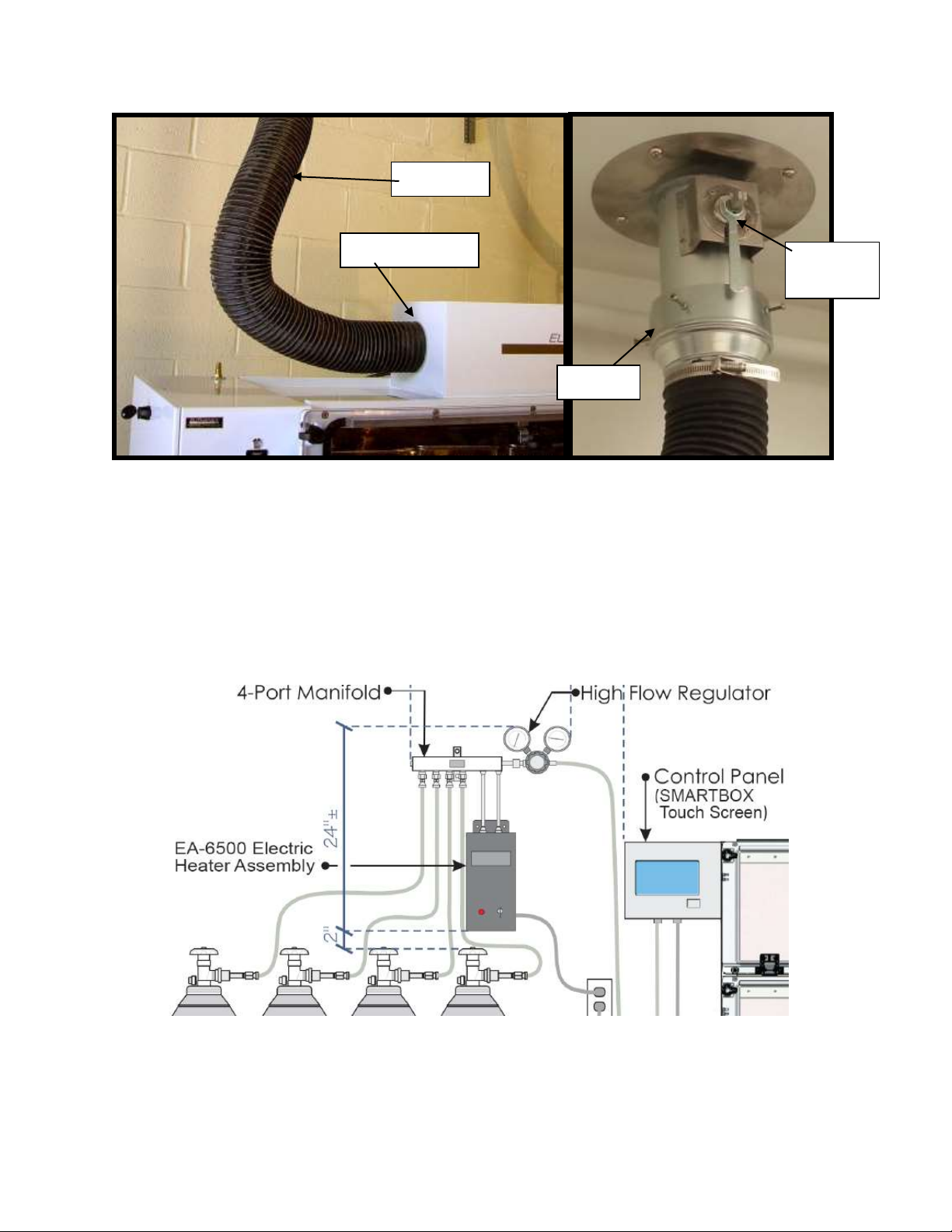

7) Attach the 4” exhaust hose from the blower to the in-house exhaust system. For facilities without

in-house exhaust, drop the exhaust hose to the floor, allowing the CO2to dissipate away from

personnel.

Euthanex also offers a flat wall plate thimble for adapting to flat return grates.

8) For hose supplied gas go to step #10

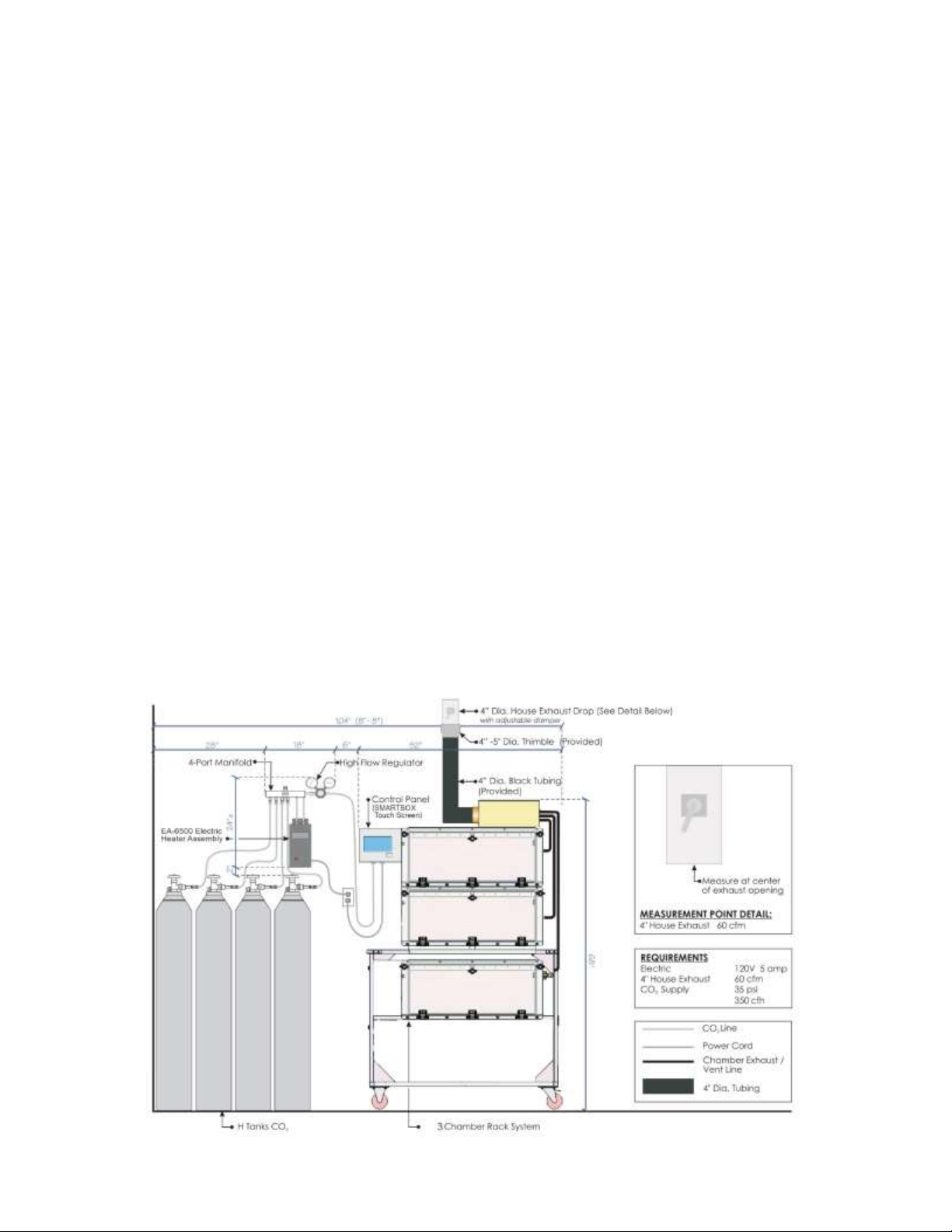

9) EA-6500 Install Instructions

The unit should be mounted above the top of the tanks as seen above. The power must be within 6 ft of

the mounting location.

Tools required: level, marker, 1/4 drill bit for concrete or drywall

Exhaust Blower

4” Exhaust

House

Damper

Thimble

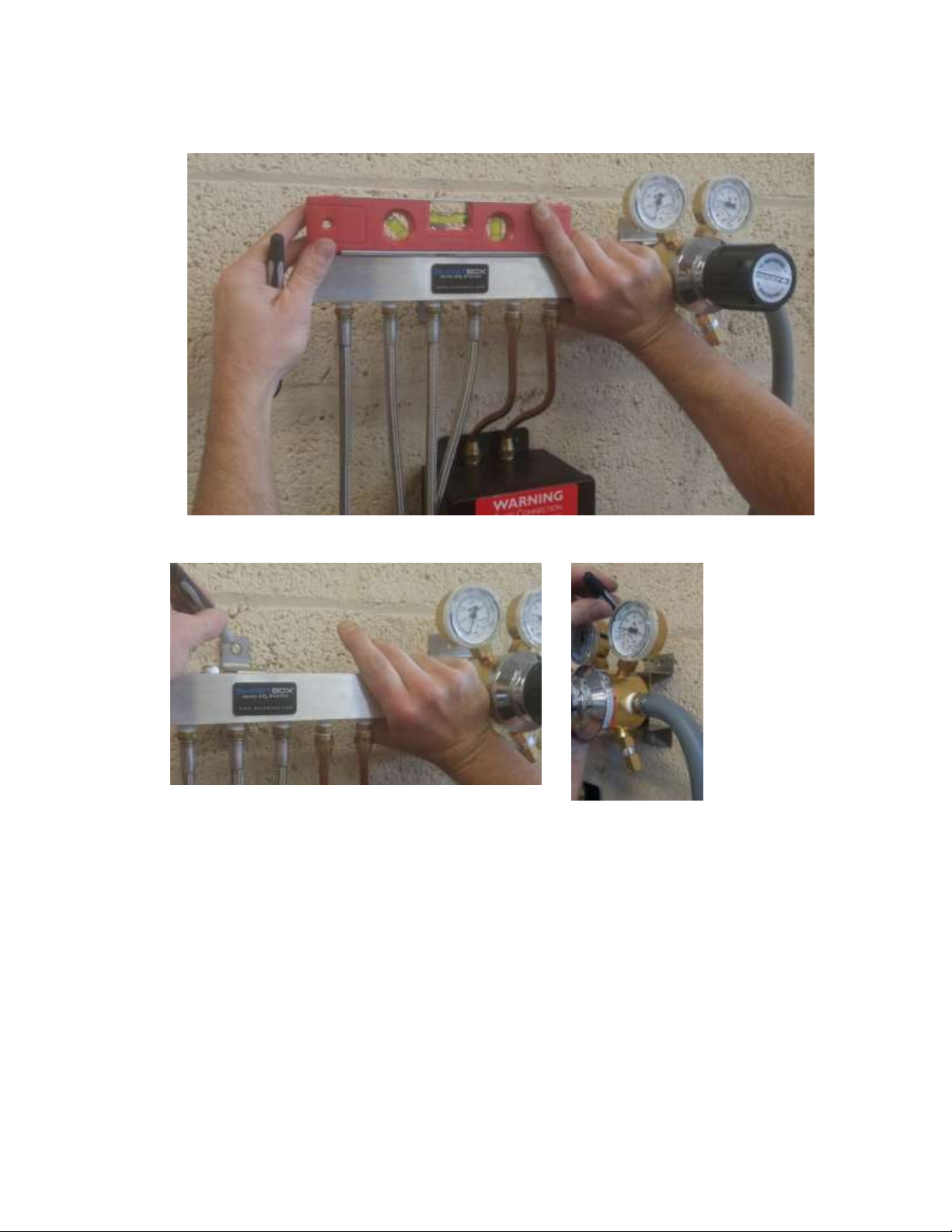

A. Hold assembly firmly against the wall where you would like to mount your manifold.

B. Use level to ensure the manifold is level against the wall

C. Use a marker or pencil to scribe the four (4) holes, 2 located on the manifold bracket and 2

located on the regulator bracket.

D. Remove the assembly to expose scribe marks

E. Use a 1/4” drill bit (not included) and drill the four (4) holes

F. Insert the four (4) plastic anchors (included) and press firmly into the wall

G. Hold the assembly against the wall and line us the predrilled holes

H. Use a #2 screwdriver and screw the four (4) screws through the plate into the anchors
