Event Lighting NITROBALL Bedienungsanleitung

NITROBALL

5x 12W LED RGBW Spherical Light

USER MANUAL

For your safety, please read this user manual carefully before use.

Event Lighting reserves the right to revise the manual at any time. Information and specifications

within this manual are subject to change without notice. Event Lighting assumes no liability or

responsibility for any errors or omissions. Please consult Event Lighting for any clarification or

information regarding this item.

Version 1.0 (revised 5 November 2020)

www.event-lighting.com.au

Safety Instructions

Warning

• Do not open this device, there are no user serviceable parts inside. Risk of electric

shock.

• Do not look directly at the light source from close range.

• Avoid contact with the unit during operation, as the housing may become hot. Allow the

fixture to cool for at least 15 minutes after turning off before touching.

• Install this device in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

• Do not operate this device, or connect this device to power, within 50cm of any

flammable material.

• Use a safety chain when mounting this device overhead.

• Do not operate this device outdoors where excessive dust, heat, water, or humidity may

affect it.

• Do not operate this device if the housing, lenses, or cables appear damaged.

• Do not connect this device to a dimmer or rheostat.

• Do not operate this device at temperatures higher than 40°C (104°F).

• Only connect this device to a grounded and protected circuit.

• Only use the hanging bracket to carry this device.

• Stop using this device immediately if a serious operating problem becomes apparent.

Power Input

This device has an auto switching power supply work with input voltage range of 100-240V AC,

50/60Hz.

Product Installation

NITROBALL can be mounted in many orientations, provided each individual device is secured by

the use of the correct mounting bracket. Use a safety chain when mounting NITROBALL

overhead.

Fuse Replacement

If the fine-wire fuse of the device fuses, replace the fuse with one of the same type of rating.

Before replacing the fuse, unplug the device from the power source.

Fuse Replacement Steps

1. Unscrew the fuse holder located on the rear panel from the housing.

2. Remove the old fuse from the holder.

3. Install the new fuse into the holder.

4. Place the fuse holder back into the housing and secure tightly.

www.event-lighting.com.au

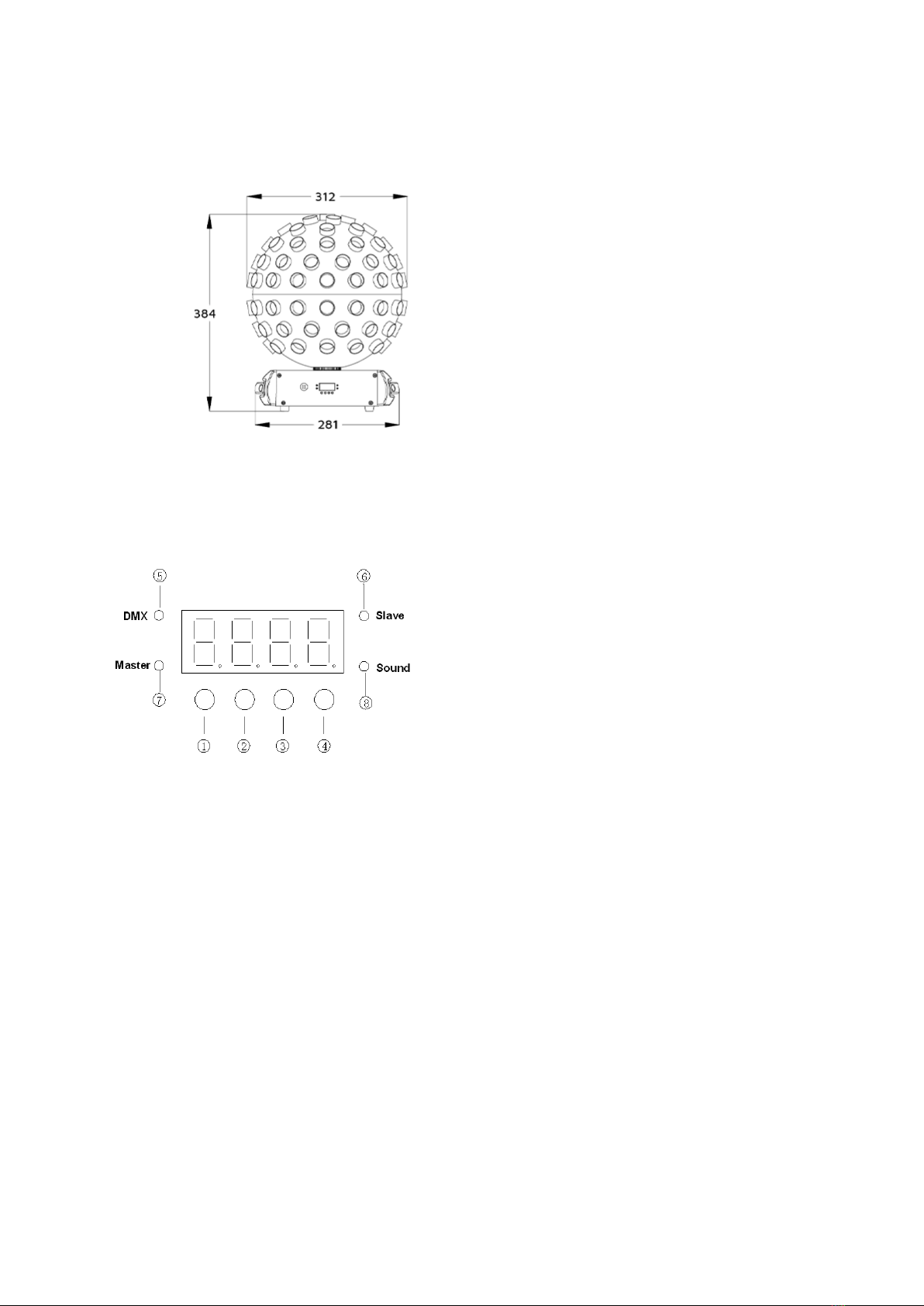

Dimensions

Control Panel

Buttons

(1) MENU – Select an operation mode or return to previous screen.

(2) ENTER – Confirm the selected function.

(3) UP – Increase parameters.

(4) DOWN – Decrease parameters.

Indicators

(5) DMX signal LED indicator (Flash/Off)

(6) Slave Mode LED indicator (Flash/Off)

(7) Master Mode LED indicator (Flash/Off)

(8) Sound Active Mode LED indicator (Flash/Off)

• The LED Display will switch off after 10 seconds. Press any button to turn it back on.

• The fixture will automatically save the selected setting after a few seconds.

• When NITROBALL is connected via DMX or SLAVE signal, it automatically activates

DMX or SLAVE mode. If you disconnect it, NITROBALL will return to the previous setting.

www.event-lighting.com.au

Press the MENU button to select an operation mode or return to the previous menu. Use UP and

DOWN to navigate the menu. Press ENTER to change or activate menu options.

DMX Chart

Channel

Value

Function when Channel 1’s

value is 59-255

Function when Channel 1’s value

is 0-58

000 - 058

Switch on colour dimmer DMX

mode

059 - 078

Auto show 1

079 - 098

Auto show 2

099 - 118

Auto show 3

119 - 138

Auto show 4

139 - 158

Auto show 5

159 - 178

Auto show 6

179 - 198

Auto show 7

199 - 227

Sound active show 1

228 - 255

Sound active show 2

000 - 255

Program speed adjustment for

auto show 5, 6 & 7

Master dimmer

000 - 255

Strobe speed adjustment

strobe speed adjustment

000 - 255

Motor speed adjustment

Red 0% ~ 100%

000 - 255

Green 0% ~ 100%

000 - 255

Blue 0% ~ 100%

000 - 255

White 0% ~ 100%

Select DMX Address

Master Mode

Slave Mode

First digit: Motor Speed. Second digit: Program

Program Speed adjustment for Auto Program 5, 6, 7

Strobe Speed

Sound Active Program 1 or 2

Red LED Brightness

Green LED Brightness

Blue LED Brightness

White LED Brightness

Motor Speed

Normal Display

Inverted Display

Software Version

www.event-lighting.com.au

000 - 009

The motor stops

010 - 128

Counter clockwise rotation speed

adjustment (slow to fast)

129 - 137

The motor stops

138 - 225

Clockwise rotation speed

adjustment (slow to fast)

Technical Specifications

Photometrics

• Light Source: 5x 12W RGBW 4-in-1 LEDs

• Coverage angle: 360°

• LED Lifespan: 50,000 hours.

Power

• Input Voltage: 100~240V AC, 50/60 Hz.

• Power Consumption: 72W.

• Connection: IEC in.

Control

• Protocol: DMX512.

• Operation modes: DMX, auto, manual, sound active, master/slave

• DMX Channels: 8

• Interface: 3-pin DMX in/out.

• Display: LED Display with 4-button control.

Housing

• Finishing: Matte Black.

• Net Weight: 3.6kg

• Dimensions: 312x312x383 mm.

Warranty

Please refer to your local dealer or contact Event Lighting.
