EVER ADVANCED TR-21827 Bedienungsanleitung
INSTRUCTION MANUAL
TR-21827
Patent Pending
READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF PRODUCT.
KEEP INSTRUCTIONS FOR FUTURE USE.
The EA kids flat fold stroller wagon is a new product that is specifically designed
for children. It features two seats for children age 2-7 and the maximum combined
weight for two children is 110LBS. Each seat holds up to 55 lbs. It is designed
with an adjustable push handle, a telescopic pull handle, 5-point safety harness,
front and rear locking wheels, an integrated tray, a canopy for shade and much
more. The unique features design to keep your children comfortable and safe.
EA KIDS FLAT FOLD STROLLER WAGON
TABLE OF CONTENTS
WARNING AND GENERAL SAFETY INFORMATION ................................................................Pg.3
EA KIDS FLAT FOLD STROLLER WAGON...............................................................................Pg.4
-Parts In The Box ..........................................................................................................................Pg.4
Assembly Instructions
-Unpacked Product For Assembly..................................................................................................Pg.5
-Installing Rear Axle.......................................................................................................................Pg.5
-Installing Rear Wheels..................................................................................................................Pg.5
-Installing Front Wheels.................................................................................................................Pg.6
-Unfolding and locking the product................................................................................................Pg.6
-Adjusting the push and pull Handle..............................................................................................Pg.7
-Installing the integrated tray .......................................................................................................Pg.8
-Installing The Canopy...................................................................................................................Pg.8
-Folding and Locking The Product.................................................................................................Pg.9
Set Up and Use
-Use of pull handle........................................................................................................................Pg.10
-Use of push handle.....................................................................................................................Pg.10
-Use of the Front and Rear Bags.................................................................................................Pg.10
Braking Systems
-Front Wheel brakes.....................................................................................................................Pg.11
-Front wheel individual direction lock............................................................................................Pg.11
-Locking Rear Axle.......................................................................................................................Pg.11
HARNESS- Use of The 5-Point Safety Harness
-Changing Shoulder Harness Anchor Points...............................................................................Pg.12
-Locking and Unlocking the Safety Harness................................................................................Pg.13
-Adjusting the Length of Safety Harness.....................................................................................Pg.14
Disassembly Instructions
Remove wagon wheels
-Remove Rear Wheels................................................................................................................Pg.15
-Remove Rear Axle......................................................................................................................Pg.15
-Remove Front Wheels................................................................................................................Pg.15
Remove Fabric
-Remove Main Fabric..................................................................................................................Pg.15
Care and Maintenance .............................................................................................................Pg.16
Customer Assistance and Questions......................................................................................Pg.16
PLEASE READ AND FOLLOW ALL OF THESE INSTRUCTIONS TO ENSURE THE SAFETY OF
YOUR CHILD. KEEP THESE INSTRUCTIONS FOR FUTURE USE.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
IMPORTANT! This wagon is recommended from children age 2-7. Not intended for children under
2 years of age.
WARNING! CHOKING HAZARD. Adult assembly required because of small parts. Keep assembly parts
out of reach of children under 3 years.
WARNING! NEVER leave children unattended. ALWAYS keep children in view while in the product.
WARNING! This wagon is suitable for use with one or two child occupants. The use of more than two
children may cause an unstable condition which can injure your child. The maximum combined weight
for two child occupants is 110lbs. Each seat holds up to 55 lbs.
WARNING! Check that the safety harness and all attachment devices are correctly engaged before use.
Ensure your child is properly positioned and using the safety harness during use.
WARNING! Ensure that all locking device are engaged before use.
WARNING! Check that the fabric is correctly engaged before use.
WARNING! DO NOT use product if any parts are missing or broken.
WARNING! Children must remain seated, secured by safety harness, and ALWAYS keep their arms and
legs inside while riding.
WARNING! ALWAYS apply brakes when taking children in or out and never leave child unattended.
WARNING! Make sure all items in the wagon are properly secured and away from children to reduce
the risk of injury.
WARNING! To avoid injury, ensure that your child is kept away when unfolding and folding this product.
There are pinch points between the product supports and frame that may injure fingers. Stay clear of
pinch points when opening or closing the product or when adjusting.
WARNING! DO NOT allow child to climb on, into or out of product unassisted. DO NOT allow child
to jump on seat.
WARNING! This wagon is NOT A TOY! DO NOT let your child play in or around this product.
WARNING! Load attached to the handle or sides will affect the stability of the wagon.
WARNING! DO NOT hang items on the product at any time. The product may become unstable.
WARNING! DO NOT sit on top rail or canopy, this may cause serious injury.
WARNING! DO NOT sit on the top of the tray, maximum load bearing of the detachable integrated
tray is 11LBS.
WARNING! The maximum weight capacity of the rear backpack bag is 10.8LBS, the maximum weight
capacity of the front cover pocket and cup bag is 1.54LBS/bag.
WARNING! DO NOT place hot liquids in storage pockets. Spills can burn you or your child. Sharp or
heavy objects placed in pockets may cause damage to the product, or injury to the child
WARNING! DO NOT make any alterations or modifications as this may cause instability or structural
damage not covered under warranty or lead to injury. If a parcel bag other than one recommended by
the manufacturer is used, the product may become unstable. DO NOT install mattresses or similar
items for in wagon.
WARNING! DO NOT use as a child car seat or to transport children in a motor vehicle.
WARNING! DO NOT use the product on stairways, escalator, or moving walkway.
WARNING! Use at a normal walking pace only; faster strolling can cause a loss of control and
injury to the child.
WARNING! DO NOT use the product while running or jogging, with bicycles or motor vehicles,
or while skating or during other similar activities.
WARNING! DO NOT park on elevated or sloped surface with children on board, even if the brakes have
been locked. Use caution on uneven surfaces.
WARNING! DO NOT use near open flames or other sources of heat. This product is flammable.
WARNING! AVOID STRANGULATION: – DO NOT suspend strings or toys from the canopy.
– DO NOT place product anywhere near cords from window blinds, draperies, phone, etc.
– DO NOT place items with a string around your child’s neck such as hood strings or pacifier cords.
– If not properly secured, the child may slip into leg openings and strangle.
WARNING
EA KIDS FLAT FOLD STROLLER WAGON

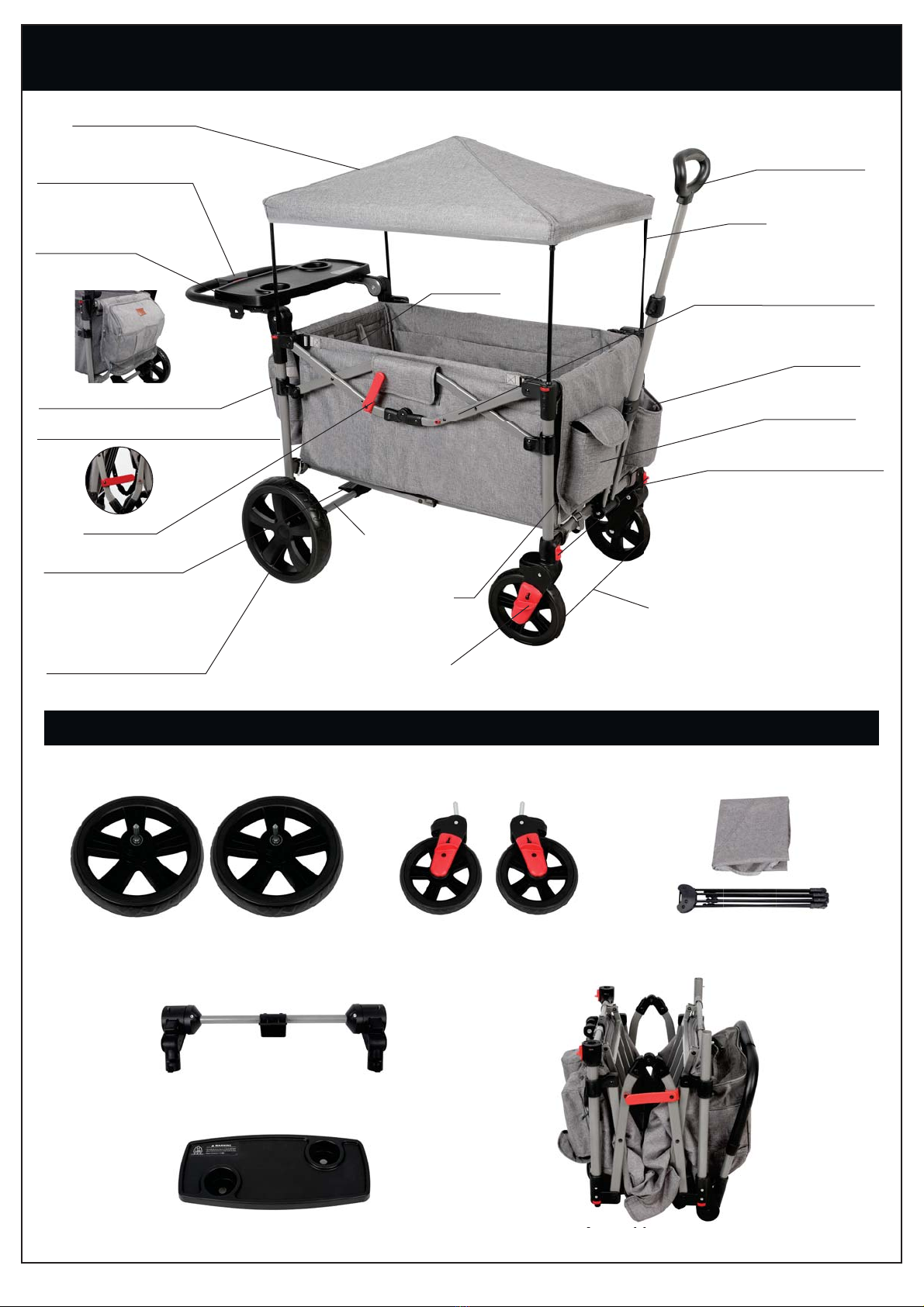

Rear wheels (x2)
Parts in the box
Locking rear axle
Integrated tray Assembly wagon
Front wheels (x2) Canopy set
(fabric canopy and canopy pole set)
Abl
UV50+ fabric canopy
5-point safety
harness on two
sides of the wagon
Quick mount rear wheels
Easy lock/unlock step
Brakes and anti-shock system
Heavy duty steel frame set
Individual direction locks
Adjustable push handle
3-Section telescopic
pull handle
Cover pocket
Detachable
integrated tray
Quick mount swiveling front wheels
Backpack storage pocket
Shoe storage
Cup bag
Auto lock
Removable rear axle
with anti-shock system
Zipper pocket for
storing canopy
pole set
Canopy pole
Fig.1 Fig.1A
Fig.1C Fig.1B
ASSEMBLY INSTRUCTIONS
Unpacked Product For Assembly
1. Position rear axle on kids wagon frame
with pin facing outward as shown below. Fig.1
2. Make sure the position of the pin aligned
with the hole site. Fig.1
3. Push axle assembly down on frame as shown. Fig.1
4. Axle shown properly locked to kids wagon
frame. Fig.1A
1. Put the rear wheels face toward the axle
as shown. Fig.1B
2. Insert the wheels on the axle and make
sure the wheels are secured. Fig.1C
Installing rear axle Installing rear wheels
ASSEMBLY INSTRUCTIONS
Fig.2
Fig.2A
Fig.3
Fig.3A
Fig.3B
1. Put the front wheels face downwards as shown. Fig.2
2. Insert wheel on the kids wagon frame and make sure the front wheels are secured. Fig.2A
Installing front wheels
1. Unlock the side auto lock. Fig. 3 3A
2. Pull to the sides to open the product and unfold. Fig.3B
3. Put the kids wagon side down, make sure the velcros are fastened on the bottom bar as shown. Fig.3C
4. Right the kids wagon, press the bottom of the wagon until it is fully opened. Fig.3B Fig.3D
Unfolding and locking the product
Fig.3C
Fig.3D
ASSEMBLY INSTRUCTIONS
Adjusting the push handle
Adjusting the pull handle
Fig.4
Fig.5 Fig.5A
Fig.5B Fig.5C
Fig.4A
Fig.4B
1. Hold the “D” shape handle and pull out directly. Fig.5
2. In this range, pull handle can be used and held at whatever position is best for your needs. Fig.5A
3. When not using the pull handle, press and hold the unlock button on both sides of the telescopic
sleeve while pressing down the "D" shape handle until it is completely closed. Fig.5B Then fold the
pull handle toward the wagon vertically. Fig.5C
1. Push the red button on the center of the push handle to make adjustments. Fig.4 Fig.4A
2. When not using the push handle, press the red button continuously until the handle
folds downward. Fig.4B
90°
ASSEMBLY INSTRUCTIONS
Installing the integrated tray on the main wagon
Installing the canopy
Fig.6 Fig.6A Fig.6B
Fig.6C
1. Pull fabric off as shown and the side frame is exposed. Fig.6A
2. Place the tray on the side frame as shown, then clip the outer groove on two sides of the frame. Fig.6B
3. Ensure the integrated tray fully fits. Use the tray to keep drinks, snacks and any other important items
for your children nearby.
WARNING! Do not put items on the tray when moving, Your children will get hurt as the items can not
be secured on the tray.
Installing the integrated tray on the push handle
1. Place the tray on the push handle as shown and clip the inner groove on the handle. Fig.6C
2. Lay the push handle flat as shown with the integrated tray installed and use it for holding
drinks and snack.
WARNING! Do not put items on the tray when moving.
Fig.7C
Front Rear
Front
Fig.7A
Rear
Fig.7B
Fig.7
Fig.7D
1. Unfolded the canopy support pole. Fig.7
2. Please make sure the hub is facing the direction as shown. Fig.7A
3. Insert canopy support pole ends into the housing directly one by one. Make sure thHUHGEXWWRQSRSVXS
DQGthe four canopy support poles are firmly inserted. Fig. 7B 7C
4. Put the canopy on the top, tie the inner elastic rope to the head of the plastic joints. Make sure
all four corners are fastened. Fig.7D
Folding and locking the product
ASSEMBLY INSTRUCTIONS
'JH
'JH" 'JH#
'JH%
'JH'
'JH(
'JH&
'JH$

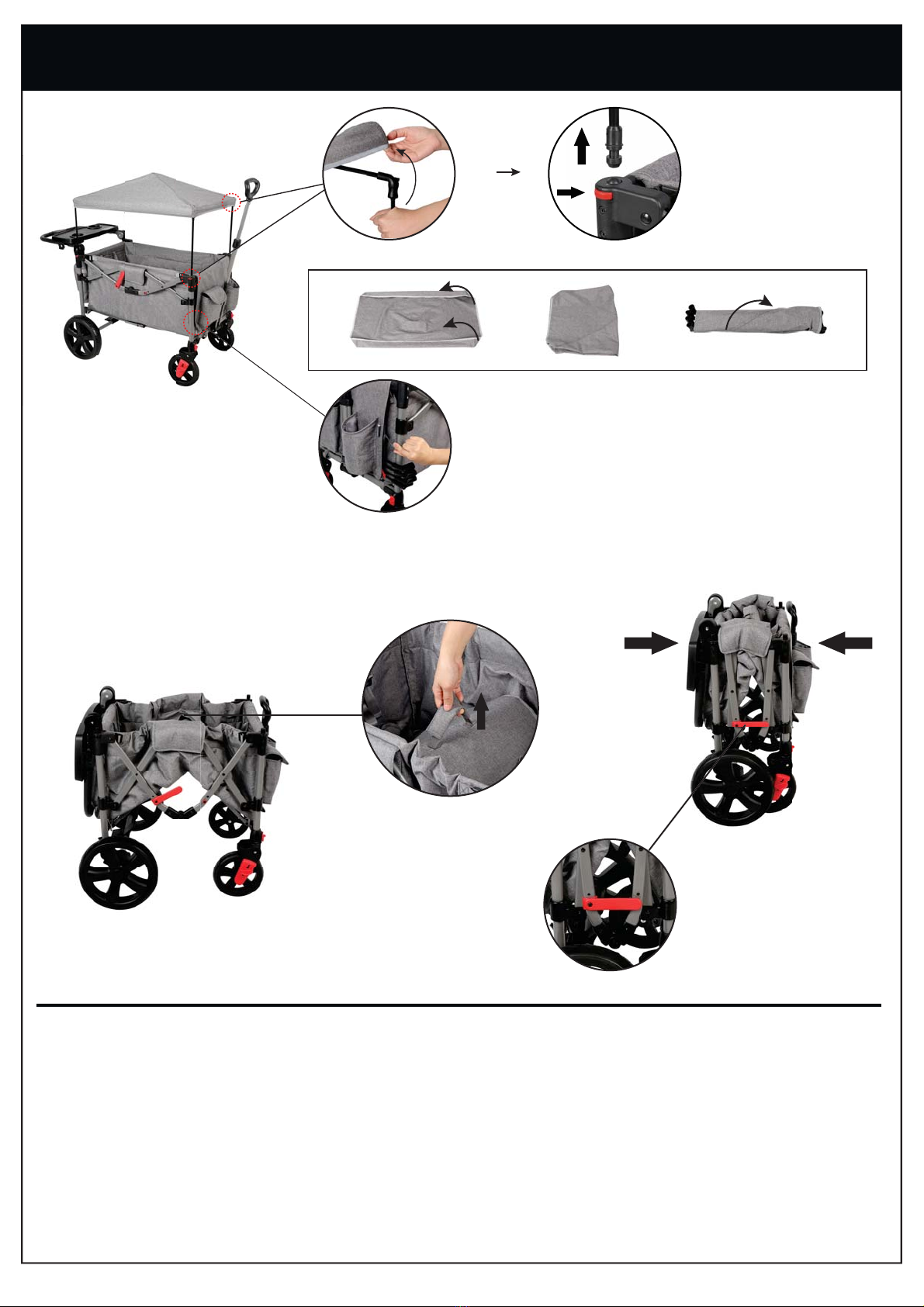

1. Take off the canopy fabric. Fig.8A
2. Press the red button then take out the canopy pole directly. Fig.8B
3. Put the canopy pole set on the canopy fabric, wrapped as shown. Fig.8C
4. Put the whole canopy set in the front zipper bag and zip it. Fig.8D
5. Press the red button on the push handle and adjust it to the “Not in use” position. Fig.8E (Fig.4B)
6. Press and hold the unlock button on both sides of the telescopic sleeve, while pressing down the “D”
shape hand until it is completely closed. Fig.8E (Fig.5C)
7. To fold the kids wagon, pull up on the strap located at the interior center of the wagon. Fig.8F
8. Fold on both sides to lock. Fig.8G
Fig.2
Fig.3A
Fig.2A Fig.2B
Fig.1 Fig.1A Fig.1B
SET UP AND USE
Use of the Front and Rear Bags
1. The photo shows the front bags. One cup holder bag, one small pocket with cover and one zip bag
for storing canopy set. Fig.3A
2. One backpack style rear bag. The upper layer is a larger storage space that can be used to store
clean items. The lower pocket is a mesh part that can be used to store dirty shoes, used diapers
and other items. Fig.3B
Use of pull handle
1. Please refer to "Adjusting the pull handle" on page 7.
Use of push handle
1. Please refer to "Adjusting the push handle" on page 7.
2. Place both hands on the handle to maneuver.
Fig.3B
90°
