INTRODUCTION

Thank you for purchasing the EVER SINLINE PRO 10000 power supply unit. It

belongs to a series of technologically advanced power supply units intended for

servers, computer networks and data processing systems.

The UPS EVER SINLINE PRO 10000 has been designed in such a way as to best

meet all your expectations regarding protection against the consequences of power

outages.

The present instruction manual contains information on operating the device and sets

forward the principles of safe usage. Please read the instruction manual thoroughly

before operating the EVER SINLINE PRO 10000 power supply unit, for this will

surely facilitate correct and trouble-free usage. The power supply unit has been

manufactured in Poland, in full accordance with requirements introduced for the CE

symbol.

GENERAL INFORMATION

INTENDED APPLICATION

Power supply unit of the SINLINE PRO 10000 series are class LINE-INTERACTIVE

(VI) devices, intended for cooperation with equipment powered from a single-phase

~230 V power grid.

NOTE! SINLINE PRO 10000 power supply units are not intended

for usage with medical life and/or health support systems.

Instruction manual for SINLINE PRO 10000 series power supply units

2010/08/24

www.ever.eu

GENERAL DESCRIPTION

•Sinusoidal output voltage, generated in battery operation mode;

•DPC (Digital Power Control) - Digital control of the power supply units

operating parameters, such as:

- output voltage shape,

- output voltage frequency,

- battery charge status,

- battery voltage and current,

- measurement of the capacity of a set of batteries,

- life of batteries,

- temperature of critical elements of the power supply unit;

•Digital measurement of external parameters, such as:

- mains voltage value,

- mains current value,

- mains voltage frequency,

- value of active and apparent power received from the mains,

- coefficient of mains-side power,

- value of active and apparent power connected to the power supply unit's

output,

- coefficient of output-side power,

•An automatic voltage regulation system (AVR), which increases and decreases;

•Mains voltage filtration;

•RS232 and USB serial ports for communication with a PC;

•Socket for adapter cards (e.g. a management card);

•Possibility of connecting additional battery packs;

•Possibility of browsing network event statistics;

•Calculating the current available emergency operation time;

•PowerSoft Personal software is used to control the power supply unit and

automatically close the system;

Instruction manual for SINLINE PRO 10000 series power supply units

2010/08/24

www.ever.eu

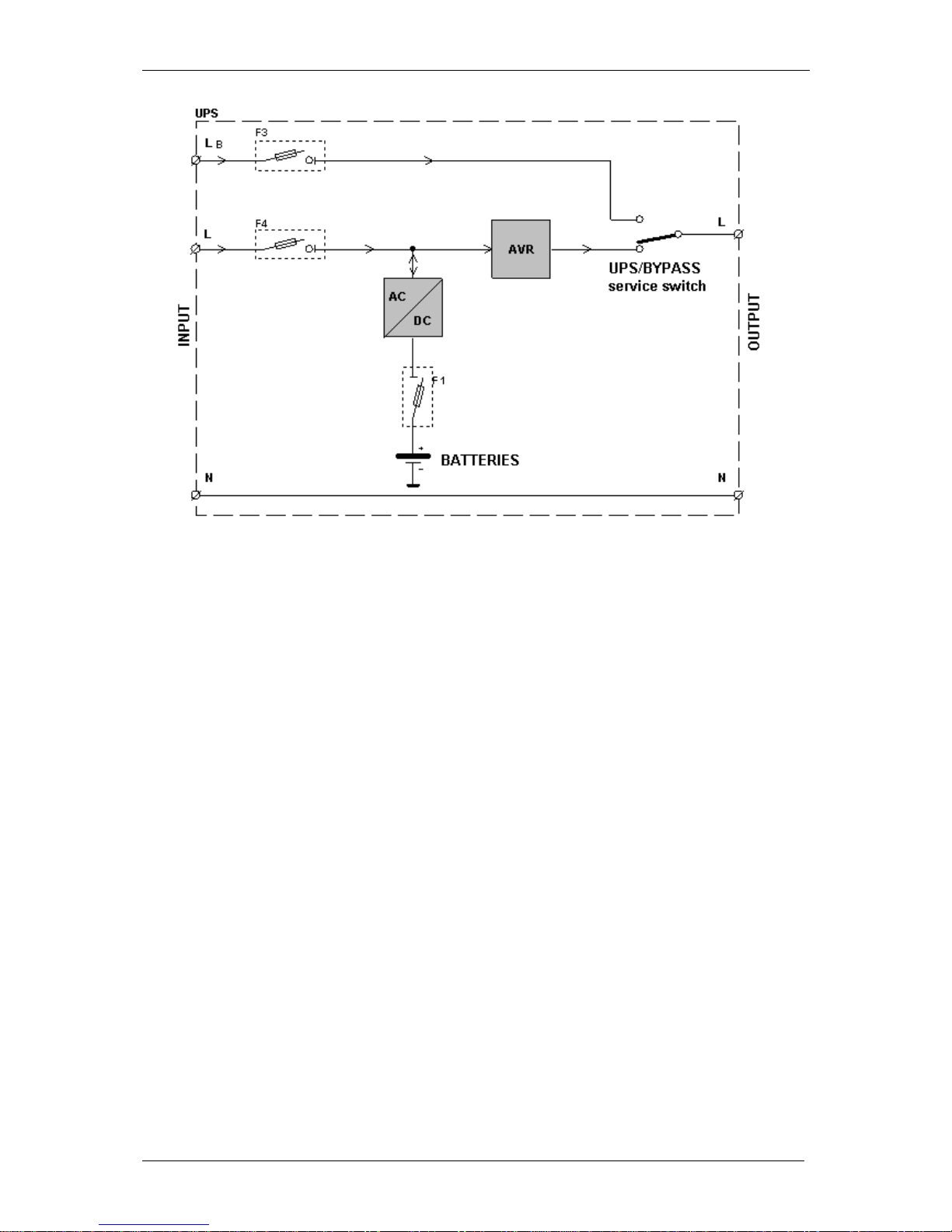

Figure 1: Simplified block diagram of the power supply unit

The SINLINE PRO 10000 power supply unit is a modern electronic device that

serves as an autonomous source of sinusoidal 230 V voltage. The device belongs to

the LINE–INTERACTIVE (VI) class of UPSs, which includes power supply units that

synchronize with the power grid. The unit is equipped with the unique CLEAR

DIGITAL SINUS (CDS) system that during battery operation generates a precisely

stabilised output voltage with a sinusoidal shape, which makes it possible to power

a broad range of loads that do not tolerate quasi-sinusoidal voltages. The application

of this system increases the reliability of the device, guaranteeing its stable

operation.

The Automatic Voltage Regulation (AVR) system allows the power supply unit to

immediately correct even small drops and rises in mains voltage, so as to ensure that

receivers enjoy the proper supply conditions without using up the power gathered in

batteries.

What is more, the unit has been fitted with an advanced DIGITAL POWER

CONTROL (DPC) system, which precisely shapes the course of the unit's output

voltage so as to generate a purely sinusoidal voltage. During mains operation, the

system filters the mains voltage in order to eliminate interferences and distortions

that could be potentially harmful to receivers.

Instruction manual for SINLINE PRO 10000 series power supply units

2010/08/24

www.ever.eu

The dedicated DPC system controls the operation of the power supply unit, and has

an extremely precise and rapidly acting system for detecting overloads and output

short-circuits during battery operation. In mains operation mode, short-circuit

protection is provided by fuses, with overloads being brought to the user's attention

both audibly and optically.

A special soft start mode has been introduced, which allows trouble-free start-up with

large loads that draw considerably start-up power, such as laser printers.

In addition, the DPC enables long-term battery operation of the power supply unit by

allowing the user to connect an additional battery pack and control the internal

temperature by means of an active cooling system, which is activated as required.

This method of cooling activation reduces the noise generated by the unit and helps

extend the life of fans.

The DPC system supports various methods of communication between the unit and

a PC over a communication link or a special link for the connection of an EVER

management card EVER (HTTP, telnet, SNMP).

The unit performs precise measurements of its basic parameters, including battery

voltage, power grid input voltage, unit output voltage, the power of connected loads,

temperature, and of advanced parameters, such as the available battery capacity or

backup mode operating time under current load.

The UPS utilises an innovative charging method, typically reserve for high-end power

supply units. which is known as CBC - COOL BATTERY CHARGING; this system

utilises elements of the internal converter for cold battery charging. In the mains

operating mode, this function charges the batteries, while in battery operation mode it

converts the internal energy of the battery to an alternating voltage that supplies the

protected devices.

Instruction manual for SINLINE PRO 10000 series power supply units

2010/08/24

www.ever.eu

STRUCTURE

1) BYPASS switch cover

2) Fans

3) Adapter card slot plug

4) USB communication link

5) RS232 communication link

6) EPO link

7) Fusible cut-out for internal

batteries

8) Connection links cover

9) AC input automatic fuses

10) Mechanical cable mounting grip

11) Service BYPASS switch/UPS

12) Connection link

13) Fusible cut-out for external

battery packs

14) Device earthing point

15) Mounting holders

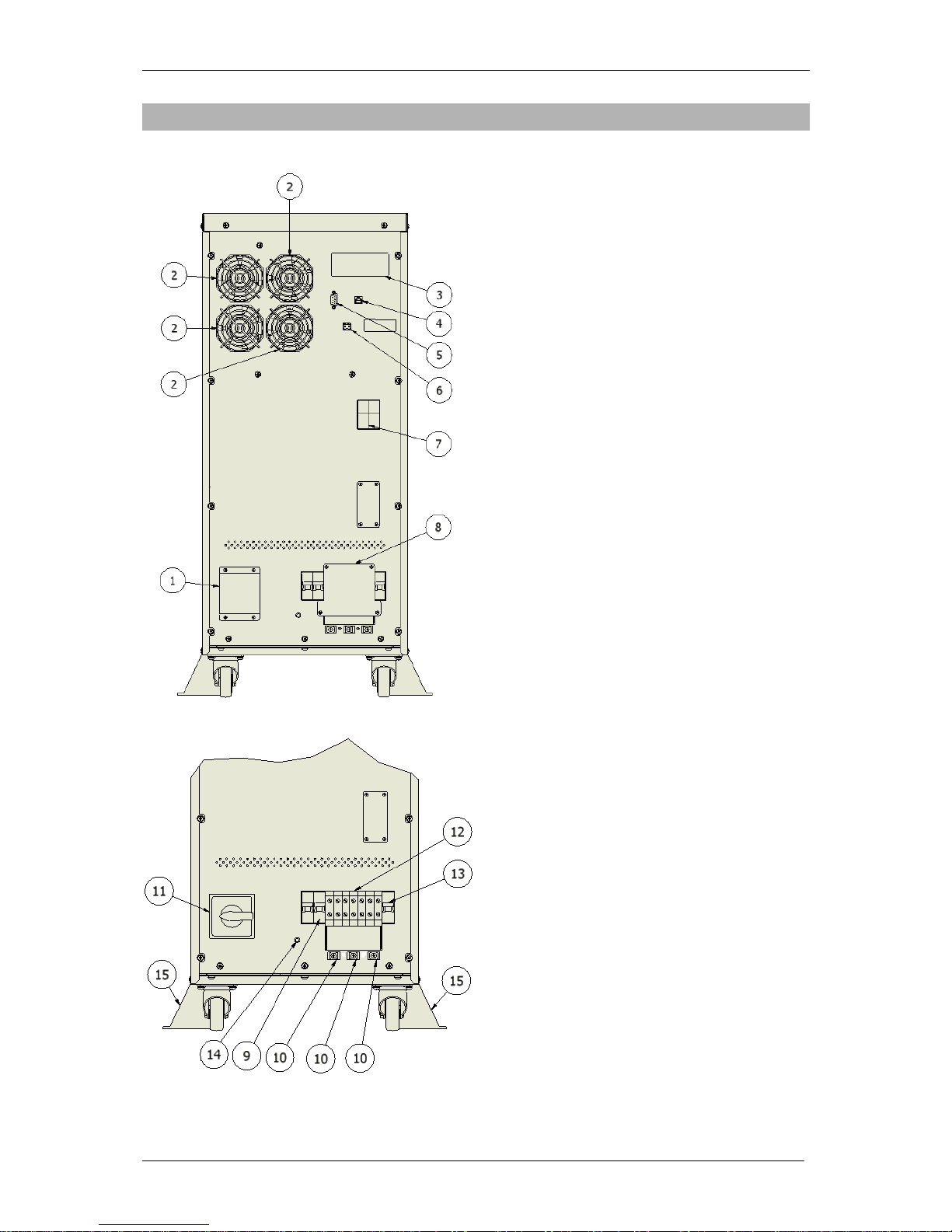

Figure 2: Views of the rear panel

Instruction manual for SINLINE PRO 10000 series power supply units

2010/08/24

www.ever.eu

USER INTERFACE

The user interface consists of a four-button keypad located on the upper cover of the

power supply unit, an LCD, and three LEDs. They allow the user to monitor the unit's

operating parameters, and also modify some of them. The method of using the

interface and the meanings of individual parameters have been described hereunder.

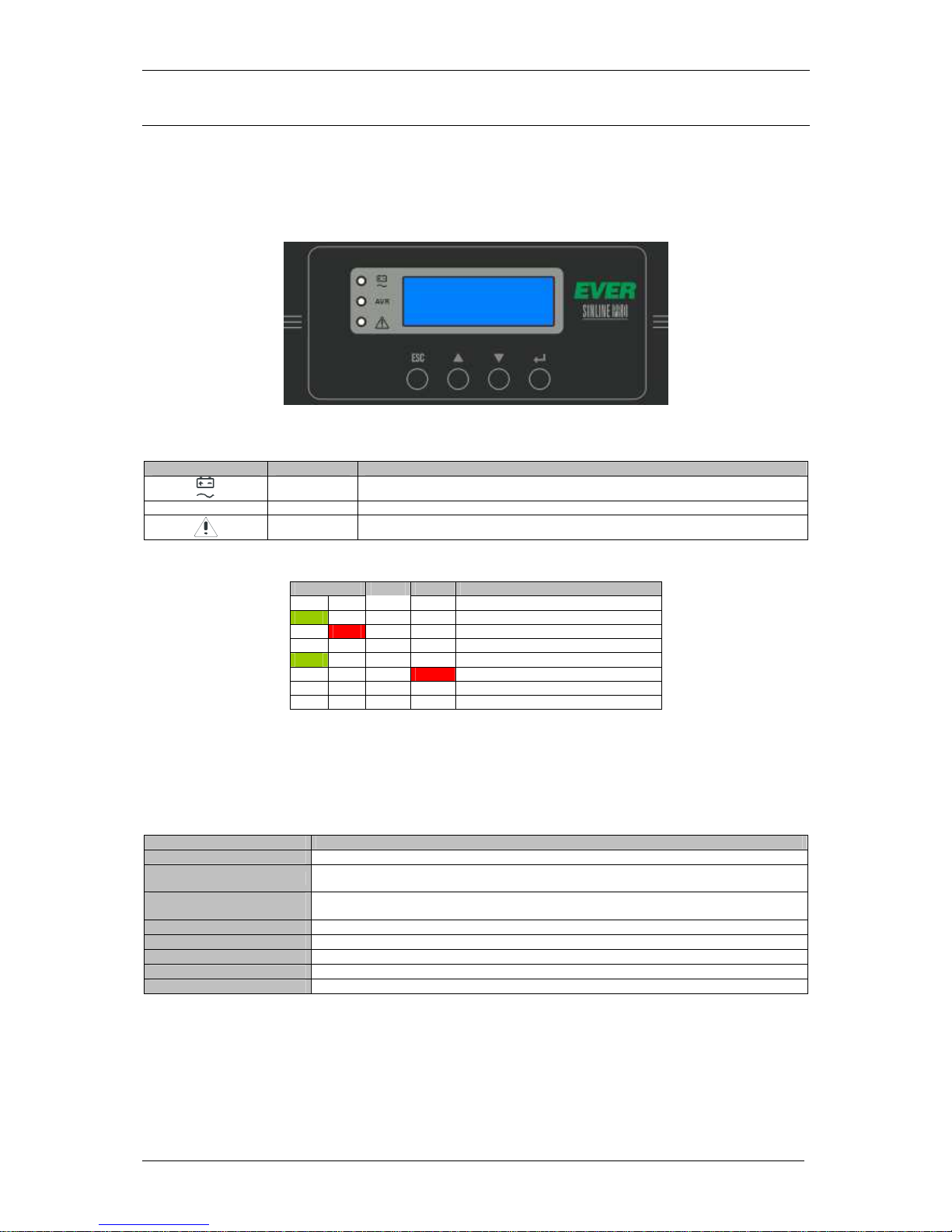

Figure 3: View of the user interface

Table 1 Meanings of signalling diodes

Graphical symbol Designation Description

LED 1 LED indicating the unit's operation mode: NORMAL/BACKUP

AVR LED 2 LED signalling activation of the AVR system

LED 3 LED signalling activation of the EMERGENCY mode

Table 2 Optical (diode) signalling

LED 1 LED 2

LED 3 Operation mode

UNKNOWN

F NORMAL

BACKUP

STANDBY

READINESS

* EMERGENCY

INIT

STOP

F - the status may be configuration-dependent (none or red);

* - flashes

The unit is also equipped with an audible signalling system for its respective states

(cf. table).

Table 3 Audible signalling

Action Audible signalling

NORMAL mode None

BACKUP mode intermittent signal, rapidity dependent on the charge level of batteries

(the more rapid the signal, the lower the battery charge level)

Forced switch to the

STANDBY mode intermittent signal - two successive short signals followed by a pause

EMERGENCY mode Event dependent

Overload continuous signal

Short circuit rapid intermittent 50% / 50% signal

Overheat slow intermittent 50% / 50% signal

EPO activation intermittent sound/silence (1s / 5s) signal

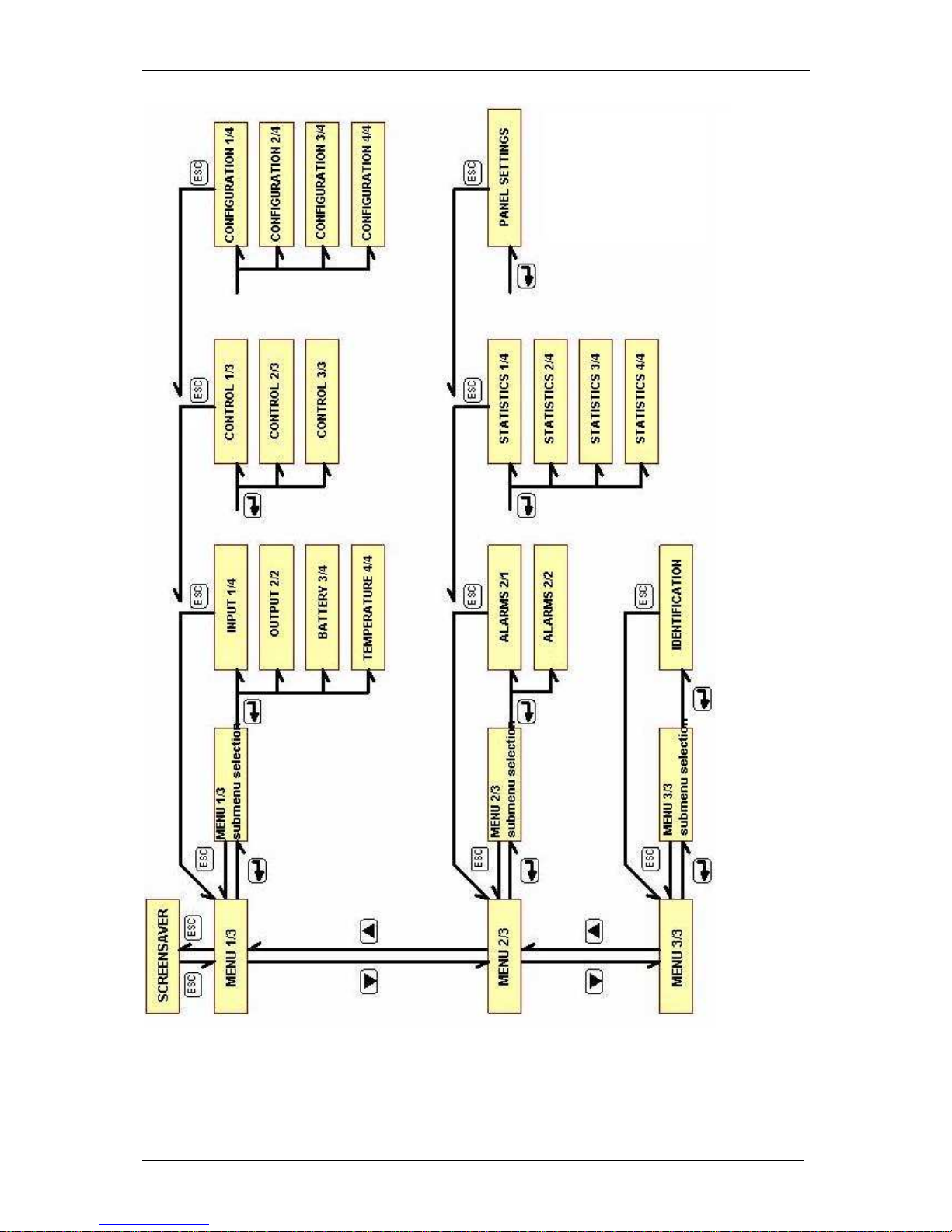

All successive screens shown on the LCD are organised in a tree structure, as

presented in the following figure.

Instruction manual for SINLINE PRO 10000 series power supply units

2010/08/24

www.ever.eu

Figure 1: Organisation of screens

Instruction manual for SINLINE PRO 10000 series power supply units

2010/08/24

www.ever.eu

SCREENS

SCREENSAVER

Description: An information screen that is activated 5 minutes after the last press of

a button. This is accompanied by the switching off of the LCD panel's

backlight.

Type: read

Parameters Qak – charge level of batteries

Uak – battery section voltage

Owy – load handled by the power supply unit

Tau – anticipated autonomous time of the power supply unit

TrybPracy – operation mode of the power supply unit

i:, a: – additional information as per the table

Information Alarms

Abbreviation

Meaning Abbreviation

Meaning

L Charging ZW Short circuit

C Overload PC Overload

G Overheat PG Overheat

O Waiting following STANDBY AU Damaged battery

N 90 sec. of autonomous time

remaining EPO EPO

S Service BW Internal error

AP AVR - increasing voltage e.g.

a:PC

AO AVR - decreasing voltage

e.g.

i:S

Screen view:

Main menu

Inhaltsverzeichnis

Andere Ever Stromversorgung Handbücher

Ever

Ever POWERLINE 31 series Bedienungsanleitung

Beliebte Stromversorgung Handbücher anderer Marken

Monacor

Monacor PS-12CCD Bedienungsanleitung

VOLTIMA

VOLTIMA MagicBox 15 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6032A Bedienungsanleitung

Miller

Miller Auto Deltaweld 452 Bedienungsanleitung

BCP

BCP PUOUBK Merkblatt

HC 2210 Bedienungsanleitung

Puls

Puls CT5.241 Bedienungsanleitung

OCZ

OCZ ZX1250W Bedienungsanleitung

iseg

iseg ECH 238 Bedienungsanleitung

Power

Power XXL A Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6631B Bedienungsanleitung

Renogy

Renogy PHOENIX 300 Bedienungsanleitung

HP 6200B Service-Handbuch

Epson

Epson Stylus Scan 2500 Betriebsanleitung

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Bedienungsanleitung

Puls

Puls MiniLine ML50.100 Bedienungsanleitung

Puls

Puls AS-Interface SLA4.100 Bedienungsanleitung

Kenwood

Kenwood PS-60 Bedienungsanleitung
