Product Overview

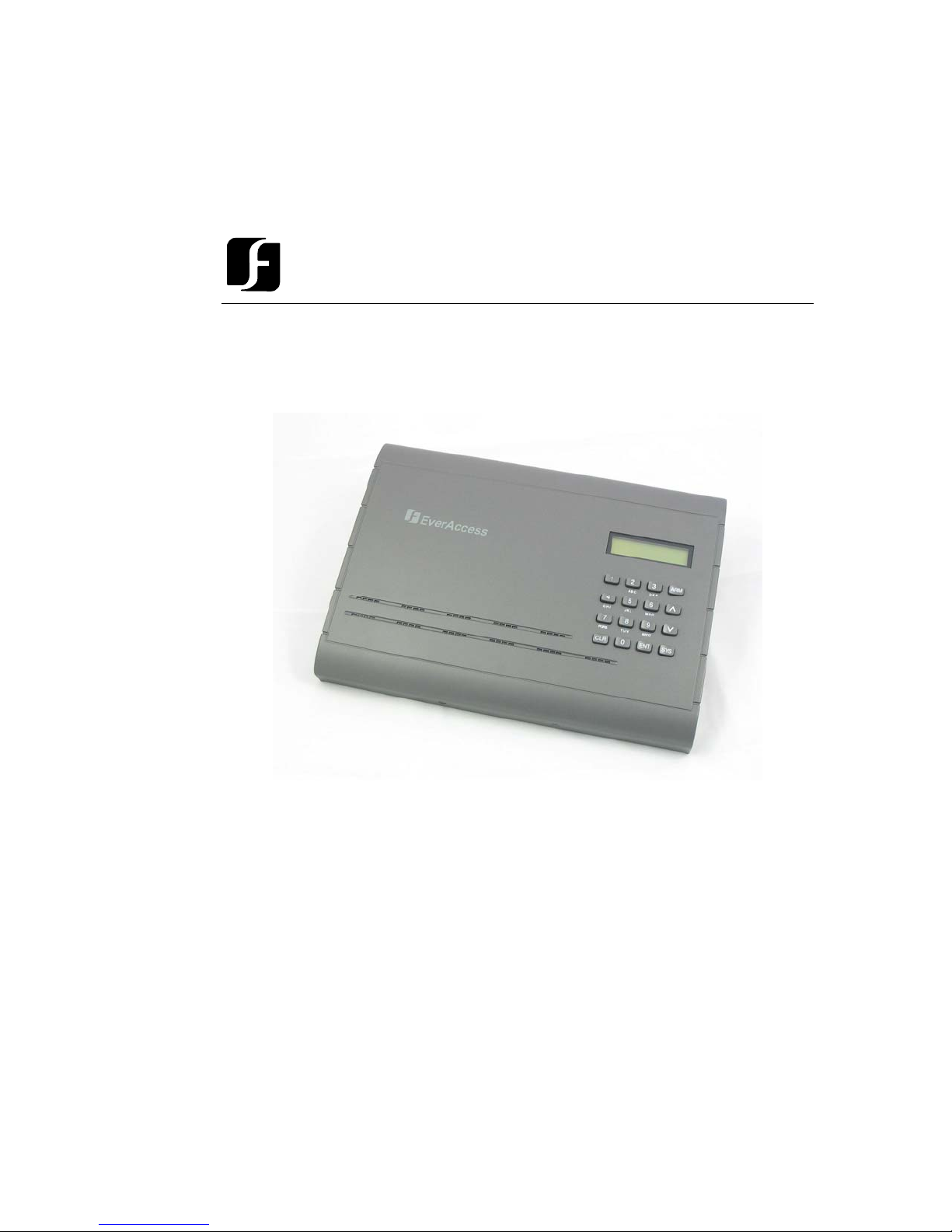

EverAccess® Flex Series controller (part number: EFC-02-1A) incorporates state-of-
the-art technology and modular design to provide reliable performance, user-friendly
installation, expansion capabilities, and flexible but powerful configuration options.
This controller is the ideal solution for any application that requires electronic access
control.
¾Powerful management: each controller can be expanded with additional door
modules to support up to 8 readers.
¾Stand alone or real time PC communication: the controller can operate stand-
alone without a PC connection, or can be managed by the Flex Series
software to communicate in real time, sending data to the PC once per
second.
¾Expandable network: up to 127 controllers can be connected via RS-485 bus
or TCP/IP networking (requires additional LAN interface device).
¾Easy-to-use: simple configuration operations can be performed at the
controller using the integrated keypad.
¾Extra alarm module: an additional alarm module can be added to the
controller to offer up to 10 alarm inputs and 18 alarm outputs.
Features
¾Modular design, easy-to-expand
¾Up to 4 door modules and 8 readers are supported by each controller
¾The additional alarm module provides up to 18 alarm signal output interfaces
¾Large capacity: 9,999 cards and 16,000 events can be stored in the controller
¾Flexible work mode: the controller can operate stand-alone without a PC
connection, or can be managed by the Flex Series software to communicate
in real time, sending data to the PC once per second via RS-485 or TCP/IP.
¾Powerful management capabilities: access can be managed based on time and
date, location, cardholder privileges, etc.
