EMV400SSD

3G Module, 4G Module and Wi-Fi Module Installation

Quick Installation Guide

3G Antenna

3G Module

4G Antennas

4G Module

Wi-Fi Antenna

Wi-Fi Module

Release Date: April, 2017

EverFocus Taiwan 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Hsi-Chih, New Taipei City, Taiwan

TEL: +886 2 2698 2334 FAX: +886 2 2698 2380 www.everfocus.com.tw marketing@everfocus.com.tw

-1-

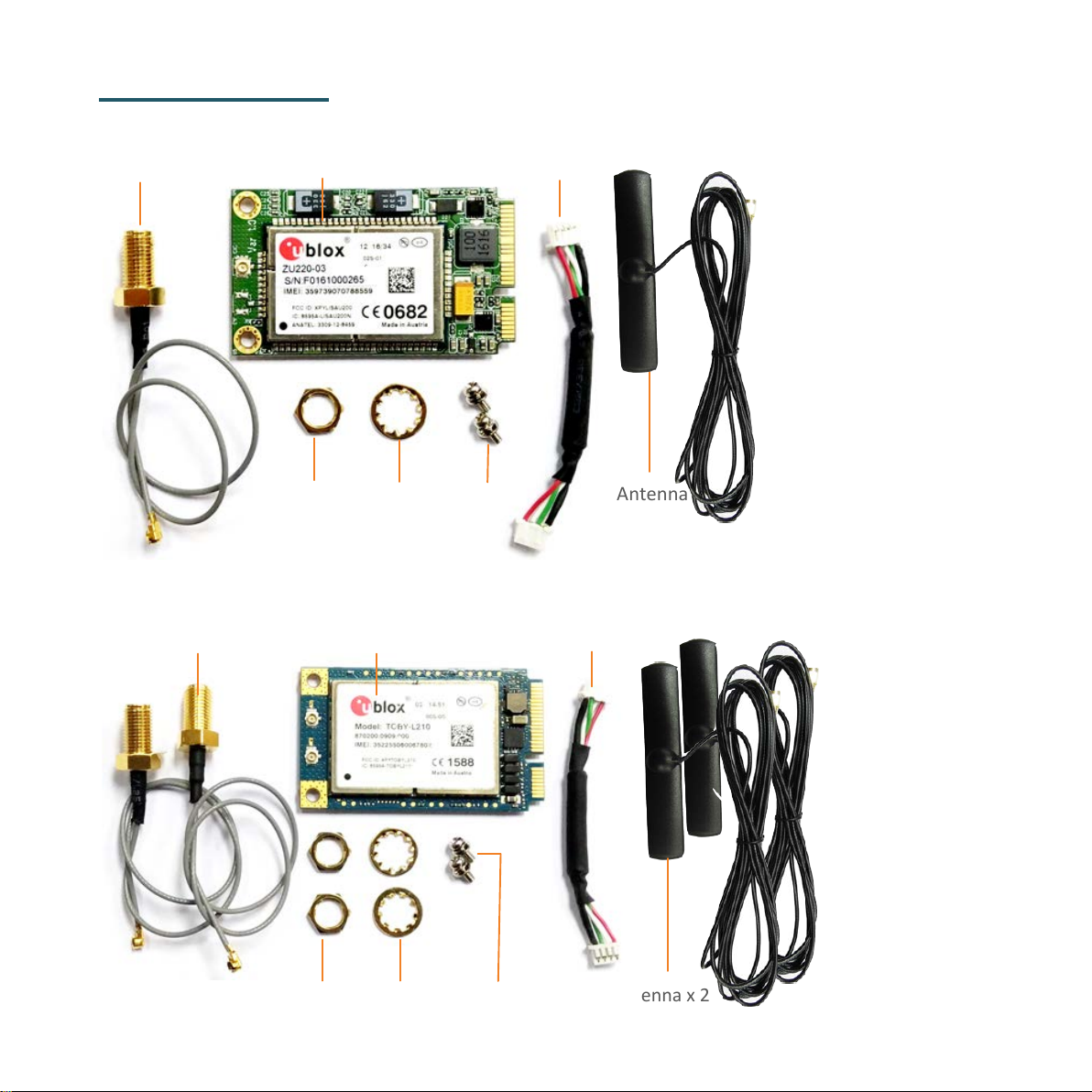

1. Package Content

3G Module Package:

3G Module

RF Cable USB Cable

Hexagon Nut Ring Screw x 2 3G Antenna

4G Module Package:

4G Module

RF Cable X 2 USB Cable

Hexagon Nut X 2 Ring x 2 Screw x 2 4G Antenna x 2

-2-

Wi-Fi Module Package:

Wi-Fi Antenna

Wi-Fi Module

RF Cable USB Cable

Hexagon Nut Ring Screw x 2

2. 3G/4G Module Installation

1. Unscrew the four screws on the rear-side.

2. Pull out the Main Board.

-3-

3. Remove the SSD tray and SSD holder from the Main Board.

a. Unscrew the four screws and unplug the SSD SATA Cable. Remove the

SSD tray from the Main Board.

SSD SATA Cable

b. Unscrew the four screws and remove the SSD holder.

4. Connect the 3G Module / 4G Module to the connector.

-4-

5. Screw the 3G Module / 4G Module with the supplied two screws.

6. Connect the USB cable to the USB connectors.

7. Connect one end of the RF Cable to the 3G Module / 4G Module.

3G Module: one RF Cable.

-5-

4G Module: two RF cables.

8. Remove the Antenna Plug on the rear panel in order to insert the RF Cable

for connecting to the Antenna. For 3G Antenna, remove Ant.1 plug only. For

4G Antennas, remove both of the Ant.1 and Ant.2 plugs.

9. Insert the other end of RF Cable through the antenna hole on the rear-panel,

and then screw the RF Cable using the supplied Ring and Hexagon Nut. For

3G Antenna, insert the RF Cable through Ant.1. For 4G Antennas, insert the

RF Cables through Ant.1 and Ant.2.

Hexagon Nut

Ring

-6-

10. Screw back the SSD holder and SSD tray.

11. Slide the Main Board to the housing and then screw back the four screws.

12. Connect the supplied 3G Antenna to Ant.1; or 4G Antennas to Ant.1 and

Ant.2.

3G Antenna 4G Antenna

13. Insert the 3G/4G SIM card into the SIM Card Slot on the front-panel.

-7-

3. Wi-Fi Module Installation

1. Follow Step 1 to Step 3in 2. 3G/4G Module Installation to pull out the Main

Board and remove the SSD tray and holder from the Main Board.

2. Connect the Wi-Fi Module and the USB Cable to the connectors.

Wi-Fi Module

USB Cable

1) Place the Wi-Fi Module on the board.

2) Place the lock ring of the USB Cable over the Wi-Fi Module and then

screw the Wi-Fi Module using the supplied two screws.

3) Connect the USB cable to the USB connectors.

-8-

3. Remove the Wi-Fi Antenna Plug (Ant.3) on the rear panel in order to insert

the RF Cable for connecting to the Antenna.

4. Connect one end of the RF Cable to the Wi-Fi Module. Insert the other end

of RF Cable through the Wi-Fi (Ant.3) antenna hole on the rear-panel, and

then screw the RF Cable using the supplied Ring and Hexagon Nut.

Hexagon Nut

Ring

5. Screw back the SSD holder and SSD tray.

6. Slide the Main Board to the housing and then screw back the four screws.

7. Connect the supplied Wi-Fi Antenna to Ant.3.

-9-
