EverMore SA-320-5HZ Bedienungsanleitung

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 1

SA-320-5HZ

Installation Guide

Date: Jan , 2007

Version: 2.1

All manuals and user guides at all-guides.com

all-guides.com

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 2

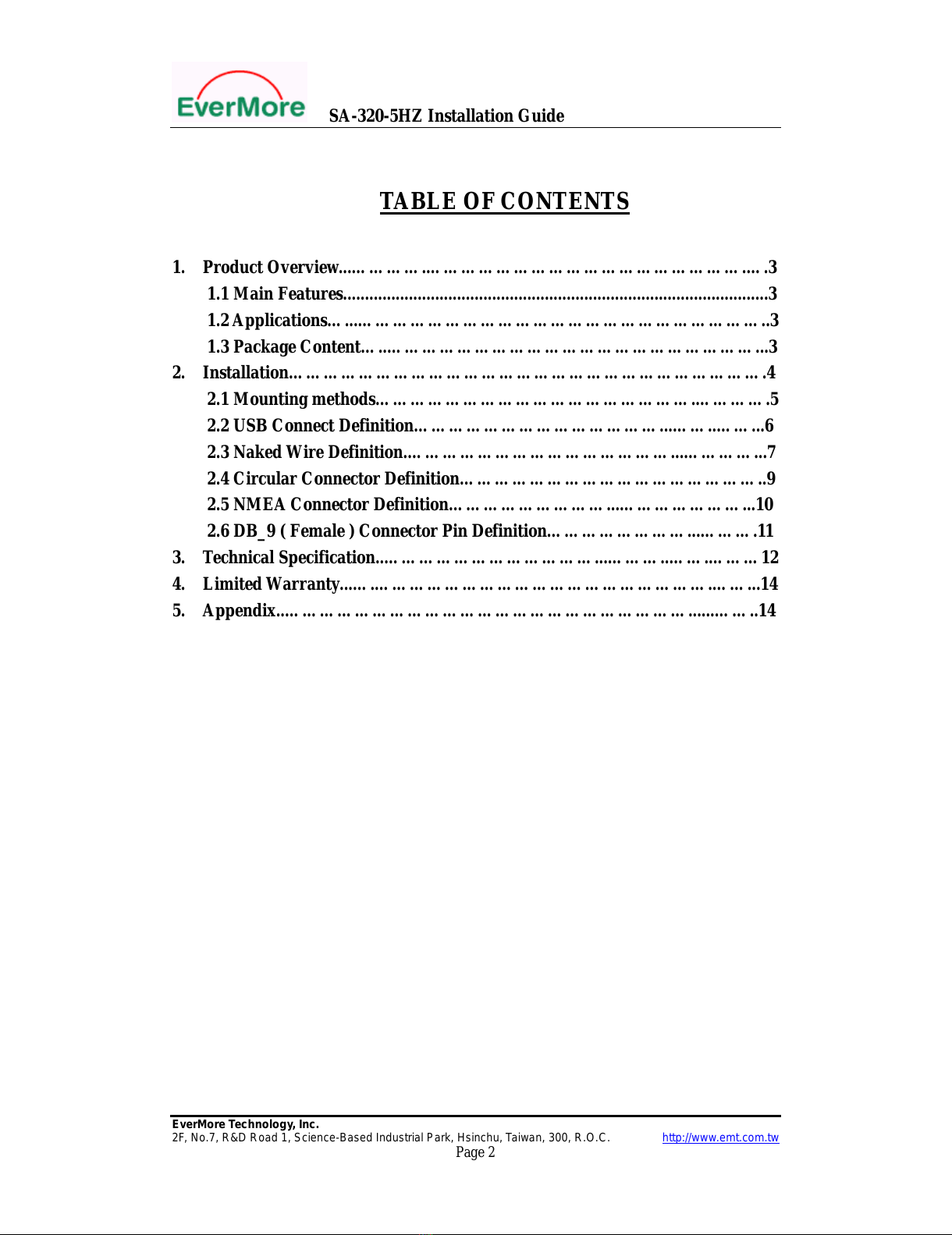

TABLE OF CONTENTS

1. Product Overview...………….……………………………………………….….3

1.1 Main Features.................................................................................................3

1.2 Applications…...……………………………………………………………..3

1.3 Package Content…..………………………………………………………...3

2. Installation……………………………………………………………………….4

2.1 Mounting methods……………………………………………….………….5

2.2 USB Connect Definition……………………………………...……..……...6

2.3 Naked Wire Definition.………………………………………...…………...7

2.4 Circular Connector Definition……………………………………………..9

2.5 NMEA Connector Definition………………………...…………………...10

2.6 DB_9 ( Female ) Connector Pin Definition……………………...……….11

3. Technical Specification..………………………………...………..…….………12

4. Limited Warranty...….………………………………………………….……...14

5. Appendix..……………………………………………………………......……..14

All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 3

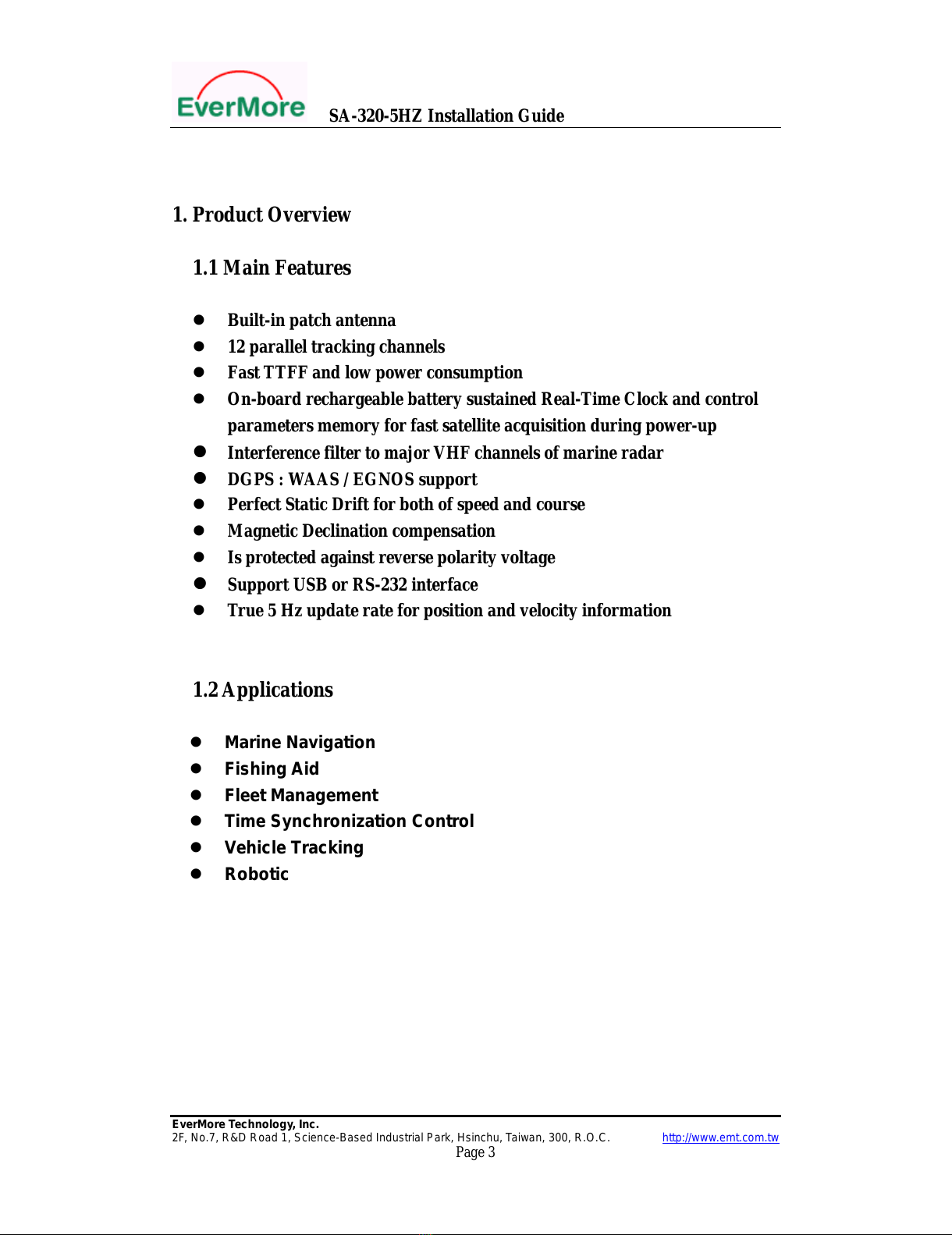

1. Product Overview

1.1 Main Features

zBuilt-in patch antenna

z12 parallel tracking channels

zFast TTFF and low power consumption

zOn-board rechargeable battery sustained Real-Time Clock and control

parameters memory for fast satellite acquisition during power-up

zInterference filter to majorVHF channels of marine radar

zDGPS : WAAS / EGNOS support

zPerfect Static Drift for both of speed and course

zMagnetic Declination compensation

zIs protected against reverse polarity voltage

zSupport USB or RS-232 interface

zTrue 5 Hz update rate for position and velocity information

1.2 Applications

zMarine Navigation

zFishing Aid

zFleet Management

zTime Synchronization Control

zVehicle Tracking

zRobotic

All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 4

1.3 Package Content

When open the package, please check it includes the following items. Contact

your dealer immediately if any item is missing or damaged.

zInstallation Guide

zSA-320-5HZ GPS Receiver with Cable

zThread Adaptor

zScrew Pairs

zMounting-Hole-DrillAlignment Mask

zCD Manual

All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 5

2. Installation

2.1 Mounting Methods

2.1.1 To mount the SA-320-5HZ, with ThreadAdaptor, on a standard cable

pole.

2.1.2 To screw the SA-320-5HZ on the surface of the plate.

2.1.3 To screw the SA-320-5HZ on the surface of a plate from the other side.

All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 6

2.2 USB Connector Definition

Pin Function Color

1 VCC, 5V Red

2 D- White

3 D+ Green

4 GND Black

GND D+ D- VCC

USBConnector Pin 4 3 2 1

Pin1

ConnectorPinAssignment

All manuals and user guides at all-guides.com

all-guides.com

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 7

2.3 Naked Wires Pin Definition

2.3.1 Naked Wires Definition ( RS-232 ) For EverMore Standard

WireColor Designation

Green PGND, Power Ground

Blue VCC, Power Supply + ( VDC 9V-34V )

Yellow NC

Brown RS-232 Transmit Tx, Output Signal

White NC

Violet RS-232 Receiver Rx, Input Signal

Black SGND, Signal Ground

All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 8

2.3.2 Naked Wire Definition ( RS-232 ) For I-CON

WireColor Designation

Green PGND, Power Ground

Blue VCC, Power Supply + ( VDC 9V-34V )

Yellow NC

Brown RS-232 Transmit Tx, Output Signal ( NMEA + )

White NC

Violet RS-232 Receiver Rx, Input Signal ( NC )

Black SGND, Signal Ground ( NMEA - )

All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 9

2.4 Circular Connector ( Male ) For GEONAV

Pin Function Input/Output Level

1 NC No Connect

2 TX Output RS-232

3 GND Ground 0V

4 NC No Connect

5 RX Input RS-232

6 GND Ground 0V

7 VCC Power Supply VDC 9-34V

1 7

Connectors Pin Assignment

All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide

EverMore Technology, Inc.

2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw

Page 10

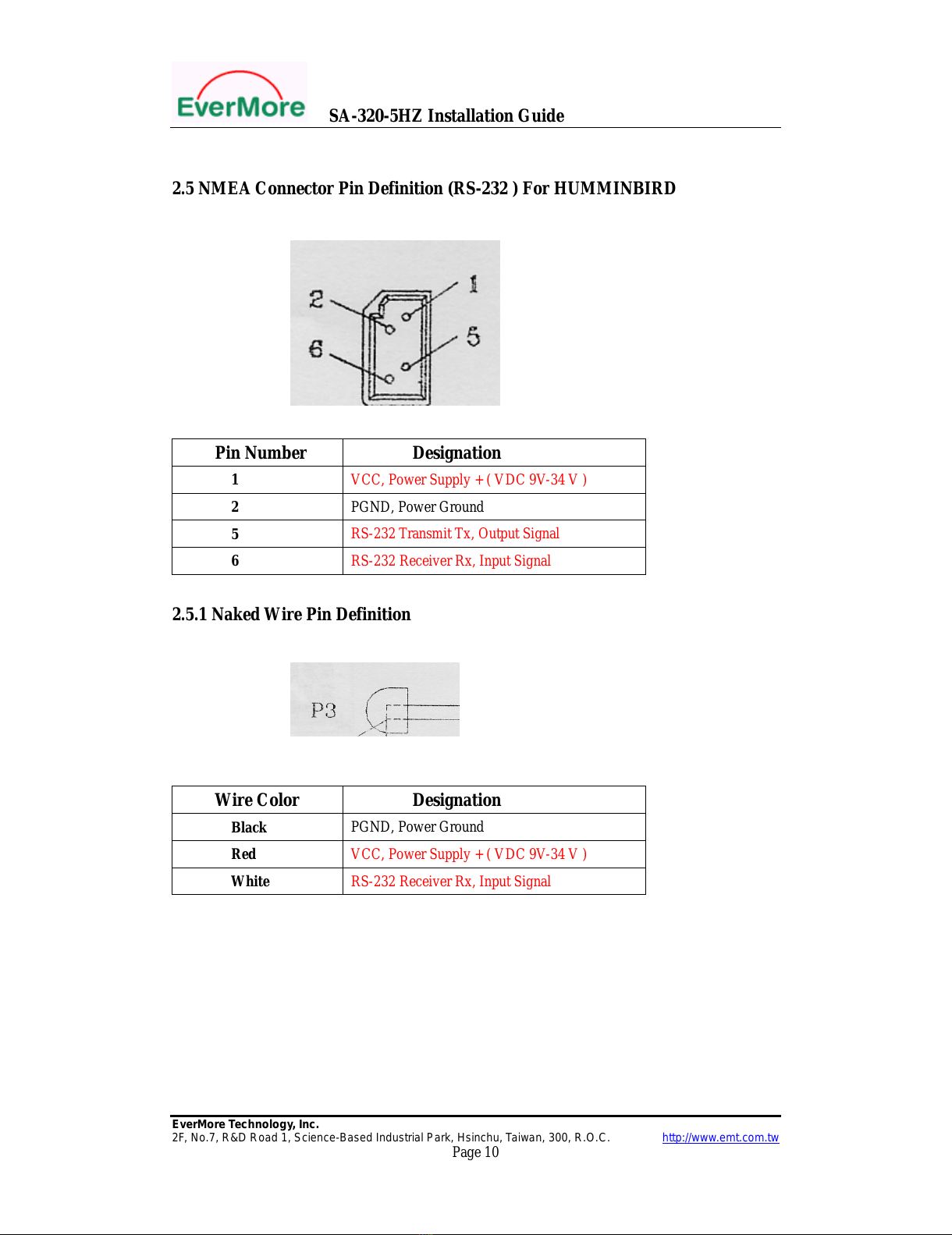

2.5 NMEA Connector Pin Definition (RS-232 ) For HUMMINBIRD

2.5.1 Naked Wire Pin Definition

PinNumber Designation

1 VCC, Power Supply + ( VDC 9V-34 V )

2 PGND, Power Ground

5 RS-232 Transmit Tx, Output Signal

6 RS-232 Receiver Rx, Input Signal

WireColor Designation

Black PGND, Power Ground

Red VCC, Power Supply + ( VDC 9V-34 V )

White RS-232 Receiver Rx, Input Signal
