JETRONIC®-BOX [0288]
R/C Controller – Doorsequencer
w th A r Fa lsave
©2006-2011 evoJet GmbH ● Am Par r 4A ● D-52379 Langerwehe/Germany ● www.evojet.de
JETRONIC-BOX – Instruct ons 1.8
Inhaltsverze chn s
Introduct on .........................................................................................................................3
Schemat c Overv ew 'Doorsequencer'...............................................................................4
Factory Sett ng 'Doorsequencer'.......................................................................................5
Jetron c D splay EDT (Eng ne Data Term nal)...................................................................6
JETRONIC-BOX – Setup......................................................................................................7
1:BOX-SETUP Menu.............................................................................................................8
2:RC-CONTROL Menu.......................................................................................................11
3/4/5: RC-3/4/5-CONTROL Menu.......................................................................................14
6:TEST-DEVICES Menu ....................................................................................................17
2
JETRONIC-BOX – Instruct ons 1.8
Introduct on

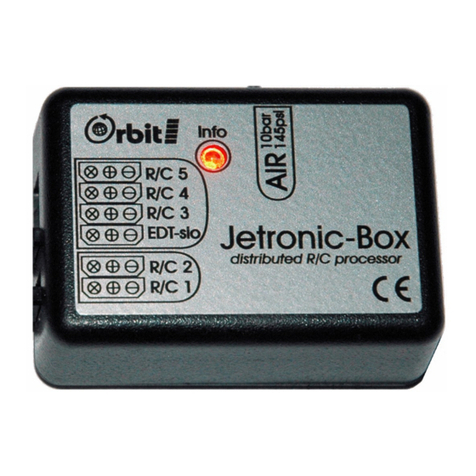

The JETRONIC-BOX is a universal R/C processor for use in medium-si ed and large model
aircraft. Two R/C inputs can be programmed to control up to three R/C outputs, for example to
implement a landing gear with door control or a cockpit with open/close and lock functions, where
even an R/C transmitter with microprocessor control is not sufficient. Since such model functions
are often realised using pneumatic systems with an air tank and a pneumatic cylinder, the
JETRONIC-BOX also features an air pressure measurement and display function as well as the
corresponding adjustable pressure monitoring function.
To read the current operating data and to adjust settings, a suitable display and programming unit
(Engine Data Terminal) is required. The following devices are supported:
Jetronic-Display EDT, no.: 8830
Micro-EDT, no.: 8832
Graupner BOOSTER-EDT no.: 6813.10
Graupner ONBOARD-EDT no.: 6813.7
These units are equipped with an illuminated alphanumeric display and can be connected and
disconnected while the system is running, or they can be permanently installed in the model
(ONBOARD-EDT).
Besides the current operating parameters, such as the battery voltage, it is also possible to display
additional information, such as air pressure or R/C inputs and outputs. All display and adjustment
functions are accessible via a menu-controlled plain text dialog. The JETRONIC-BOX is connected
to the R/C receiver via RC-1 normally, but RC-2 can be used as well (additional function).
Using a USB cable (type Orbit Jetronic-SIO2USB), the JETRONIC-BOX can be updated via the
Internet, making it possible to install new functions or extensions. To do so, use the JetLog PC
software shipped with the Jetronic-SIO2USB cable.
This makes the JETRONIC-BOX suitable for future model projects, too – for example, flashing
position lights, warning lights or special control functions are possible.
3
JETRONIC-BOX – Instruct ons 1.8
Schemat c Overv ew 'Doorsequencer'
4
JETRONIC-BOX – Instruct ons 1.8
Factory Sett ng 'Doorsequencer'
Land ng Gear w th d fferent Door Controls RC4 / RC5
RC3: The land ng gear waits 1 second before retraction/extension.
RC4: The door type-1 closes always automat cally after a delay of 8 seconds (gear
extended) and after a delay of 6 seconds (gear retracted).
RC5: The door type-2 stays extended open closes after a delay of 7 seconds (gear
retracted).
RC2: A brake valve is controlled by a mixing function in the transmitter when the gear is
extended, e.g. from +100% to +150%.
RC1 nput: gear switch ON – extended / OFF – retracted
20:RC1-MODE: NORMAL
21:RC1-PRESET: OUT, after power on the landing gear extends.
RC2 output: Single action brake valve
22:RC2-MODE: OUT-RC1
RC3 output: gear valve or servo
30:RC3-MODE: RC1-DIRECT
31:RC3-WAIT-OUT: 1.0 seconds, the landing gear waits before extend.
32:RC3-WAIT-IN: 1.0 seconds, the landing gear waits before retract.
33: to 37: any, depending on the servo or valve.
RC4 output: door type-1 closes always automat cally, valve or servo
40:RC4-MODE: RC1-TRIGGER, the door closes automatically.
41:RC4-WAIT-OUT: 8.0 seconds, the door waits when extending.
42:RC4-WAIT-IN: 6.0 seconds, the door waits when retracting.
43: to 47: any, depending on the servo or valve.
RC5 output: door type-2 stays extended open, valve or servo
50:RC5-MODE: RC1-DIRECT
51:RC5-WAIT-OUT: 0.0 seconds, the door opens immediately.
52:RC5-WAIT-IN: 7.0 seconds, the door waits when retracting.
53: to 57: any, depending on the servo or valve.
5
JETRONIC-BOX – Instruct ons 1.8
Jetron c D splay EDT (Eng ne Data Term nal)
EDT-LEFT and EDT-RIGHT are configurable function displays for operating parameters. In the
BOX-SETUP menu, you can choose what should be displayed in the LEFT and RIGHT areas.
In the BOX-SETUP menu under 12:EDT→LEFT and 13:EDT→RIGHT, you can choose either to
display one of the R/C ports (RC1 to RC5) or an air pressure value [bar or psi].
In the lower line of the display, the voltage of the receiver system is shown as a bar graph that also
has a memory function for the minimum value (voltage under load). The measurement range can
be adapted to the battery type used in the BOX-SETUP menu under 10:R/C-BATTERY.
6
JETRONIC-BOX – Instruct ons 1.8
JETRONIC-BOX – Setup
SETUP Menu
To activate the SETUP menu for changing the firmware configuration, first press the SET key, then
use the Up/Down keys to switch between the available items.
To leave the SETUP menu and to return to the BOX status display, press the SET key for more
than 2 seconds (ESC). In the following, the individual submenus of the SETUP menu are
described.
7
JETRONIC-BOX – Instruct ons 1.8
1:BOX-SETUP Menu
To activate the 1:BOX-SETUP menu, first press the SET key, then use the Up/Down keys to switch
between the available items.
To leave the 1:BOX-SETUP menu and to return to the SETUP menu, press the SET key for more
than 2 seconds (ESC).
Pressing the SET key for more than 2 seconds again will return you to the operating status display
(>>> changes to <<<, ESC).
8
JETRONIC-BOX – Instruct ons 1.8
1:BOX-SETUP – Bas c Sett ngs for the Box
10:R/C-BATTERY
Specifies the type of battery used (required for a correct voltage display).
Ni = NiCd or NiMh, Li = lithium ion
Default setting: N 4 (4.8V)
11:INFO-LED
Specifies the display function for the info LED on the top side of the device.
OFF: No info LED function
RC1: Status of the RC1 remote control input: ON / OFF / NO signal => LED flashes.
RC2: Status of the RC2 remote control input: ON / OFF / NO signal => LED flashes.
Or display of the position switches if 20:RC2-MODE is set to POS.-SWITCH.
AIR: Air pressure display via modulated flashing of the LED between 14:AIR-FAIL (LED => OFF)
and 15:AIR-NOMINAL (LED => ON).
ON: Info LED always on
Default setting: RC1
12:EDT~LEFT
13:EDT~RIGHT
Selects the display function for the left or right display area on the EDT.
RC1: Remote control input RC1 – range: ON / OFF / NO
A ! marks the signal as FAIL signal, controlled by 14:AIR-FAIL and 24:@AIR-FAIL.
A * marks the signal as preset-defined, configured by 21:RC1-PRESET.
RC2: Remote control input RC2 – range: ON / OFF / NO
A ! marks the signal as FAIL signal, controlled by 14:AIR-FAIL and 24:@AIR-FAIL.
A * marks the signal as preset-defined, configured by 23:RC2-PRESET.
AIR[bar]: Air pressure display in bar (kg/cm2) – range: 0.0 – 10.0 bar
A ! marks the signal as FAIL signal, i.e. pressure dopped below 14:AIR-FAIL.
AIR[ps ]: Air pressure display in psi (lb/inch2) – range: 0 – 145 psi
A ! marks the signal as FAIL signal, i.e. pressure dopped below 14:AIR-FAIL.
RC3/4/5: Output RC3/4/5 as servo travel in % – range: ±150 %
Default setting: RC1 und AIR[bar]
14:AIR-FAIL
Specifies the minimum air pressure for the LED display (11:INFO-LED) as well as the safety
setting (24:@AIR-FAIL).
This parameter should be set to the minimum pressure value where the landing gear is still able to
extend and lock safely.
Range: 0.0 bar – 15:AIR-NOMINAL
Default setting: 5.0 bar
9
JETRONIC-BOX – Instruct ons 1.8
15:AIR-NOMINAL
Specifies the nominal air pressure for the LED display (11:INFO-LED).
This parameter should be set to the pressure value nominally required for the model to take off.
Range: 14:AIR-FAIL – 10 bar
Default setting: 8.0 bar
16:SET-DOORSEQ
Resets the JETRONIC-BOX to the factory settings, a typical 'Doorsequencer'.
See page 4 and page 5 for the overview and description.
Default setting: NO
Set value to YES and push the SET-key two times.
Land ng Gear w th d fferent Door Controls RC4 / RC5
RC3: The land ng gear waits 1 second before retraction/extension.
RC4: The door type-1 closes always automat cally after a delay of 8 seconds (gear
extended) and after a delay of 6 seconds (gear retracted).
RC5: The door type-2 stays extended open closes after a delay of 7 seconds (gear
retracted).
RC2: A brake valve is controlled by a mixing function in the transmitter when the gear is
extended, e.g. from +100% to +150%.
10
