evolution fires SPECTRUM Series Bedienungsanleitung
Electric Fireplace
WARNING
CAUTION
44 - 50 - 60 - 72
OWNER’S� MANUAL
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so
could result in fire, electric shock, or serious personal injury.
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
1
IMPORTANT SAFETY INFORMATION!
WARNING
When using electrical appliances basic precautions should always be followed to reduce the
risk of fire, electric shock and injury to persons, including thefollowing:
Read all instructions before using this fireplace.
•This heater is hot when in use. To avoid burning, do not touch hot surface. If provided, use handles when
moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and
curtains at least 1 m from the front of the heater and keep them away from the sides and rear. In order to
avoid overheating, do not cover the heater.
•Extreme caution is necessary when any heater is used near children or the infirm and whenever the heater is
left operating and unattended.
•Always unplug heater when not in use.
•Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped
damaged in any manner, return heater to authorized service facility for examination, electrical or mechanical
adjustment, or repair.
•Indoor use only, do not use outdoors.
•This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate
heater where it may fall into a bathtub or other water containers.
•Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange
cord away from traffic area and where it will not be tipped over.
•To disconnect heater, turn controls to off, then remove plug from outlet.
•Do not inset or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric
shock or fire or damage the heater.
•To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like
a bed, where openings many become blocked.
•A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, or flammable
liquids are used or stored.
•Use this heater only as describes in this manual. Any other use not recommended by the manufacturer may
cause fire, electric shock, or injury to persons.
•DANGER-High Temperatures may be generated under certain abnormal conditions. Do not partially or fully
cover or obstruct the front of this heater.
•Replacement of the lamps should be done only while the heater is disconnected from the supply circuit.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
•CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device, such as a timer, or connected to a circuit that is
regularly switched on and off by the utility.
•Electric sockets in residential rooms should comply with the 6/12 spacing requirements, this comes from the
NEC and states that in a living area of a home, you must keep an electrical socket (outlet) 6 feet from any
obstruction, or break in the wall, such as a doorway and no more than 12 feet from the previous electrical
socket.
•Whilst electric fires are very safe, we recommend you only plug into a mains socket, do not use an extension
lead as the extension lead wire can get knocked, or overheat and become a hazard. You should never overload
an extension lead or multiple extension leads.

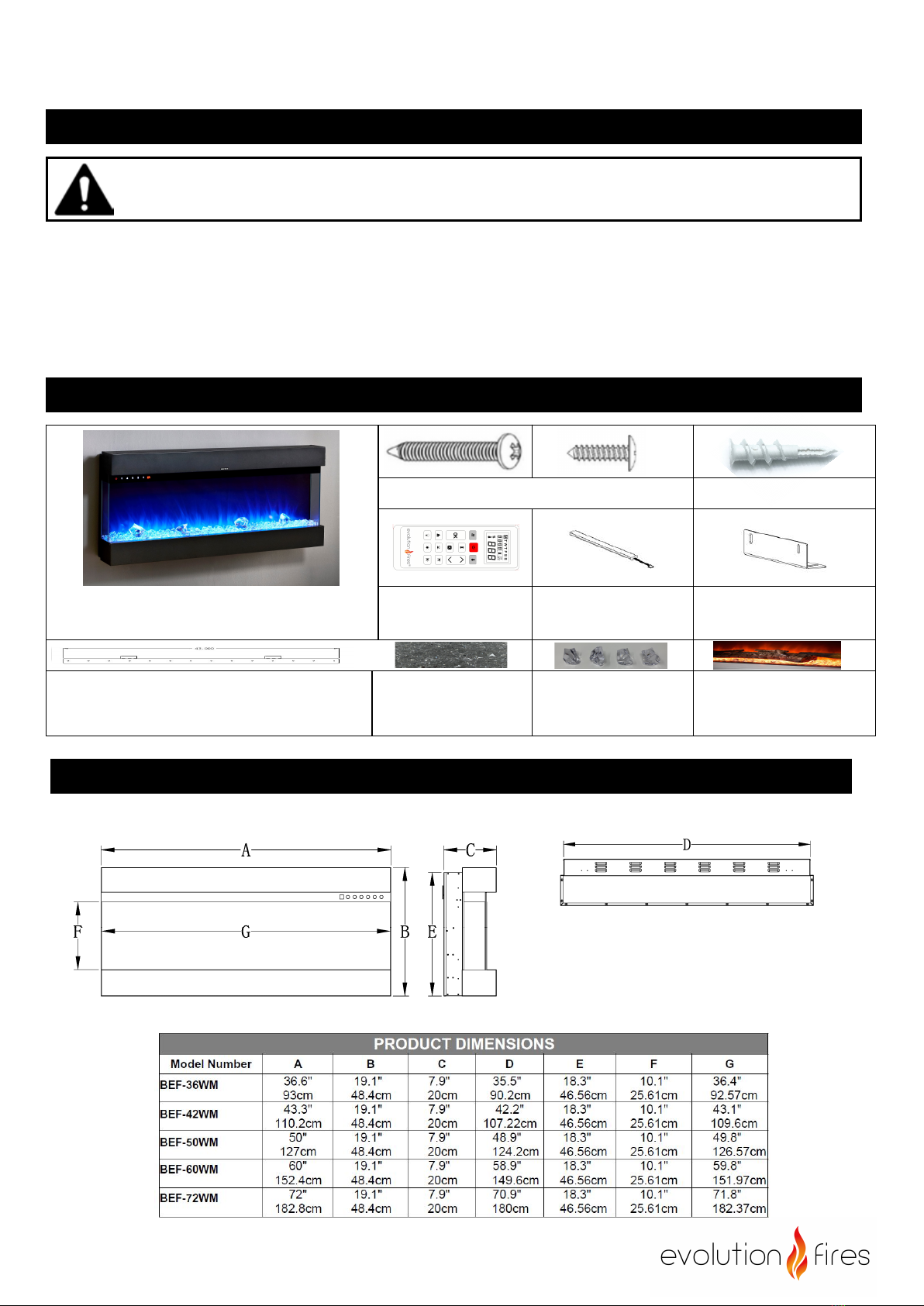

Preparation
Check the parts list to make sure nothing is missing. Dispose of packaging materials properly. Please
recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape measure;
electric drill.
Parts and Hardware
A– Fireplace
B –ScrewsC–Drywallanchors
D-Remote Control
G-Wall Bracket
Fixed on back of fireplace
H - Small
Decorative Crystals
I - Big Decorative
Crystals J-Log set
Specification and Dimension
F - Metal Bracket
This product includes a GLASS panel! Always use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
E- Side Lights
Installation and Assembly
Your appliance is a wall-mounted appliance. Select a suitable location that is not susceptible to moisture
and is away from drapes, furniture and high traffic-areas.
MINIMUM CLEARANCE TO COMBUSTIBLES
Wall Mounted Installation
Due to the many different materials used on different walls, it is highly recommended that
you consult your local builder before you install this appliance on the wall.
Remove the mounting bracket which is screwed to the back of the fireplace.
A. Select a location that is not prone to moisture and is located at least 36" (914mm) away from
combustible materials such as curtain drapes, furniture, bedding, paper, etc.
B. Have two people hold the appliance against the wall to determine the final location.
C. Remove the bracket from the back of the unit by removing the screws, refer to Figure 1.
D. Mark out location, then mount the bracket onto the wall using the supplied screws. This bracket
MUST have the hooks facing upward and be level.
NOTE: It is strongly recommended that the mounting bracket be screwed into the wall studs.
If the wall studs cannot be used, ensure that the supplied plastic anchors are used to affix
the bracket to the wall.
E. With the wall mounting bracket installed have two people lift the appliance up and insert the two
hooks on the bracket into the two slots on the back of the appliance.
F. Check the appliance for stability ensuring that the bracket will not pull free from the wall.
Recessed To Wall Installation
HoleSize
( A )
STEP A. Selectionadry wall to openahole for fireplace box. Size of hole as below chart
Figure ( A )
STEP B. Using the screwdriver to takeoff the screws from the frontFigure (B)
STEP C. Have two adultpeople to pull of the glasspaneland take it outFigure (C)
Framing Hole Size
Model Number HW
ELITE 44
ELITE 72
42.71” (108.3CM) 18.84” (47.86CM)
71.25” (181CM) 18.84” (47.86CM)
STEP E. Have two adult people
to lift of the fireplace box and put
it inside of the wall opening hole.
Using the screw driver to fix all
wood screws and drywall anchors
through the metal brackets to
the wall and fixing tightly.
NOTE: Making sure that all screws
and drywall anchors are well
screwed.
(F)
STEP F. Your Electric fireplace will be looks as below after installation
5
Installation of the front glass panel
Firstly remove the 4 screws which are fitted into the fireplace as shown
Unpack the glass screen, place it into the bottom tray and push backwards until the 4 tabs on the
glass screen line up with screw holes.
Screw in the 4 screws which were removed in the first step.
9
NOTE: Please use the information below to set out your media set based on the model you purchased.
A.
The glass front must be removed and the appliance must be mounted in its final location before
the log-set / crystals are installed.
B.
Crystal Media Bed Placement
Carefully empty the 2 bags of small crystals onto the plastic tray, see Figure1.
Next place the 4 large crystals on top of the small crystals and replace the glass, see Figure 2.
Figure 1.
Small Crystal Placement
Log-set / Crystal Ember Media Bed Installation
Figure 2.
Large Crystal Placement
C. Log Media Bed Placement
1. Empty the 2 crystal bags onto the plastic tray (shown in figure 1.)
2. Place the 2 large logs on top of the crystal's
3. Place the 2 medium logs at ether end of the media bed,
4. Place the 4 twigs on top of the large logs.
Log Media Bed Placement
Large Logs x2
Medium Logs x2
Twigs x4
10
A. Remove the cover plate from the right side bottom of the appliance by removing the three screws, as shown above.
B. Remove the wire connectors from the power cord. The power cord may be discarded
C. Take the new cover plate, supplied in the hardware bag. Punch out the 7/8" (22.2mm) hole and install
aboxconnectorthrough, intothejunctionbox.Snaptheboxconnector clampontothesupplywires.
D. Using the wire connectors, connect the ground green wires (G), the common white wires (N) together, then the hot
black wires (L) and then the refer to Figure 3.
E. Reinstall the cover plate using the three screws, as shown in Figure 1.
HARD WIRING INSTALLATION
HARD WIRING CONNECTION
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the
appliance directly to the house hold wiring.
WARNING
TURN OFF THE APPLIANCE COMPLETELY AND LET COOLBEFORESERVICING.ONLYAQUALIFIEDSERVICE
PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE.
Operation
Read and understand this entire owner’s manual, including all safety information,before
plugging in or using this product. Failure to do so could result in electric shock, fire,
serious injury, or death.
Power
Plug the power cord into grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2
and 3). Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed
the maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.
Methods of Operation
This electric fireplace can be operated by the TOUCH PANEL, located on the right side panel of
the fireplace (see figure below), or by the battery-powered REMOTE CONTROL.
The operation and functions of the two methods are the same.
Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3,
and heed all warnings.
Touch Panel Operation
BUTTON FUNCTION ACTION & INDICATION
POWER
ON: Enables control panel functions and
remote control. Turns on flame effect.
OFF: Disables control panel functions and
remote control. Turns off flame effect.
1. Press once. Indicator light turns on. Power
turns on. All functions enabled.
2. Press again.Flameeffectturnsoff.Unit
goes to standby. All functions turn off.
TIMER
TIMER button: Controls timer settings to turn
off fireplace at selected time.
Settings range from 0.5 hours to 8 hours.
1. Press once. Indicator light turns on. Timer
is set to 0.5 hours.
2. Press again until desired setting is
reached. Indicator lights show setting.
