USER GUIDE
FOR ENGLISH | CZECH | HUNGARIAN | SLOVAK | POLISH
Content
EVOLVE 4500FHD Sport – user manual in English verison
EVOLVE 4500FHD Sport – user manual in Czech version
EVOLVE 4500FHD Sport – user manual in Hungarian version
EVOLVE 4500FHD Sport – user manual in Slovakia version
EVOLVE 4500FHD Sport – user manual in Polish version
P2
P11
P21
P31
P41
www.evolve.cz
Table of Contents
What’s in the box
Camcorder Overview
Initial Set Up
Charging the battery
Date & Time Setting
MicroSD card Storage Chart
Take a Video
Take Snapshot Photos
Playback on your computer
On a Mac
Webcam Driver Installation
Firmware Installation
LED Status Table
Technical Specification
2 English
Thanks for purchasing this Camcorder
Please read this instruction manual to ensure correct use of the product prior to use.
Please keep this instruction manual in a safe place.
Please ensure that the sales store fills out the warranty with the date of purchase
and the name of the store.
The warranty does not cover any damage that may occur during a sport activity. It is
the user’s responsibility to secure the action cam securely to any sport equipment.
Welcome
3

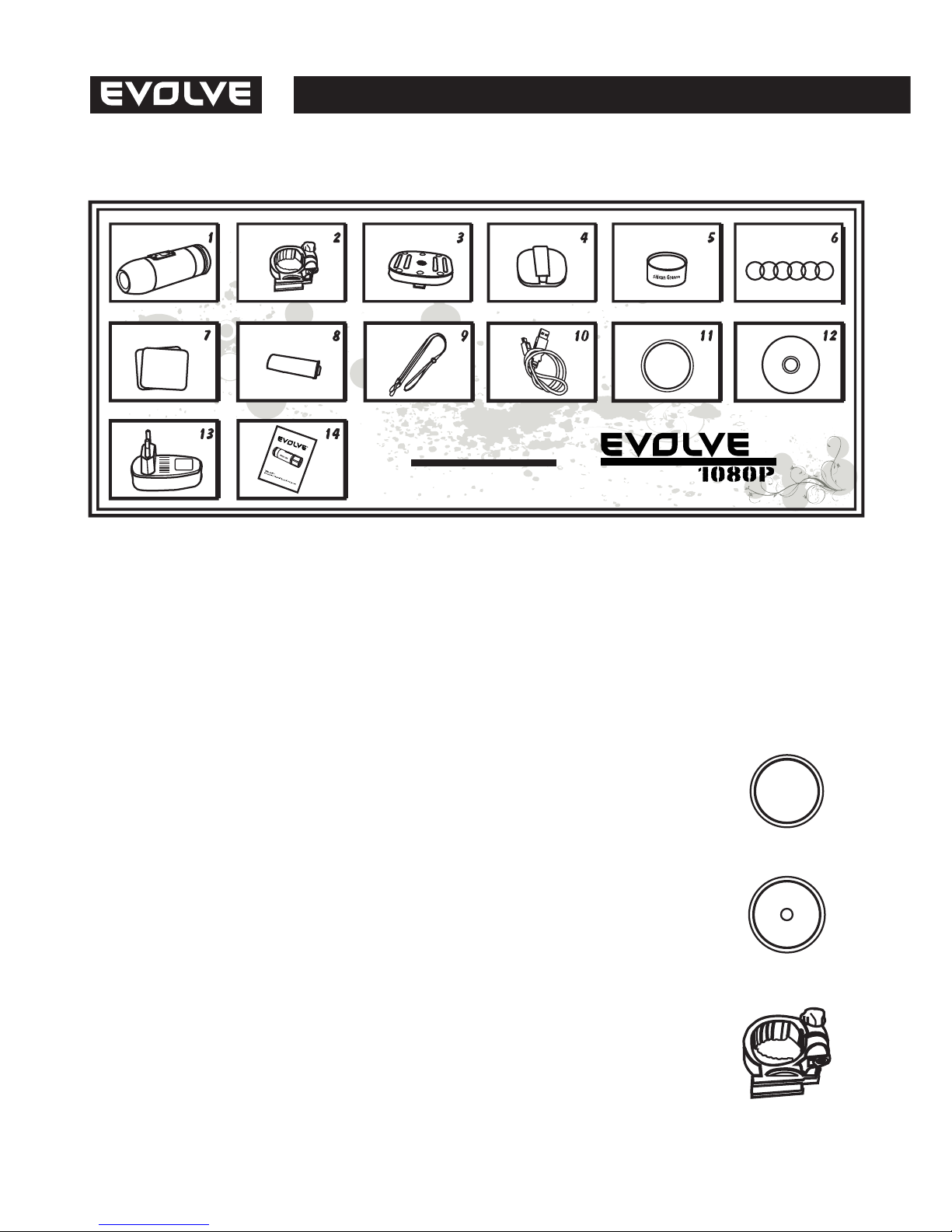

1. Camcorder
2. Camcorder Mount Adapter
3. Universal Mount Adapter
4. Strap Mount for Goggles
5. Silicon grease
6. Rubber O-ring 6 pcs
7. Adhesive stickers 2 pcs
8. Rechargeable lithium-ion battery 1 piece
9. Hand safety strap
10. USB cable
11. Waterproof Cap
12. CD
13. Charger
14. User manual
Sound cap
Use this cap for better sound quality but not for water sports!
Camcorder mount adapter
This mount holds the camcorder in place and allows for a 360°
rotation. This mount is compatible with the strap and universal
mount.
Waterproof cap
Use this cap for all water sports!
What’s in the box?
4
Rubber O-ring 6pcs
Remind you to put some silicon grease to the rubber O-ring
from time to time, especially before using underwater. Make
sure the rear cap was closed tight.
Adhesive Mount
Use the adhesive mounts to secure the camcorder with the
Universal Mount included.
Battery
No need for AA batteries with your Bullet HD. Powered by a
rechargeable li-ion battery you’ll get up to 60~90 minutes of
continuous recording.
Silicon Grease
Universal Mount
On the bottom it has a “female” ¼"-20 screw to fix it to any
mounts or tripods that have a “male” ¼”-20 screw. Use this
mount with the adjustable silicon straps provided.
Strap mount for non-vented helmet/goggles
Any goggle strap, less than 40mm in width, is compatible! Just
slide your goggle strap into the mount and you are ready to go.
You can use this mount for non-vented helmets as well.
5
Using for Water Sports
When using the waterproof cap remember to put some silicon grease
to the rubber O-ring from time to time, especially before using the
camera in water. Make sure to close the rear cap tightly.
O-ring Silicon Grease Waterproof Cap
CD
Charger
Hand Safety Strap
USB Cable
6
INITIAL SET UP
1. Make sure the camcorder is OFF before adding or removing the memory card!
2. Screw out the rear cap (open) located at the back of the camcorder .
3. Install a micro SD memory card (max up to 32GB) into the rear slot. To insert the
micro SD card, slide the micro SD card into the card slot on the back of the
camcorder with the card label facing down. The micro SD card will click into place
once it is inserted past flush with the Camera. Use your fingernail to do this. Then
screw in the rear cap till is complete lock.
4. If “no” micro SD Memory card is inserted into the camcorder, a Red/Blue LED light
on top of the Camera will blink.
5. The micro SD memory cards must be clean (no images from other sources). If
you are using the micro SD memory card from other devices, please make sure
to format the micro SD memory card in your computer prior to use in the Camera.
New cards are good to use straight from the package.
CAMERA OVERVIEW
LED
USB
1080P / 720P Mode Switch Stabilizer / Firmware
Plug MicroSD Card Slot Battery Microphone
Power / Shutter Rear Cap Mode Switch
7
Date & Time Setting
Download the Rtc.txt file from ftp.evolve.cz - Support –
Date & Time Quick Setup for Camera
Open the file “Rtc.txt and change the date & time as follows:
YYYY.MM.DD hh:mm:ss
Y = year h = hour
M = month m = minutes
D = day s = second
Remember to place an optional MicroSD card before your recordings!
Then copy the file to memory card! Now you can take a photo or video to test it!
Storage Chart
Digital Photos HD Video Recording
4GB 8GB 16GB 32GB 4GB 8GB 16GB 32GB
Mode
720P
1080P 1250 2500 5000 10000 60mins 120mins 240mins 480mins
50mins 100mins 200mins 400mins
Charging the battery
Screw out the rear cap located at the rear of the camcorder and Plug the USB
charger to the camcorder. The Green light is on while charging, goes off when the
battery is fully charged. On the first use charge the battery 10 hours before use! You
can record up to 60~90 minutes with one charge.
Power on/off your BulletHD
Turn Camera On
Turn Camera Off
Press and hold the POWER/Shutter button for 3 seconds to power on,
the blue led will turn, indicating the camcorder is power on and comes
to standby mode.
Long press for another 3 seconds to power off. Camcorder will vibrate
twice, indicating the Camera is power off.
8
Playback on your computer
Power off the camcorder! Screw the rear cap , connect with your computer via
USB cable from the USB port ,then turn on the device! The driver would be
automatically installed. Or you can take out the MicroSD card and use your own card
reader to connect with your computer too.
On a MAC
Simply plug the camcorder into your MAC with the included USB cable, turn your
camcorder on, and the MAC OS will recognize the camcorder as an external hard
drive.
IMPORTANT TIP FOR MAC USERS
When deleting files from your MicroSD cards you must empty the trash before
removing it or unplugging the camcorder. If you do not empty your trash the photos
and videos files will not be completely erased from your cards.
The device must be power on while connecting with computer for data
download. Don’t remove the battery!
When you remove the battery while the video is playing, damage to
your video data could occur!
Take Snapshot Photos
Screw out the rear cap , switch to left for photo standby mode, close the cap.
Turn on camcorder by pressing POWER/Shutter button for 3 seconds. The blue led
will be on, then comes to standby mode. Press the shutter button to start taking
photos (red led will blink). Press the shooter button again to stop. In this mode
the camcorder will take sequential photos every 3 seconds until the battery die or the
Micro SD card is full.
Take a Video
To confirm the camcorder is in video mode, screw out the rear cap , and the
video/photo switch “ ” must be to right for video recording standby mode. Turn on
the camcorder and the Blue LED on! Then press the Power/Shutter button quick
once again to start video recording. Red LED light will blink while video is recording.
Please the same button to stop recording!
9
REMARKS: THE SPECIFICATION IS SUBJECT TO CHANGE WITHOUT NOTICE.
Removing/Installation battery
The battery is designed to have a very tight fix to maximize reliability in high reliability
in high vibration activities. To remove the battery, pull it out with the battery holder.
It is intentionally not easy to do, but the battery will come out.
Additional batteries and mount packages are available.
Status Table Green LED Red LED Blue LED
Standby
Battery charging
Taking Video
Taking Photo
No micro SD card
Micro SD card fill up
Data transfer
On
On
On On
On
On
On
Off
Off
Off
Off
Off
Off
Off
Off Off
Off
Flashing
Flashing
Asynchronous Flashing
Firmware Installation
This is not necessary to install the firmware to view videos or pictures. The firmware is
only necessary to change the default setting from 5 mins to 15 mins per video file;
which is available for Windows OS system.
1. Download the latest firmware at ftp.evolve.cz - Support – Firmware for Camera
into your MicroSD card.
2. Screw the rear cap , install your MicroSD card to camcorder.
3. Switch to firmware mode. F = Firmware
4. Press and hold the POWER/Shutter button for 3 seconds to power on.
5. Red LED will blink for 20 seconds, indicating the camcorder is running the
firmware and will power off.
6. Now you need to take out the MicroSD card and format it.
*Once the Micro SD card is formatted the time and date settings will be lost!*
Or follow the instruction at tutorial video show at our YouTube Channel/CameraCam!
