Exabyte Mammoth Bedienungsanleitung

319931-001



Exabyte Field Instructions

December 1997

Replacing the SCSI Card in an

ExabyteMammoth 8mm Tape

Drive

Contents

1 Before you begin . . . . . . . . . . . . . . . . . . . . . . . 2

2 Removing the SCSI card. . . . . . . . . . . . . . . . . 3

3 Installing the SCSI card. . . . . . . . . . . . . . . . . . 5

4 After you replace the SCSI card . . . . . . . . . . . 6

Page 2 of 6 319931

containedherein arethe propertyofExabyteCorporation.Nopartofthisdocumentmaybereproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer

language in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise, without the express written permission of Exabyte Corporation, 1685 38th Street, Boulder,

Colorado 80301.

Trademark Notices

Exabyte, EXAPAK, EXB, FileSECURE, LANCourier, NetSECURE, and SCIMON are registered

trademarks of Exabyte Corporation. Eagle, Eliant, Enspire, EXA, EXAfacts, EXAfiles, EXASOFT,

EXATAPE, and Nest are trademarks of Exabyte Corporation. All other product names are trademarks

or registered trademarks of their respective owners.

1 Before you begin

Toprotectthe tape drive fromESD,follow these procedureswhen repairing

or testing it:

Place a static protection mat on the work surface used for tape drive

components.Usea1-megohmresistortogroundthe staticprotectionmat.

Wear a static protection wrist band whenever you handle tape drive

printed circuit cards that have been removed from their antistatic bags.

Connect this wrist band to the static protection mat or to other suitable

ESD grounding.

Keep the SCSI card in an antistatic bag until you are ready to install it.

Handle the SCSI card by its edges only.

If there is a cartridge in the tape drive, remove it before performing any

maintenance procedure.

CAUTION

Beforeyoubegin,makesurethattherepairenvironment

for the tape drive is free of conditions that could cause

electrostatic discharge (ESD).

December 1997 Page 3 of 6

2Removing the SCSI card

Required tools

Torque limiting screwdriver

T-6 TORX bit

2 Removing the SCSI card

1. Turn the tape drive upside-down. Using a T-6 screwdriver, remove

the two side screwsand one rearscrewthat secure the bottomcover

to the tape drive, as shown in Figure 1. Remove the bottom cover.

2. Use a T-6 screwdriver to remove the two screws and lock washers

that secure the SCSI card to the tape drive, as shown in Figure 2.

3. Discard the old screws and lock washers.

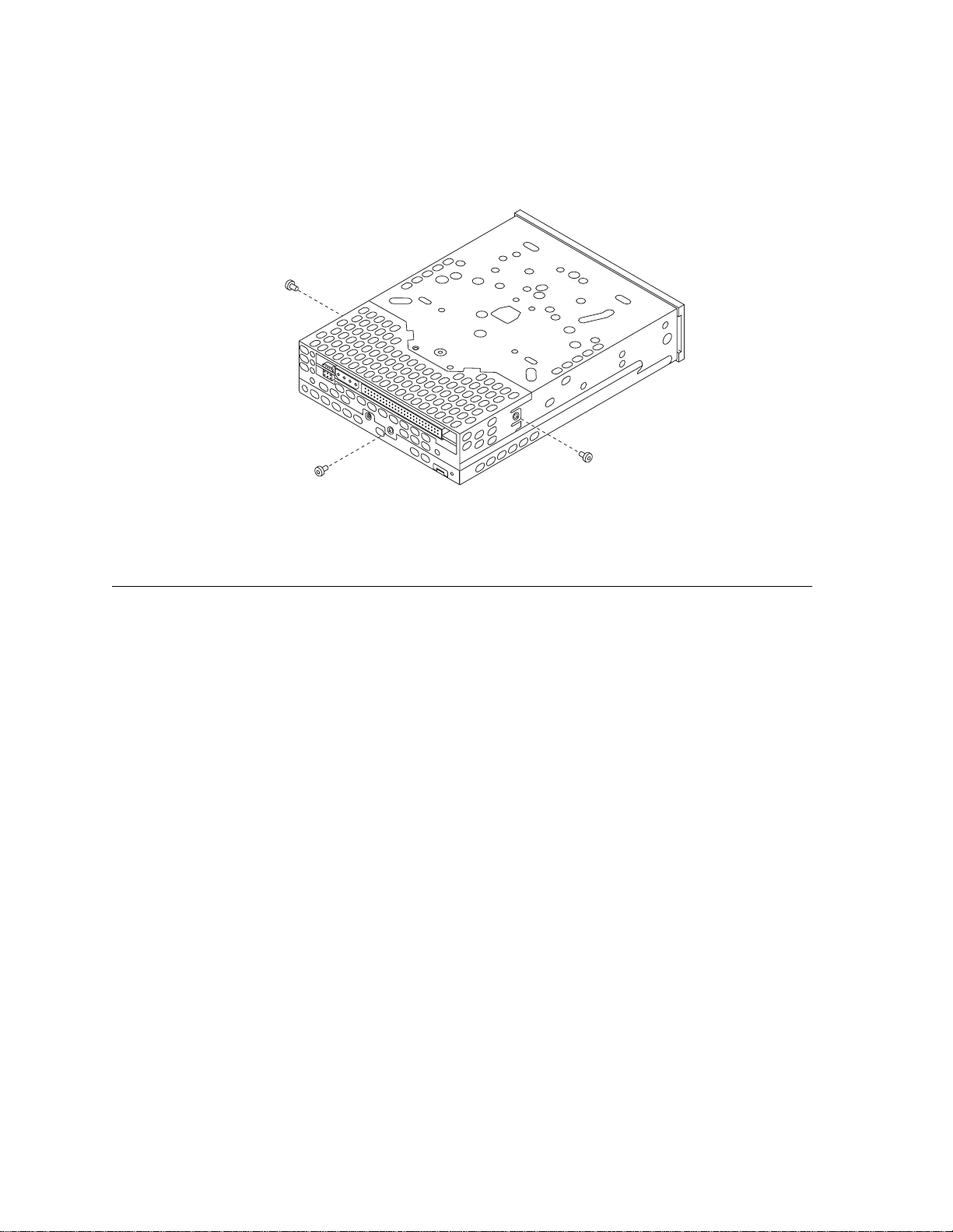

Figure 1 Removing the bottom cover

CAUTION

Do not allow the screws or lock washers to fall into the

tape drive.

Replacing the SCSI Card in a ExabyteMammoth 8mm Tape Drive

Page 4 of 6 319931

4. The SCSI connector islocated on the underside of the SCSI card, on

the left side (see Figure 2). To disengage the SCSI connector, lift the

left edge of the card.

5. Remove the SCSI card.

Figure 2 Removing the SCSI card

CAUTION

To avoid damaging the SCSI card, lift the left side first.

Make sure the SCSI connector is disconnected before

you remove the card.

CAUTION

Be careful not to damage the MRCcard as you remove

the SCSI card.

December 1997 Page 5 of 6

3Installing the SCSI card

3 Installing the SCSI card

1. Remove the replacement SCSI card from its antistatic bag.

2. Handling the card by its edges, position the card with the SCSI

connector on the left. The hooked edge of the card goesaround the

right rear edge of the MRC card (see Figure 3).

3. Press down firmly on the left edge of the card to seat the SCSI

connector.

4. Install the two screws and lock washersused to attach the SCSI card

to the tape drive (see Figure 3). Use a T-6 screwdriver to tighten the

screws to 1.2 inch-pounds of torque.

ÌImportant Do not use the old screws. The new

screws are required to hold the card firmly in place.

5. Replace the bottom cover.

Figure 3 Replacing the SCSI card

Replacing the SCSI Card in a ExabyteMammoth 8mm Tape Drive

Page 6 of 6 319931

6. Replace the two side screws and one rear screw that secure the

bottom cover to the tape drive (see Figure 4.) Tighten the screws to

1.2 inch-pounds of torque.

4 After you replace the SCSI card

After you replace the SCSI card, you willneed to perform the following

operations:

Set the tape drive SCSI ID

Attach the power cable and SCSI cable

Power on the tape drive

Perform diagnostic tests

RefertoExabyteMammothInstallationandOperation(partnumber306484)

for instructions.

Figure 4 Replacing the bottom cover
