Exagerate ZELIG PAD 970H Bedienungsanleitung

ZELIG PAD 970H

9.7” MULTI TOUCH INTERNET TABLET PC

USER MANUAL

XZPAD970H

www.hamletcom.com

Dear Customer,

thanks for choosing an Hamlet product. Please carefully follow the

instructions for its use and maintenance and, once this item has run

its life span, we kindly ask You to dispose of it in an environmentally

friendly way, by putting it in the separate bins for electrical/electronic

waste, or to bring it back to your retailer who will collect it for free.

We inform You this product is manufactured with materials and components in

compliance with ROHS directives: 2002/95/CE; with RAEE Directives:

2003/96/CE, Italian Legislative Decree 2005/151 and EMC Directive

2004/108/EC for the following standards:

EN 55022: 2006 + A1: 2007

EN 55024: 1998 + A1: 2001 + A2: 2003

EN 61000-3-2: 2006 + A1: 2009 + A2: 2009

EN 61000-3-3: 2008

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause

radio interference, in which case the user may be required to take adequate

measures.

The complete CE declaration of conformity of the product can be obtained by

contacting Hamlet at info@hamletcom.com.

The information on the importer for your country are available in the “About Us”

section of the Hamlet website at www.hamletcom.com.

Trademarks

All trademarks and company names mentioned in this manual are used for

description purpose only and remain property of their respective owners.

Changes

The material in this document is for information only and subject to change

without notice. Specifications and appearance are subject to change without

prior notice.

Support

The support service for the Exagerate by Hamlet tablets is provided by:

SC GROUP – Assistenza Tecnica Salvadori Claudio

Via del Bosco 44 – 21052 Busto Arsizio (VA) – Italy

You can contact technical support phone number: 0331-674306 or e-mail at

assistenza.tablet@hamletcom.com.

For more information on Zelig Pad Tablets visit the web site

www.hamletcom.com/ZeligTab.aspx.

1 Introduction

1.1 What’s Included

The following components are included with your purchased product:

•Zelig Pad 970H Tablet PC

•Power Adapter

•USB Cable

•Instruction Manual

1.2 Getting Started

Before operating your Tablet PC for the first time, please read this manual

carefully and follow the instructions as below.

1.3 Battery charging

The tablet is equipped with a built-in rechargeable Lithium battery. It is

suggested to fully charge the battery before use.

We strongly recommend to use the power adapter included in the packaging,

using other adapter may damage the tablet and void the warranty.

Charging Process

•Connect the power adapter to your tablet, and plug the power adapter to the

nearest electrical outlet.

•Users can still use the tablet while it is being charged.

2 Appearance and buttons

2.1 Camera

2.2 ESC

Tapping on ESC button will return the previous interface.

2.3 HOME

Tapping on HOME button will return to the main interface.

2.4 Menu

During operations, tap Menu button to show you the menu options.

2.5 Headphone Socket

3.5 mm standard earphone jack

2.6 HDMI output interface

2.7 Mini USB

Mini USB port: you can use it to connect to PC for data transmission,

charging or connection with external USB devices.

2.8 MicroSD card slot

2.9 Speaker

2.10 Volume +, Volume-

Press on the Volume +, Volume – buttons to increase or decrease the

sound volume.

2.11 ON/OFF Power Switch

Turn on/off tablet

3 Turn ON/OFF Tablet

3.1 Turn On: after the battery has been fully charged, press & hold the power

switch for around 3 seconds to turn on the device. Screen lock will be

showed after starting up.

3.2 Turn Off: When the tablet is ON, press & hold the power switch for around

3 seconds and the system will popup out power off option, tap on it to turn

the tablet off.

3.3 Lock screen: quickly press Power Switch and release to lock screen.

3.4 Unlock screen: slide the lock icon rightward onto the unlock icon to unlock

the screen and go to main interface; Slide the lock icon leftward onto the

camera icon to open camera.

Remarks:

When battery power has been used up, the tablet will shut down itself

automatically.

If you illegally turn off the device, restart will scan and restore the disk, it

may take longer time to enter into system.

4 Connection with PC

4.1 Use the USB cable provided to connect the tablet with PC, device will pop

up the USB connection window, click “Turn on USB storage” to connect

to PC, in the connection mode, you can copy or delete the file on the

device or the file on the memory device.

5 Tablet Operation Interface

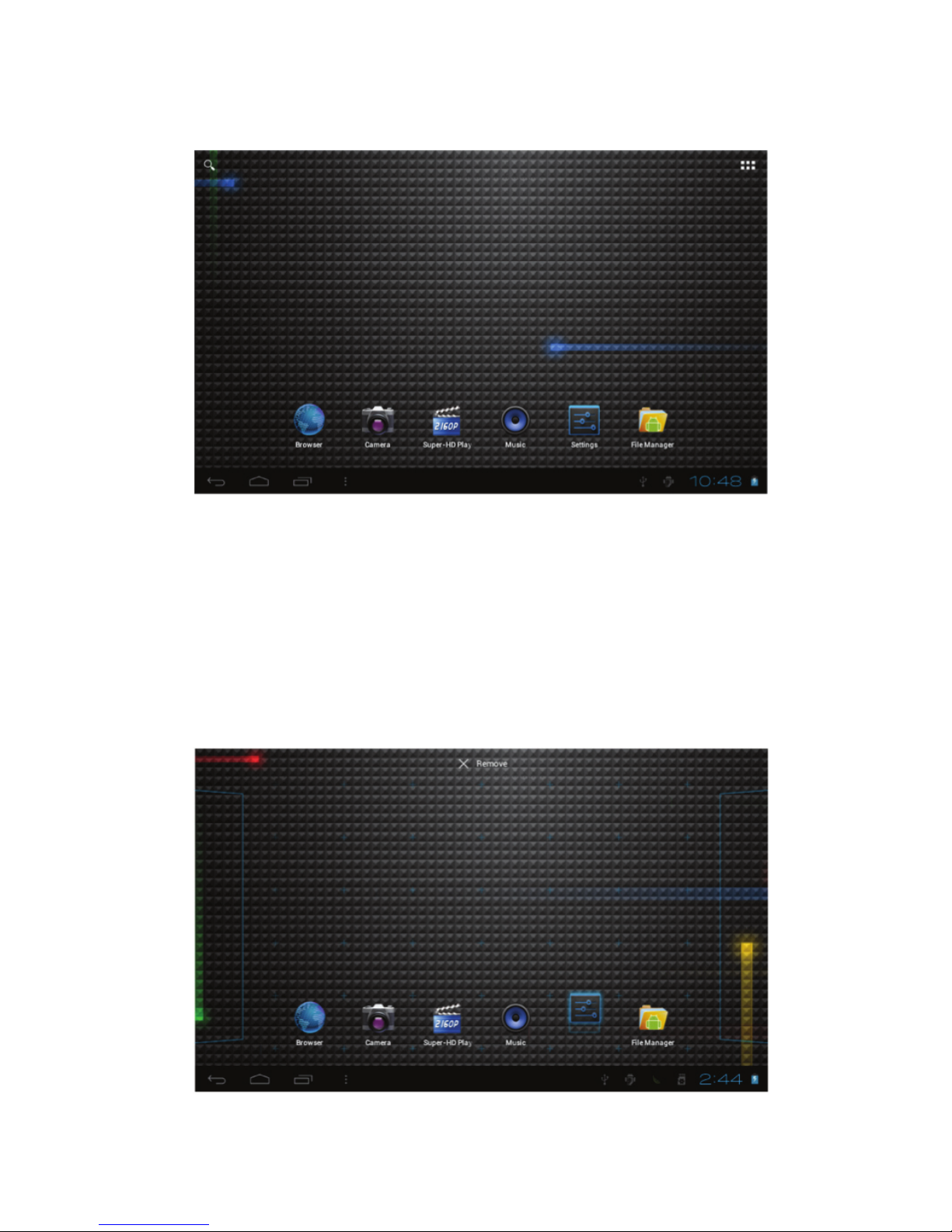

5.1 After starting up, you will enter into below main screen interface.

5.2 In the main interface, you can manage main interface software icons:

press the icon and hold it for 3 seconds, then you can drag anywhere in

the main interface.

5.3 Delete icons: press the icon and hold it for 3 seconds, and drag the icon

onto the “Remove” icon, then you can delete that icon from desktop.
