EXFO MaxTester 635 Bedienungsanleitung

The MaxTester 635

QUICK REFERENCE GUIDE

Menu and Keys

Ports

Copper Test

TDR, RFL, DMM, wideband,

POTS

Wan (Ethernet RJ45)

Connect to router/gateway

for IP testing WAN (DSL)

Connect to ADSL2+/VDSL2

DSLAM. 2 pairs on RJ-11 for

bonded tests

xDSL Test

ADSL2+ Annex A/B*, VDSL2

System

Software version/options,

date/time, power settings

T/A–R/B

Primary interface for

copper testing

T1/A1–R1/B1

Secondary interface for copper

testing in 4-wire mode

LAN (Ethernet 10/100)

Connect to STB or PC for DSL

based IP testing

Earth/Ground

Power

Standby mode: Hold button

for 1 beep

Function Keys

Home

Escape/Back

Start/Stop

Navigation Keys Enter

* Model V2XAA: Annex A

Model V2XAB: Annex A and B

The MaxTester 635

Copper Testing Cables

DSL Testing Cables

T/A–R/B

Primary interface

ACC-M4MM

ACC-RJ11-4MM

ACC-M4MM

ACC-BD-4MM

ACC-M4MMYB

ACC-BD-RJ

RJ-RJ-Banana Y-Cable

Primary interface

Earth/Ground

RJ-Banana Cable

DSL Bonding Options*

T1/A1–R1/B1

Secondary interface

RJ-RJ-RJ Y-Cable

Charger Jack USB Port

* In XAA model, these cables are included with the DSL Bonding option.

In XAB model, these cable are included in the default kit.

Copper Test Results

Copper Testing

Smart-Pair Detective

Quick line check and

FaultMapper

Hint

Use CURRENT TEST option to

jump directly to another test

(resistance, capacitance, etc.)

Auto-Test

User test scripts

Multimeter (DMM)

Volts, current, resistance,

isolation, capacitance,

station ground

Threshold Settings

Select to change pass/fail

thresholds

Noise Tests

Noise, power inﬂuence,

impulse noise, WB PSD noise,

Test Conﬁguration

Preset proﬁles for threshold

values/test settings, etc.

Snapshot (one shot test)

Quick way to check the voltage

status of all pairs

Setup

Temperature, units,

termination, ﬁlters, etc.

Read/Export Result

Access to results or export

via USB/FTP server

TDR

Time domain reﬂectometer

Frequency Tests

Balance, attenuation, load coil

detector, tone Tx/Rx

RFL

Resistive fault locator

Continuous

Select to live test a pair or all

pairs Save Result

Store to memory or USB stick

Dialer

POTS phone emulator

The MaxTester 635

TDR

›Launched in AUTO mode

› All ranges scanned and ﬁrst fault

highlighted

› Choose GRAPH SELECTED to

navigate trace

RFL

›Fault location (Earth/ground contact or battery contact)

›Strap connection (hard loop) at far end

Distance

First detected fault; distance

metric is available in feet

and meters

Range

Manual selection of the

measurement range

Cursor

To scroll with cursor

HINT: Press ENTER to center

cursor on the trace

View Results

DTF = distance to fault

DTS = distance to strap

DFTS = distance fault to strap

Pan

Move trace up/down/left/right

using cursor keys

Zoom

To magnify trace

Distance

Amplitude

Note: A/Tip and B/Ring will be inverted

if legs are reversed.

1:1

Restore trace to original

aspect ratio

WB SE Attenuation

›Unique technique used to measure insertion

loss (attenuation) across a selected range

WB PSD Noise

›Crosstalk/RFI detection from live pairs

›Frequency band selection (ADSL2+ 2.2MHz,

to VDSL2 30MHz)

›Blue plot shows peak levels since start of test

›Black plot shows live levels

Frequency Band Selection

(ADSL2+ 2.2MHz, to VDSL2

30MHz)

Graph Selection

Select to move cursor and

navigate graph

Cable Length

View of estimated cable length

along with a pass/fail

Active

Live maximum noise level and

frequency

Graph Selection

Select to move cursor and

navigate graph

Peak

Historical maximum noise level

and frequency measured since

start of test

The MaxTester 635

DSL Test Cords

Test Proﬁle Conﬁguration

›In the SELECTED PROFILE window,

select xDSL TEST SETUP

Annex B

Single Pair

Annex A

Bonding

Test Interface

Select and click the approprate test

V2XAA MODEL (ANNEX A) V2XAB MODEL (ANNEX A AND B)

Black and Red

(marked A/T, B/R)

Blue and Yellow

(marked A1/T1, B1/R1)

Black and Red

(marked A/T, B/R)

Blue and Yellow

(marked A1/T1, B1/R1)

PIN 3-4 (RED) used for:

› ADSL2+/VDSL2 single

pair operation

› Pair 1 of bonded circuit

PIN 2-5 (GREEN)

used for:

› Pair 2 bonded circuit

PIN 3-4 (RED) used for:

›

ADSL2+ Annex B/VDSL2

single pair operation

› Pair 1 of VDSL2 bonded

circuit

PIN 2-5 (GREEN) used for:

› ADSL2+ Annex A/VDSL2

single pair operation

› Pair 2 of VDSL2 bonded

circuit

Connect to:

› DSLAM Pair 2 (V2XAA)

› DSLAM Annex A or Pair 2 (V2XAB) Connect to:

› DSLAM Pair 1

Connect to WAN (DSL)

port of Max-635

V2XAA MODEL (ANNEX A)

V2XAB MODEL (ANNEX A AND B)

*Annex J only available on V2XAB model.

WAN port RJ11 (DSL):

For V2XAB Model:

For V2XAA Model:

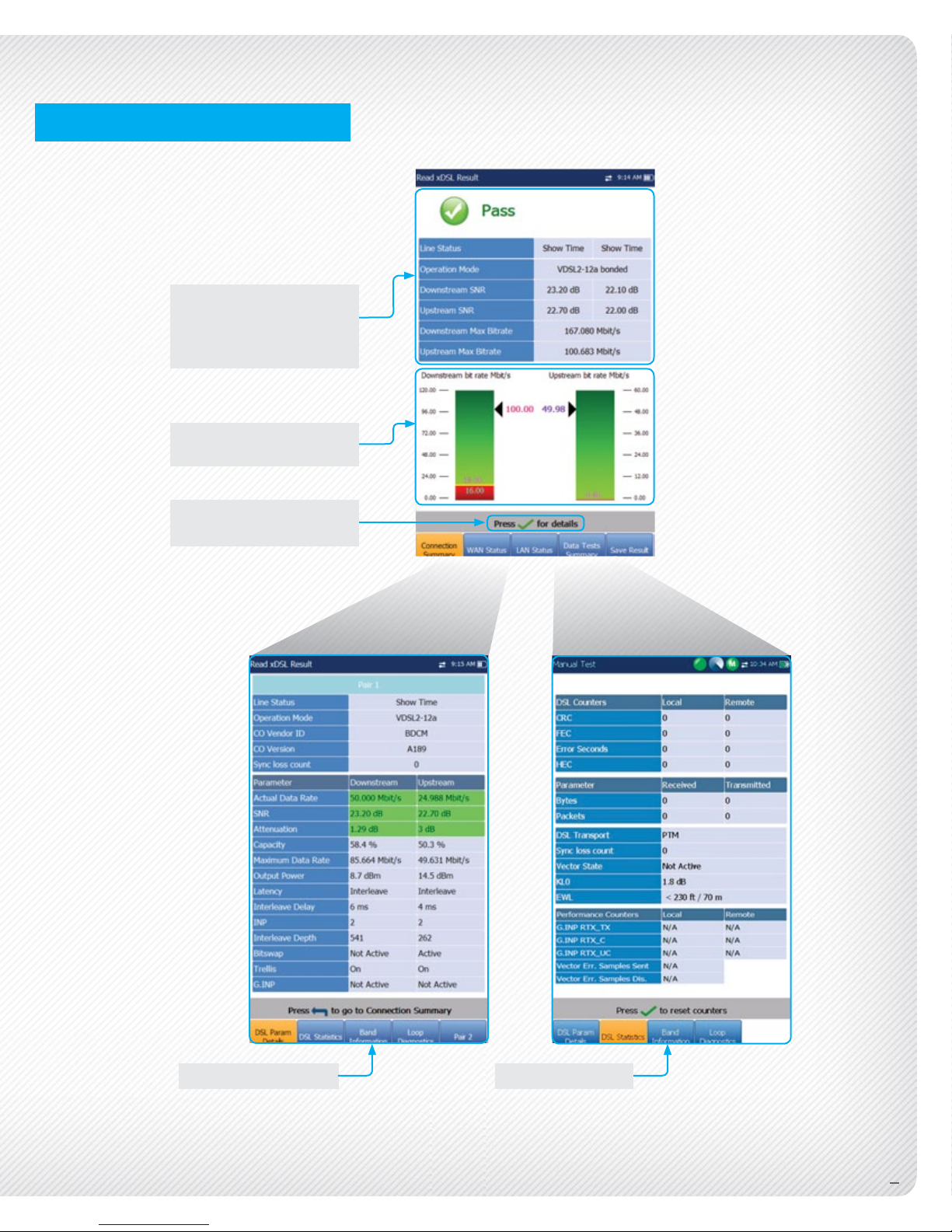

DSL Summary Results Screen

Key Results

DSL line type, upstream and

downstream SNRs and max

bit rates

Press ENTER key for

detailed results

DSL Results Details DSL Statistics

Downstream and

Upstream bit rates

The MaxTester 635

DSL Bits/Bin

DSL Loop Diagnostics

Band Information

Illustrates the bits per bin. Move

cursor across to the speciﬁc

carrier (frequency) to view the

corresponding bins.

Loop Diagnostics

Move cursor across to the

speciﬁc frequency to view the

corresponding value.

Press up/down key to select:

› SNR per bin graph

› Hlog (or attenuation) per bin

› QLN per bin graph
