ULTRAVAC®E-SERIES

SetupInstructions

ForUltraVacSerialNos.316,000,000&Higher

(TotQuestSPSerialNos.850,000&Higher)

(TotPioneerS-SeriesSerialNos.920,000&Higher)

Important:DuetotheaddedweightoftheUltraVac,itisimportanttoensuretheparkingbrakeonyour

mowerisadjustedproperly.BeforeinstallingtheUltraVac,makesuretore-adjusttheparkingbrakeon

yourmowerasoutlinedinthe“AdjustingtheParkingBrake”procedureintheMaintenancesectionof

thetractorOperator'smanual.

WARNING

CALIFORNIA

Proposition65Warning

ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato

causecancer,birthdefects,orreproductiveharm.

LiteraturePack

Manual,Operator's

RequiredCompletingKits

CompletingKits

Note:UsethefollowingchartstoverifythekitsrequiredfortheunityouareinstallingtheUltraVacon.

44InchDeck48InchDeck52InchDeck60InchDeck

QuestSP116-4880116-4882116-4884—

PioneerS-Series116-4885116-4887116-4889116-6498

P .O.Box808

Beatrice,NE68310

PartNo.4502-776Rev.A

PrintedintheUSA.

AllRightsReserved*4502-776*A

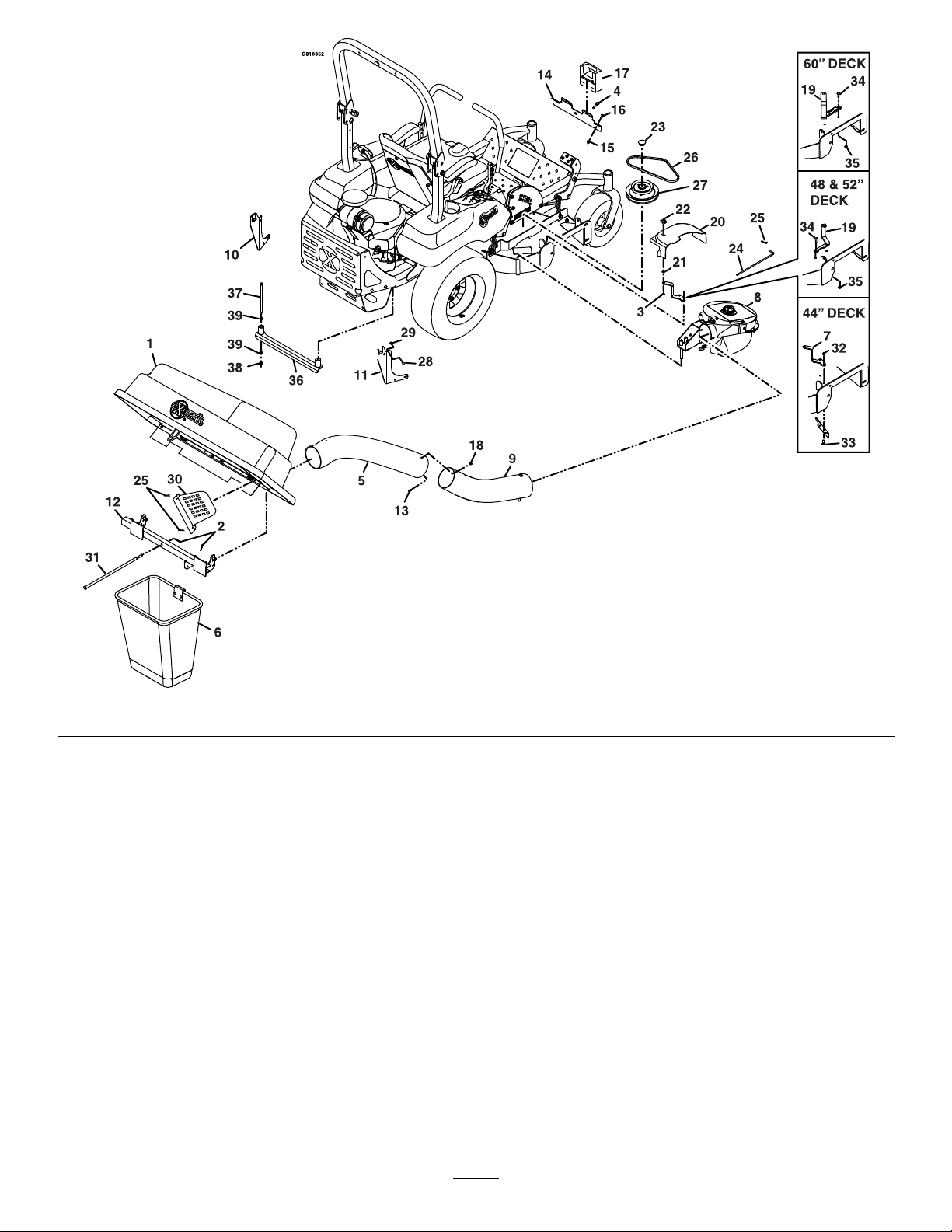

AssemblyDiagram

KeyQtyDescription

11Asm,Hopper

22Pin,Hair

3*1Bolt,Carriage5/16-18x1

42Pin,Retaining

51Tube,Upper

62Asm,Bag&Frame

7*1Bracket,BeltCover(44inchdeck)

81Asm,Blower

91Asm,LowerTube

10*1Bracket,HopperMountLH

11*1Bracket,HopperMountRH

121Frame,Hopper

133Screw ,1/4-20x3/4

141Bracket,WeightMountPlate

153Nut-Nyloc3/8-16Flg

163Screw ,HH3/8-16x1

172Asm,ToeBoardWeight

183Nut-Nyloc1/4-20Flg

19*1

Bracket,BeltCover(48,52,&60inch

deck)

20*1Cover,Belt

21*1Ring,BoltRetaining

22*1Knob,3–Prong

23*▲1Plug,Nylon

24*1Pin,ChutePivot

25*3Pin,Hair

26*1Belt

27*1Sheave,Drive

28*2Bolt,Carriage5/16-18x1

29*2Nut-Nyloc5/16-18Flg

301Vent,Air

311Rod,HoldDown

32*2Nut,Nyloc5/16-18Flg(44inchdeck)

33*2

Bolt,Carriage5/16-18x1(44inch

deck)

34*2

Bolt,Carriage3/8-16x1(48,52,&60

inchdeck)

35*2

Nut-Nyloc3/8-16Flg(48,52,&60

inchdeck)

36*1Bracket–Hydro(60inchdeck)

KeyQtyDescription

37*2Screw-5/16-18x61/2(60inchdeck)

38*2Nut-Nyloc5/16-18(60inchdeck)

39*4Washer-SpringDisc(60inchdeck)

*Includedincompletingkit.

▲NotincludedinkitP/N116-4887

Figure1

AdjustingtheParkingBrake

Re-adjusttheparkingbrakeonyourmowerasoutlined

inthe“AdjustingtheParkingBrake”procedureinthe

MaintenancesectionofthetractorOperator'smanual.

InstallingtheHopperMount

Brackets

1.Loosenthefront5/16-18x23/4inchboltonthe

LHandRHrearpanels(item7inFigure2).

Figure2

1.5/16inchangednylocnut5.RHhoppermountbracket

2.5/16-18x1inchbolt6.Frontslot

3.5/16-18x23/4inchbolt7.Loosenbolt

4.LHhoppermountbracket

2.Removeandretaintherear5/16-18x23/4inchbolt

and5/16inchangednylocnutonbothbrackets.

3.InstalltheRHhoppermountbracketbyplacingthe

frontslot(item6)ontothebolt(item7)thatwas

loosenedinstep1.

4.Reinstalltherear5/16-18x23/4inchboltand5/16

inchangednylocnut.Installthe5/16-18x1inch

boltand5/16inchangednylocnutintheupper

hole.

5.Tightenthefront5/16-18x23/4inchbolt.

6.Repeatsteps3through5fortheLHhoppermount

bracket.

InstallingtheHydroBracket(60

InchDeck)

1.Removeanddiscardtherearhydromountingbolts

andnuts.

2.Usingtwo5/16–18x61/2inchscrews,four5/16

springdiscwashers,andtwo5/16angednyloc

nuts,mountthehydrobracketunderthehydrosas

showninFigure3.

Figure3

1.5/16–18x61/2inchscrew4.5/16angednylocnut

2.Springdiscwasher5.Hydrogusset

3.LHhydro

InstallingtheHopperFrame

Note:OnQuestSPUnits:Itmaybeeasiertoinstall

thehopperontothehopperframebeforeperforming

thefollowingsteps.

1.Removethehairpinfromthehopperframe.Insert

thehopperframeintotheLHhoppermountbracket

(seeFigure4).Resttheotherendofthehopper

framebetweenthetabsontheRHhoppermount

bracket.Reinstallthehairpintosecurethehopper

frame.

Note:Ifthehopperframedoesnotseatproperlyin

themountbrackets,carefullyusethehopperframe

toslightlyadjustthealignmentofthebrackets.

Figure4

1.LHhoppermountbracket

2.Hopperframe

3.Hairpin

4.RHhoppermountbracket

2.Removethehairpinfromtheholddownrod.Insert

theholddownrodintothehopperframeand

reinsertthehairpin(referenceFigure1).

InstallingtheHopper

1.Removeandretainthehairpinsfromtheairvent.

2.Pressthetabsontheairventintothenotchesonthe

insideofthehopperandsecurewithhairpins.

Figure5

1.Hopperframepin3.Hopperhinge

2.Seal(partiallyremovedfor

clarity)

4.Airvent

3.Slidethehopperhingesontothehopperframepins.

4.Makesurethesealispositionedaroundthebrackets

wherethebagsmount.

InstallingtheWeightAssembly

1.Removeandretainthetworetainingpins,three

3/8-16x1inchscrews,andthree3/8-16inchnyloc

nutsthatarefastenedtotheweightmountingplate.

2.Mounttheweightmountingplatetothefrontpanel

ofthetoeboardusingtwo3/8-16x1inchscrews

andtwo3/8-16inchnylocnuts.

Figure6

1.Frontpaneloftoeboard4.Retainingpin

2.Weightmountingplate5.3/8-16x1inchscrew

3.Toeboardweight6.3/8-16inchnylocnut

3.Usingthecenterholeofthebracketasatemplate,

drill.406inchdiameterholethroughthefrontofthe

oorpanasshowninFigure7.

Figure7

44InchUnitShown

1.Drillcenterhole

4.Installone3/8-16x1inchscrewand3/8-16inch

nylocnut.

5.Refertothetablebelowtodeterminethenumber

ofweightsrequired:

44Inch

Deck

48Inch

Deck

52Inch

Deck

60Inch

Deck

Weights

Required

2221*

Note:*For60inchdecks,placetheweightonthe

LHsidetohelpoffsettheblowerweight.

6.Installtheremovableweightsbyhookingthetoe

boardweightassembliesoverthetopoftheweight

mountingplate(seeFigure6).Installthetwo

retainingpinsintotheweightmountingplate.

Note:Theremovableweightsareheavy.Usecare

whenliftingthem.Makesurethatyoucanhold

themsecurelybeforeliftingthem.Usecautionwhen

positioningyourhandssothatyouDoNotsetthem

downonyourhandsorngers.

InstallingtheBeltCoverBracket

1.Removehairpin,chutepivotpin,anddischarge

chute.Pivotpinandhairpinmaybestoredinthe

pivotholesofthedischargechuteduringbagging

operation.

2.Removethebeltcover.

•44inchdeck:

Removeandretainthetwoscrewsandthemetal

beltcover(seeFigure8).

Figure8

1.Metalbeltcover3.Dischargebafe

2.Screw4.Mountinghardware

•48,52,and60inchdecks:

A.Removeandretaintheplasticbeltcover.

B.Removeandretainthecoverwireformand

itshardware.

3.Installthebeltcoverbracket.

•44inchdeck:

A.Removeanddiscardthedischargebafe

mountinghardware.

B.Usingtwo5/16-18x1inchcarriagebolts

andtwo5/16-18inchnylocnuts,installthe

dischargebafeandbeltcoverbracketas

showninFigure9.

Figure9

1.Beltcoverbracket

2.5/16-18inchnylocnut

3.Dischargebafe

4.5/16-18x1inchcarriagebolt

•48,52,and60inchdecks:

Installthebeltcoverbracketinthecover

wireformlocationusingtwo3/8-16x1inch

carriageboltsandtwo3/8-16inchnylocnutsas

showninFigure10.

Figure10

1.Beltcoverbracket(60inchdeck)

2.Beltcoverbracket(48and52inchdeck)

3.3/8-16x1inchcarriagebolt

4.3/8-16inchnylocnut

InstallingtheBlowerDriveSheave

1.Removethedeckdrivebeltfromaroundtheright

handspindlesheave.

2.Supporttherightmowerbladeandshaftsothatit

willnotfalloutofthedeckwhentherightsheave

nutisremoved.

3.Removetherightsheavenutandsheavefromthe

spindleshaft.

Blockthebladerotationwithablockofwood

betweenthebladeandbafesasindicatedinthe

bladeservicesectionoftheOperator’smanual.

DoNotusethebladebolttopreventrotation.

4.ApplyalightcoatofMobilHTSgrease(orfood

gradeantisieze)tothetopportionofthespindle

shaftwherethesheavemounts.

5.Installthedoublesheaveontotherightspindleshaft

andinstallthenut.Torquethesheavenutto130-160

ft-lb(176–217N-m).

Blockthebladerotationwithablockofwood

betweenthebladeandbafesasindicatedinthe

bladeservicesectionoftheOperator’smanual.

DoNotusethebladebolttopreventrotation.

Figure11

1.Torquesheavenutto130-160ft-lb(176–217N-m).

Checkbladebolttorqueaftercompletingthis

installation.

Torquebladeboltto50-60ft-lb(75-81N-m).

6.Re-installthedeckdrivebeltinthelowergrooveof

thedoublesheave.

On48,52,and60InchDecks:Installthepluginto

theboreofthedoublesheave.

InstallingtheBlowerAssembly

1.Mountthebloweronthedeckbyinsertingthe

mountingpinintothetubeweldedtotherearcorner

ofthedeck.UseFigure12andthetablebelowto

determinethepinlocationintheblowerframe.

Figure12

1.Mountingpin4.Frontlocation

2.Rollpin5.Offsetlocation

3.Backlocation

MountingPinLocationinBlowerFrame

FrontBackOffset

PioneerS-Series–

44inchdeck

Pioneer

S-Series–

48inchdeck

PioneerS-Series–

52inchdeck

PioneerS-Series–

60inchdeck

QuestSP–44

inchdeck

QuestSP–48

inchdeck

QuestSP–52

inchdeck

2.Pivottheblowertowardsthedeckandpulloutward

onthelatchpin.Releasethelatchpinwhenitaligns

withtheholeonthetabofthedecktolockthe

blowerinthisposition.

3.Pullthespringloadedidlerbackandslipthebeltover

thetopdecksheave(seeFigure13andFigure14).

G014743

Figure13

1.Impellersheave3.Springloadedidler

2.Decksheave

4.Installthebeltcover(seeFigure14).

Figure14

1.Beltcoverbracket4.Belt

2.Knob5.Decksheave

3.Beltcover

5.Installtheknobanditshardware.

AssemblingtheTubes

1.Removeandretainthehardwareinstalledinthe

uppertube.

2.Theuppertubeneedstobeshortened.Measure5

inches(12.7cm)fromthetopendofthetube,create

marks,andapplymaskingtapearoundthetubeasa

guide.Carefullycutthetubeanddiscardtheend.

Figure15

1.Measure5inches(12.7cm)

2.Cuttube

3.Inserttheuppertubeintothehopperseal–pushin

thenpulloutsothatthesealisextendedoutward.

4.Setthedeckinlowestcuttingposition.

5.Slidethelowertubeontotheblowerandattachthe

latches.

6.Measure3–31/2inches(7.6–8.9cm)fromthetop

endofthelowertubeandcreateguidemarks.

7.Slidethelowertubeinsidetheuppertubeuntilthe

3–31/2inches(7.6–8.9cm)markisreached.Rotate

theuppertubesothattheendinthehopperpoints

towardsthecenterofthehopper.Thepartingline

onthetubewillbeslightlytotherightofthecenter

rivetasshowninFigure16.

Figure16

1.Lowertube

2.Uppertube

3.Hopper

4.Uppertubepointstowardscenterofhopper

5.Centerrivet

6.Partingline

7.Overlap3–31/2inches(7.6–8.9cm)

8.Withthedeckinthelowestpositionandthehopper

closed,lookunderneaththehopperandthemeasure

lengthoftheuppertubeprotrudingintothehopper

(seeFigure17).Iftheuppertubeextendsmorethan

3inches(7.6cm)intothehopper,thentheexcess

lengthmustberemoved.Determinetheexcess

lengthandremovetheuppertube.Createmarks,

applymaskingtapearoundthetubeasaguide,and

carefullycutanddiscardthelengththatisover3

inches(7.6cm).Reassemblethetubesasindicated

instep7.

Figure17

1.3inches(7.6cm)2.Removeexcesslength

9.Drillthree7/32inchdiameterholesinthelower

tubeusingtheuppertubeholesasreference.

10.Removethetubesfromunitandassembletheupper

andthelowertubesusingthree1/4-20x3/4inch

screwsandthree1/4inchnylocnuts.Installthe

screwsontheinsideofthetubetoprovideminimum

obstructiontoow.

InstalltheBags

Openthehopperandinstallthebags.Closethehopper

andstretchtherubberlatchovertheholddownrod.

FillOutWarrantyRegistration

Form

Fillouttheonlinewarrantyregistrationform.

Andere Handbücher für ULTRAVAC E Series

Inhaltsverzeichnis

Andere Exmark Rasenmäherzubehör Handbücher

Exmark

Exmark 135-2604 Bedienungsanleitung

Exmark

Exmark 126-3925 Bedienungsanleitung

Exmark

Exmark ULTRAVAC QUICK DUMP SYSTEM Handbuch

Exmark

Exmark NAVIGATOR Handbuch

Exmark

Exmark ULTRA VAC 103-5629 Handbuch

Exmark

Exmark Ultra VAC QDS LAZER Z Handbuch

Exmark

Exmark ULTRAVAC QUICK DUMP SYSTEM Bedienungsanleitung

Exmark

Exmark Ultra Vac QDS Lazer Z HP Handbuch

Exmark

Exmark Phazer PHZ19KA343CA Handbuch

Exmark

Exmark Radius 135-6717 Bedienungsanleitung

Exmark

Exmark sss270csb00000 Handbuch

Exmark

Exmark 116-8547 Bedienungsanleitung

Exmark

Exmark 109-6250 Bedienungsanleitung

Exmark

Exmark QUEST QTS691KA502 Handbuch

Exmark

Exmark TURF TRACER TT23KAEP Handbuch

Exmark

Exmark PIONEER BAGGER Handbuch

Exmark

Exmark ULTRAVAC 126-6122 Handbuch

Exmark

Exmark Ultra Vac QDS Lazer Z HP Bedienungsanleitung

Exmark

Exmark OCDWB01 Operators Bedienungsanleitung

Exmark

Exmark Ultra Vac QDS Laser Z Bedienungsanleitung

Exmark

Exmark exmark 30" Handbuch

Exmark

Exmark ULTRAVAC Bedienungsanleitung

Exmark

Exmark ULTRAVAC LZUVQD7 Bedienungsanleitung

Exmark

Exmark ULTRAVAC BAGGER 126-6954 Handbuch

Beliebte Rasenmäherzubehör Handbücher anderer Marken

Ariens

Ariens 891008 Bedienungsanleitung

Rover

Rover 108 - 109 Bedienungsanleitung

Toro

Toro 112-5803 Bedienungsanleitung

Snapper

Snapper 1690047 Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment GC-F4 Bedienungsanleitung

RHINO

RHINO 800 Bedienungsanleitung

Snapper

Snapper 1685167 Bedienungsanleitung

Cub Cadet

Cub Cadet 19B70029100 Bedienungsanleitung

Stihl

Stihl AMK 043.1 Bedienungsanleitung

MTD

MTD 753-0873 Handbuch

Toro

Toro 30810 Bedienungsanleitung

Bush Hog

Bush Hog RG60 Bedienungsanleitung

Land Pride

Land Pride RCF2760 Bedienungsanleitung

Simplicity

Simplicity 211 Bedienungsanleitung

Toro

Toro Z Master 116-0231 Bedienungsanleitung

Excel

Excel Two Bag Catcher Bedienungsanleitung

Textron

Textron Jacobsen Pro12 DFS Bedienungsanleitung

Toro

Toro 145-3495 Bedienungsanleitung
