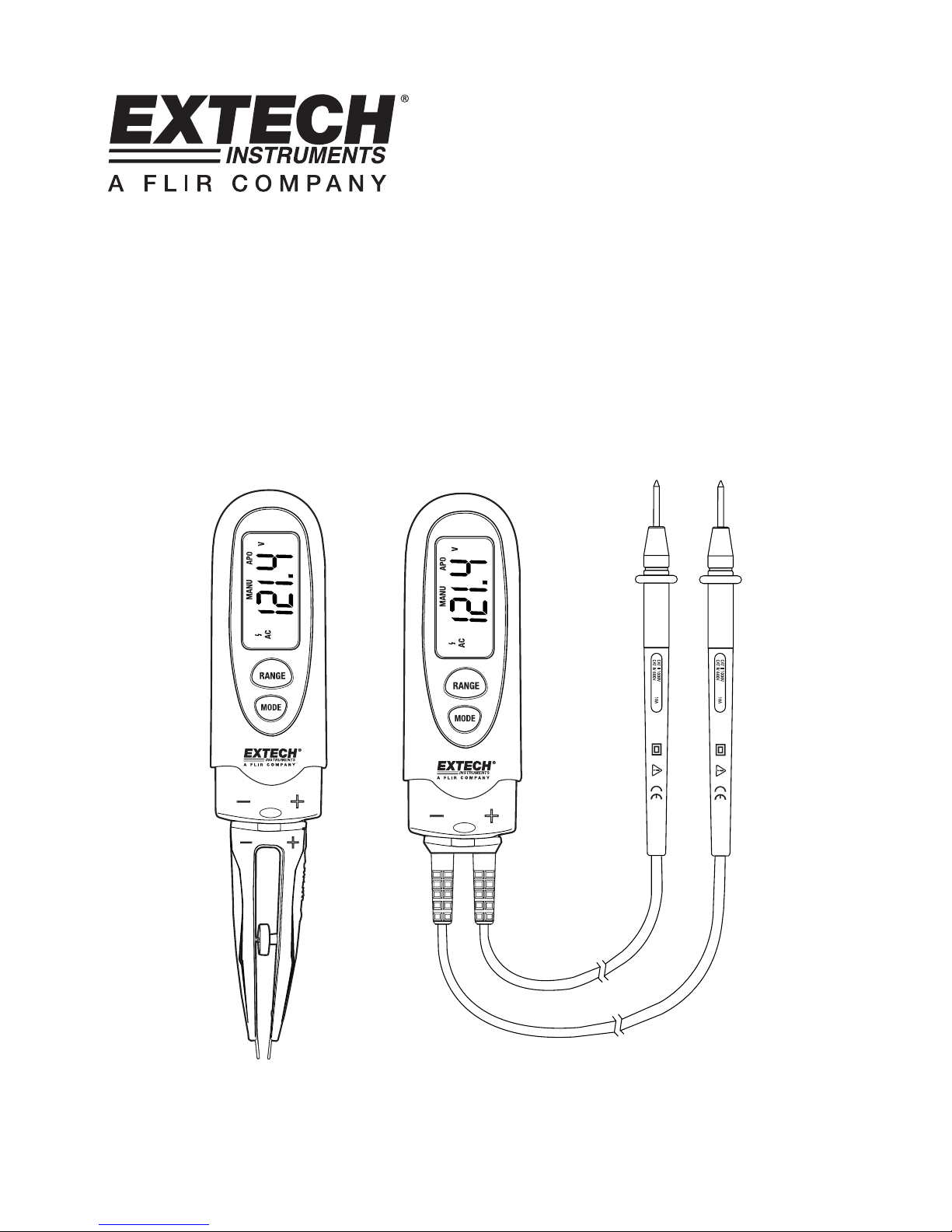

Extech Instruments RC200 Bedienungsanleitung

User's Guide

R/C SMD Tweezers Multimeter

Model RC200

RC200-EU-EN-V1.5-4/12

Introduction

Congratulations on your purchase of the Extech RC200 RC Tweezers Multimeter This meter, using the

tweezers adaptor, measures SMD capacitors, resistors, diodes and continuity test. With the test lead

adaptor, it measures AC/DC Voltage. Proper use and care of this meter will provide many years of

reliable service.

Safety

INTERNATIONAL ELECTRICAL SYMBOLS

Caution ! Refer to the explanation in this Manual

Caution ! Risk of electric shock

Earth (Ground)

Double Insulation or Reinforced insulation

This meter has been designed for safe use, but must be operated with caution. The rules listed

below must be carefully followed for safe operation.

1. NEVER measure voltage with the Tweezer adaptor installed.

2. NEVER apply voltage or current to the meter that exceeds the specified maximum:

Input Protection Limits

Function Maximum Input

V DC or V AC 600V DC/AC

3. USE EXTREME CAUTION when working with voltages greater than 25VAC or 35VDC. These

voltages are considered a shock hazard.

4. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above earth

ground.

5. NEVER connect the meter leads across a voltage source while the function switch is in the

capacitance, resistance, or diode mode. Doing so can damage the meter.

6. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making

capacitance, resistance, continuity or diode tests.

7. ALWAYS turn off the power and disconnect the test leads from the circuit before opening the

cover to replace the batteries.

8. NEVER operate the meter unless the battery cover is in place and fastened securely.

9. NEVER operate the meter if any part is damaged.

10. ALWAYS turn the meter off when not in use.

RC200-EU-EN-V1.5-4/12

Description

1. LCD display

2. RANGE button

3. MODE and Power button

4. Spacing adjustment

5. Tweezer contacts

6. Voltage adaptor

7. Batter compartment (rear)

LCD Display Symbols

Low battery

Continuity

Diode

>30V caution icon.

nnano (10-9) (capacitance)

µmicro (10-6) (amps, cap)

mmilli (10-3) (volts, amps)

kkilo (103) (ohms)

FFarads (capacitance)

Mmega (106) (ohms)

ΩOhms

VVolts

AC AC voltage

DC DC voltage

AUTO Auto Range

SCAN SCAN mode

APO Auto power off enabled

RC200-EU-EN-V1.5-4/12

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very dangerous and

should be measured with great care.

1. If “OL” appears in the display during a measurement, the value exceeds the range you have

selected. Change to a higher range.

2. The meter will automatically recognize if the voltage test leads or tweezers adaptor is inserted.

3. The meter will turn on with autoranging “AUTO” selected. In this mode, the unit will automatically

select the proper range to measure the device under test. Press the “RANGE” button to go to

manual (“MANU”) ranging. Continue pressing the button until the range desired is selected. Press

and hold the RANGE button for two seconds to return to autoranging.

4. On some low AC and DC voltage ranges, with the test leads not connected to a device, the

display may show a random, changing reading. This is normal and is caused by the high-input

sensitivity. The reading will stabilize and give a proper measurement when connected to a load.

Test Lead AC/DC Voltage Measurements

1. Insert the voltage adaptor into the meter observing the polarity indicators.

2. Press the MODE button for 2 seconds until the meter beeps. “V” will be displayed on the LCD

3. Press the MODE button to select either AC or DC voltage.

4. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

5. Read the voltage in the display.

Note: The “ “ DANGER symbol will appear in the display whenever the measured voltage exceeds

30V

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all

capacitors before taking any capacitance or resistance measurements. Remove the batteries and

unplug line cords.

Tweezer Resistance, Capacitance, Continuity and Diode Measurements.

1. Insert the tweezers adaptor into the meter observing the polarity indicators.

2. Press the MODE button for 2 seconds until the meter beeps. The meter turns on in the SCAN

mode and “- - - -“ on the display.

3. Insert a component into the tweezers contacts. In the SCAN mode, the meter automatically

selects the proper range and units (Capacitance or Resistance).

4. Read the measurement results in the display.

5. Press the MODE button to exit the SCAN mode and begin resistance measurements. The “Ω”

icon will appear on the display.

6. Press the MODE button for continuity measurements. The icon will appear on the display. The

meter will beep if the resistance is less than the continuity threshold.

7. Press the MODE button for diode measurements. The icon will appear on the display. A good

diode will read “OL” in one direction and a low voltage in the opposite direction.

8. Press the MODE button for capacitance measurements .The “F” icon will appear on the display. It

can take several minutes for the reading to stabilize at the final value for large value capacitors.

9. Press the MODE button again to return to the SCAN mode.

RC200-EU-EN-V1.5-4/12

Power OFF and Auto Power OFF

Press and hold the MODE button for 4 seconds to manually turn power off. The auto off feature will

automatically turn the meter off after approximately 10 minutes of inactivity..

Low Battery Indication

The icon will appear in the display when the battery voltage becomes low. Replace the battery

when this appears.

Maintenance

1. KEEP THE METER DRY. If it gets wet, wipe it off.

2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature extremes can

shorten the life of the electronic parts and distort or melt plastic parts.

3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the electronic

parts or the case.

4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth. DO NOT use

chemicals, cleaning solvents, or detergents.

5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE. Remove old or

weak batteries so they do not leak and damage the unit.

6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the batteries should be

removed to prevent damage to the unit.

BATTERY INSTALLATION

1. Turn power off.

2. Open the rear battery cover by removing the two Phillips head screws located on the rear of the

meter.

3. Insert the batteries into battery holder, observing the correct polarity.

4. Put the battery cover back in place. Secure with the screws.

You, as the end user, are legally bound (Battery ordinance) to return all used batteries and

accumulators; disposal in the household garbage is prohibited!

You can hand over your used batteries / accumulators at collection points in your community

or wherever batteries / accumulators are sold!

Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the

end of its lifecycle

NOTE: If your meter does not work properly, check the batteries to make sure that they are still

good and that they are properly inserted.

RC200-EU-EN-V1.5-4/12

Specifications

Function Range Resolution Accuracy

600mV 0.1mV

6V 0.001V

60V 0.01V

±(0.8% reading + 2 digits)

DC Voltage

600V 0.1V ±(1.0% reading + 4 digits)

600mV 0.1mV

6V 0.001V ±(1.0% reading + 4 digits)

60V 0.01V

AC Voltage

50 to 60Hz

600V 0.1V ±(1.2% reading + 6 digits)

600Ω0.1Ω

6kΩ0.001kΩ

60kΩ0.01kΩ

600kΩ0.1kΩ

±(1.5% reading + 8 digits)

6MΩ0.001MΩ

Resistance

60MΩ0.01MΩ±(2.5% reading + 8digits)

6nF 0.001nF ±(5.0% reading + 50 digits)

60nF 0.01nF ±(5.0% reading + 7 digits)

600nF 0.1nF

6μF 0.001μF

60μF 0.01μF

600μF 0.1μF

±(3.0% reading + 5 digits)

6mF 0.001mF

apacitance

60mF 0.01mF ±(10% reading + 10 digits)

NOTE: Accuracy is stated at 18oC to 28oC (65oF to 83oF) and less than 75% RH.

Diode Test Test current 1mA, open circuit voltage 3V DC typical

Continuity Check Audible threshold 10 to 40 ohms.

Input Impedance 10MΩ(VDC & VAC)

AC Response Average responding

ACV Bandwidth 50Hz to 60Hz

Display 6000 count liquid crystal

Overrange indication “OL” is displayed

Polarity Automatic (no indication for positive); Minus (-) sign for negative

Auto Power Off 10 minutes (approx)

Low Battery Indication “ ” is displayed if battery voltage drops below the operating voltage

Batteries Two button batteries, AG13/LR44 or equivalent

Battery life Approximately 60 hours

Operating Temperature -10ºC to 50ºC (14ºF to 122ºF)

Storage Temperature -30oC to 60oC (-4oF to 140oF)

Operating Humidity Max 80% up to 31ºC (87ºF) decreasing linearly to 50% at 40ºC (104ºF)

Storage Humidity <80%

Operating Altitude 2000 meters (7000ft) maximum.

Weight 65g (2.3oz)

Size 181 x 35 x 20mm (7.1 x 1.4 x 0.8”)

Safety For origin of installation use and in accordance with the requirements for

double insulation per EN61010-1 and IEC61010-1 2nd Edition (2001) to

Overvoltage Category III 600V; Pollution Degree 2.

www.extech.com
