VNM Enterprise Controller

Replacement Compact Flash Card • Setup Guide

This setup guide describes how to replace an existing VNM Enterprise Controller Compact Flash (CF) card. When the card is

replaced, the Enterprise Controller will be returned to the default conﬁguration and can then be conﬁgured for the system

in which it will be used.

The replacement CF card is conﬁgured with the following Extron factory default settings:

zIP address: 192.168.254.254 zUsername: admin zBy default, no password is assigned.

NOTE: This procedure assumes the user knows the current password and IP address for the controller.

Saving the Enterprise Controller Conguration Settings

Before replacing the Enterprise Controller CF card, follow the steps below to collect information about the current system

conﬁguration. The information can be copied and pasted into a text program (for example, Notepad).

CAUTION: All of the information that is saved in this section must be accurately saved so that it can be re-entered into

the Enterprise Controller after installing the compact ﬂash card.

1. Ensure the Enterprise Controller has a CF card installed.

2. Switch on the Enterprise Controller and connect it to a control PC,

via the network.

3. Open the control PC web browser program.

4. Enter the IP address of the Enterprise Controller into the browser

address bar and press <Enter>.

5. At the login page, enter the username and password (see the

ﬁgure to the right). Click Login.

NOTE: The default username is admin. By default, no password is required. Be aware that the password may have

changed. Entries are case sensitive.

The Enterprise Controller web page opens.

6. Select the Configuration tab, then System Config from the

menu on the left (see the ﬁgure to the right).

7. In the Controllers box:

zClick on the IP address of this Enterprise Controller.

zClick on the License button. From the Controller License

Management window, note the Options, Checksum, and

Serial Number values.

CAUTION: The licensing information must be noted

accurately. Copying incorrect data to the new

installation will result in a non-functional unit.

Installing the Compact Flash Card

NOTE: The replacement card must be programmed with the correct operating system and Enterprise Controller

application ﬁles.

1. Switch off the Enterprise Controller and remove the front cover plate from the CF drive.

2. Eject the CF card from the CF drive and insert the replacement CF card.

3. Replace the CF drive cover.

68-2124-50

Rev. A 05 11

VNM Enterprise Controller Compact Flash Card • Setup Guide (Cont’d)

Extron USA - West

Headquarters

+800.633.9876

Inside USA/Canada Only

+1.714.491.1500

+1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA/Canada Only

+1.919.863.1794

+1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

Conguring the Enterprise Controller

Use the following procedures to conﬁgure the new CF card.

Setting the Serial Number

1. If they are not already connected, connect a mouse, keyboard, and monitor to the Enterprise Controller.

2. Apply power and switch on the Enterprise Controller.

3. When fully booted, log on with the username of root and the password of Extron2010.

4. At the prompt [root@singleton ~]#

Type cd scripts

Press <Enter>

5. At the prompt [root@singleton scripts]#

type ./set_serial.sh xxxxxx

where xxxxxx is the serial number of the Enterprise Controller, which was saved in step 7on page 1.

6. Press <Enter>

A script runs, which enters the serial number into the Enterprise Controller.

7. At the prompt [root@singleton ~]#

type reboot

Press <Enter>

The Enterprise Controller reboots.

License Conguration

1. Once the Enterprise Controller has rebooted and is connected to the control PC via the network, open the PC web

browser, enter the IP address of the Enterprise Controller into the browser address bar and press <Enter>.

NOTES: • Bydefault,thenewcardhasanIPaddressof192.168.254.254.

 • ThecontrolPCrequiresanIPaddresswithintherangeof192.168.254.xxxtoconnecttotheEnterprise

Controller.

2. In the Username ﬁeld of the login page, enter admin. By default, nothing is required for the Password ﬁeld. Click

3. Select the Configuration tab.

4. Under System Properties, select System Config from the menu on the left of the screen.

5. In the controllers box, click the Add button. Enter the IP address of this controller. Click OK to save. When the dialog box

closes, click Apply Changes to save the settings.

6. In the Controllers box, select the IP address of this controller. Click on the License button.

7. Enter the information gathered in step 7on page 1.

CAUTION: The licensing information must be entered accurately. Any errors in copying the data to the new

installation will result in a non-functional unit.

NOTE: When updating the license information, there is no feedback to say that the settings have been accepted.

8. To check the license data, reboot the Enterprise Controller, reconnect to the Enterprise Controller using the control PC

browser, and view the information contained in the License Management dialogue.

The information in the License Management dialogue takes several seconds to appear after reboot has completed. If

the data does not appear, close the dialogue box, wait for ten seconds and retry. If the data is still not present, enter

the serial number and license data again.

The Enterprise Controller is now ready to be conﬁgured for the VN-Matrix system. For precise details of the

conﬁguration, refer to the user guide (available at www.extron.com).

Andere Handbücher für VNM Enterprise

Inhaltsverzeichnis

Andere Extron electronics Controller Handbücher

Extron electronics

Extron electronics MLC 226 IP Series Bedienungsanleitung

Extron electronics

Extron electronics MediaLink MLC 104 Plus Series Bedienungsanleitung

Extron electronics

Extron electronics VNM EC 201 Bedienungsanleitung

Extron electronics

Extron electronics MediaLink Controllers with IP Link MLC 104 IP... Bedienungsanleitung

Extron electronics

Extron electronics RAC 104 Bedienungsanleitung

Extron electronics

Extron electronics FPC 6000 Bedienungsanleitung

Extron electronics

Extron electronics FPC 6000 Bedienungsanleitung

Extron electronics

Extron electronics MEDIALINK MLC 206 Bedienungsanleitung

Extron electronics

Extron electronics Basic MediaLink Controllers MLC 52 RS Bedienungsanleitung

Extron electronics

Extron electronics MediaLink MLC Plus 84 Series Bedienungsanleitung

Extron electronics

Extron electronics CTR 8 Bedienungsanleitung

Extron electronics

Extron electronics MEDIALINK MLC 52 Series Bedienungsanleitung

Extron electronics

Extron electronics MLC 226 IP Series Bedienungsanleitung

Extron electronics

Extron electronics MLC Plus 84 EU Bedienungsanleitung

Extron electronics

Extron electronics MLC 226 Series Bedienungsanleitung

Extron electronics

Extron electronics Control Modules ACM Bedienungsanleitung

Extron electronics

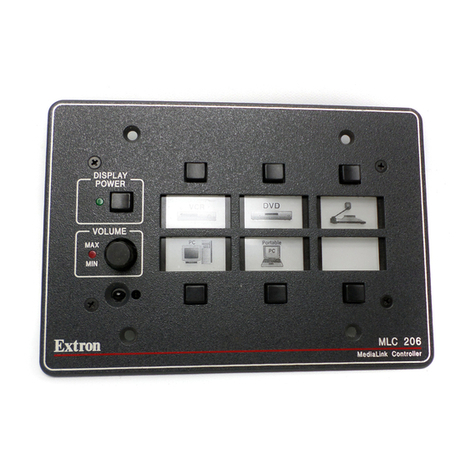

Extron electronics MLC 206 Bedienungsanleitung
