DTP DVI/HDMI 4K 230 D • Setup Guide

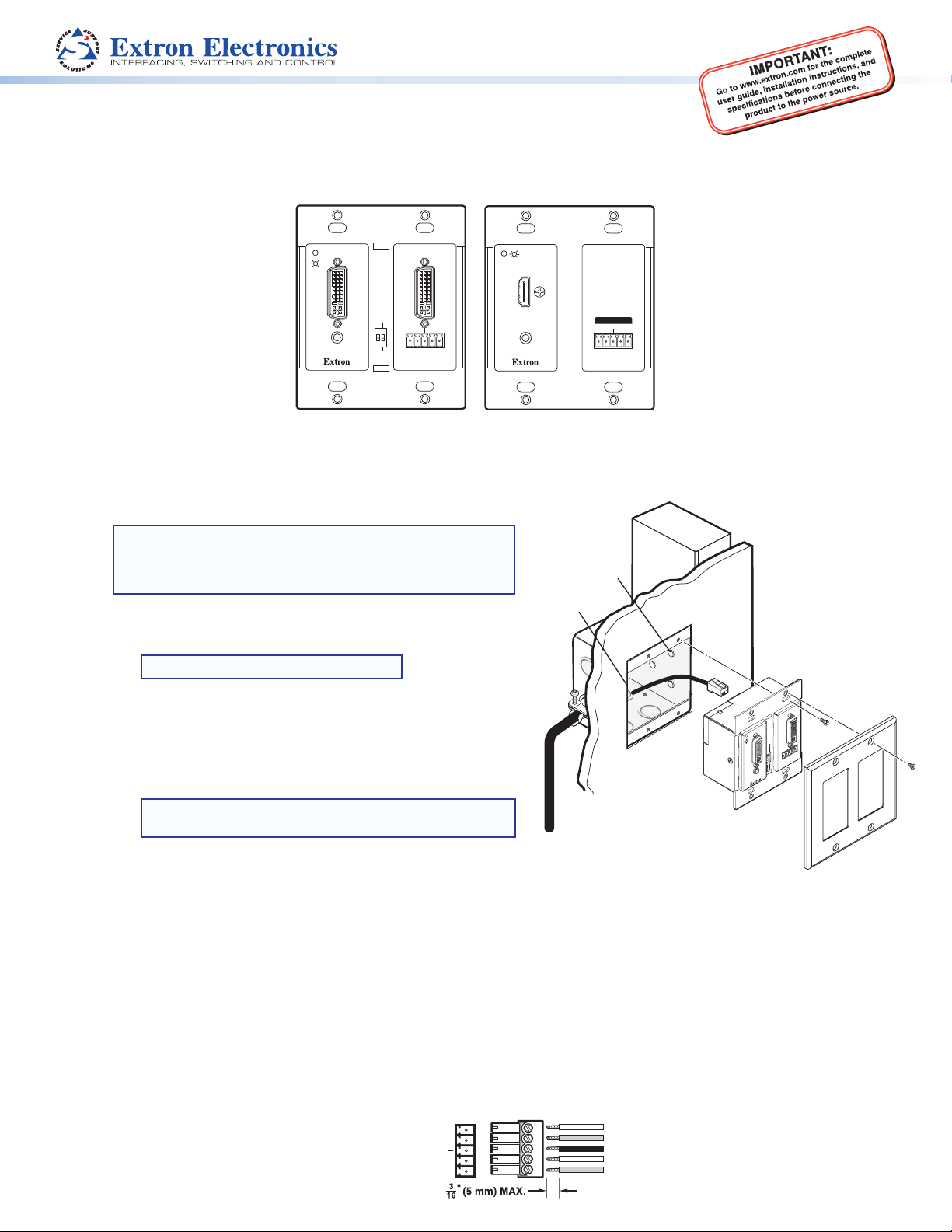

This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP DVI 4K 230 D

and DTP HDMI 4K 230 D Extenders.

Installation

Step 1 — Prepare the Mounting Surface

NOTE: Use a wall box with a depth of at least 3.0 inches (7.6 cm).

Alternatively, the included mud ring (MR 200) can be used.

For more information, see the full product user guides at

www.extron.com

a. Place the wall box against the installation surface and mark the

opening guidelines.

TIP: Use a level to mark the opening.

b. Cut out the material from the marked area.

c. Secure the wall box with 10-penny nails or #8 or

#10 screws, leaving the front edge ush with the surface.

d. Run all required cables (see steps 4, 5, and 6) and secure them with

cable clamps.

TIP: In order to t in the junction box, do not install a boot

on TP cables and RJ-45 connectors.

Step 2 — Disconnect Power

Disconnect all equipment power sources.

Step 3 — Connect Inputs to the Transmitter

DVI or HDMI input connector — Connect a DVI or HDMI cable between this port and the output port of the digital video source.

Local output (DTP DVI 4K 230 D only) — If desired, connect a DVI monitor for local monitoring of the input digital image.

DDC Route DIP switch (DTP DVI 230 4K D only) — If the local output is not used, set the

DDC Route DIP switch to remote. Ensure that you power the display before the video source.

Audio input — Connect an unbalanced stereo audio source to this 3.5 mm mini stereo jack.

RS-232/IR Pass-Through connector — Plug an RS-232 or modulated IR device into the RS-232/IR

Pass-Through port. Wire the cable as shown below.

Ground

Receive pin on connected uni

Transmit pin on connected uni

Connected RS-232

and IR Device Pins

Tx/Rx

Pins

Receive pin on connected uni

Transmit pin on connected uni

RxTx

RS-232 IR

RxTx

Signal Output

Cable

Clamp

Decorator-Style Faceplate

Extron

DTP DVI 4K 230 D

Screws or

Nails

Wall opening is

ﬂush with edge of box.

Wall Stud

LOCAL OUT

Tx Rx GTx Rx

RS-232 IR

INPUTS

DVI-D

AUDIO

INPUTS LOCAL OUT

DVI-D

AUDIO

Tx Rx GTx Rx

RS-232 IR

INPUTS LOCAL OUT

DVI-D

AUDIO

REMOTE

DDC

ROUTE

LOCAL Tx Rx G Tx Rx

RS-232 IR

1 2

INPUTS

AUDIO

Tx Rx G Tx Rx

RS-232 IR

OVER DTP

DTP DVI 4K 230 D Tx DTP HDMI 4K 230 D Tx

68-2367-50 Rev. B

05 17

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+4000.EXTRON

+4000.398766

Inside China Only

+86.21.3760.1568

+86.21.3760.1566

FAX

Extron

Middle East

+971.4.2991800

+971.4.2991880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

Inside India Only

+91-80-3055.3777

+91 80 3055 3737

FAX

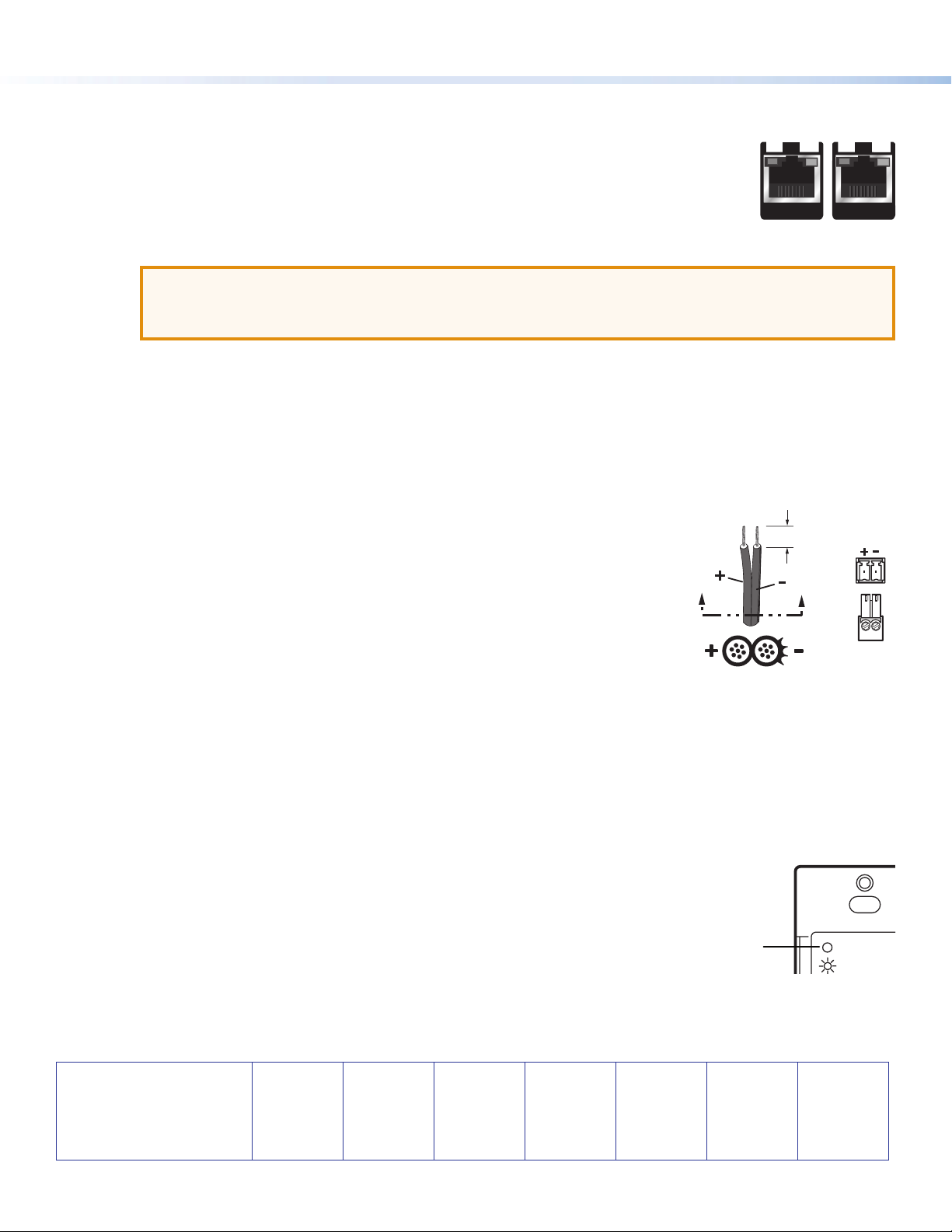

Step 4 — Run Cables Between Units

Connect the rear panel transmitter output to the rear panel receiver input using twisted pair cable.

For optimal performance, Extron highly recommends the following:

RJ-45 termination with CATx cable must comply with TIA/EIA T 568B wiring standard for all connections.

For more information on TP cable wiring and termination, see the full product user guides at

www.extron.com.

Use shielded twisted pair cable, 24 AWG solid conductor or better, with a minimum cable bandwidth of 400

MHz.

ATTENTION:

• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable.

• N’utilisez pas le câble AV Skew-Free UTP version améliorée UTP23SF d’Extron ou le câble STP201.

Use shielded RJ-45 plugs to terminate the cable.

Limit the use of RJ-45 patches. Overall transmission distance capabilities vary depending on the number of patches used. If possible,

limit the number of patches to only 1 or 2 total.

If RJ-45 patches must be used in the system, shielded CAT 6 (or better) patches are recommended.

Step 5 — Connect Outputs from the Receiver

DVI or HDMI output connector — Connect a DVI or HDMI cable between this port and the input port of the display.

Audio output — Connect a stereo audio device to this 3.5 mm mini stereo jack to receive the

passed through unbalanced audio.

RS-232/IR Pass-Through connector — Plug an RS-232 or modulated IR device into the

RS-232/IR Pass-Through port. Wire the connector as shown for step 3.

Step 6 — Power the Units

Wire the 2-pole captive screw connector for the included external 12 VDC power supply as shown

at right. Plug the power supply into either unit; the powered unit powers the other unit.

Step 7 — Final Installation

a. Make all connections and test the system for satisfactory operation.

b. At the power outlet, unplug the power supply.

c. Mount the transmitter or receiver into the wall box, and attach the supplied decorator-style faceplate to the unit.

d. At the power outlet, reconnect the power supply. This powers up both units.

Operation

After all devices are powered up, the system is fully operational. See the denitions of the power indications below:

Transmitter and Receiver Power Indicator

1Power LED — This two-color front panel LED on both transmitter and receiver lights to indicate signal and

power status as follows:

Amber — The unit is receiving power but no signal on the DVI or HDMI input (TP input for receiver).

Green — The unit is receiving power and a signal is present on the DVI or HDMI input (TP input for receiver).

SECTION A–A

Power Supply

Output Cord

Captive Screw

Connector

Ridges

Smooth

3/16"

(5 mm) Max.

LOCAL OUT

DVI-D

AUDIO

REMOTE

DDC

ROUTE

LOCALTx Rx GTxR

RS-232 IR

SIG LINK

DTP OUT

SIG LINK

DTP IN
