IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

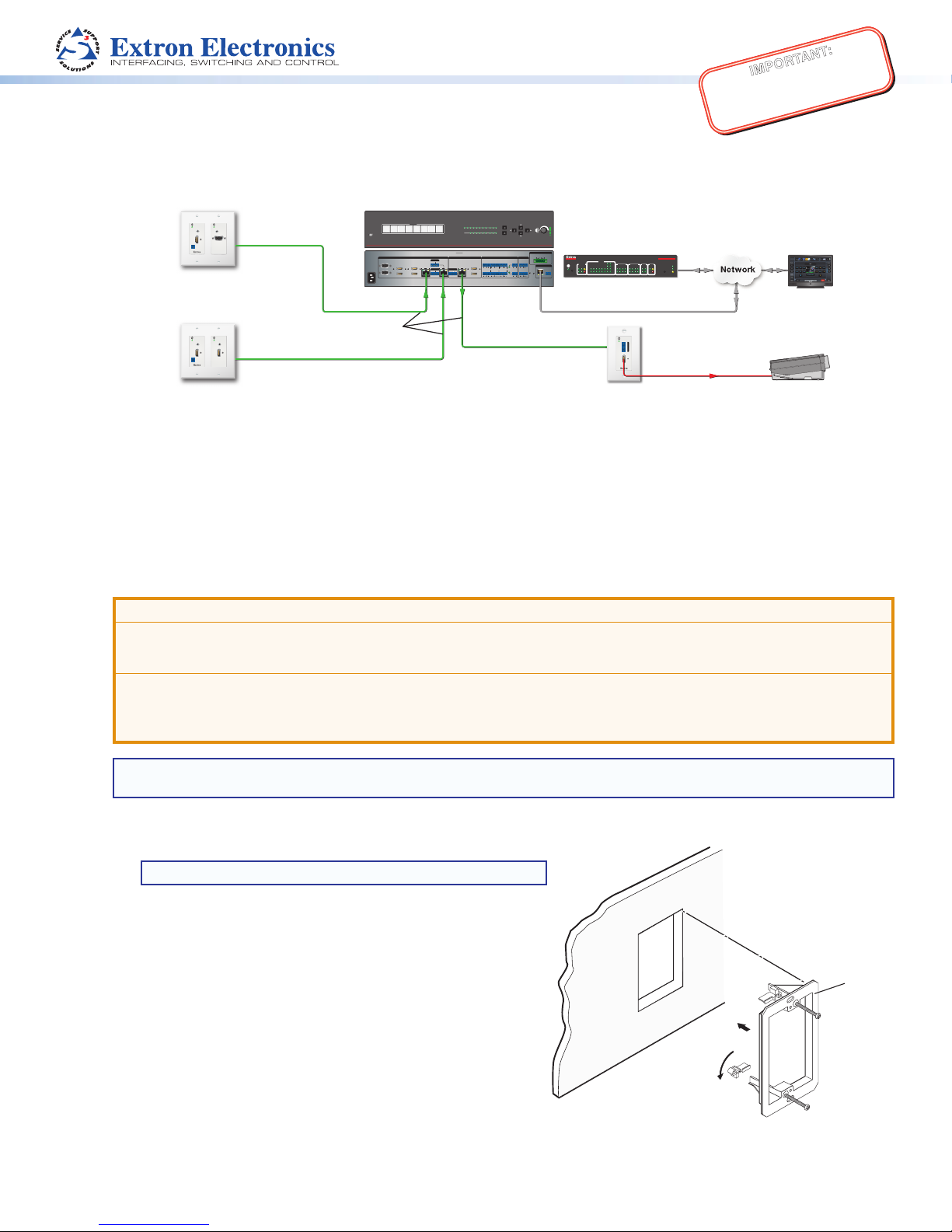

DTP R HWP 4K D Series • Setup Guide

This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP R HWP 4K 231 D and

DTP R HWP 4K 331 D extenders.

Installation

Step 1 — Disconnect Power

Disconnect all equipment power sources.

Step 2 — Prepare the Mounting Surface

ATTENTION:

• Installation and service must be performed by authorized personnel.

• L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement.

• The unit must be installed in accordance with the National Electrical Code and with local electrical and safety

codes.

• L’unité doit être installée conformément au National Electric Code et aux normes électriques et de sécurité locales.

NOTE: Use the included mud ring (MR 200) or a UL approved 1-gang RACO wall box (not supplied) with a depth of at

least 3.0 inches (7.6 cm). For more information, see the full product user guide at www.extron.com.

a. Place either the mud ring (see gure on page 1) or the wall box (see gure on page 2) against the installation surface and

mark the opening guidelines.

TIP: Use a level to mark the opening.

b. Cut out the material from the marked area.

c. Either:

• Insert the mud ring into the opening, rotate the locking

arms, and secure it with the supplied screws,

• Secure the wall box to the wall stud with 10-penny nails

or #8 or #10 screws, leaving the front edge ush with the

surface.

TLP 1000T

IN1608

100-240V~ -- A MAX

CONFIGURABLE

HDMIHDMI

RS-232 IR

Tx Rx Tx RxG

Tx Rx Tx RxG Tx Rx Tx RxG

HDMI

INPUTS OUTPUTS

Tx Rx

RS-232

LAN

2x25W(8Ω)/2x50W(4Ω)

RESET

AUDIO INPUTS OUTPUTS

REMOTE

LL1R R

L2 R

CLASS2 WIRING

L4R

L5R

+48V

VARIABLE

IN1608SA

MIC/LINE

L6R

SIG LINK

DTPIN

SIG LINK

DTPIN

SIG LINK

DTPOUT

50/60Hz

RS-232 IR

OVERDTP

AMPLIFIED OUTPUT

VOLUME

SCALINGPRESENTATION SWITCHER

IN1608

INPUTS

HDCP

SIGNAL

OUTPUTS

ENTER

Extron

2 3 4 5 6 7 8 A B C

INPUTS

1 2 3 4 5 6 7 8

CONFIG

Extron

DTP T UWP 232 D

Transmitter

Extron

DTP T HWP 232 D

Transmitter

Extron

DTP R HWP 4K 331 D

Receiver

Ethernet

Network

XTP DTP 24 Cable

230'

AUTOSW

CONFIG

IROUT

HDMI IN

AUDIO IN

HDCP

AUDIO IN

VGA IN

AUTOSW

CONFIG

IROUT

HDMI IN

AUDIO IN

HDCP

HDMI IN

AUDIO IN

HDCP

HDMI OUT

Tx Rx

OVERDTP

RS-232 IR

Projector

HDMI

IPCP PRO 550

LIMIT

RIR

RTS

CTS

COM

IR/SERIALRELAYS FLEX

I/O

SLIMIT

eBUS

SWITCHED

12 VDC

1000

LINK

ACT

IPCP PRO 550

OVER

4312345678

OVER

5678

2134

5678

2134

Rotate locking arm

and insert into wall

opening.

Mud Ring

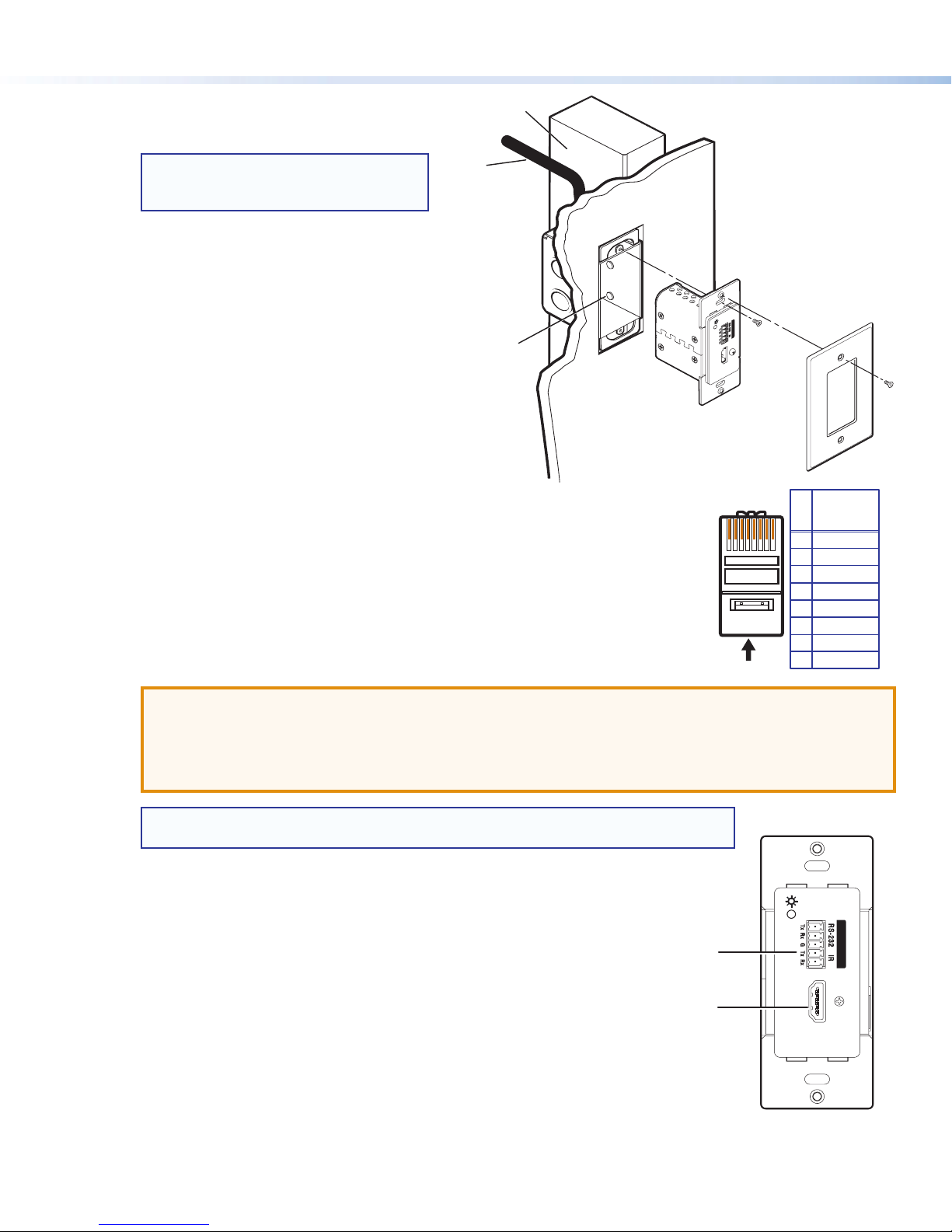

DTP R HWP D 4K Series • Setup Guide (Continued)

d. Run all required cables (see steps 3, 4, and 5),

thread the cables through the mud ring or walll

box, and secure them with cable clamps.

TIP: In order to t the unit in the junction

box, do not install boots on TP cables

and RJ-45 connectors.

Step 3 — Run Cables Between Units

Connect the rear panel transmitter output to a rear panel receiver input using twisted pair cable.

Wire the cable as shown in the diagram to the right.

For optimal performance, Extron highly recommends the following:

• RJ-45 termination with shielded twisted pair cable must comply with TIA/EIA-T568B

wiring standard for all connections. For more information on TP cable wiring and

termination, see the DTP R HWP 4K 231 and 331 D User Guide at www.extron.com.

• Use shielded twisted pair cable, 24 AWG solid conductor or better, with a minimum cable

bandwidth of 400 MHz.

ATTENTION:

• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable to link the device with DTP transmitters or

receivers.

• N’utilisez pas le câble AV Skew-FreeUTP version améliorée UTP23SF d’Extron ou le câble STP201 pour relier

le appareil avec les émetteurs ou les récepteurs DTP.

NOTE: Extron XTP DTP 24 Shielded twisted pair cable is strongly recommended for

optimal performance.

• Use shielded RJ-45 plugs to terminate the cable.

• Limit the use of RJ-45 patches. Overall transmission distance capabilities vary

depending on the number of patches used. If possible, limit the number of patches to

two total.

• If RJ-45 patches must be used in the system, shielded patches are recommended.

Step 4 — Connect Output Device

Front Panel

A DTP RS-232 and IR connectors — To pass serial or infrared data or control signals,

such as serial control of a projector, connect the master device to the transmitter and

the slave device to the receiver via the RS-232 and IR captive screw connectors on both

units.

B HDMI output connector — Connect an HDMI cable between this port and the input on

a sink device.

HDMI OUT

Extron

OVER DTP

DTP R HWP 4K 231 D

and DTP R HWP 4K 331 D

Front Panel

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Blue

TIA/EIA

T568-B

TP Wires

12345678

Pins:

Wall Stud

Screws

or Nails

Signal

Output

Cabl

Decora Faceplate

Extron

DTP R HWP 4K 231 D

HDMI OUT

Extron

OVER DTP

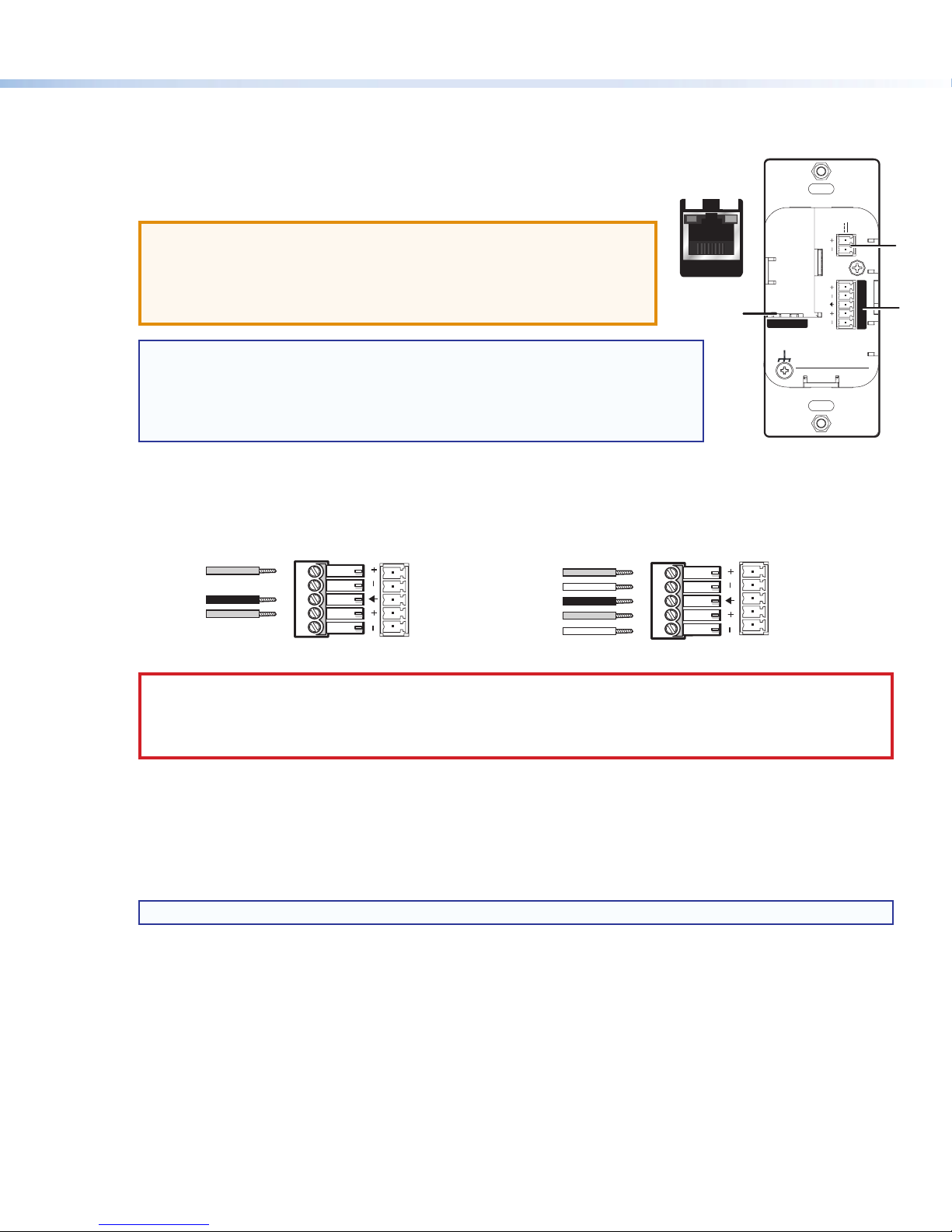

DTP R HWP D 4K Series • Setup Guide (Continued)

Rear Panel

A DC power input connector — Wire and plug the included external 12 VDC power supply into either this 2-pole

connector or the power input connector on the transmitter (see the DTP R HWP 4K 231 and 331 D User Guide at

www.extron.com for wiring information).

B DTP IN connector — Connect the opposite end of the twisted pair cable from the

transmitter output connector to this RJ-45 connector.

ATTENTION:

• Do not connect these outputs to a telecommunications or computer

data network.

• Ne connectez pas ces appareils à des données informatiques ou à un

réseau de télécommunications.

NOTES:

• The DTP R HWP 4K 231 D models can receive video, control, and audio (if

applicable) signals up to 230 feet (70 meters).

• The DTP R HWP 4K 331 D models can receive video, control, and audio (if

applicable) signals up to 330 feet (100 meters).

Signal LED — Lights when the unit is receiving any valid signal on the DTP In connector.

Link LED — Link is established between the units on the DTP cable.

C Audio Output connector — Connect a balanced or unbalanced stereo or mono audio device to the receiver via the

Audio captive screw connector. See the drawing below.

Tip

Ring

Sleeve (s)

Tip

Ring

Tip

Sleeve (s

)

Tip

See Caution

Unbalanced Balanced

CAUTION: For unbalanced audio, connect the sleeves to the ground contact. DO NOT connect the sleeves to the

negative (–) contacts.

ATTENTION : Pour l’audio asymétrique, connectez les manchons au contact au sol. Ne PAS connecter les

manchons aux contacts négatifs (–).

Step 5 — Power the Units

The units can be powered one of two ways:

• Locally with the included power supply. A compatible transmitter can then be powered remotely through the DTP line.

• Remotely via the DTP line by a locally powered DTP transmitter.

NOTE: See the DTP R HWP 4K 231 and 331 D User Guide at www.extron.com for wiring information.

Step 6 — Final Installation

a. Make all connections, power the units, and test the system for satisfactory operation.

b. At the power outlet, unplug the power supply.

c. Mount the receiver into the wall box, and attach the supplied Decora® faceplate to the unit.

d. At the power outlet, reconnect the power supply to power up both units.

SIG LINK

DTP IN

AUDIO

POWER

12V

A MAX

- -

DTP IN

DTP R HWP 4K 231 D

and DTP R HWP 4K 331 D

Rear Panel

68-2816-50 Rev. A

04 16

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

(Inside Europe Only)

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Australia

+61.8.8351.2188

+61.8.8351.2511 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

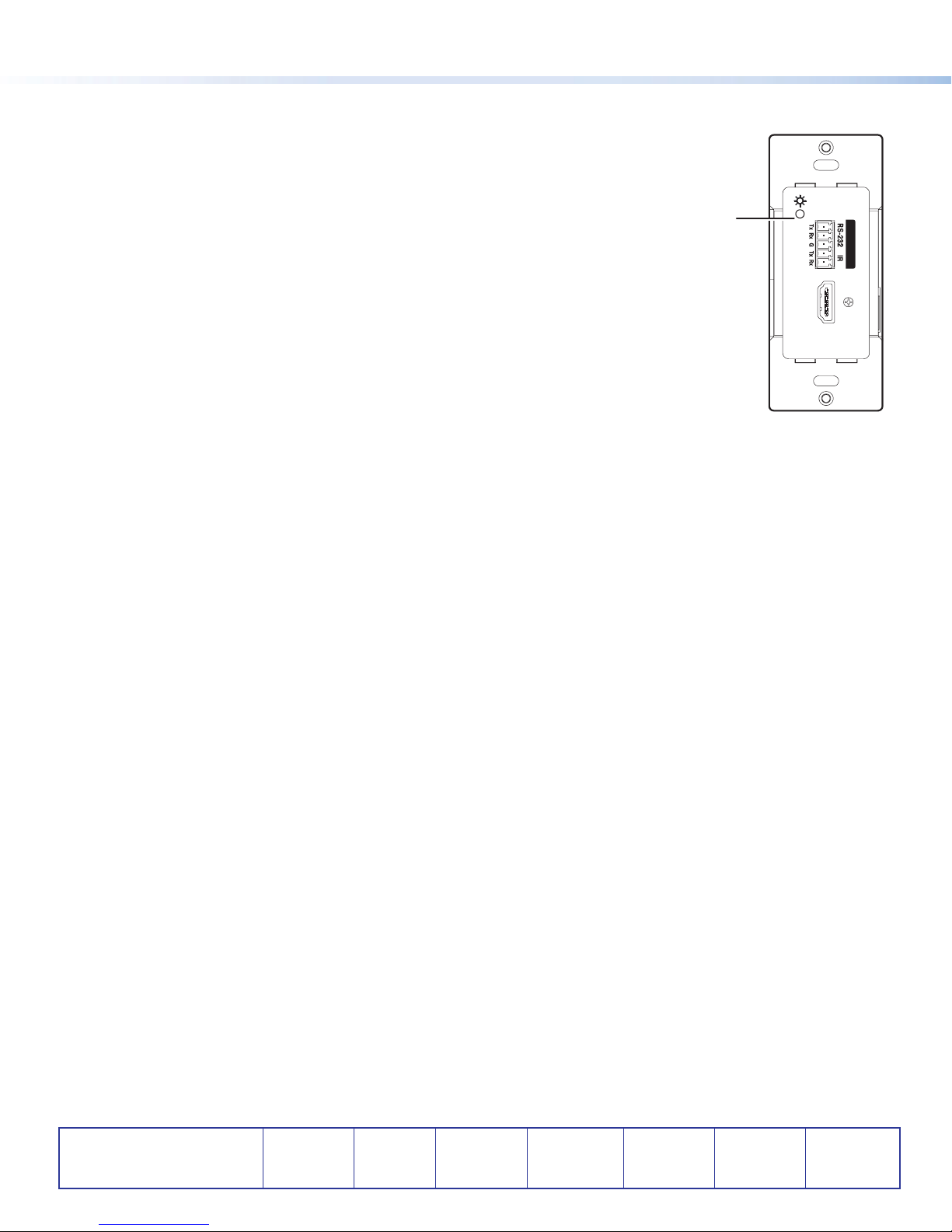

Operation

After all devices are powered up, the system is fully operational.

Receiver LED

A Power LED —

Amber — The unit is receiving power, either locally or remotely (on the DTP cable).

Green — The unit is powered on and is receiving an active HDMI signal, transmitted on the

DTP cable.

If any problems are encountered, verify that the cables are routed and connected properly. If

your problems persist, call the Extron S3 Sales and Technical Support Hotline that is

closest to you, at the number shown below.

HDMI OUT

Extron

OVER DTP

DTP R HWP 4K 231 D

and DTP R HWP 4K 331 D

Front Panel
