IMPORTANT:

Go to www.extron.com for the complete

user guide,

installation instructions,

and

specifications bef

ore connecting the

oduct to the po

wer source.

HC 402 • Setup Guide

HC402 System

The Extron HC402 system is an AV presentation solution that incorporates a built-in control processor for display control via

HDMI Consumer Electronics Control (CEC), RS-232, IR, or Ethernet. It also includes digital I/O ports.

Each system is a transmitter-receiver pair that is factory-optimized to work together as if it were a single unit.

Together each transmitter-receiver system extends video, audio, and control signals up to 230feet (70m) over a single CATxcable.

Each system offers two auto-input switching modes, one of which automatically selects sources based on input signals and also

allows manual source selection via buttons. Auto-switching modes can be enabled or disabled via Extron Product Configuration

Software (PCS). The “last connected” auto-switching mode is enabled by default.

The HC402 features two AV inputs and one output. It consists of a one-input transmitter (HCT101D) and a scaling receiver

(HCR102) that has one HDMI input and one connection from the transmitter. The transmitter has a decorator-style wallplate and

can be mounted into a standard US 1-gang junction box; and the receiver is wall, furniture, or rack mountable.

HCT101D HCR102

Transmitter

The HCT101D transmitter includes one digital (HDMI) video input and

one analog audio input. It does not include input selection buttons and

LEDs. The extended HDMI video signal can be HDCP-compliant.

Receiver

The HCR102 receiver incorporates a high performance, HDCP compliant

scaler that scales video to provide a consistent output resolution to a

display. It accepts video with resolutions from 480i up to 1920x1200, 1080p, and 2K, and performs upscaling and downscaling

with multiple output rates up to 1920x1200, including HDTV 1080p/60 and 2K. The receiver includes an on-screen display, test

patterns, and EDID Minder.

This setup guide provides instructions for an experienced installer to install the HCT101D and the HCR102. The guide provides

information needed to configure the most essential settings for the system and the receiver. It also describes basic operations using

front panel controls and the on-screen display (OSD) menu system. Full details are available in the HC400 Series User Guide.

POWER

12V

2.0A MAX

INPUTS OUTPUTS

HDMI

L R

AUDIO

HDMI/CEC

SIG

LINK

COM IR DIGITAL I/O

1 2S GTx Rx G G 3 4 G

HCR 102

LAN

HDMI IN

AUDIO IN

HDMI IN

AUDIO IN

Ethernet

PC with

GlobalViewer

Enterprise

TCP/IP

Network

HCR 102

Scaling Receiver

Display

HDMI,

CEC

Twisted Pair

Cable (AV)

230'

HDMI

MODEL80

FLATPANEL

HCT 101 D

Transmitter

Top

Front

Extron

OCS 100W

Wall Mount

Occupancy

Sensor

Ethernet

Room

Wireless Access

Point

Tablet

RESET

A/PoE B

POWER

12V

1.7A MAX

HDMI HDMI Tx Rx G

RS-232

COM

LAUDIO R

OUTPUT

C T

C T G +V

CONTACT / TALLY LAN

INPUT OUTPUT

Extron

ShareLink Pro 1000

Wireless and Wired

Collaboration

Gateway

HDMI

Ethernet

TCP/IP

Network

Audio

Figure 1. An HC 402 System Application

HC 402 • Setup Guide (Continued)

Panels and Features

Front Panel Features

CONFIG

HCR 102

INPUT

LPCM-2CH

MULTI-CH

HDCP

SIGNAL

ENTER

HOLD FOR 720p/1080p

AUDIO

R 102

AI JB

DHFGE

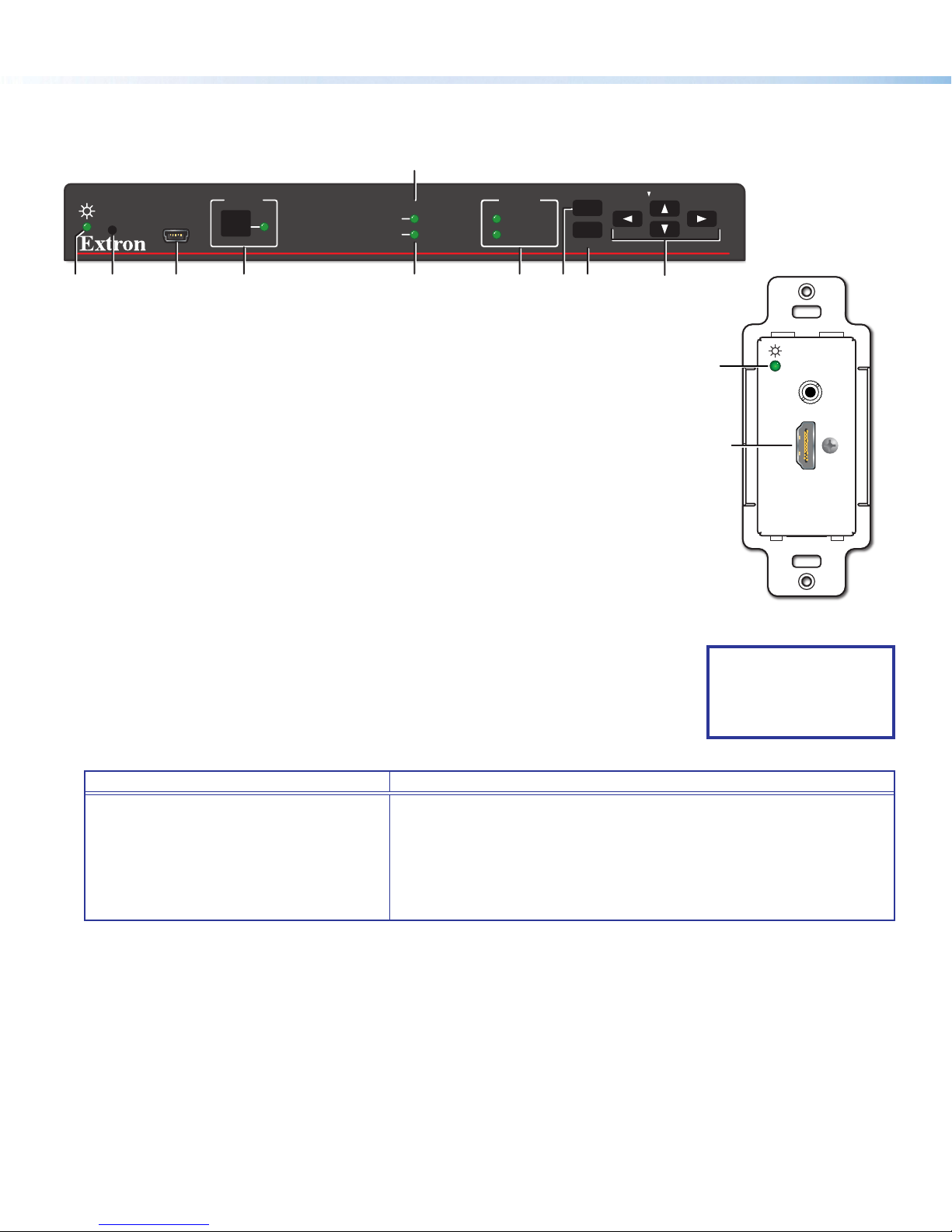

Figure 2. HCR102 Front Panel (Above),

HCT101D Front Panel Without Wallplate (Right)

AConfiguration (Config) connector (USB mini-B), page 11

BInput selection button and LED, page 13

CInput signal presence (Signal) LED, page 13

DHDCP status LED, page 13

EAudio input type LEDs (LPCM-2Ch and Multi-Ch, page 14)

FMenu button,

GEnter button, and

HNavigation (right , left , up , and down arrow) buttons (see To configure

the AV settings using the OSD and front panel buttons: on page7)

IPower LED (HCT101D), power and reset indicator LED (HCR102) —

This green LED indicates either the power status of the HCT101D transmitter or

the HCR102 receiver, or the reset mode of the receiver. For LED indications, see

the table below.

JReset button (HCR102) — Pressing this recessed button causes various product

settings to be reset to the factory defaults (see Reset Modes: a Brief Summary on

page15).

Reset and power LED (I) indications are as follows:

HCT 101 D Transmitter HCR 102 Receiver

• Off — The unit is not powered on.

• On, lit amber — The unit is powered on

but there is no active signal at that input.

• On, lit green — The unit is powered on

and there is an active signal at that input.

• Off — The unit is not powered on.

• On, lit steadily — The unit is powered on.

• Blinking — The unit is powering up or the HCR102 is performing a reset.

The blink pattern depends on the selected reset mode.

For full descriptions of reset modes, how to use the reset button to activate

them, and details of LED indications of each mode, see the HC400 Series

User Guide.

NOTE: For other

connectors on the

HCT101D, see Rear

and Side Panel

Features on page3.

Rear and Side Panel Features

POWER

12V

2.0A MAX

INPUTS OUTPUTS

HDMI

AUDIO

HDMI/CEC

SIG

LINK

COMIRDIGITAL I/O

12SGTx Rx GG34G

HCR 102

LAN

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

00-05-A6-XX-XX-XX

A F ND G H K L M

HCR 102 Rear

Figure 3. HCR102 Rear Panel

APower input connectors, page 12

BAudio input connector, page 9

DHDMI input connectors, page 10

ETransmitter output RJ-45 connector

(twisted pair interconnection),

page 10

FReceiver input RJ-45 connector

(twisted pair interconnection),

page 10

GHDMI/CEC output connector,

page 10

HAnalog audio output connector,

page 10

KCOM RS-232 control port,

page 11

LIR output control port, page 11

MDigital I/O (digital input/output)

control ports,

page 11

NLAN (Ethernet) connector and

LEDs, page 11

OMAC address (on side of receiver),

page 11

NOTE: Features

C, I, and Jare

available on other HC400 Series

transmitter models.

HCT 101 D

POWER

12V

A MAX

0.7

OUT

HDMI IN

AUDIO IN

HDMI

UDI

HCT 101 D Front

HCT 101 D

Rear

HCT 101 D

Right Side

HCT 101 D Top

Wallplate

Figure 4. HCT101D Right Side Panel (Top Left), Rear Panel (Top Right),

Top Panel (Bottom Left), Front Panel (Bottom Right)

HDMI IN

AUDIO IN

HCT 101 D Front

(Without Wallplate)

Input

Rear and Side Panel Features

POWER

12V

2.0A MAX

INPUTS OUTPUTS

HDMI

AUDIO

HDMI/CEC

SIG

LINK

COMIRDIGITAL I/O

12SGTx Rx GG34G

HCR 102

LAN

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

00-05-A6-XX-XX-XX

A F ND G H K L M

HCR 102 Rear

Figure 3. HCR102 Rear Panel

APower input connectors, page 12

BAudio input connector, page 9

DHDMI input connectors, page 10

ETransmitter output RJ-45 connector

(twisted pair interconnection),

page 10

FReceiver input RJ-45 connector

(twisted pair interconnection),

page 10

GHDMI/CEC output connector,

page 10

HAnalog audio output connector,

page 10

KCOM RS-232 control port,

page 11

LIR output control port, page 11

MDigital I/O (digital input/output)

control ports,

page 11

NLAN (Ethernet) connector and

LEDs, page 11

OMAC address (on side of receiver),

page 11

NOTE: Features

C, I, and Jare

available on other HC400 Series

transmitter models.

HCT 101 D

POWER

12V

A MAX

0.7

OUT

HDMI IN

AUDIO IN

HDMI

UDI

HCT 101 D Front

HCT 101 D

Rear

HCT 101 D

Right Side

HCT 101 D Top

Wallplate

Figure 4. HCT101D Right Side Panel (Top Left), Rear Panel (Top Right),

Top Panel (Bottom Left), Front Panel (Bottom Right)

HC 402 • Setup Guide (Continued)

Installation and Conﬁguration

ATTENTION:

• Installation and service must be performed by experienced personnel.

• L’installation et l’entretien doivent être effectués par du personnel expérimenté.

Step 1 — Get Ready

1. Familiarize yourself with the features of the transmitter and receiver (see Front Panel Features and Rear and Side Panel

Features on page3).

2. Download and install the latest version of the following:

• PCS Product Configuration Software — for detecting and configuring the AV settings for the transmitter-receiver pair

• Toolbelt software — for discovering the HCR102 receiver and other control products on the network, for managing

core settings, and for upgrading firmware if the need arises

• Global Configurator®(GC) software — for setting up and configuring the control system. GCProfessional and GCPlus

modes include a link to the Toolbelt software.

• IPLink®Pro device drivers — for use with GC, to make control of other AV devices possible

All are available from www.extron.com (see Locating Software, Firmware, and Driver Files on the Extron Website on page16).

3. Obtain network information for the unit from the network administrator. You will need the following details for each HCR102

receiver and for any other Extron Pro control product that is part of the system:

DHCP setting (on or off) Subnet mask Username

Device (HCR102) LAN IPaddress Gateway IP address Passwords

4. Write down the MAC address of each HCR102 (see figure 4, Oon the previous page) or other IPLinkPro device to be used.

5. Obtain model names and setup information for devices the HCR102 will control.

Step 2 — Mount the Receiver, Prepare the Installation Site for

the HCT101D

Turn off or disconnect all equipment power sources and mount the

transmitter and receiver as required.

Mounting the HCR102

The HCR102 receiver ships with furniture mounting brackets

attached for mounting to furniture or a wall.

NOTE: The receiver is designed so that its vents face

away from the wall or furniture when mounted in order to

achieve optimal air circulation and cooling.

Each receiver is one inch high, one half rack wide, and can

be rack mounted. The product page on www.extron.com

includes links to recommended optional rack shelves or rack

mounting kits. Alternatively, you can remove the pre-installed

furniture mounting brackets and attach four rubber feet at the

corners of each unit and place it on a table or desk.

Observe local and UL safety guidelines for mounting devices

to equipment racks. See the HC400 Series User Guide for UL

rack mounting guidelines.

Prepare the Installation Site for the HCT101D

ATTENTION:

• Installation and service must be performed by authorized personnel only.

• L’installation et l’entretien doivent être effectués uniquement par un technicien qualifié.

• Extron recommends installing the HCT101D into a grounded, ULListed electrical junction box.

• Extron recommande d’installer le HCT101D dans un boîtier d’encastrement électrique mis à la terre, certifié UL.

1. and of any TouchLinkPro touchpanels that will be part of the system

POWER

12V

--A MAX

INPUTS OUTPUTS

HDMI

L R

AUDIO

HDMI/CEC

SIG

LINK

COM IR DIGITAL I/O

1 2

S GTx Rx G G 3 4 G

HCR 102

LAN

Figure 5. Mounting the Receiver

ATTENTION:

• If the HCT101D will be installed into fine furniture, it is best to hire a licenced, bonded craftsperson to cut the access

hole and perform the physical installation so the surface will not be damaged.

• S’il est prévu d’installer le HCT101D dans du beau mobilier, il est préférable de faire appel à un artisan autorisé et

qualifié pour couper le trou d’accès et réaliser l’installation de telle façon que la surface ne soit pas endommagée.

• Follow all national and local building and electrical codes that apply to the installation site.

• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s’appliquent au site de l’installation.

NOTE: For the installation to meet UL requirements and to comply with National Electrical Code (NEC), the HCT101D must be

installed in a ULListed junction box. The end user or installer must furnish the junction box. It is not included with the unit.

Americans with Disabilities Act (ADA) compliance

When planning where to install the HC system, you may need to consider factors affecting accessibility of the units such as height

from the floor, distance from obstructions, and how far a user must reach to press the buttons or insert a cable. For guidelines,

see sections 307 (“Protruding Objects”) and 308 (“Reach Ranges”) of the 2010 ADA Standards for Accessible Design available at

http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.

Site preparation

Each HCT101D fits a standard US one-gang junction box or mud ring

and decorator-style wallplate. Each unit ships with a mud ring.

Optional ULListed junction boxes, external junction boxes, and

surface mounting boxes are available for use with the unit. Read

any installation instructions and UL guidelines that come with the

mounting devices, then install the box or mud ring in the opening

at the installation site.

To prepare the site:

1. Using the size of the junction box or mud ring for reference,

cut the hole in the mounting surface. Protect the surface prior

to and during cutting so the surface is not damaged.

2. Run cables to the mounting location, leaving enough slack for

device installation.

3. Install the junction box or mud ring into the wall or furniture.

4. Secure the cables with a clamp for strain relief and so they do

not slip back down into the wall or furniture.

Step 3 — Connect AV, Interconnection, and Control Cables

1. Connect AV sources to the input connectors (see AV Inputs on page9).

2. Use a shielded twisted pair cable to connect the transmitter to the receiver via the Output and Input RJ-45 connectors (see

Transmitter-Receiver Interconnection on page10).

3. Connect AV output devices (display, projector, or other device, and an amplifier or powered speakers) to the output

connectors (see AV Outputs on page10).

4. If applicable, use Extron Show Me cables for controlling and indicating input selection (see instructions for the Remote

connectors in Control on page11).

5. Cable the control ports on the receiver as desired for controlling AV devices and for communicating with the system via LAN

(see Control on page11).

Step 4 — Connect Power

Connect the power supply or power supplies to the HC400 Series system (see Power on page12), connect power cords, and

power on all the devices.

NOTE: The power supplies can be set on a tabletop, or mounted to a rack or furniture. Follow the mounting directions

included with each power supply or see the power supply installation guides available on the PS Series Power Supplies

page on the Extron website.

Wall

Mud Ring

Figure 6. Installing a Mud Ring

HC 402 • Setup Guide (Continued)

Step 5 — Configure Network Settings

You can configure the basic network settings in one of the following ways:

• Via front panel controls and the OSD menu — a quick method you can use whether or not you need to configure other

control settings (see Using the OSD menu to configure the AV settings on page8). This requires connection to a

display device.

• Via PCS software — a method that provides basic network configuration and is convenient when you are ready to use PCS

to configure AV settings. This requires a PC, software, and a LAN or USB connection.

• Via Toolbelt software — a method that allows you to configure additional connection settings and is convenient when you

want to configure additional device, password, system, and control port settings. This requires a PC, software, and a LAN

connection.

To configure network settings from the OSD menu:

From the Quick Setup menu:

• DHCP — Select and enter the DHCP Mode submenu and press the arrow buttons to turn DHCP on or off (default: off).

• IP address — Select and enter the IP Address submenu. Press the left or right arrow button to move between

octets. Press the up and down arrow buttons to change the value in the selected octet.

Default: 192.168.254.250.

From the Communication menu:

NOTE: Press and hold the Enter button for 10 seconds to edit settings in the Communication submenu.

• DHCP — Select and enter the DHCP Mode submenu and press the arrow buttons to turn DHCP on or off (default: off).

• IP address — Select and enter the IP Address submenu. Press the left or right arrow button to move between

and select octets. Press the up and down arrow buttons to change the value in the selected octet.

• Subnet mask — Select and enter the Subnet Mask submenu. Press the left or right arrow buttons to select an

octet of the subnet mask address. Press the up and down arrow buttons to adjust the value of the selected octet.

Default: 255.255.255.0.

• Gateway — Select and enter the Gateway submenu. Press the left or right arrow buttons to select an octet of the

gateway address. Press the up and down arrow buttons to adjust the value of the selected octet.

Default: 0.0.0.0.

To configure network settings using PCS:

1. Connect the PC and the LAN port of the HCR102 receiver (see LAN port on page11) to the same network.

Connect the PC to the front panel Cong port of the HCR102 receiver using a USB type A male to USB mini-B male cable

(such as the Extron USB CFG cable).

2. Apply power to the PC and the HCR102.

3. Open the PCS software. You might need to open the application as an administrator by right-clicking the PCS icon and

selecting Run as administrator. PCS opens to the Device Discovery page. The Device Discovery process begins

automatically. The page displays a list of all Extron devices connected to the network as PCS detects them.

4. Using the MAC address, locate the desired device (HCR102) in the list.

5. In the row for the HCR102, click the Edit button in the IP Address

column. The Communication Settings dialog box opens,

displaying controls for network configuration.

6. Either select (enable) the Use DHCP checkbox to have the receiver

obtain an IP address automatically from a DHCP server, or enter the

static IP address for the unit in the IP Address field.

NOTE: When setting up DHCP during network configuration or if

using a host name instead of an IP address, the user must enter

a qualified host name (Username.HostName.Domain). For

example: somename.extron.com.

7. Configure the other items (device name, subnet mask, gateway

address, DNS server address) as needed.

8. Click Apply to save the configuration changes. Alternatively, you can

click Apply and Connect to save the configuration changes and

then establish a connection from the PCS software to the receiver to

configure AV settings or front panel lockout.

Figure 7. The PCS Communication Settings

Dialog Box

To configure network settings using Toolbelt:

1. Connect the PC that you will use for setup and the HCR102 receiver to the same network, and apply power to all devices.

For details on the LAN connection, see LAN on page11.

2. Start Toolbelt.

3. Start device discovery from within Toolbelt. Toolbelt displays a list of all Extron control devices connected to the network.

4. In Toolbelt, use the MAC address to locate the desired device (the HCR102) in the list and select it.

5. Use the Set IP feature in Toolbelt or use the Toolbelt Manage > Network Settings tab feature to enter the IP address and

subnet address, then configure other network settings as needed.

NOTE: When setting up DHCP during network configuration or if using a host name instead of an IP address, the user

must enter a qualified host name (Username.HostName.Domain). For example: somename.extron.com.

Step 6 — Configure AV Settings

The AV and scaling settings for the system can be configured via a host connection through the LAN port or the USB port using

PCS software or the on-screen display. Many settings can be configured using either method (OSD or PCS). Some settings are

available only in the PCS software.

To configure the AV settings using PCS software:

1. Install Extron PCS (Product Configuration Software) on a PC and start the program.

2. Connect the PC to the receiver via the rear panel LAN port (see ﬁgure 4, Non page 3) or the front panel Config USB

connector (see figure 2, Aon page 2). USB connection requires a user-provided USBA to USBmini-B cable.

3. Use the PCS program to set the output resolution and rate, configure EDID Minder, adjust the video color bit depth, or

monitor the signal and HDCP status, or other AV settings, as required. For details, see the HC400 Series User Guide, or

access the PCS Help File (press <F1> on the keyboard or click the ?button in the software and select Help File).

To configure the AV settings using the OSD and front panel buttons:

1. Connect an HDMI display device to the HDMI/CEC output connector on the HCR102.

2. Power on the receiver and the display device, if they are not already powered on.

3. Press the front panel Menu button on the HCR102 (see figure 2, Fon page 2, or

the image at right). The OSD main menu appears on the display

(see the example below, at right).

The OSD menu system consists of the following menus:

• Quick Setup • Audio

• Picture Controls • Advanced

• Input • Communications

• Output

and one read-only information screen (Device Info).

4. Navigate through the menus and make adjustments.

a. Press the up and down arrow navigation buttons

(see H) to navigate to and highlight the desired menu or

submenu.

b. Press the Enter button (G) or right arrow button

to access submenu items for the selected submenu (see

Using the OSD menu to configure the AV settings for

information about the contents of each submenu).

c. Press the up and down arrow buttons to navigate to

and highlight submenu items.

d. Press the Enter or right arrow button to adjust a

submenu item.

NOTE: The OSD times out and closes after one minute if no

buttons are pressed.

HCR 102

ENTER

HOLD FOR 720p/1080p

Navigation buttons

Enter button

Menu button

Quick Setup

Picture Controls

Input

Output

Audio

Advanced

Communications

Device Info

icture

ontrol

nput

utput

udio

vance

ommunications

evice In

IP Address

192 . 168 .254 . 250

DHCP Mode

Off

Test Pattern

Crop

Audio Mute

Output Resolution

1920x1200 @60Hz

Input 1: EDID

1920x1080 @60Hz

Input 1: Input Format

HDMI

Quick Setup

1920x1200 @ 60Hz

Output Resolution

1920x1080 @ 60Hz

Input 1

FW 2.03

192.168.254.250

HCR 102

Extron Electronics

HC 402 • Setup Guide (Continued)

Using the OSD menu to conﬁgure the AV settings

• Use the Quick Setup submenu to set input EDID settings, set output resolution, mute audio, activate video test patterns,

enable or disable DHCP, and set the IP address.

• Use the Picture Controls submenu to view the image position and size.

• Use the Input submenu to set the input format for digital inputs, set horizontal and vertical start values, set the total pixels

and phase, set HDCP authorization, and set the EDID for the current input.

• Use the Output submenu to set output resolution, HDMI output format, and HDCP notification.

• Use the Audio submenu to mute audio, set the audio input format (see table below) for the selected input, set program audio

volume, and set audio output format (stereo, mono).

Audio Input Format Details

None Mutes all audio for selected input. Sets “No Audio” EDID.

Analog Sets the selected input to analog (default for input 1). Sets “No Audio” EDID.

LPCM-2Ch Sets the selected input to LPCM-2Ch digital audio (default for input 2). Sets 2Ch audio EDID.

Multi-Ch Sets the selected input to Multi-Ch digital audio. Sets Multi-Ch audio EDID.

LPCM-2Ch auto Sets the selected input to prioritize digital audio (default for inputs 3-4). Analog audio is passed when

digital audio is not present. Sets 2Ch audio EDID.

Multi-Ch auto Sets the selected input to prioritize digital audio. Analog audio is passed when digital audio is not

present. Sets Multi-Ch audio EDID.

• Use the Advanced submenu to select a test pattern, set the screen saver, set the aspect ratio, configure auto switching, and

reset the device to factory defaults.

• Use the Communication submenu to view the device MAC address, DHCP status, the current IP address and subnet mask,

and gateway.

NOTE: Press and hold the Enter button for 10 seconds to edit settings in the Communication submenu.

• Use the Device Info screen to view the device name, firmware build, temperature, input and output information, and

detected display. This screen is read-only.

See the HC400 Series User Guide for details about the menus and available settings, and for a list of output scaler rates.

Step 7 — Configure the Control Settings

To use the COM, IR, or digital I/O ports on the receiver, you must configure them. Also, CEC control of the output device can be

customized during configuration with Global Configurator.

The basic steps are outlined below in the recommended order.

NOTE: See the Toolbelt Help File or Global Configurator Help File, and GUI Designer Help File as needed for step-by-step

instructions and detailed information. The help file for GC includes an introduction to the software and how to start a project

and configuration.

1. Using GC, create a new GCPro or GCPlus project and configure the receiver and other IP Link Pro devices. The

configuration tells the receiver:

• how its control ports function • what to monitor

• how to control other products • when to do things

• which touchpanels to interact with • whom to notify, how, and under what circumstances

a. Configure the control ports on the receiver.

• Select device drivers and link them to each serial, IR, or Ethernet port.

• Select settings (serial protocol or digital I/O settings) as needed.

• Configure CEC controls, if desired

b. Set up monitors, schedules, macros, timers, and local variables.

c. Add any optional touchpanels and set them up:

• Create the GUI configuration for the touchpanels and add it to the project.

• Program functions, monitors, or schedules to the touchpanels and their buttons.

2. Save and build the project.

3. Upload the system configuration to the HCR102 receiver.

Step 8 — Test and Troubleshoot the System

1. Test the system. See the HC400 Series User Guide for

an outline of the system testing procedure.

2. Make adjustments to wiring or configuration as needed.

Step 9 — Mount the HCT101D

NOTE: Extron recommends taking safety precautions

to avoid electrostatic discharge issues during

installation.

1. Disconnect power at the source from all devices

in the system.

2. Insert the cabled transmitter into the mud ring or junction

box within the wall or furniture, aligning the mounting

holes in the transmitter with those in box or mud ring

(see figures 8 and 9).

3. Secure the transmitter to the junction box or mud ring as

follows:

a. Insert the included screws through the oval

mounting holes at the top and bottom of the

transmitter and into the corresponding threaded

holes in the box or mud ring.

b. Using a Phillips screwdriver, lightly tighten

the screws until snug.

ATTENTION:

• Do not overtighten the screws.

• Veillez à ne pas trop serrer les vis.

4. Attach the wallplate to the transmitter:

a. Align the wallplate openings with the

faceplates of the transmitter, and place the

wallplate against the unit.

b. Insert the included screws through the

circular holes in the wallplate and the tabs

on the transmitter. Tighten the screws

using a flat bladed screwdriver until snug.

5. Reconnect power to all devices.

Cabling

Attach cables using the following wiring diagrams

as a guide. Full details are available in the

HC400 Series User Guide.

AV Inputs

Analog audio input

For analog audio sources, connect the source device to the audio input 3.5 mm tip-ring-sleeve (TRS)

connector on the transmitter (see figure 4, Bon page 3 for connector location). Wire the connector

as shown at right.

HDMI IN

AUDIO IN

Wall

Mud Ring

Wallplate

HCT 101 D

Figure 8. Mounting the Transmitter to a Mud Ring

HDMI IN

AUDIO IN

Wallplate

HCT 101 D

Wall

Electr

ical

unction

Figure 9. Mounting the Transmitter to a Junction Box

Sleeve (Gnd)

Ring (R)

Tip (L)

3.5 mm Stereo Plug

(unbalanced input)

HC 402 • Setup Guide (Continued)

Digital AV input

For HDMI video and for digital audio embedded within HDMI signals:

1. Connect a digital video source device to any HDMI input connector on the

transmitter or receiver (see Din Rear and Side Panel Features on page3).

2. To secure each cable to the unit, attach an Extron LockIt®bracket to the unit and

secure it to the cable with a zip tie.

a. Plug the HDMI cable into the panel connection (see aat right).

b. Loosen the HDMI connection mounting screw from the panel enough to allow the

LockIt lacing bracket to be placed over it (b). The screw does not have to be

removed.

c. Place the LockIt lacing bracket on the screw and against the connector (c), then

tighten the screw (d) to secure the bracket.

d. Loosely place the included tie wrap around the connector and the LockIt lacing

bracket as shown (e).

e. While holding the connector securely against the lacing bracket, tighten the tie

wrap, then remove any excess length.

Complete details on LockIt installation are available in the LockIt HDMI Cable Lacing

Bracket Installation Guide.

Transmitter-Receiver Interconnection

Connect the Out port of the transmitter (see figure 3, E, on page 3) to the In port of the

receiver (F) using a shielded twisted pair CATxcable of up to 230 feet (70 m), as shown in

figure 1 on page 1. Terminate the cable with shielded RJ-45 connectors using the TIA/EIA-

T568B wiring standard at both ends, as shown at right.

ATTENTION:

• Do not connect this port to a computer data network or a telecommunications network.

• Veuillez ne pas connecter ce port à un réseau de données informatiques ou à un

réseau de télécommunications.

• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable.

• N’utilisez pas le câble AV Skew-Free UTP version améliorée UTP23SF-4 d’Extron ou

le câble STP201.

For optimal performance, Extron highly recommends the following:

• Use the TIA/EIA-T568B wiring standard for terminating all STP cables with RJ-45 connectors.

• Use shielded twisted pair cable, 24 AWG solid conductor or better, with a minimum cable bandwidth of 400 MHz.

• Use shielded RJ-45 plugs to terminate the cable.

• Overall transmission distance capabilities vary depending on the number of patches used. If possible, limit the number of

patches to 2 total.

• If patches must be used in the system, Extron recommends shielded CAT6 (or better) patch cables.

AV Outputs

1. Connect a display, projector, or other AV device to the Outputs HDMI/CEC connector (see figure 3, G) on the receiver rear

panel for HDMI AV output.

2. Connect the cable and install the LockIt bracket (see step 2 within Digital AV input above) in the same method as for the

HDMI inputs.

3. For analog audio output, connect an amplifier,

powered speaker or other audio device to the

3.5mm, 5-pole captive screw connector. See the

diagrams at right for the appropriate wiring for your

application. For unbalanced audio, connect the

sleeve(s) to the ground contact; do not connect

the sleeve(s) to the negative (-) contacts.

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Blue

TIA/EIA-T568B

Insert twisted

pair wires.

12345678

Pins:

Balanced Audio Output

Tip

Ring

Tip

Ring

Slee

ves

Unbalanced Audio Output

Tip

No Ground Here

Tip

Sleeves

No Ground Here

Inhaltsverzeichnis

Andere Extron electronics Schalten Handbücher

Extron electronics

Extron electronics Extron MediaLink MLS 304MA Bedienungsanleitung

Extron electronics

Extron electronics VEGA AUDIO SW6 Bedienungsanleitung

Extron electronics

Extron electronics SW RGBHV Series Bedienungsanleitung

Extron electronics

Extron electronics System 8 Plus Bedienungsanleitung

Extron electronics

Extron electronics Extron SW 2 VGAcc Bedienungsanleitung

Extron electronics

Extron electronics SGS 408 Bedienungsanleitung

Extron electronics

Extron electronics UCS 303 Bedienungsanleitung

Extron electronics

Extron electronics IR Broadcaster Bedienungsanleitung

Extron electronics

Extron electronics SW 4 AR MX HV Bedienungsanleitung

Extron electronics

Extron electronics SW2 HDMI Bedienungsanleitung

Extron electronics

Extron electronics PVS 407D Bedienungsanleitung

Extron electronics

Extron electronics USB HUB4 Series Bedienungsanleitung

Extron electronics

Extron electronics ISM 824 Bedienungsanleitung

Extron electronics

Extron electronics ISS 608 Bedienungsanleitung

Extron electronics

Extron electronics SW2 DVI A Plus Bedienungsanleitung

Extron electronics

Extron electronics ISM 1WB Bedienungsanleitung

Extron electronics

Extron electronics ISS 608 Bedienungsanleitung

Extron electronics

Extron electronics DTP2 T 212 Bedienungsanleitung

Extron electronics

Extron electronics System 8/10 Plus Bedienungsanleitung

Extron electronics

Extron electronics SW8 HD 4K PLUS Bedienungsanleitung

Extron electronics

Extron electronics System 5 IP Series Bedienungsanleitung

Extron electronics

Extron electronics MediaLink Controllers MLC 104 Series Bedienungsanleitung

Extron electronics

Extron electronics MSW 4V rs Bedienungsanleitung

Extron electronics

Extron electronics DTP2 T 203 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
