MPS 601 • Setup Guide

This guide provides basic instructions for an experienced technician to install, set up, and operate the Extron Media Presentation

Switcher, MPS 601. Installation and service must be performed by authorized personnel only. For additional information and

specications, see the MPS 601 product page at www.extron.com.

Step 1 — Mount the MPS 601

The MPS 601 is housed in a half rack width, 6 inch deep, 1U high metal enclosure that can sit on a table with the provided rubber

feet or can be rack mounted. Select a suitable mounting location, then choose an appropriate mounting option.

Step 2 — Cable the Switcher

0.5 A MAX

POWER

12V

INPUTS

MPS 601

CONTACT IN / TALLY OUT

HDMI

RGBHV

HDMI

HDMI RS-232

135

246

TTCG TCG

GCT TCG T+V

Tx Rx G

OUTPUT

REMOTE

$$%%&&''(()

Figure 1. MPS 601 Rear Panel

Power and Input Connections Output Connection Control Device Connections

ADC power connector

BTwo configurable analog

15-pin HD (VGA) connectors

CTwo female 3.5 mm TRS

connectors — (lettered A and B

on the rear panel) corresponding

to the two RGBHV video inputs

DFour female HDMI connectors

— for HDMI compliant audio

and video input (numbered 3, 4,

5, and 6 on the rear panel).

EOne female HDMI connector FContact In/Tally Out — Six

3.5mm, 3-pole captive screw

connectors for automatic input

switching and tally indication

using Extron Show Me cables.

G+V Port — 3-pole 3.5mm

captive screw connector for +V

output.

HRS-232 — 3-pole, 3.5mm

captive screw connector.

Connect Inputs

1. RGBHV video inputs — Connect analog video sources to the HD connectors (see gure 1, B). The connectors accept VGA

signals.

NOTE: The MPS 601 digitizes the RGBHV inputs. It does not scale or convert video to a different resolution. The output

signal resolution is the same as the input resolution.

2. Analog audio inputs — By default, audio input A is tied to RGBHV input 1 and audio input B is tied to RGBHV input 2 (C).

Analog audio is digitized for HDMI output.

3. HDMI video inputs — Connect digital HDMI sources to these inputs using standard HDMI cables (D).

Connect Output

HDMI video output — Connect an HDMI display device using a standard HDMI cable (E).

figure 1

MPS 601 • Setup Guide (Continued)

Connect Control Devices

NOTE: Do not tin the leads. Tinned wires are not as secure in the connector and could be pulled out.

• Contact In/Tally Out —When a connected contact is grounded, the corresponding input is selected (see ﬁgure 1, Fon the

previous page). At the same time, the tally output closes causing the Show Me cable LED indicator to light.

NOTE:

• For “Show Me” cables, the ground pin is optional.

• Do not connect “Show Me” cables to the +V pin of the +V Port (see below).

The six contacts are mutually exclusive so that only one input can be selected at a time.

• Contact (C) – Momentary closure of this pin to ground selects the corresponding

Ground (G)

Ta lly (NO)

Contact (NO)

TC G

Do not tin

the wires!

number input. Selection is triggered at the closure (grounding) of the pin, not the

opening.

• Ground (G) – Ground pin.

• Tally output (C) – Controls the LEDs on the contact closure push button. When an input

is selected, the tally LED for that input is active.

• +V Port — All three pins constantly output +5 VDC, 200 mA total (shared between pins).

Do not tin

the wires!

The +V pins can provide power to illuminate external tally LEDs (G).

• Remote RS-232 — Serial port for connection of a host computer or controller using

Simple Instruction Set (SIS™) or Windows-based control software commands (H).

Ground ( _)

Receive (Rx)

Transmit (Tx)

Bidirectional

RS-232

Device

Ground ( _)

Receive (Rx)

Transmit (Tx)

RxTx

Do not tin

the wires!

The default protocol is 9600 baud, 8 data bits, 1 stop bit, and no parity.

An IP Link® driver allows Extron IPL and MediaLink® devices to control the MPS 601

from the RS-232 remote connector.

Connect Power

Connect the provided 12 VDC power supply to the rear panel captive

Ground

+12 VDC input

External Power Suppl

(12 VDC, 0.5 A max.)

Ground all

Devices

DC Power Cord

Captive Screw

Connector

3/16"

(5 mm) Max.

screw connector (A) and plug the AC power cord into 100-240 VAC,

at 50-60 Hz.

ATTENTION:

• Always use a power supply provided by or specied by Extron. Use of an unauthorized power supply voids all

regulatory compliance certication and may cause damage to the supply and the end product.

• Utilisez toujours une source d’alimentation fournie ou recommandée par Extron. L’utilisation d’une source

d’alimentation non autorisée annule toute conformité réglementaire et peut endommager la source d’alimentation ainsi

que le produit nal.

• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The

power supply is to be located within the same vicinity as the Extron AV processing equipment in an ordinary location,

Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium, or desk.

• Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une utilisation dans les espaces d’aération

ou dans les cavités murales. La source d’alimentation doit être située à proximité de l’équipement de traitement

audiovisuel dans un endroit ordinaire, avec un degré2 de pollution, xé à un équipement de rack à l’intérieur d’un

placard, d’une estrade, ou d’un bureau.

ATTENTION:

•The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA

70, article 725 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently xed to

building structure or similar structure.

•Cette installation doit toujours être en accord avec les mesures qui s’applique au National Electrical Code ANSI/

NFPA70, article725, et au Canadian Electrical Code, partie1, section16. La source d’alimentation ne devra pas être

xée de façon permanente à une structure de bâtiment ou à une structure similaire.

•This product is intended for use with a UL Listed power source marked Class 2 or LPS and rated 12VDC, minimum

0.5 A.

•Ce produit est destiné à une utilisation avec une source d’alimentation certifiée UL de classe 2 ou LPS et calibrée à 12

Vcc, 0,5 A minimum.

Conﬁguring the MPS 601

The MPS 601 can be congured using a connected PC and the Extron Product Conguration Software or using SIS commands.

To congure the MPS 601 using the Product Conguration Software, install the software (available on the Extron website, www.

extron.com) on a PC connected to the MPS 601 by the rear panel remote (RS-232) port (see gure 1, h), or front panel USB

Cong port (see gure 6, b). After the installation, start the program. See the MPS 601 User Guide and the Product Conguration

Software Help File for additional information.

To congure the MPS 601 using SIS commands, see the MPS 601 User Guide.

MPS 601

MEDIA PRESENTATION SWITCHER

CONFIG

SIGNAL

INPUTS

INPUTS OUTPUT

12 345 6

HDCP

1 2 3 4 5 6

AUTO

SWITCH

$$%%&

'(()

Figure 2. MPS 601 Front Panel

Setup and Operation

APower on all connected devices, then apply power to the MPS 601. The Auto Switch LED lights when auto-input switching is

active.

BOne mini type-B female USB Config port connects to a host computer for configuring the switcher and upgrading firmware.

CInput switching. The input group has six buttons with associated green LEDs. Press an input button to switch the input to the

HDMI output. The associated LED lights. Only one of the six inputs can be selected at a time.

DInput signal LEDs. Six green LEDs indicate:

•The LEDs for RGBHV inputs 1 and 2 light when horizontal sync is detected on the input.

•The LEDs for HDMI inputs 3 to 6 light when TMDS clock activity is detected on the input.

NOTE: If a connected HDMI source is HDCP encrypted, the associated input signal LED does not light until HDCP is

authenticated.

EOutput signal LED. This LED lights when the HDMI output is connected to a display or sink device.

FHDCP input signal LEDs (inputs 3, 4, 5, and 6). These LEDs light for the associated HDMI input when the connected source is

HDCP encrypted.

GHDCP output LED. This LED lights when the currently selected input source requires HDCP and the connected output device

(sink) is authenticated.

The MPS 601 can be connected to as many as six input devices. Any of the six inputs (2 RGBHV, 4 HDMI) can be routed to the

HDMI output.

68-2454-50 Rev. B

10 18

All trademarks mentioned are the property of their respective owners.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

Executive Mode

Executive mode, when enabled, provides security from an accidental or unauthorized front panel button press by locking out the

input switching buttons.

The RS-232 and USB ports are always accessible regardless of the executive mode state.

To enable or disable executive mode:

• Press and hold input 1 and input 2 for 3 seconds to toggle executive mode on or off.

• The front panel LEDs ash twice to indicate that executive mode is enabled or disabled.

All LEDs ash twice if a button is pressed while executive mode is enabled.

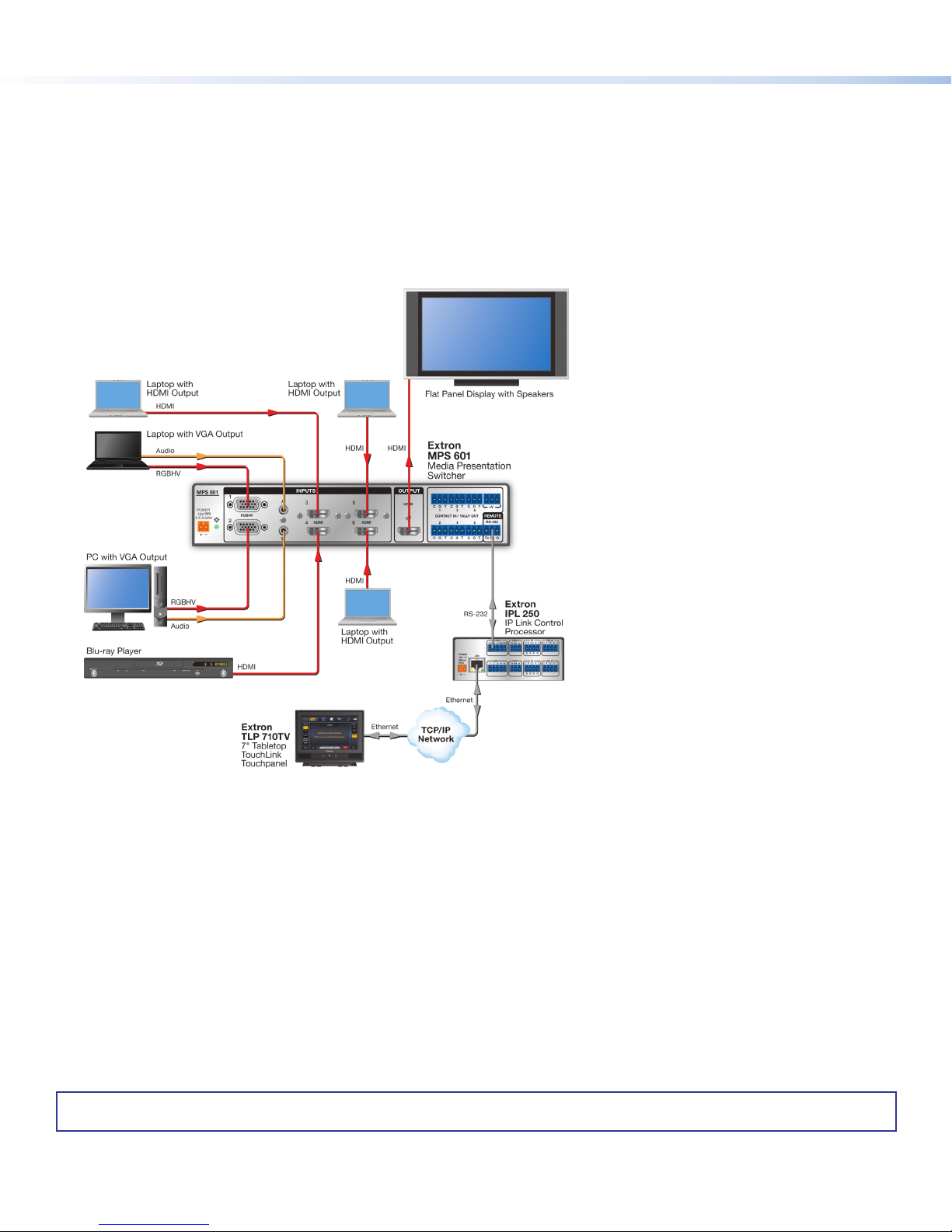

Figure 3. MPS 601 Application Diagram
