Installation Manual
PATHWAY® HD
Code Compliant
Modular Access System
Image shown with multiple ramp and
platform rail options.
PATHWAY® HD Code Compliant Modular Access System Installation Manual
Page 2 of 92
INTRODUCTION
“System” refers to the entire PATHWAY® HD Code Compliant Modular Access System, including any gates, stairs,
ramps, platforms, risers, handrails, supports, transition plates, transition bridges, landing pads, and any/all hardware
and components which are intended to be assembled on the PATHWAY® HD Code Compliant Modular Access System.
SYMBOL MEANINGS, WARNINGS, AND NOTES
The WARNING symbol indicates a potentially hazardous condition/situation. The safety warnings throughout
this manual, and on your equipment, if any, are for the protection of people and property. Failure by any
operator to abide by safety warnings will result in a waiver of all liabilities, loss of your warranty, and could
result in equipment damage and or failure, property damage, risk of serious bodily injury, and or death. The
symbol may appear in various colors and in conjunction with other symbols and with or without the written
word “WARNING”.
The NOTE symbol indicates important information. Failure to obey all notes could result in improper
operation, less-than-optimum equipment performance, and at the sole discretion of the equipment
manufacturer, may void your warranty. The symbol may appear in various colors and in conjunction with
other symbols and with or without the written word “NOTE”.
WARNINGS
Rated Load: 100 lbs. psf live load, 300 lbs. concentrated. Do not exceed Rated Load.
Read, understand, and follow the Installation Manual, Supplements, and Addendums, if any, in their
entirety. Learn and understand the location and function of all features, Rated Load, safety devices, and
labels before use. If you do not understand which manuals apply, or their content, do not use the system
and call 1-800-451-1903 for further information.
Always follow all warnings and safety directives.
Maintaining all labels and manuals in legible condition is required by the system owner and is essential for
safe operation. Do not remove product safety labels. If any labels are missing, damaged, or become
illegible, they must be replaced. An illegible label will fail to alert individuals on or around the system of a
procedure or hazardous operating conditions. To obtain replacement copies of instructions, warnings, and
labels, call 1-800-451-1903.
Professional installation, by an EZ-ACCESS approved technician, is required.
This system is made from aluminum. Aluminum is electrically conductive. Do not lay power cords on or across
electrically conductive materials, such as this system. Do not use system near exposed wiring or hang lights or
extension cords from system.
Only use components supplied or approved by manufacturer with system.
Never place on, under, or attach to the system anything the manufacturer did not supply. Do not use any part
of the system to support, attach, or hang planters, baskets, lights, ropes, cords, decoration, fabrics, or other
ornaments or furnishings.
System surfaces may become slippery when wet; use extra caution when system surfaces are wet.
Use system only with a qualified helper.
Always use your mobility device’s lap belt.
It is important that you refer to your mobility equipment’s owner guide for the proper degree of
incline/decline and chair direction before using ramp. Never exceed your mobility equipment manufacturer’s
recommendations.
This product must be installed and maintained as specified in this manual and per your applicable local codes.
Ask your local contractor or your Authority Having Jurisdiction (AHJ) for information.
Use caution at all times. Proper maintenance and upkeep to the system is vital. Call 1-800-451-1903 to
inquire about inspections and service.
Always use handrails for added stability.
Before each use, visually inspect the system to ensure that all parts are in good condition and that the system
is free of any damage. If any part of the system appears damaged, loose, or missing, do not use until repaired
by an EZ ACCESS approved technician.
PATHWAY® HD Code Compliant Modular Access System Installation Manual
Page 3 of 92
WARNINGS, CONT’D.
Annually (more frequent in harsher environments) inspect all fasteners and verify all nuts, bolts, screws, and
other fasteners are undamaged and secure. If any part of the system appears damaged, loose, or missing, do
not use until repaired by an EZ ACCESS approved technician.
Do not tamper with, attempt to repair, or modify any portion of the system. Only EZ-ACCESS approved
technicians may provide service.
Do not lean on, walk on, or otherwise bear weight on the system until installation is complete.
Consult local building codes for information on securing system for environmental loads.
Do not use if surfaces are cluttered, obstructed, or unsafe.
At all times, keep the system clear of dirt, leaves, and other debris that may accumulate on the surface.
Simply sweeping the system or using a garden hose will usually suffice, but, if needed, a damp cloth or soft
brush with mild dish soap and water can be used (avoid alkaline solutions). Rinse well and use extra caution
when system surface is wet.
If snow and or ice is present on the system, remove accumulations before use. Please refer to ‘DEICING’
section for more information.
Before each use, confirm the system is level and positioned securely. Periodically check for ground shifts and
make any necessary adjustments.
Do not sit, stand, or climb on guards, gates, or handrails. Do not play on or around system, including, but not
limited to, running, jumping, bicycles, scooters, skateboards, etc.
Properly support and restrain system in transit or storage.
If you have any questions, or would like additional care, usage, or general safety information, please call
1-800-451-1903.
ATTENTION INSTALLER and END USER
Prior to use, read and understand this manual and all other applicable manuals, including supplements
and addendums, if any, and warning labels, in their entirety. Learn and understand the location and
function of all features, Rated Loads, safety devices, and labels before use. If you do not understand
which manuals apply, or their content, do not use the PATHWAY® HD Code Compliant Modular Access
System and call 1-800-451-1903 for further information.
Leave this Installation Manual with the end user.
Fill out online warranty registration.
IMPORTANT SHIPPING INFORMATION
The shipment contains a packing list. Confirm all items are present before starting installation. Open
shipping boxes and inspect for damage or missing parts. If damaged or missing parts are noted, DO NOT
INSTALL OR USE.
Check for shipping damage immediately upon receipt and note any freight damage on freight bill while
driver is still present. Contact shipper right away with any freight damage concerns. In most cases, freight
damage claims will not be allowed unless noted on the freight bill. Pictures of damage before the unit is
unpacked can be very helpful.
TOOLS TYPICALLY REQUIRED
1/2″ SOCKET OR 1/2″ WRENCH
9/16″ SOCKET OR 9/16″ WRENCH
5/16″ SOCKET OR 5/16″ WRENCH
LEVEL
FILE
RUBBER MALLET
POWER DRILL
25’ TAPE MEASURE
#2 PHILLIPS HEAD SCREWDRIVER
5/16″ DRILL BIT (IF BRACE ASSEMBLIES ARE USED)
5/32″ ALLEN WRENCH
3/16″ ALLEN WRENCH
BOX KNIFE
HAMMER
1/4″ MASONRY DRILL BIT (IF INSTALLING TO
CONCRETE PORCH, STEP, ETC.)
DIGGING TOOLS (FOR SURFACE OBSTACLE REMOVAL)
HACKSAW (IF OPTIONAL HANDRAIL KITS ARE USED)
PLIERS
CLAMP
PATHWAY HD Code Compliant Modular Access System Installation Manual
Page 4 of 92
TABLE OF CONTENTS
SECTION 1: BASIC SYSTEM COMPONENTS
BASIC SYSTEM COMPONENTS......................................................................................................................... 5-9
SECTION 2: PLATFORMS
INSTALL PLATFORMS.........................................................................................................................................10
INSTALL SUPPORT LEGS AND FEET AND ADJUST PLATFORM HEIGHT ........................................................ 11-12
CONNECT TWO PLATFORMS TOGETHER .................................................................................................... 12-13
INSTALL CROSS BRACE – PLATFORMS ...............................................................................................................14
CREATING DECKS FROM PLATFORMS ...............................................................................................................15
SECTION 3: RAMPS
CONNECT RAMP SECTIONS ...............................................................................................................................16
INSTALL RAMPS ON PLATFORMS ......................................................................................................................17
ATTACH SUPPORT LEGS TO RAMPS ............................................................................................................ 18-20
INSTALL CROSS BRACE – RAMPS.......................................................................................................................21
INSTALL A SINGLE RAMP OR RAMP RUN TO AN EXISTING STRUCTURE ...........................................................22
ANCHOR RAMP TRANSITION PLATE..................................................................................................................22
ANGLE RAMPS WITH RESPECT TO LANDINGS ...................................................................................................23
SECTION 4: HANDRAILS
FRAMES ....................................................................................................................................................... 24-25
STARTER FRAME................................................................................................................................................26
ANCHORING HANDRAILS AND CODE COMPLIANCY.................................................................................... 26-27
RAMP HANDRAILS ....................................................................................................................................... 28-29
CONVERT TWO-LINE RAMP RAILS TO PICKETED GUARDS ................................................................................30
ASSEMBLE TWO-LINE PLATFORM RAILS AND PICKETED GUARDS .............................................................. 31-32
INSTALL TWO-LINE PLATFORM RAILS AND PICKETED GUARDS .................................................................. 33-34
CONVERT TWO-LINE PLATFORM HANDRAILS TO PICKETED GUARDS ..............................................................34
SECTION 5: CLOSURES
INTRODUCTION.................................................................................................................................................35
TWO-LINE RAIL BARRIER AND MID RAIL ..................................................................................................... 36-39
TWO-LINE RAIL TOP RAIL ............................................................................................................................ 40-41
PICKETED GUARD CLOSURE ........................................................................................................................ 42-45
CLOSURE HANDRAILS.................................................................................................................................. 46-47
TWO-LINE RAIL TURN BACK CLOSURE ........................................................................................................ 48-53
PICKETED GUARD TURN BACK CLOSURE..................................................................................................... 54-59
TWO-LINE RAIL CORNER TURN ................................................................................................................... 60-65
PICKETED GUARD CORNER TURN......................................................................................................................66
CORNER TURN CLOSURE 54-IN WIDE RAMP ON 5-FT X 5-FT PLATFORM ................................................... 67-68
5-FT WIDE RESTING PLATFORM.................................................................................................................. 69-71
THREE PLATFORM DECK CORNER CLOSURE ............................................................................................... 72-73
SECTION 6: FINAL PLATFORM/RAMP STEPS AND CHECKS
ATTACH FRAME POSTS TO PLATFORM POSTS ..................................................................................................74
SECURE RAMPS TO PLATFORMS .......................................................................................................................75
INSTALL RAMP HANDRAIL END LOOPS ....................................................................................................... 76-77
INSTALL RAMP HANDRAIL END LOOPS WITH LOWER (CHILD) HANDRAILS ................................................ 77-78
INSTALL FRAME TOP RAIL END PLUGS AND RAMP CORNER PROTECTORS ......................................................79
TOUCH-UP HANDRAILS .....................................................................................................................................79
FINAL CHECKS....................................................................................................................................................80
SECTION 7: OPTIONAL EQUIPMENT
HANDRAIL RETURN TO GROUND ................................................................................................................ 80-81
RAMP SUPPORT ................................................................................................................................................82
PLATFORM EXTENDERS............................................................................................................................... 83-88
RAMP TRANSITION PLATE .................................................................................................................................89
SINGLE BRIDGE PLATE .......................................................................................................................................89
SECTION 8: MAINTENANCE
PERIODIC MAINTENANCE..................................................................................................................................90
SECTION 9: DEICING.................................................................................................................................................90
PATHWAY HD Code Compliant Modular Access System Installation Manual
Page 5 of 92
1. BASIC SYSTEM COMPONENTS
Because configurations will differ from one another, your system may or may not contain all of these basic
components. The system may also include custom items or items not shown in this section. Identify your
system components before you begin.
RAMPS AND RAMP HANDRAIL OPTIONS
STARTER RAMP WITH TWO-LINE HANDRAILS* STARTER RAMP WITH PICKETED GUARDS*
RAMP WITH TWO-LINE HANDRAIL RAMP WITH PICKETED GUARDS
*END LOOPS SHOWN FOR CONTINUITY (ORDERED SEPARATELY)
PATHWAY HD Code Compliant Modular Access System Installation Manual
Page 6 of 92
KEY RAMP COMPONENTS
PHDRHRLU – HANDRAIL END LOOP UPPER PHDRHRLL – HANDRAIL END LOOP LOWER
PHDRHBPR – RAMP HANDRAIL END BRACKET (PAIR) PHDRRC – CONNECTOR RAMP TO RAMP
PHDRST – RAMP SUPPORT TOP PHDRHP – RAMP HANGER PAIR
TTP48, TTP54 & TTP60 – RAMP TRANSITION PLATE PHDHREP – HANDRAIL END PLUG
INCLUDES
COMPONENTS
TO CONNECT
RAMPS AND
RAMP
HANDRAILS
USED
WHEN LEGS
SUPPORT UPPER
OR LOWER END OF
RAMP ONLY
PATHWAY HD Code Compliant Modular Access System Installation Manual
Page 7 of 92

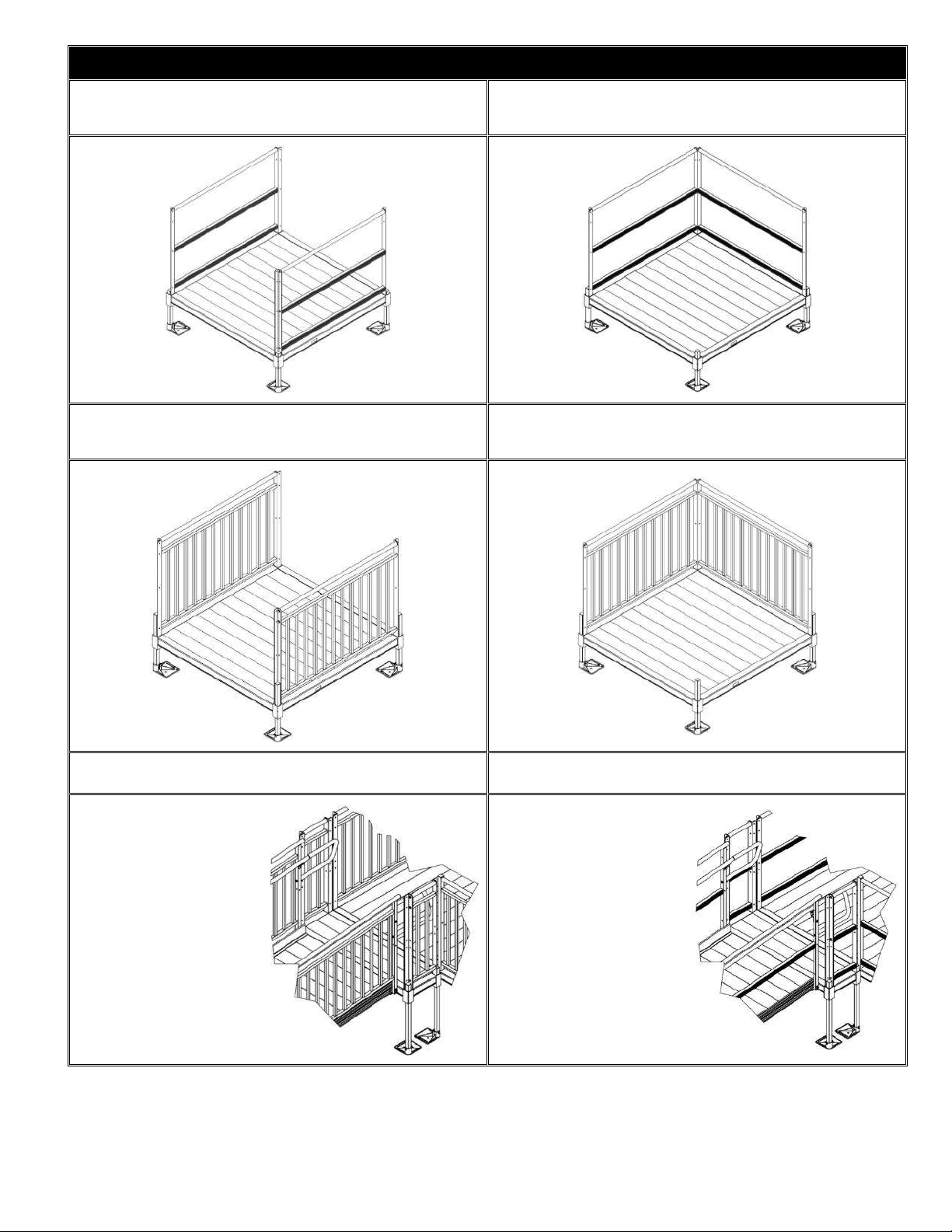

PLATFORMS AND PLATFORM HANDRAIL OPTIONS
PLATFORM WITH TWO-LINE
(STRAIGHT CONFIGURATION)*
PLATFORM WITH TWO-LINE
(TURN CONFIGURATION)*
PLATFORM WITH PICKETED GUARDS
(STRAIGHT CONFIGURATION)*
PLATFORM WITH PICKETED GUARDS
(TURN CONFIGURATION)*
PLATFORM EXTENDER WITH PICKETED GUARDS* PLATFORM EXTENDER WITH PICKETED TWO-LINE*
*FEET & LEGS SHOWN FOR CONTINUITY (ORDERED SEPARATELY)
END LOOPS
SHOWN FOR
CONTINUITY
;
ORDERED
SEPARATELY
END LOOPS
SHOWN FOR
CONTINUITY
;
ORDERED
SEPARATELY
PATHWAY HD Code Compliant Modular Access System Installation Manual
Page 8 of 92
PLATFORMS AND PLATFORM HANDRAIL OPTIONS, CONT’D.
RESTING PLATFORM WITH TWO-LINE* PLATFORM WITH PICKETED GUARDS*
*FEET & LEGS SHOWN FOR CONTINUITY (ORDERED SEPARATELY)
KEY PLATFORM COMPONENTS
PHDCPCPR – CORNER POCKET COVER PAIR PHDCPCD – CORNER POCKET COVER, DOUBLE, 1 EA.
PHDPPC – CONNECTOR PLATFORM TO PLATFORM
ADDITIONAL COMPONENTS FOR RAMPS & PLATFORMS
PHDSLxxPR – SUPPORT LEGS WITH FEET (PAIR) PHDXB36 & PHDXB736 – CROSS BRACE
•PHDXB36 USED ON 5’
& 6’ PLATFORM
SIDES & RAMPS
•PHDXB736 USED ON
7’ PLATFORM SIDE
XX DENOTES USABLE
LENGTH (LENGTHS
AVAILABLE 10”
THROUGH 112")
PATHWAY HD Code Compliant Modular Access System Installation Manual
Page 9 of 92
CLOSURE OPTIONS
PHDCTL5, PHDCTL6, PHDCTL7
TWO-LINE RAIL CLOSURE
PHDCG5, PHDCG6, PHDCG7, PHDCG654, PHDCG754
PICKETED GUARD CLOSURE
PHDTBCTL5, PHDTBCTL6
TURN BACK CLOSURE TWO-LINE RAIL
PHDTBCG5, PHDTBCG6, PHDTBCG554, PHDTBCG654
TURN BACK CLOSURE PICKETED GUARD
PHDCTCTL5, PHDCTCTL6
CORNER TURN CLOSURE TWO-LINE RAIL
PHDCTCG5, PHDCTCG6, PHDCTCG554, PHDCTCG654
CORNER TURN CLOSURE PICKETED GUARD
PATHWAY HD Code Compliant Modular Access System Installation Manual
Page 10 of 92
2. PLATFORMS
2.1. INSTALL PLATFORMS
If your system does not include a platform, skip to ‘CONNECT RAMP SECTIONS’.
Platform handrails are shown (FIGs. 2.1, 2.2, and 2.3) for clarity of how to orient platforms in
various configurations. For installation ease, install all platforms and ramps before installing
handrails (see ‘HANDRAILS’ section).
2.1.1. There are three basic platform arrangements, though one or more of these
arrangements may be used. All three require the same procedure for installation except
for FIG. 2.3, which requires an additional CONNECTOR PLATFORM TO PLATFORM.
FIG. 2.1
Platform in straight configuration
FIG. 2.2
Platform in turn configuration
FIG. 2.3
Two platforms in turn back configuration
(In a turn back configuration, connect any two platforms with equal length sides together)
Andere Handbücher für PATHWAY HD Code Compliant Modular Access...
1
Inhaltsverzeichnis
Andere EZ-ACCESS Hebesystem Handbücher
EZ-ACCESS
EZ-ACCESS PATHWAY Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS SUITCASE Advantage Series Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS TiLT Toilet Incline Lift Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS TRAVWK Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS Hanging Partition Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS RUBBER THRESHOLD RAMP Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS SUITCASE Trifold AS Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS TITAN Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS Modular Ramp Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS SUITCASE SINGLEFOLD GF Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS Passport PL44SP3651 Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS PATHWAY 3G SS28 Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS PASSPORT PL120SP3651 Betriebsanleitung
EZ-ACCESS
EZ-ACCESS TILT Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS TRANSITIONS Angled Entry Mat Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS PATHWAY Classic Series Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS PATHWAY CLASSIC Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS Titan Series Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS PASSPORT Bedienungsanleitung
EZ-ACCESS
EZ-ACCESS SUITCASE Singlefold Ramp Bedienungsanleitung
Beliebte Hebesystem Handbücher anderer Marken
morse
morse 82H-124 Bedienungsanleitung
Braun
Braun NL955 Series Bedienungsanleitung
haacon
haacon 1889.10 Bedienungsanleitung
Protekt
Protekt AT 252 Bedienungsanleitung
R. Beck Maschinenbau
R. Beck Maschinenbau HS 600 Bedienungsanleitung
Nova Technology International, LLC
Nova Technology International, LLC NAS Series Bedienungsanleitung
Genie
Genie Z-60/34 Bedienungsanleitung
Screen Technics
Screen Technics INTERFIT Vertical Up Lift Bedienungsanleitung
Mortuary Lift
Mortuary Lift ULTIMATE 1000 Bedienungsanleitung
Custom Equipment
Custom Equipment Hy-Brid 3 Series Programmierhandbuch
Custom Equipment
Custom Equipment Hy-Brid Lifts 2 Series Programmierhandbuch
Hy-Brid Lifts
Hy-Brid Lifts HB-P3.6 Programmierhandbuch
