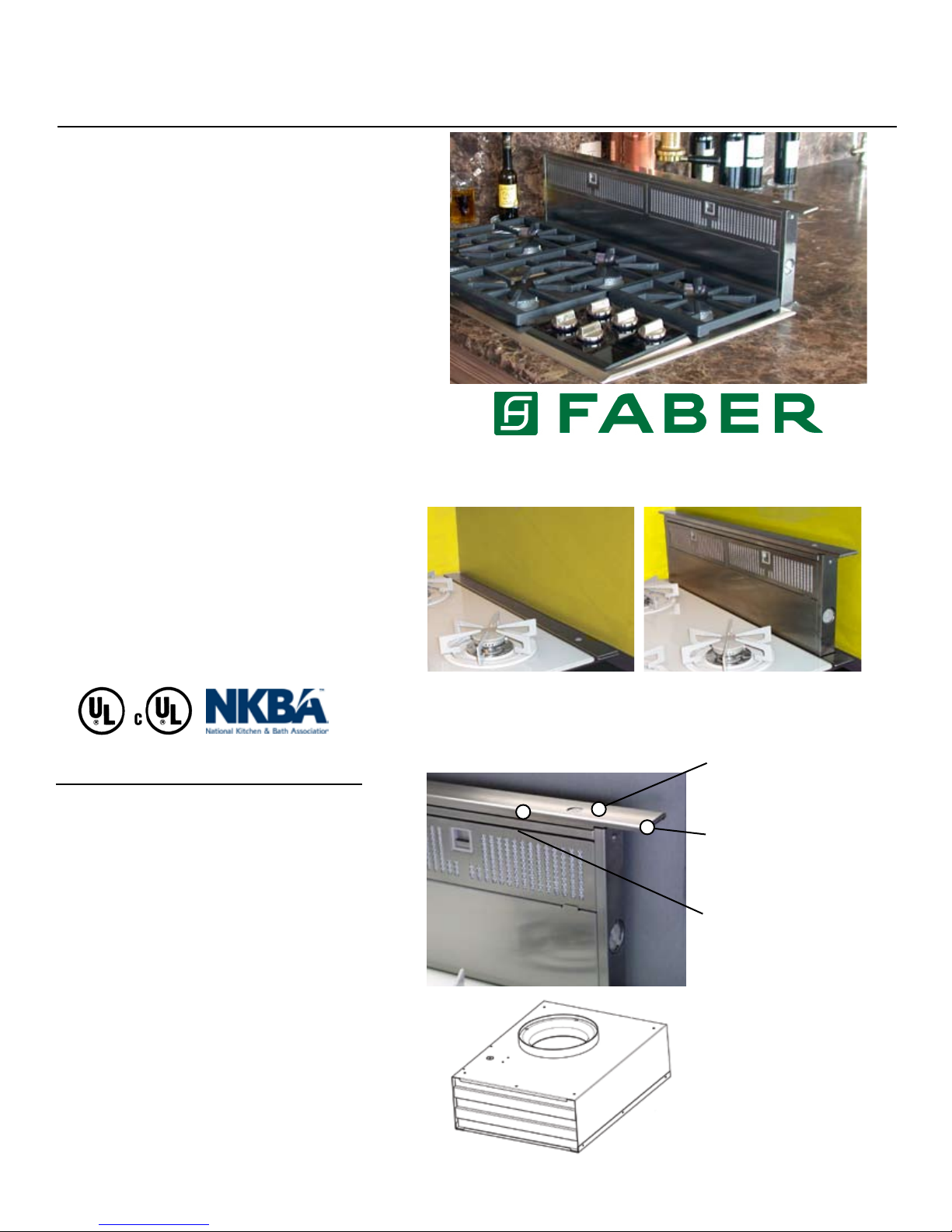

Faber 6058028 Bedienungsanleitung

downdraft vent system

pops up and down

ﬂush with cooktop in down position

sleek design

safety microswitches

500 cfm for internal blower

900 cfm for remote blower

variable speed control

dishwasher safe grease ﬁlters

stainless steel trim

four way venting

sone range: 3.5 - 6.5

3 1/4” x 10” duct (internal)

10” round duct (remote)

Size/Color/Model #

30 SS Internal

36 SS Internal

30 SS Remote

36 SS Remote

900 cfm Rmt Blwr

SCIR3008IB

SCIR3608IB

SCIR3008RB

SCIR3608RB

RBORIG900

The Scirocco downdraft is perfect for island installations,

where an overhead canopy would be obstructive, or wall

installations where cabinet space is at a premium.

READ THE INSTALLATION

INSTRUCTIONS FOR BOTH

THE REMOTE BLOWER AND

THE SCIROCCO DOWNDRAFT

SYSTEM BEFORE INSTALLING

EITHER PRODUCT.

NOT FOR USE WITH COMMERCIAL COOKTOPS

For more power, the

Remote Blower can be

mounted on the wall or roof

outside the home

Safety microswitches on

the grease ﬁlters prevent

the Scirocco from lowering

when grease ﬁlters are not

installed.

Spring secured top trim

pops off automatically if an

object or ﬁnger obstructs

its path.

Momentary delay up/down

button prevents the unit

from raising or lowering

when cleaning the top trim.

Rising a full 8 1/4” above the cooktop, the Scirocco vents horizontally

across the cooking surface and down through the exhaust vent. At

the press of a button, the stainless steel Scirocco retracts back down

into the counter.

Scirocco

a disappearing downdraft

Integrated Collection

p.o. box 435 • Wayland, MA 01778 • tel: (508) 358-5353 • fax: (508) 358-5730 • e-mail: [email protected] • www.faberonline.com

Internal Blower Model Remote Blower Model

WARNING! You must know the cook top cutout to determine the

downdraft cutout. Consult the cook top manufacturer’s installation

instructions before cutting the counter top.

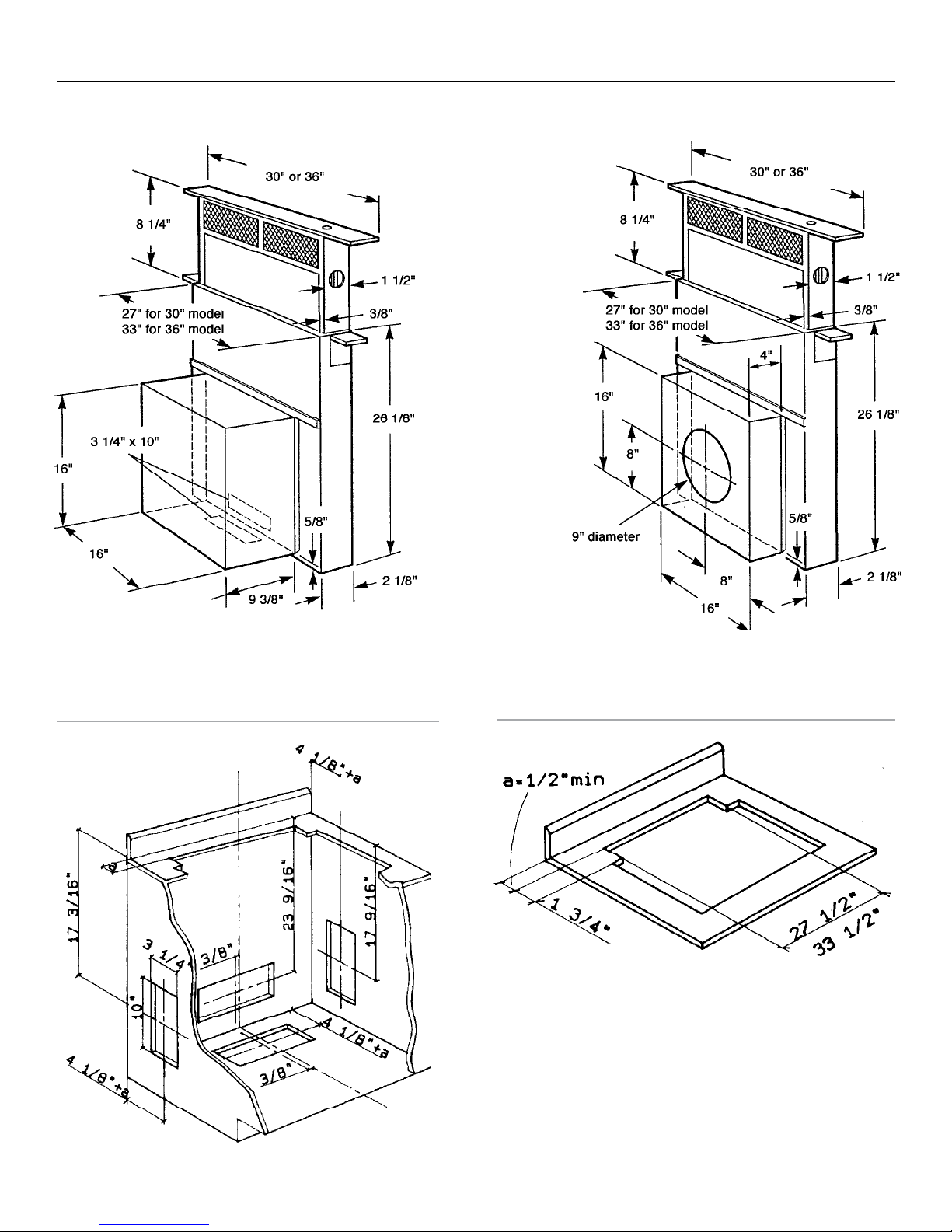

Dimensional Diagrams

Rev. 07/11

WARNING! Product specications are subject to change without notication. Consult the installation instructions for

both the remote blower and the ventilation system before you begin installing this rangehood.

A black plastic duct collar plate (provided

with the remote blower) attaches to the

front of the downdraft plenun over this 9”

hole. The 10” (25.4 cm) round duct system

attaches to this duct collar plate.

Ductwork Cutout Dimensions

For Internal Blower Model Only!

Countertop Cutout Dimensions

For Both Internal and Remote Models
