Facilis Hub Server

TO THE EXTENT ALLOWED BY LOCAL LAW, NEITHER FACILIS TECHNOLOGY NOR ITS THIRD PARTYSUPPLIERS

MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO

THE FACILIS TECHNOLOGY PRODUCTS, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTIES OR CONDITIONS

OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

Limitations of Liability

To the extent allowed by local law, the remedies provided in this Warranty Statement are the customer's sole and exclusive

remedies.

TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN THIS WARRANTY

STATEMENT, IN NO EVENT SHALL FACILIS TECHNOLOGY OR ITS THIRD PARTY SUPPLIERS BE LIABLE FOR DIRECT, INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY

AND WHETHER ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Local Law

This Warranty Statement gives the customer specific legal rights. The customer may also have other rights that vary from state to

state in the United States, from province to province in Canada, and from country to country elsewhere in the world.

To the extent that this Warranty Statement is inconsistent with local law, this Warranty Statement shall be deemed modified to be

consistent with such local law. Under such local law, certain disclaimers and limitations of this Warranty Statement may not apply to

the customer. For example, some states in the United States, as well as some governments outside the United States (including

provinces in Canada), may:

Preclude the disclaimers and limitations in this Warranty Statement from limiting the statutory rights of a consumer (e.g., the United

Kingdom);

Otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations; or Grant the customer additional warranty

rights, specify the duration of implied warranties which the manufacturer cannot disclaim, or not allow limitations on the duration of

implied warranties.

FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND, THE TERMS IN THIS WARRANTY STATEMENT, EXCEPT TO

THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT, OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY

STATUTORY RIGHTS APPLICABLE TO THE SALE OF FACILIS TECHNOLOGY PRODUCTS TO SUCH CUSTOMERS.

Contents Page Number

Using This Guide

Who Should Use This Guide 4

What This Guide Contains

Symbols and Conventions

Documentation Comments

How to Download this Manual

Chapter 1 –Hardware

Overview 5

Hub Server Front Panel 6

Hub Server Rear Panel 7

Chapter 2 –Hardware Installation

Before You Begin 8

Rack Mounting the Hub Server

Keyboard/Mouse

Monitor

Power Cords 9

Client Hardware Installation

Cabling the Hub Server

Cabling the Hub Server to the Member Servers

Fibre Channel Client Cabling 10

Ethernet Client Cabling

Turning on the Hub Server

Chapter 3 –Setup and Administration

System Setup & Volume Creation 12

Shutting Down and Restarting 14

Appendix A –Server Hardware Specifications

Dimensions and Weight 15-16

Environment

Electrical Load

Connectivity

Appendix B –Hub Server Configurations

Hub Server Qualified stacks 17

Using This Guide

Who Should Use This Guide

This guide is intended for any user or administrator of the Facilis Hub system.

What This Guide Contains

This guide covers the information regarding:

Facilis Hub Server hardware and configurations

Symbols and Conventions

Important Caution or Instruction

Related Information or Tip

Description or Definition

Documentation Comments

If you have comments relating to the documentation, please E-mail Support@facilis.com,

and specify the page and error or omission in the guide.

How to Download This Manual

We offer a download location on our main web site.

Go to http://facilis.com/support/.

Overview

The Facilis Hub Server is a system that enables bandwidth aggregation between multiple

TerraBlock servers.

Benefits include:

Increased Available Bandwidth

Seamless Dynamic Aggregation

Simple Administration

Head Unit / System Redundancy

Data Resiliency

Platform:

Hub Servers ship on Windows 10 Professional Operating System.

Hub Servers ship with 16GB RAM.

Version 7 software is required.

A new license is required to add a Hub Server to your configuration.

Member Servers –These can be new TerraBlock server(s) or existing TerraBlock

server(s). They must be Serial Number TB001418 or greater to be connected to a Hub

Server. Connectivity from the Hub Server to the Member Server(s) is via 32Gb/s or

16Gb/s Fibre Channel.

Version 7 supports Win7 and Win10 on TerraBlock servers.

The Hub Server is ordered as a base server with the software loaded. If upgrading from a

previous version, a new license is required; please contact Facilis Technical Support with

your TBLicenseData file (located in C:\Program Files\Facilis\TerraBlock).

The connectivity cards from the Hub Server to the Member Servers are purchased as add-

ons.

Hub Server to 24D or 24EX

oHub Server

Dual 16Gb/s or 32Gb/s Fibre Channel

oMember Servers

Single 16Gb/s or 32Gb/s Fibre Channel

Hub Server to 8D 32TB or 64TB

oHub Server

Dual 16Gb/s Fibre Channel

oMember Servers

Single 16Gb/s Fibre Channel

The basic server connectivity to clients is not included. That is included with your existing

TerraBlock server(s) or with your new TerraBlock server(s). If you have existing TerraBlock

servers you can move the basic server connectivity cards to the Hub Server.

8Gb Fibre Channel Dual Port Connectivity

16Gb Fibre Channel Dual Port Connectivity

10Gb Ethernet Dual Port Connectivity with Optical SFP+ Transceivers or RJ45 copper

40Gb Single Port Ethernet Upgrade card

32Gb Fibre Channel Dual Port Connectivity

Chapter 1 - Hardware

The Hub Server physical attributes are discussed in this section. The Hub Server chassis

contains redundant OS hard drives and field replaceable power supplies units (PSUs). It is

recommended that each power supply be connected to a separate circuit to maintain proper

grounding. An uninterruptable power supply (UPS) is also highly recommended. The Hub

Server ships with field replaceable internal fans.

Hub Server Front Panel

The front panel of the Hub Server is used to start up and shut down the unit. Software

updates can be loaded via USB drive in the front or rear of the unit or by downloading from

http://www.facilis.com/support.

LED indicators:

1. Internal System Disk Activity

Blinks red when active.

2. Power Indicator

Green when powered on.

Front panel buttons from left to right

1. Server Reset

Only use when instructed.

2. Power On/Off

Use to power on the unit or to initiate Windows shutdown.

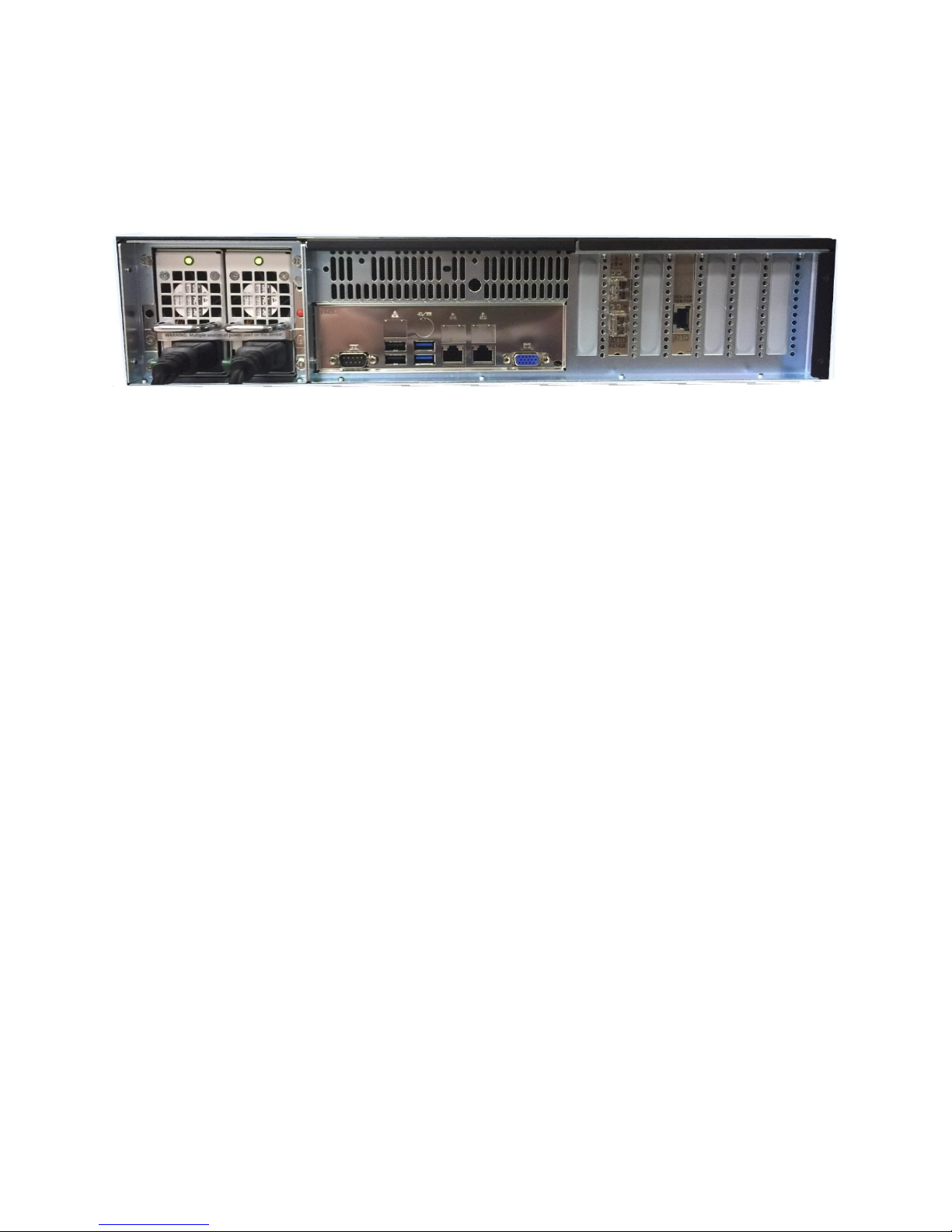

Hub Server Rear Panel

The rear panel (back of the server) is the location for Hub Member Server connectivity,

direct connect client connectivity, switch hardware connectivity, and control / monitor ports.

Power supply cabling and cooling fans are also located in this area. There are seven (7)

PCIe low profile slots to share between clients and member connectivity.

Power Supplies –Hub Server includes redundant Power Supplies. One power supply

in the Hub Server chassis is replaceable while the unit is running.

VGA –The VGA port is available for monitoring the server locally; attaching a monitor

(not supplied) to the server is necessary for software installation and troubleshooting. A

standard 15-pin VGA monitor cable is supported.

USB –There are 4 USB ports on the rear panel (2 x USB 3.0, 2 x USB 2.0)

Ethernet –The Ethernet ports are supplied for network access to the unit,

communication to the optional Fibre Channel switch, and when used in conjunction with

the Facilis Shared File system, access from Ethernet clients to the Hub Server virtual

volumes. Direct Ethernet connectivity can be configured using a single Gigabit Ethernet

port on the server. A combination of 2 or more Gigabit Ethernet ports (additional

Ethernet hardware may be added) can be (Teamed) for additional bandwidth and

performance.

Fibre Channel/Ethernet Slots –The number and type of Fibre Channel and Ethernet

host bus adapters (HBAs) may vary depending on your configuration. There is a

maximum of 7 HBAs that can be added. This can be all Fibre Channel HBAs, all 10Gbit

Ethernet, or a combination of both.

Chapter 2 –Hardware Installation

This chapter describes how to install your Hub Server system.

Before You Begin

The location of the unit should be cool, clean and vibration-free. Make sure you have all the

components that shipped with the system available at the time of installation. If you are

missing any of the components listed below, do not attempt installation until contacting

Facilis Technology customer service at +1 978-562-7022.

After unpacking the Hub Server kit, check the contents of the kit against the following list to

be sure you have received all the components. The kit contains:

One Hub Server enclosure or chassis with redundant OS hard drives and

redundant Power Supplies (PSUs).

Two power cords.

USB stick containing the Hub Software and Documentation.

A rack-mount kit.

An enclosure front cover or bezel (located on chassis).

Rack Mounting the Hub Server

The base configuration of the Hub Server system includes rack rails for mounting the

server in a standard 19” rack containing rear rails. If you are installing the Hub server

enclosure in a rack (recommended), follow the instructions supplied in the rail kit to

install the rack-mount rails. Be sure that:

The rails attach as far forward on the enclosure as possible.

The rails do not interfere with the power strips, power cords, or other cables at the

rear of the rack.

The rails allow the unit to slide completely into the rack.

Power supply vents and other airflow are not restricted when installing the unit in a

rack.

A reliable grounding path is maintained within the rack system. This unit must be

connected to earthen ground.

Keyboard/Mouse

A keyboard and mouse (not supplied) should be installed prior to powering on the Hub

Server. You must use a USB keyboard and mouse, as these will remain enabled after boot

and can also be connected after the server is on.

1. Locate an available keyboard and mouse.

2. Locate the proper USB ports using the symbols on the rear of the unit.

3. Plug the connectors into the proper ports securely.

Monitor

A monitor (not supplied) is required for initial setup and software updates, and is

recommended for daily usage or in the event of troubleshooting. To install a monitor:

1. Locate the VGA port on the rear of the unit. The VGA port is a blue female 15-pin

DIN connector.

2. Plug the monitor into the VGA port.

3. Supply power to the monitor and turn it on.

Power Cords

Connect the power cords (supplied) into the AC ports on the rear of the enclosure. Do not

start the unit until all power cords are connected.

Client Hardware Installation

Client hardware will depend on your Hub Server configuration. Configurations may consist

of all Fibre Channel, all Ethernet, or a combination of both.

All Fibre Channel based configurations require hardware installation in your Mac, Windows

or Linux clients. ATTO Technology is the supported Fibre Channel HBA to be used with your

Hub Server. Please follow the manufacturer’s instructions for installing hardware in your

client (Mac Pro, HP Workstation, etc.). It is recommended to use the fastest PCIe slot

available. ATTO ThunderLink devices are also supported for Mac clients that do not have an

available PCIe slot and are Thunderbolt capable (MacBook Pro, iMac). After the hardware is

installed, power on the client and install the proper drivers and firmware (see the current

Release Notes for supported driver and firmware versions and more in depth ATTO Fibre

Channel HBA configuration).

The ATTO Configuration Tool must be installed on each client workstation to verify

and adjust the HBA settings.

Ethernet client configurations may or may not require hardware installation. The 1G

Ethernet onboard adapters can be used with any Mac, Windows or Linux client for

connectivity to the Hub Server. 10G Ethernet configuration will require hardware to be

installed in your client. Myricom and ATTO 10G HBAs are supported.

Please follow the manufacturer’s instructions for installing hardware in your client

workstation (Mac Pro, HP Workstation, etc.). It is recommended to use the fastest PCIe slot

available. ATTO ThunderLink devices are also supported for Mac specific workstations that

do not have an available PCIe slot and are Thunderbolt capable (MacBook Pro, iMac). After

the hardware is installed, power on the client and install the proper drivers (see the current

Release Notes for supported driver versions).

Cabling the Hub Server

The following explains how to cable the Hub Server to the Member Servers and also to

clients directly or to any switches in your configuration. Keep the location of the edit rooms

in mind when installing the Hub Server. There is a 380 meter limitation in 4Gbit FC, 150

meter limitation in 8Gbit FC, and a 100 meter limitation in 16Gbit FC using OM3 50 micron

rated cabling. Ethernet connectivity for CAT 5E, CAT 6 or CAT 7 cabling has a limitation on

length of 100 meters (328ft) in 1Gbit. Ethernet connectivity for 10Gbit optical cabling has a

length limitation of 300 meters (984ft) using OM3 rated cabling.

Cabling the Hub Server to the Member Servers

The Hub Server is connected to the Member Servers via Fibre Channel. Here are the

options:

Hub Server to 24D or 24EX

oHub Server

Dual 16Gb/s or 32Gb/s Fibre Channel

oMember Servers

Single 16Gb/s or 32Gb/s Fibre Channel

Hub Server to 8D 32TB or 64TB

oHub Server

Dual 16Gb/s Fibre Channel

oMember Servers

Single 16Gb/s Fibre Channel

Fibre Channel Client Cabling

Client connections are based on the number of Fibre Channel HBAs that are installed in your

server.

The Hub Server may also be connected to a switch via single or multiple 4/8/16/32 Gbit

connections. The client workstations would also connect to the switch. All connectors are

“LC” type, and the supported cable type is duplex (send/receive) multimode fibre. The LC

connector will plug into an SFP module. The SFP is inserted in the Fibre Channel HBA on the

server and client. SFPs are also used in the Fibre switch for connectivity between the server

and clients. All SFPs are removable and replaceable.

A Fibre Channel cable is comprised of send and receive strands, and these must be mated

properly to the send and receive ports on the SFP. If your cable was built as an LC-to-LC

patch cable, the connector should be built to achieve this. If you are patching through

another cable via a union or patch field, you may have to determine the send and receive

sides. Try each combination of port connection and connector ends (reversing if necessary)

until a link light appears.

ATTO Fibre Channel host bus adapters contain class 1 laser emitting

devices. Keep the transmit port covered whenever a cable is not connected.

It is good practice to keep open ports covered. Avoid staring into open

ports or aperture.

Ethernet Client Cabling

You can connect the Hub Server to an Ethernet switch or client via 1 Gigabit Ethernet or a

Teamed connection. Alternatively, you can install 10Gbit Ethernet card(s) to connect either

directly to a client or to connect to an Ethernet switch with the 10Gbit uplink option. 40Gbit

Ethernet can also be used to connect the Hub Server to a 40Gbit uplink on a switch.

Inhaltsverzeichnis

Andere Facilis Server Handbücher

Facilis

Facilis TERRABLOCK Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
