INSTALLATION

USER

MANUAL

COMMERCIAL

INVERTER

POOL HEAT PUMPS

Installation and user manual

Installation  and  user  manual


3

CONTENTS

GENERAL INFORMATION 4
1. Contents: 4
2. Operating conditions and range: 4
3. Advantages of different modes: 4
OPERATIONS 7
1. Notice before using 7
2. Operation instructions 8
3. Daily maintenance and winterizing 10
TECHNICAL SPECIFICATION 11
TRANSPORTATION 12
INSTALLATION AND MAINTENANCE 12
1. Notice before installation：13
2. Installation instruction 13
3. Trial after installation 18
4. Maintenance and winterizing 18
TROUBLE SHOOTING FOR COMMON FAULTS 19
FAILURE CODE 19
APPENDIX 1: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) 21
Wifi setting 23








Installation and user manual

1. GENERAL INFORMATION

1.1. Contents:

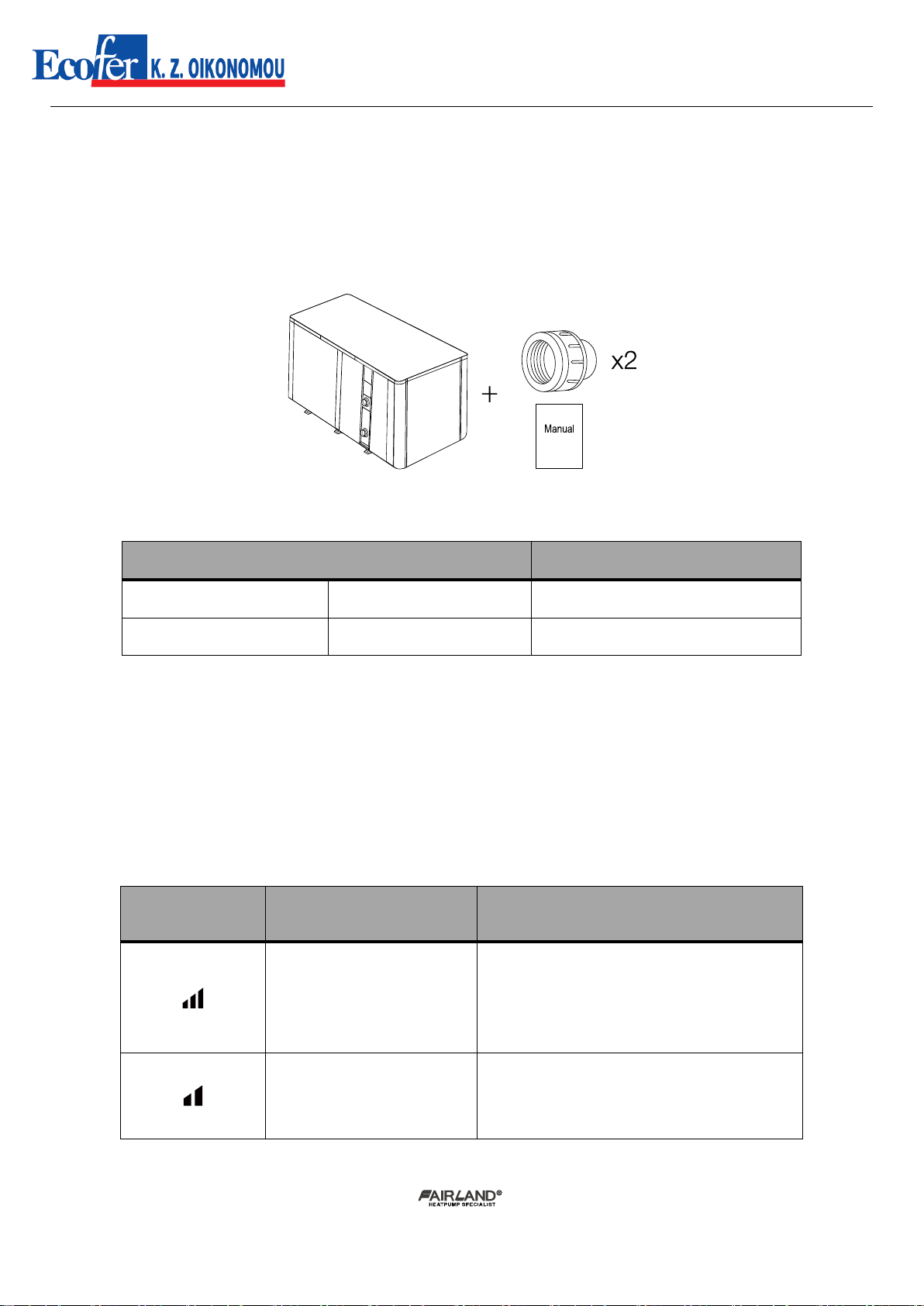

After unpacking, please check if you have all the following components.

1.2. Operating conditions and range:

ITEMS

RANGE

Operating range

Air temp

-10℃～43℃

Temp. setting

heating

18℃～40℃

The heat pump will have ideal performance in the operation range Air 15℃～25℃.

1.3. Advantages of different modes:

The heat pump has two modes: Smart and Silence. They have different advantages under different

conditions.

MODE

RECOMMENDATION

ADVANTAGES

Smart mode

As standard

Heating capacity: 20% to 100% capacity

Intelligent optimization

Fast heating

Silence mode

Use at night

Heating capacity: 20% to 80% capacity

Sound level: 3dB (A) lower than Smart mode.

Installation and user manual

Kind reminder:

This heat pump has Power-off memory function. When the power is recovered, the heat pump will

restart automatically.

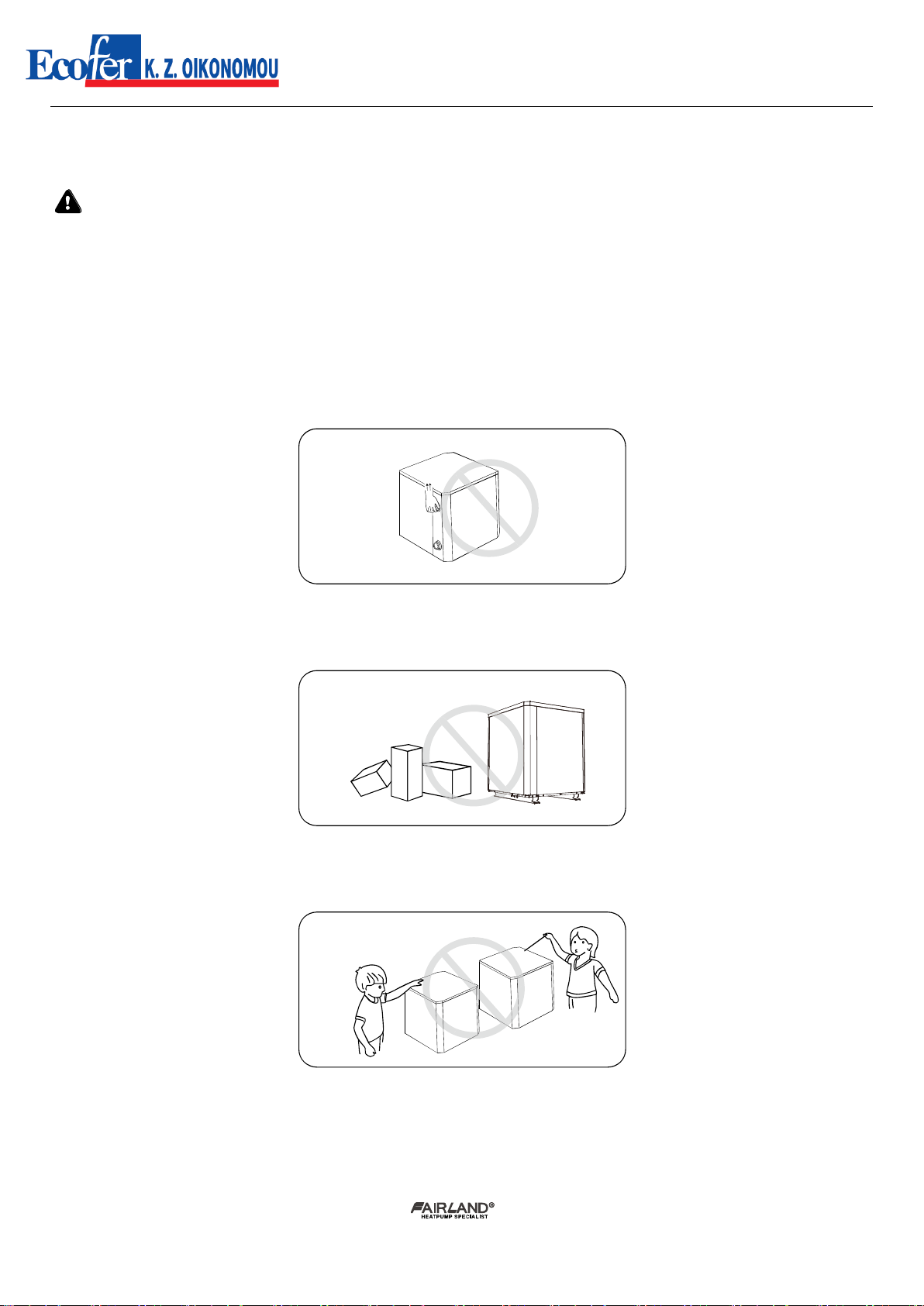

1. The heat pump can only be used to heat the pool water. It can NEVER be used to heat other flammable or

turbid liquid.

2. Don’t lift the water union when moving the heat pump since the titanium heat exchanger inside the heat

pump will be damaged.

3. Don’t put obstacles before the air inlet and outlet of the heat pump.

4. Don’t put anything into inlet or outlet, or the efficiency of the heat pump will be reduced or even

stopped.

Installation and user manual

5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid fire.

6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and leakage of electricity,

switch off the main power immediately and contact your local dealer. Don’t try to repair the heat

pump by yourselves.

7. The main power switch should be out of the reach of Children.

8. Please cut off the power in the lightning storm weather.

Installation and user manual

9. Please note that following codes are not failure.

CODES

No water flow

Anti-Freezing Reminder

Out of the operating range

Insufficient water flow or pump blocked

Power abnormal

2. OPERATIONS

2.1. Notice before using

2.1.1. For longer service life, please ensure water pump is on before heat pump starts to work, and water

pump is off after heat pump is off.

2.1.2. Ensure no water leakage on piping system, then unlock screen and press to power on heat

pump.

Installation and user manual

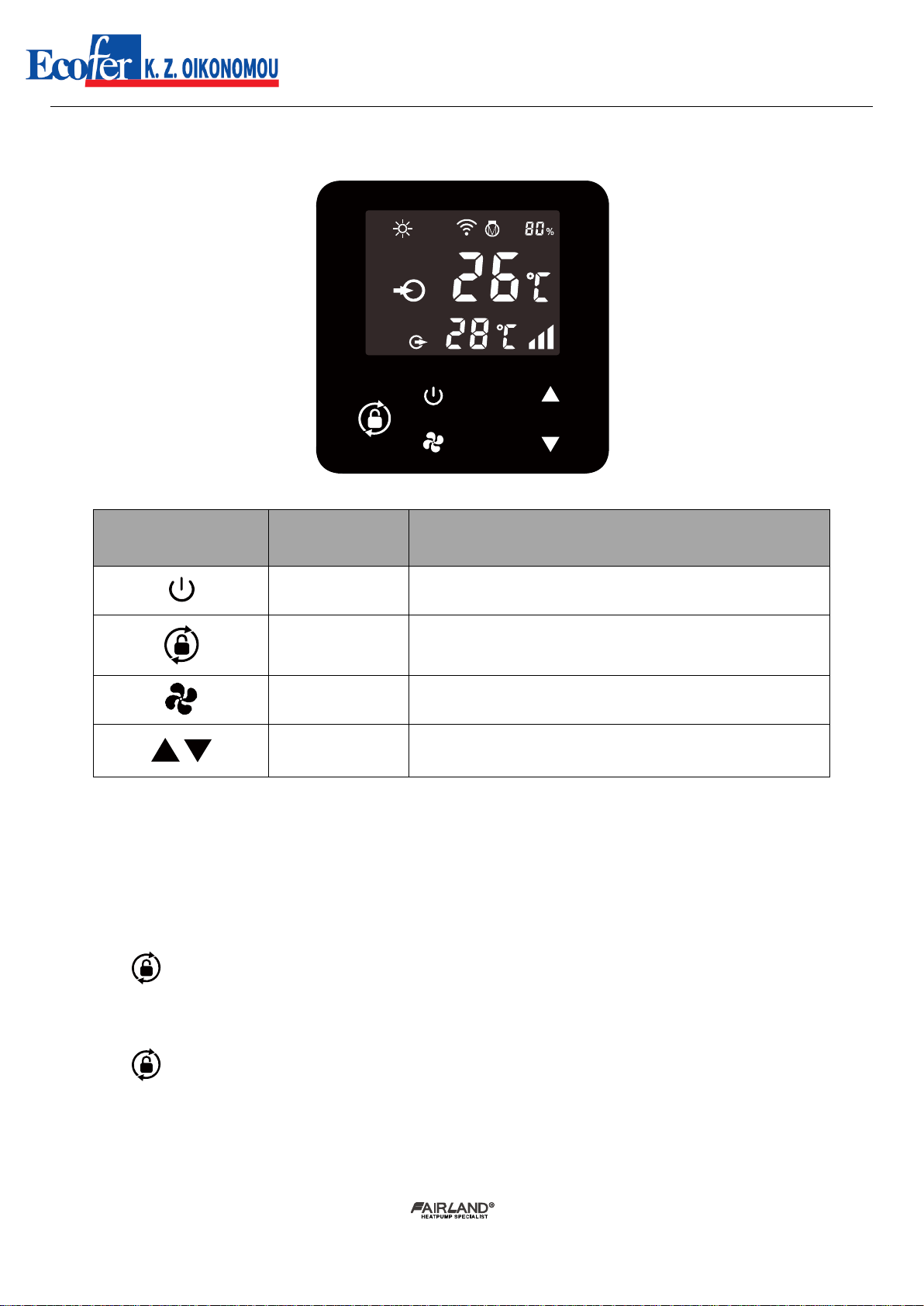

2.2. Operation instructions

SYMBOL

DESIGNATION

FUNCTION

ON/OFF

Power On/Off

Unlock

Press it for 3seconds to unlock/lock screen

Speed

Select Smart/Silence mode

Up / Down

Adjust set temperature

Note:

① Screen lock:

a. If no operation in 30 seconds, screen will be locked.

b. When HP is off, screen will be dark and “0%” will be displayed.

c. Press for 3 seconds to lock screen and it will be dark

② Screen unlock:

a. Press for 3 seconds to unlock screen and it will be lit up.

b. Only after screen is unlocked, any other buttons can be functioned.

Installation and user manual

Heating

Heating capacity percentage

Wi-Fi connection

Water inlet

Water outlet

1.Power On: Press for 3 seconds to light up screen, then press to power on heat pump.

2.Adjust Set Temperature: When screen is unlocked, press or to display or adjust the set

temperature.

3.Smart/Silence mode selection:

① Smart mode as default will be activated when heat pump is on, and screen shows .

② Press to enter Silence mode, and screen shows .

(Suggestion: select Smart mode for initial heating.)

Water inlet

temperature

Water outlet

temperature

Smart/Silence

mode

Installation and user manual

4.Defrosting

a. Auto Defrosting: When heat pump is defrosting, will be flashing. After defrosting, will stop

flashing.

b. Compulsory Defrosting: When heat pump is heating, press and together for 5 seconds to start

compulsory defrosting, and will be flashing. After defrosting, will stop flashing.

(Note: Compulsory defrosting intervals should be more than 30 minutes and the compressor should run for

more than 10 minutes.)

5.Wifi setting

Please kindly check the last page.

2.3. Daily maintenance and winterizing

2.3.1. Daily Maintenance

Please don’t forget to cut off power supply of the heat pump

➢Please clean the evaporator with household detergents or clean water, NEVER use gasoline, thinners or

any similar fuel.

➢Check bolts, cables and connections regularly.

2.3.2. Winterizing

In winter season when you don’t swim, please cut off power supply and drain water out of the heat

pump. When using the heat pump under 2℃, make sure there is always water flow.

Important:

Unscrew the water union of inlet pipe

to let the water flow out.

When the water in machine freezes in

winter season, the titanium heat

exchanger may be damaged.
