Falcon 26-Key Bedienungsanleitung

Quick Reference Guide

Falcon

4400 Series

with Windows Mobile

26-Key model

Falcon 4420

48-Key model

52-Key NU model

PSC Inc

959 Terry Street

Eugene, Oregon 97402

Telephone: (541) 683-5700

Fax: (541) 345-7140

described therein may be reproduced or transmitted in any form or by any means without prior written permission of

PSC Inc. or its wholly owned subsidiaries ("PSC"). Owners of PSC products are hereby granted a non-exclusive,

revocable license to reproduce and transmit this documentation for the purchaser's own internal business pur-

poses. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this

documentation and shall ensure that all notices appear on any reproductions of the documentation.

Should future revisions of this manual be published, you can acquire printed versions by contacting your PSC rep-

resentative. Electronic versions may either be downloadable from the PSC website (www.psc.com) or provided on

appropriate media. If you visit our website and would like to make comments or suggestions about this or other

PSC publications, please let us know via the “Contact PSC” page.

Disclaimer

PSC has taken reasonable measures to provide information in this manual that is complete and accurate, however,

PSC reserves the right to change any specification at any time without prior notice.

PSC is a registered trademark of PSC Inc. The PSC logo is a trademark of PSC. All other trademarks and trade

names referred to herein are property of their respective owners.

Falcon®is a registered trademark of PSC Inc. and of its wholly owned subsidiaries.

Microsoft Windows®, Windows®2000, Windows®CE, Windows Mobile®, Windows®NT, Windows®XP and the Windows

logo are registered trademarks of Microsoft Corporation.

Patents

This product may be covered by one or more of the following patents: 4603262 • 4639606 • 4652750 • 4672215 • 4699447 • 4709369 •

4749879 4786798 • 4792666 • 4794240 • 4798943 • 4799164 • 4820911 • 4845349 • 4861972 • 4861973 • 4866257 • 4868836 •

4879456 • 4939355 • 4939356 • 4943127 • 4963719 • 4971176 • 4971177 • 4991692 • 5001406 • 5015831 • 5019697 • 5019698 •

5086879 • 5115120 • 5144118 • 5146463 • 5179270 • 5198649 • 5200597 • 5202784 • 5208449 • 5210397 • 5212371 • 5212372 •

5214270 • 5229590 • 5231293 • 5232185 • 5233169 • 5235168 • 5237161 • 5237162 • 5239165 • 5247161 • 5256864 • 5258604 •

5258699 • 5260554 • 5274219 • 5296689 • 5298728 • 5311000 • 5327451 • 5329103 • 5330370 • 5347113 • 5347121 • 5371361 •

5382783 • 5386105 • 5389917 • 5410108 • 5420410 • 5422472 • 5426507 • 5438187 • 5440110 • 5440111 • 5446271 • 5446749 •

5448050 • 5463211 • 5475206 • 5475207 • 5479011 • 5481098 • 5491328 • 5493108 • 5504350 • 5508505 • 5512740 • 5541397 •

5552593 • 5557095 • 5563402 • 5565668 • 5576531 • 5581707 • 5594231 • 5594441 • 5598070 • 5602376 • 5608201 • 5608399 •

5612529 • 5629510 • 5635699 • 5641958 • 5646391 • 5661435 • 5664231 • 5666045 • 5671374 • 5675138 • 5682028 • 5686716 •

5696370 • 5703347 • 5705802 • 5714750 • 5717194 • 5723852 • 5750976 • 5767502 • 5770847 • 5786581 • 5786585 • 5787103 •

5789732 • 5796222 • 5804809 • 5814803 • 5814804 • 5821721 • 5822343 • 5825009 • 5834708 • 5834750 • 5837983 • 5837988 •

5852286 • 5864129 • 5869827 • 5874722 • 5883370 • 5905249 • 5907147 • 5923023 • 5925868 • 5929421 • 5945670 • 5959284 •

5962838 • 5979769 • 6000619 • 6006991 • 6012639 • 6016135 • 6024284 • 6041374 • 6042012 • 6045044 • 6047889 • 6047894 •

6056198 • 6065676 • 6069696 • 6073849 • 6073851 • 6094288 • 6112993 • 6129279 • 6129282 • 6134039 • 6142376 • 6152368 •

6152372 • 6155488 • 6166375 • 6169614 • 6173894 • 6176429 • 6188500 • 6189784 • 6213397 • 6223986 • 6230975 • 6230976 •

6237852 • 6244510 • 6259545 • 6260763 • 6266175 • 6273336 • 6276605 • 6279829 • 6290134 • 6290135 • 6293467 • 6303927 •

6311895 • 6318634 • 6328216 • 6332576 • 6332577 • 6343741 • 6454168 • 6478224 • 6568598 • 6578765 • 6705527 • 6974084 •

6991169 •7051940 • AU703547 • D312631 • D313590 • D320011 • D320012 • D323492 • D330707 • D330708 • D349109 • D350127 •

D350735 • D351149 • D351150 • D352936 • D352937 • D352938 • D352939 • D358588 • D361565 • D372234 • D374630 • D374869 •

D375493 • D376357 • D377345 • D377346 • D377347 • D377348 • D388075 • D446524 • EP0256296 • EP0260155 • EP0260156 •

EP0295936 • EP0325469 • EP0349770 • EP0368254 • EP0442215 • EP0498366 • EP0531645 • EP0663643 • EP0698251 •

GB2252333 • GB2284086 • GB2301691 • GB2304954 • GB2307093 • GB2308267 • GB2308678 • GB2319103 • GB2333163 •

GB2343079 • GB2344486 • GB2345568 • GB2354340 • ISR107546 • ISR118507 • ISR118508 • JP1962823 • JP1971216 • JP2513442

• JP2732459 • JP2829331 • JP2953593 • JP2964278 • MEX185552 • MEX187245 • RE37166 • Other Patents Pending

Quick Reference Guide

Table of Contents

Falcon®4400 Series with Windows Mobile®....................................................... 3

Overview ......................................................................................................................3

Getting Started ..............................................................................................................4

System Requirements ...............................................................................................4

Connecting to a PC ...................................................................................................5

Features of the Falcon .............................................................................................6

Powering the Falcon .......................................................................................................9

Battery Pack ...........................................................................................................9

Installing the Battery Pack ..................................................................................... 10

Checking Battery Power .......................................................................................... 12

Battery Status Indicators ........................................................................................ 12

Charging the Batteries .................................................................................................. 13

Charging with the Dock ........................................................................................... 15

Backup Battery ...................................................................................................... 16

Charging with a Battery Charger .............................................................................. 16

Battery Discharge Characteristics ............................................................................ 16

Setting Up the Mobile Computer ..................................................................................... 16

Touchscreen Calibration .......................................................................................... 17

Entering a Password ............................................................................................... 17

Radio Card Setup ................................................................................................... 18

Entering Data .............................................................................................................. 18

Using the Stylus .................................................................................................... 19

Navigating the Display ............................................................................................ 20

Keypads ............................................................................................................... 25

Scanning Bar Codes ..................................................................................................... 33

Laser Scanning ...................................................................................................... 33

Bar Code Scanning with 2D Imager .......................................................................... 36

Image Capture ............................................................................................................ 38

Accessing Help ............................................................................................................ 38

Resetting the Falcon ..................................................................................................... 38

Warm Reset .......................................................................................................... 39

Table of Contents

Falcon

4400 Series with Windows Mobile

Hard Reset ............................................................................................................40

Maintaining the Falcon ..................................................................................................42

Troubleshooting ...........................................................................................................42

RF Connectivity Troubleshooting .............................................................................. 46

Technical Support ........................................................................................................47

PSC Website Support .............................................................................................. 47

PSC Website TekForum ...........................................................................................47

Reseller Technical Support ......................................................................................47

Telephone Technical Support ...................................................................................47

Appendix A. PSC Falcon® Windows Mobile End User License Agreement .......... 49

Appendix B. Microsoft® Windows Mobile Addendum to EULA ............................ 52

Appendix C: PSC Falcon

Windows

Mobile

Product Series Warranty ............... 55

Appendix D: Safety Information ........................................................................ 56

Laser Safety Label ........................................................................................................56

Advisory Statement ................................................................................................56

Regulatory Statements .................................................................................................56

Radio Frequency Interference .................................................................................. 56

Canadian Compliance Statement ..............................................................................56

Appendix E: Laser Safety ................................................................................... 57

International Caution Statements for CLASS 1, 2, 3R, II, and IIA Laser Devices .................... 57

English ................................................................................................................. 57

French .................................................................................................................. 57

German ................................................................................................................ 58

Italian .................................................................................................................. 58

Danish .................................................................................................................. 59

Dutch ................................................................................................................... 59

Swedish ................................................................................................................ 59

Finnish ................................................................................................................. 60

Norwegian ............................................................................................................60

Portuguese ............................................................................................................61

Spanish ................................................................................................................ 61

Chinese ................................................................................................................ 62

Japanese .............................................................................................................. 62

Quick Reference Guide 3

Falcon

4400 Series

with Windows

Mobile

Overview

The Falcon® 4400 combines the flexibility of Windows Mobile®with the

power of the Intel XScale processor, WiFi wireless technology, a large color dis-

play, laser (1D) and imaging (1D and 2D) scanning in an ergonomic PDT.

The Falcon®4400 Series is designed for warehouses, distribution centers,

retail in-store environments, and other inventory management applications

requiring maximum performance and durability.

New options available for the Falcon 4400 include Bluetooth®, 128/128

memory, a full alphanumeric Numbers Up Keypad, and a high-density 2D

scan engine. Overmolded models will handle 5’ / 1.5M drops to concrete, and

have an IP54 environmental rating; and an 86dBA (at 24") / 100dBA (at 10

cm) beeper. The Falcon®4400 will handle demanding data collection tasks in

industrial environments.

The Falcon Management Utility (FMU) and Falcon Desktop Utility (FDU)

are included on the CD that comes with every unit, providing remote manage-

ment and configurability.

This Quick Reference Guide contains the following sections:

• Getting Started on page 4— getting your Falcon up and running.

• Features of the Falcon on page 6— describes the functions and keys of

the Falcon.

• Powering the Falcon on page 9— gives information about the batteries,

shows how to install the battery pack, and provides options for charging.

• Setting Up the Mobile Computer on page 16 — tells how to calibrate

the Touchscreen and set up a Password.

• Entering Data on page 18 — using the stylus, navigating the display,

about keypads, and bar code scanning.

• Accessing Help on page 38 — accessing Help from the Falcon.

Getting Started

4Falcon®4400 Series with Windows Mobile®

• Resetting the Falcon on page 38 — describes Warm Reset and Hard

Reset.

• Troubleshooting and Technical Support on page 47.

Getting Started

Before using the Falcon for the first time, you must install the battery pack

into the Falcon, then charge both the battery pack and the backup battery. See

Installing the Battery Pack on page 10 for instructions.

System Requirements

Minimum Desktop Computer Requirements

• Microsoft Windows XP, Windows 2000, or Server 2003 with the most

current Service Pack installed.

• Microsoft Outlook 98 or later required for synchronization to the desk-

top or portable computer of e-mail, calendar, contacts, tasks, and notes.

(Outlook 2003 is recommended).

• Microsoft Internet Explorer 4.01 SP1 or later.

• Hard disk drive with 12 to 65 MB of available hard disk space (actual

requirements will vary based on selection of features and user's current

system configuration).

• Available 9- or 25-pin communications port (adaptor required for 25-

pin communications port), or USB port.

• VGA graphics card or compatible video graphics adapter at 256 color or

better.

•Keyboard.

• Microsoft Mouse or compatible input device.

CAUTION

You must charge the battery pack and backup battery in a dock or with a power

cable prior to your first use of the Falcon. The initial charge time is approximately

24 hours. See Charging the Batteries on page 13 for more information.

Getting Started

Quick Reference Guide 5

Connecting to a PC

Falcons communicate with the host PC using Microsoft ActiveSync protocol

via either a USB port or a serial port. Connect the Falcon to your PC as

shown:

1. Connect the appropriate interface cable to the Falcon Dock and the

computer.

2. Plug the power adapter into a power source, then plug the Power Cord

into the Dock.

3. Seat the Falcon securely into the Dock.

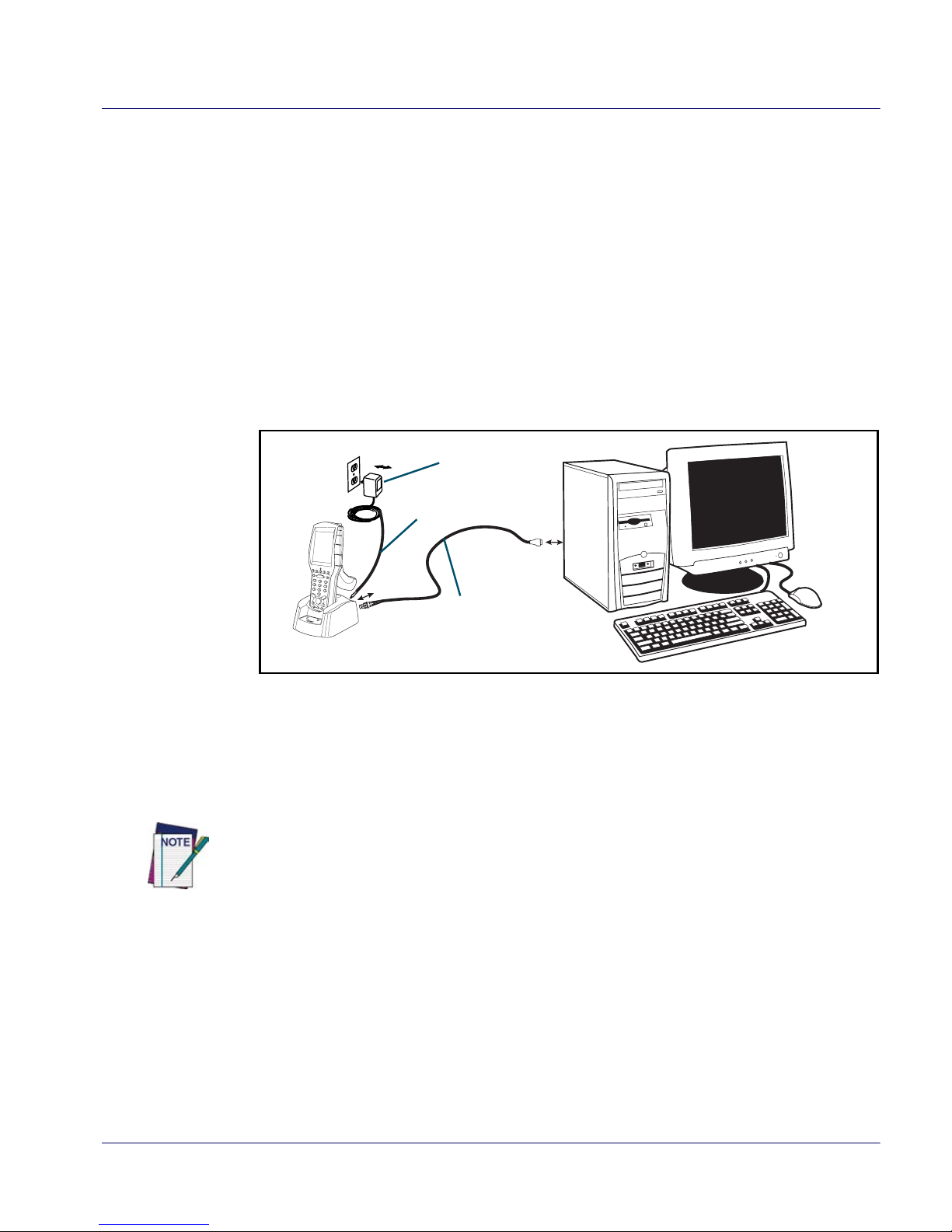

Figure 1. Connecting your Falcon to a PC

Installing ActiveSync

If you don’t already have ActiveSync (v4.0 or above) on your computer, you

can install it from the Getting Started CD included with your device, or

download it from the Microsoft website (www.microsoft.com).

USB Cable

AC Adapter

Power Cord

When the device is connected to the PC using ActiveSync, a Desktop Pass-Through

(DTPT) connection is established, causing any WiFi connections to be disconnected.

To continue to use a WiFi connection while the device is in a cradle that is connected

to a PC, disable the “Synchronization” option in Activesync on the Falcon.

Getting Started

6Falcon®4400 Series with Windows Mobile®

Features of the Falcon

Four perspectives of the Falcon®4400 with Windows®Mobile are shown.

Refer to Table 1 on page 8for a list of the illustrated parts with references to

more detailed information.

Figure 2. Falcon Keypad and Connector Views

For a complete description of each key on the Falcon, refer to page 25.

Touchscreen

Display

POWER

Reset (part of the key sequence for a Hard Reset)

Handle

USB/Serial Connector

Strap Studs

w/Rubber

Bumpers

Falcon 4420

Handled model

LED Scanning/

Charging Indicator

Falcon

26-Key Keypad

Getting Started

Quick Reference Guide 7

Figure 3. Falcon Scanner and Battery Door Views

For more information, please refer to the Falcon®4400 Windows Mobile®

Product Reference Guide (PRG), located on the Falcon 4400 Product CD that

came with your device.

Strap Studs

Trigger

Handle

Stylus

Tether/Lanyard Port

Stylus Holder

Battery Door

Speaker

Battery

Door

Latch

(2 each)

Scanner Aperture

Getting Started

8Falcon®4400 Series with Windows Mobile®

Figure 4. Model comparison

Table 1. Features of the Falcon

Feature Function/Description More

Information

Battery Door Rotate the latches to unlock the battery door to remove the battery pack. Figure 5,

Display/Touch

Screen

The equivalent of a PC monitor for viewing and interacting with the current

application. This display is touch-sensitive; use it like you would a mouse on

a PC.

Figure 2,

page 17,

page 20

Handle The Falcon 4420 comes with a handle that is ergonomically designed for

ease of use with a scanner trigger. Figure 2

Reset

Insert an object, such as a paper clip, into this hole as part of the procedure

to perform a Hard Reset of the unit. Do not use a sharp object, or you could

disable the reset function, puncture the keypad’s industrial seal, and void

your warranty.

page 38

Keypad Use the alpha-numeric, function, and navigation keys on the keypad t o enter

numbers, letters, symbols and navigate with the keypad. page 25

Lanyard Port Insert a lanyard to secure a Falcon to a person or work station. page 7

Scanner Aperture The laser or imaging scanning beam is emitted from this aperture. page 33

LED

When scanning, a red LED indicates the laser is on and a green LED indicates a

good read. When the Falcon is charging in the dock, a red LED on the Falcon indi-

cates charging and a green LED on the Falcon indicates fully charged.

Figure 2

POWER Press POWER to turn the Falcon on and off, or to toggle the device between

suspend (sleep) mode and resume (on).

Figure 2,

page 25

Speaker

The speaker plays *.WAV and other media files, and emits beeps or tones

to indicate errors or good reads when scanning bar codes or entering data

using the keypad or stylus.

Figure 3

Strap Studs The Falcon 4410 comes with a handstrap that connects to the strap studs. Figure 3

Model 4420

Model 4410 Model 4420 with Overmold

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Falcon Handheld Handbücher

Falcon

Falcon 4410 26-Key model Bedienungsanleitung

Beliebte Handheld Handbücher anderer Marken

Honeywell

Honeywell Dolphin 9900 Bedienungsanleitung

Honeywell

Honeywell CN75 Bedienungsanleitung

MiTAC

MiTAC Mio 168 Bedienungsanleitung

Wasp

Wasp WDT92 Bedienungsanleitung

Texas Instruments

Texas Instruments TI-Nspire Bedienungsanleitung

AXEM Technology

AXEM Technology MBS Bedienungsanleitung

Armstrong

Armstrong Brain Wave Montageanleitung

Unitech

Unitech TB128 Bedienungsanleitung

Symbol

Symbol MC9000-G Installations- und Betriebshandbuch

Unitech

Unitech HT1 1D Batch Bedienungsanleitung

Ingenico

Ingenico IWL220 GPRS Bedienungsanleitung

Intermec

Intermec CK61 Bedienungsanleitung

Symbol

Symbol c2000 Bedienungsanleitung

Symbol

Symbol MC18 Installations- und Betriebshandbuch

Acer

Acer n20 Bedienungsanleitung

Intermec

Intermec CK61 Bedienungsanleitung

Docomo

Docomo F-04H Bedienungsanleitung

Toshiba

Toshiba e350 Series Bedienungsanleitung
