Fantech DBLT 4W Bedienungsanleitung
Installation and Operation Manual
Item #: 450224
Rev Date: 2015-05-20
United States
10048 Industrial Blvd., Lenexa, KS, 66215
Tel.: 800.747.1762 • Fax: 800.487.9915
Canada
50 Kanalflakt Way, Bouctouche, NB, E4S 3M5
Tel.: 800.565.3548 • Fax: 877.747.8116
DBLT 4W
Secondary Dryer Lint Trap
fantech
2
fantech
DURING ENTIRE WARRANTY PERIOD:
Fantech will repair or replace any part which has a factory defect in workmanship or material.
Product may need to be returned to the Fantech factory, together with a copy of the bill of sale
and identified with RMA number.
FOR FACTORY RETURN YOU MUST:
• Have a Return Materials Authorization (RMA) number. This may be obtained by calling
Fantech either in the USA at 1.800.747.1762 or in CANADA at 1.800.565.3548. Please
have bill of sale available.
• The RMA number must be clearly written on the outside of the carton, or the carton will be
refused.
• All parts and/or product will be repaired/replaced and shipped back to buyer; no credit will
be issued.
READ AND SAVE THESE INSTRUCTIONS
1. The DBLT4W is a Secondary Dryer Lint Trap used when installing Fantech Dryer Booster Fan
less than the recommended distance of 15 feet from the back of the dryer.
2. Please, observe the following:
a. The Lint Trap must be installed so it is easily accessible to the ryer user.
b. It is recommended the dryer user inspect for lint accumulation prior to operation of
the dryer.
3. REMOVE LINT AS REQUIRED TO KEEP THE SCREEN CLEAN.

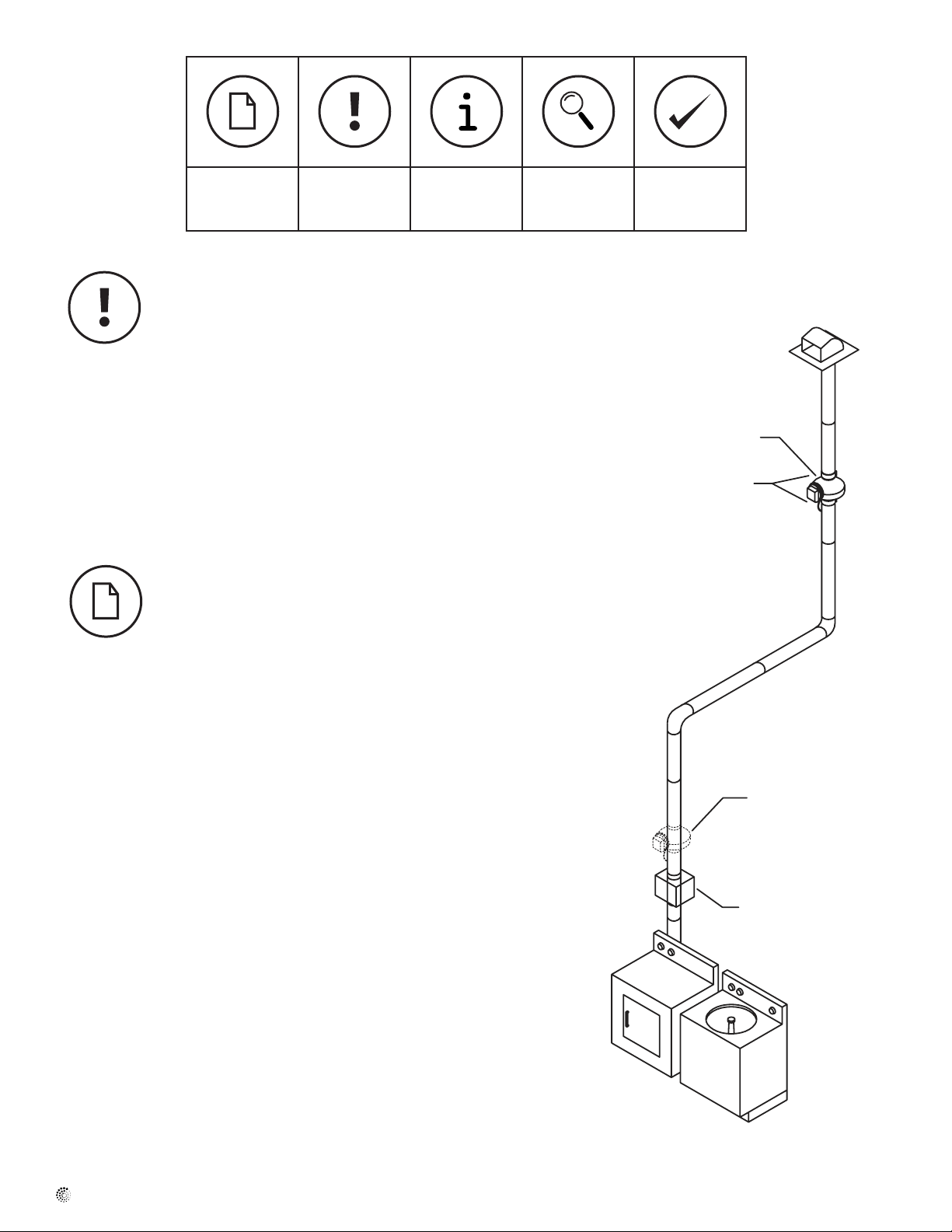

Normally the DBLT4W is installed in the dryer duct just above the dryer (see the reference on
the left).
Note Warning /
Important
note
Information Technical
information
Practical tip
DBF Dryer Exhaust Fan
FC Mounting
Clamps (optional)
Alternate Location
Secondary Lint Trap
Five (5) Year Warranty
This warranty supersedes all prior warranties
WARRANTY
3
fantech
6
7
8"
578"
578"
678"
Ø 4 1
16INLET - Ø 3 7
8OUTLET
538"58"
3
116 "
234"
12"
758"
758"
334"
13 16"
316"
578"
8
18"
378"
658"
7
116"
978"
6"
DIMENSIONS
WARRANTY
The Distributor may place an order for the warranty part and/or product
and is invoiced. The Distributor will receive a credit equal to the invoice
only after product is returned prepaid and verified to be defective.
FANTECH WARRANTY TERMS DO NOT PROVIDE FOR REPLACEMENT
WITHOUT CHARGE PRIOR TO INSPECTION FOR A DEFECT.
REPLACEMENTS ISSUED IN ADVANCE OF DEFECT INSPECTION ARE
INVOICED, AND CREDIT IS PENDING INSPECTION OF RETURNED
MATERIAL. DEFECTIVE MATERIAL RETURNED BY END USERS SHOULD
NOT BE REPLACED BY THE DISTRIBUTOR WITHOUT CHARGE TO THE
END USER, AS CREDIT TO DISTRIBUTOR’S ACCOUNT WILL BE
PENDING INSPECTION AND VERIFICATION OF ACTUAL DEFECT BY
FANTECH.
THE FOLLOWING WARRANTIES DO NOT APPLY:
• Damages from shipping, either concealed or visible. Claim must be
filed with freight company.
• Damages resulting from improper wiring or installation.
• Damages or failure caused by acts of God, or resulting from improper
consumer procedures, such as:
1. Improper maintenance
2. Misuse, abuse, abnormal use, or accident, and
3. Incorrect electrical voltage or current.
• Removal or any alteration made on the Fantech label control number
or date of manufacture.
• Any other warranty, expressed, implied or written, and to any conse-
quential or incidental damages, loss or property, revenues, or profit,
or costs of removal, installation or reinstallation, for any breach of
warranty.
WARRANTY VALIDATION
• The user must keep a copy of the bill of sale to verify purchase date.
• These warranties give you specific legal rights, and are subject to an
applicable consumer protection legislation. You may have additional
rights which vary from state to state.
DBLT 4W. Housing
DBLT 4W. Door / Screen Assembly
fantech
Fantech reserves the right to make technical changes.
For updated documentation please refer to www.fantech.net
Fantech®
