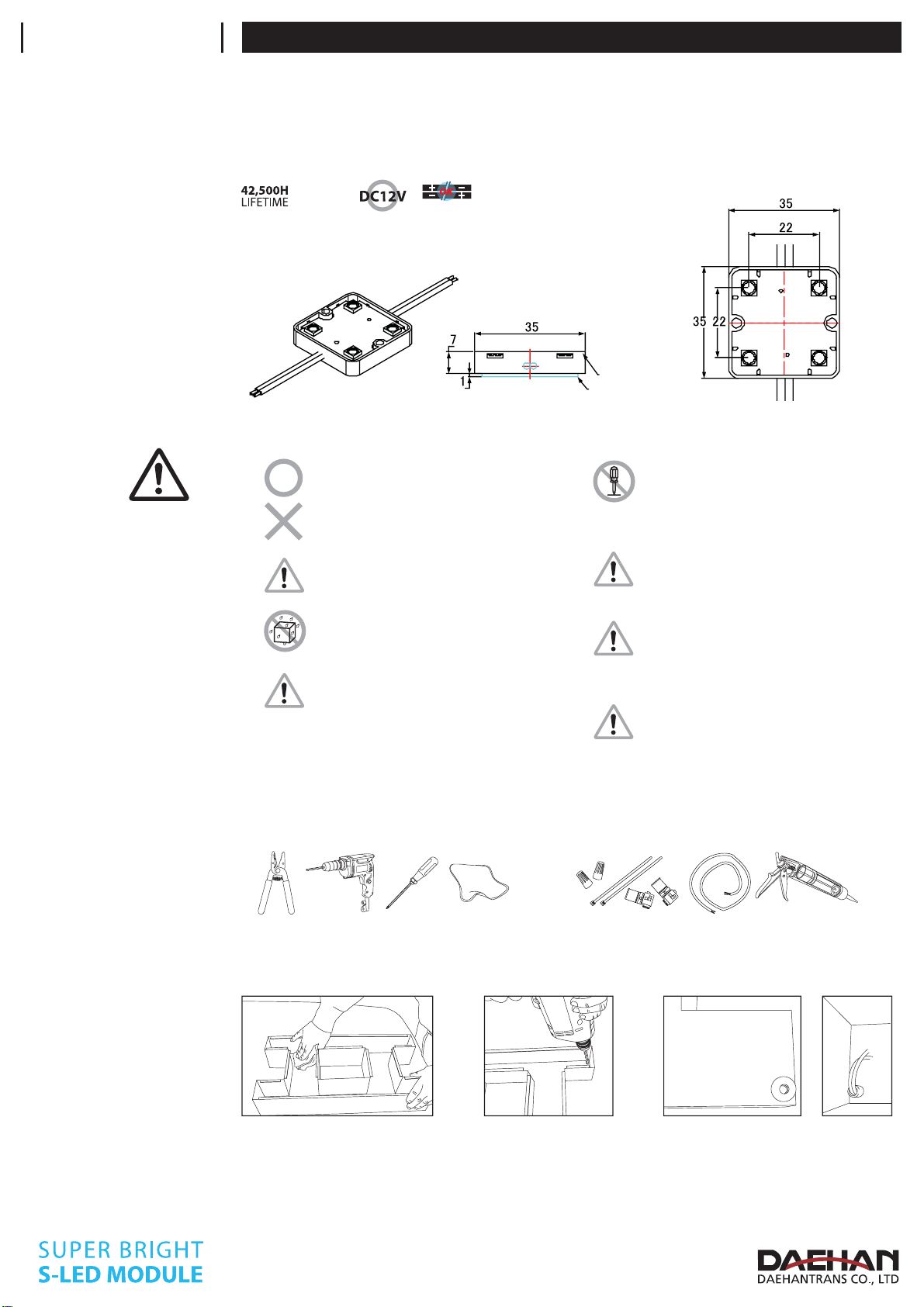

User Guide STAR N04 1
PHYSICAL
Use precautions to avoid damages to the product or injuries of users. Any actions against following contents will cause serious
issues such as malfunction, electric shock, or burn.
USE DC12V ONLY
DC12V
DO NOT USE AC INPUT
AC
INPUT
Do not cut or rejoion wires while product
is connected wth live power source
Maximum driver quantity per serial
connection is limited. Failure causes overload
of current and damages to the product
Refer to‘WIRE THICKNESS’table to use proper
wire thickness between SMPS and the rst
LED module
Failure will cause dimmed output
Cable length between SMPS and the rst LED
module is limited. Refer to ‘CONNECTION
WITH POWER SUPPLY’ on page 2
Do not use the product under circumstances
listed below
- High temperature spots over 60˚C (140˚F)
- Spots draw extreme moisture or dust
- Spots have corrosive gas or highly eectied
by electromagnetic eld
Avoid performing installation under rain or
high humidity for outdoor use
Do not perform actions listed below
- Alter or modify
- Touch LED lamps with sharp objects
- Put glue or silicon over the LED lamps
PRECAUTIONS
PREPARATION
PREPARE CHANNELS
1. Clean moisture and dust inside 2. Make holes 3. Use bushing to protect wires
1. Wipe out dust, water, and oil inside. 3M tape will come o easily if product is mounted on uncleaned surfaces.
2. Make holes for wires from modules to SMPS.
3. Without bushins, wires will easily be cut and short-circuit will occur.
*Use white paint inside the channels for better reection
SUPPLIES REQUIREDTOOLS REQUIRED
Wire Nuts, Cable Ties, IDC Connectors, VCTF(PLTC) Cable,
(Optional : Silicon and Screws)
Wire Stripper, Drill, Screw Driver, Wiper
ELECTRICAL
Current dissipation : 110 mA(Colored:70mA)
Power Consumption : 1.32 W(Colored:0.84W)
Operating power : DC 12V
Maximum serial connection : 50 modules
Electronic dimming control supported
THERMAL
Cooling : Ambient air
Maximum operating temperature : 50˚C
Minimum operating temperature : -20˚C
Maximum storage temperature : 60˚C
Minimum storage temperature : -20 C
SPECIFICATIONS
IP65
Nonpolar
Input Connection
Epoxy Molding
double sided tape
DAEHANTRANS CO.,LTD
#7-11 Songdo-Dong, Yeonsu-Gu, Incheon, Korea
User Guide STAR N04 2
Maximum driver quantity per serial connection is limited. Using more quantity per run will cause overload from SMPS which
damages all connected products. This will cause voltage drop and also dimmed lighting output.
CAUTION
Keep extension lead
wires as short as possible.
Refer to below table for
specic length.
CONNECTION GUIDE
80 mm 200 mm 400 mm 316 mm
Use 10% to 20% shorter length
than usual for circular arrange
Use recommended length for pitch between each module to achieve optimum lighting output while maintaining lowest unit
cost. Failure or misplacing will cause dimmed spots or uneven appearance of light on the surface.
LAYOUT DENSITY
GUIDELINES
RECOMMENDED PITCH PER DEPTH
120 mm
120 mm
200 mm
150 mm
100 mm
100 mm
70 mm
80 mm
RECOMMENDED LAYOUT DENSITY PER CHANNEL WIDTH
CONNECTION WITH
POWER SUPPLY
Output (W)
Model Name
Max Q’TY - Colors*
Recommended
Extension Wire
Output (A)
Max Q’TY - White*
Maximum Length
30W
2.5A
PSCS-0030-12
5M (15FT)
VCTF1.25
AWG18
60W
5A
PSCS-0060-12
5M (15FT)
VCTF2.0
AWG14
120W
10A
PSCS-0120-12
5M (15FT)
VCTF2.0
AWG12
600W
50A
PSCS-0600-12**
15M (50FT)
VCTF5.5
AWG4
1000W
83A
PSCS-1000-12**
15M (50FT)
VCTF8.0
AWG2
EXTENSION OF POWER SUPPLY LEAD WIRES
*Maximum quantity for S-LED is based on 85% of specied capacity of power supplies for extended lifespan
**PSCS-0600-12, PSCS-1000-12 are not weather-proof
Equip with protective box for outdoor use and the box should have ventilating holes
Make sure that each run should have 50 modules at max
and should use another run in parallel to connect more
Should use thicker wires which can take larger amount of current
than the amount transmitted from the power supply unit
Power Supply
AC Input
DC Output
30pcs
19pcs
60pcs
38pcs
120pcs
77pcs
610pcs
380pcs
1000pcs
650pcs
1st
2nd
49th
50th
1st
2nd
49th
50th
1st
2nd
49th
50th
1st
2nd
49th
50th
1st
2nd
49th
50th
DAEHANTRANS CO.,LTD
#7-11 Songdo-Dong, Yeonsu-Gu, Incheon, Korea
User Guide STAR N04 3

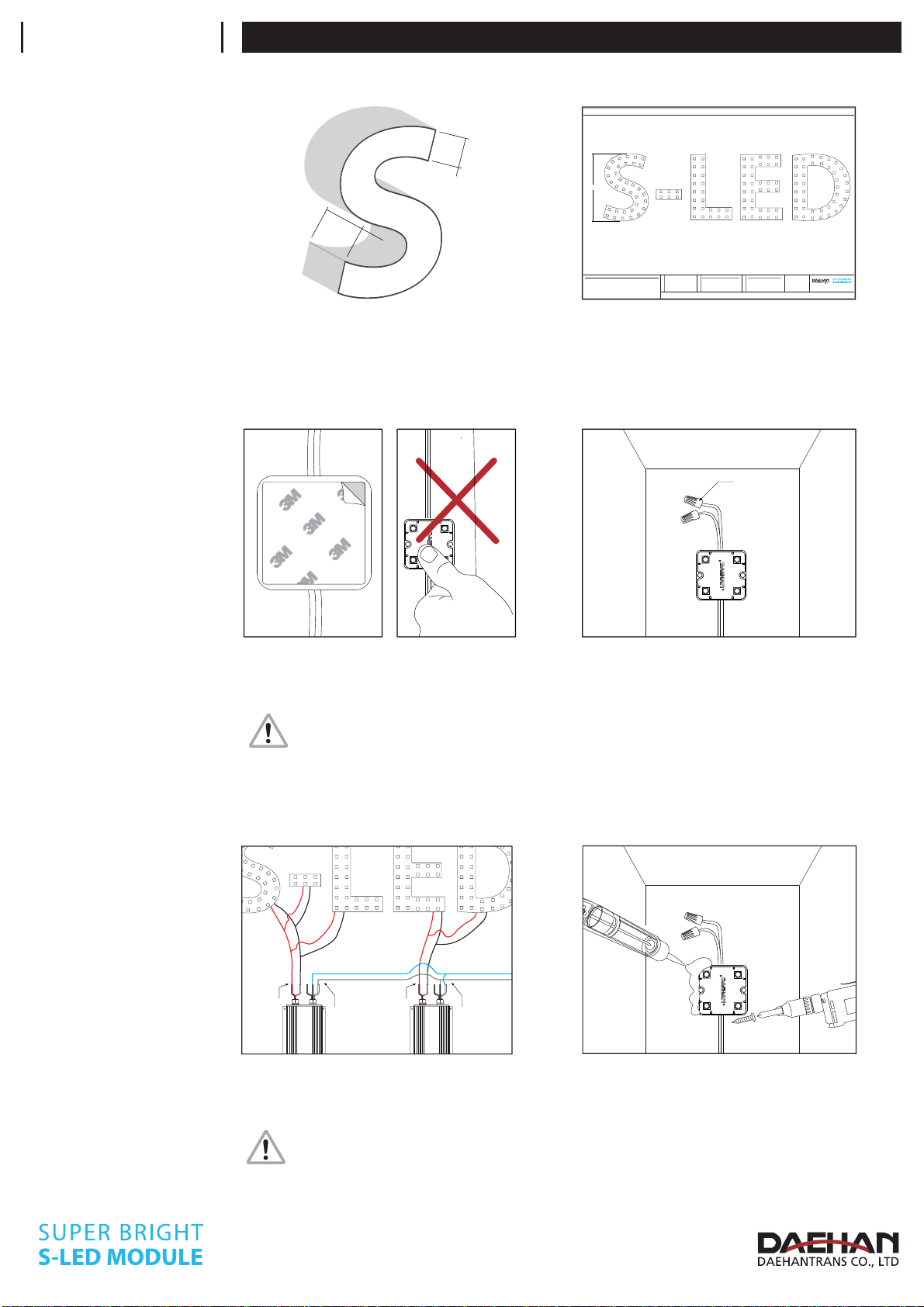

INSTALLATION GUIDE
Drawn by Brad Han
Date : 2009. 1. 1.
Rev.0 Tel: +82 32 858 0491
www.daehantrans.com
Fax: +82 32 832 8421
MATERIAL ESTIMATE
Attention to : John Doe Page 1 of 1
NUMBEROF SETInformation Model PowerSupply QuantityColor Quantity
STARC04 WHITE 143EA DC12V120W 2
S-LEDESTIMATE /SET
SUMMARY
POWERESTIMATE /SET
MODULEPITCH
1
QUANTITYPER SET 143EA
TOTALCLUSTERS 143EA
WATTAGEPER SET 187W
TOTALWATTAGE 187W
120mm
*Thisis for estimating purposes only. Material Estimates for S-LED system are based upon given font, letter height, depth, face material, and any special instructions. *Missing information will aect the nal results *Power consumption is calculated with extra 15% for extended life of power supplies
*Allsigns should be tested for acceptable color, illumination and operation. Use appropriate power supply for testing *Fordetailed information, please refer to the applicable S-LED product found under http://www.daehantrans.com/download/products2007.pdf
34
STAR C04 WHITE x 143
622 34 41
1000 mm
1. DETERMINE LAYOUT
Refer to‘LAYOUT DENSITY GUIDELINES’on page 2 to
determine spacing and amount of LEDs required.
SUPPORTS FOR OUR SIGNMATES
Ask us to obtain accurate layout
Stroke Width
Channel Depth
2. PEEL AND STICK
Using predetermined layout and LED placement
from step 1, remove 3M tape on the back of modules
and stick them into place. Ensure modules are rmly
attached on the surface.
CAUTION
When handling the module, avoid pressing
down directly on top of LED lamp
The strand of modules should not be looped to
create a closed circuit.
3. CAP ALL UNUSED WIRES
Using predetermined layout and LED placement
from step 1, divide channels into sections and
distribute each section to corresponding power
supplies.
CAUTION
Before connect with power supplies, check
polarity on every connections
4. CONNECT WITH POWER SUPPLY
12
0
AC Input
DC Output
12
0
AC Input
DC Output
FASTENERS : If desired, modules can be secured
with M2.5*15 metal screws.
SILICON : If desired, modules can be secured with
silicon. Do not to put silicon on the top of the LED
lamps.
5. FIX MODULES PERMANENTLY
Wire Nut
DAEHANTRANS CO.,LTD
#7-11 Songdo-Dong, Yeonsu-Gu, Incheon, Korea
User Guide STAR N04 4
Entire sign or leg does not light
after complete installation.
Check connection from power supply lead to rst module. Make sure polarity of connec-
tions made at the power supply lead and any jumper wire is correct. Power supply outputs
should be connected red-to-red and white-to-white.
Check output voltage of power supply using a voltmeter. The output voltage should be
12.0VDC ± 0.5VDC. If there is no output voltage, have a licensed electrician check input
voltage. Make sure power supply is connected correctly and getting primary power.
Probably AC input wire is connected to ground terminal of power supply. If power supply
is connected properly and getting primary power and there is still no output voltage, try a
dierent power supply.
Still does not light.
If power supply is getting primary power and the modules do not light, there may be a short
in the secondary wiring. Check all connections and cap all loose wires.
Still does not light.
The primary cause of a portion of a S-LED leg not lighting or lighting intermittently is a bad
connection or reverse polarity connection between the modules that light and the modules
that don’t light. Check this connection.
Beginning of a leg lights, but the
entire leg does not light or lights
intermittently.
S-LED is designed so if one module fails, it will not cause the entire sign or leg to go out. If one
module does not light, but all others in the leg do, replace this module with a new one.
One module does not light, but
all others in the leg light.
Check each run has no more than maximum number of modules. Also ensure that type of
the extension wire from SMPS to the rst module is correct. If wires are not thick enough
to transmit current from SMPS, this will cause voltage drop and will dim the modules at
All modules light, but some of
them are dimmed.
Channel depth is too low, or center distance between modules is too far. Refer to 'LAYOUT
DENSITY GUIDELINES' for more information.
Dark spots or dimmed spots
occur.
Covering acrylic is not intended for LED illumination. Use light diusing acrylic sheets
which are specially made for LED light source.
Still has spots.
TROUBLE SHOOTING
DAEHANTRANS CO.,LTD
#7-11 Songdo-Dong, Yeonsu-Gu, Incheon, Korea
