Fedora S9 Bedienungsanleitung
Instruction manual
Contents
1. Safety precautions
2. Parts list
3. Assembly
(1) Rear wheel/Rear wheel axle assembly
(2) Main frame unfolding
(3) Seat assembly
(4) Safety guard/canopy assembly
4. How to operate
(1) Folding
(2) Seat operation ( seat reclining adjustment/seat separation for rear-facing)
(3) Footrest /safety guard
(4) Swivel front wheel lock/brake
(5) Safety harness
5. Cup holder
6. Installation/removal of the seat
7. Other safety instruction
8. Cleaning and Maintenance
9. Warranty
1. Safety precautions
Please read through the instruction manual before using the product.
Type B is suitable for infants between 7months and 2 years of age. It is recommendable to limit the continuous use of the
product within one hour.
Do not put more baby than fixed number. Do not put the baby other place than hammock.
Make sure that safety belt (5-point harness) is fastened before using
Do not let the baby stand alone in the center of the stroller.
Do not lift or move the stroller with the baby in the stroller.
Tighten the safety belt to fit the baby in order to prevent the baby from falling out.
It is important to make sure that the stroller is completely unfolded and stretched, and the safety locking device is perfectly
locked every time seating the baby in the stroller.
Keep the speed of the stroller within walking speed of the protector.
Do not run at the cross road with traffic signals. Do not run even on the flatland.
Do not put toys or objects with strings around the baby in the seat of the stroller.
Take the baby out of the stroller at uneven land including the heel, slope, stairs and escalator and move the stroller separately.
Protector s special care is required even on the mild slope.
Care needs to be taken so as the baby s fingers or toes are not caught in the gap when adjusting the back rest angle,
converting the handle and operating the canopy.
Stroller may be overturned by the change of center of gravity, if the baby in the stroller moves too much towards shoulders,
right, left, forward or backward.
Caution: This seat is unsuitable for babies under six months of age.
Do not place hot or heavy object on the tray.
Danger
Warning
Caution
Caution
Improper handling may cause the user high level of danger including death or heavy injury and an absolute emergence.
Improper handling may cause the user high risk of danger including death or heavy injury.
Improper handling may cause the user the risk of injury or property damage.
Please keep the instruction manual in the safe place for continuous safe use of the product.
Danger “Warning” and “caution” signs are classified in accordance with the expected danger in case of failure of meeting
safety precautions. Therefore, it is important to follow the instructions.
“”
,
seat reclining lever
cup holder
canopy release
button
canopy
holder
seat release button
folding lock
rear wheel
release button
brake
basket
2. Parts list
footrest
footrest adjustment button
swivel front wheel lock
folding
safety lock
safety guard
canopy
waist belt
shoulder
belt
clip
buckle crotch
pad
safety
lock device
folding
button
Press the rear wheel release button in the middle of the rear wheel as in the picture 1 and
connect
to axle 2.
Follow the same way for the other side of wheel. Insert coupled axis to frame as shown 3 until
there is a clicking sound. In case click sound is not heard when wheel axle is connected to frame,
please check for making sure wheel does not fall out when pulled by hand before use.
In case the frame is completely folded after stroller is opened, rear wheel axle assembly may not
be smooth. In this case, unfold the frame firstly following the instructions in step 2 and assemble the
rear wheel axle.
3. Assembly
1. Rear wheel / rear wheel axle assembly
2. Main frame unfolding
To unfold the stroller, please release the folding lock ① as shown in figure 1 first. Firstly, grab the
handle with one hand and grab the folding handle ③ on both sides with the other hand and pull
the handle ② to arrow direction, then frame will be unfolded.
Be careful not to put your fingers in the folding area when unfold the stroller.
Please check again to make sure stroller is unfolded and fixed properly.
Before you unfold the stroller, Please check there is no kid around.
In case rear wheel release button does not restore to its original position when it is pressed,
please separate it by pressing one more time and assemble it again. If the same symptom
occurs even though same procedure is taken one more time, do not use it and contact the
store where you bought the stroller and get replacement or use it after A/S. Please check
once again whether wheel is connected to wheel axle properly, and wheel axle is connected
to the frame properly.
Attention
Attention
Picture 1 Picture 2
3. Assembly
3. Seat assembly
You can install the seat both forward-facing and rear-facing.
Assemble it to the direction according to time and preference.
As shown in the picture left, assemble the insertion area and seat
connection area located both sides of the frame to fit exactly with
each other.
When separating seat, press seat release button located on the
upper part of both sides of the assembled seat simultaneously and
pull upward and separate.
Make sure to check if brake is locked before seat assembly.
Be careful not to put your finger in the connecting area when
assembling the seat.

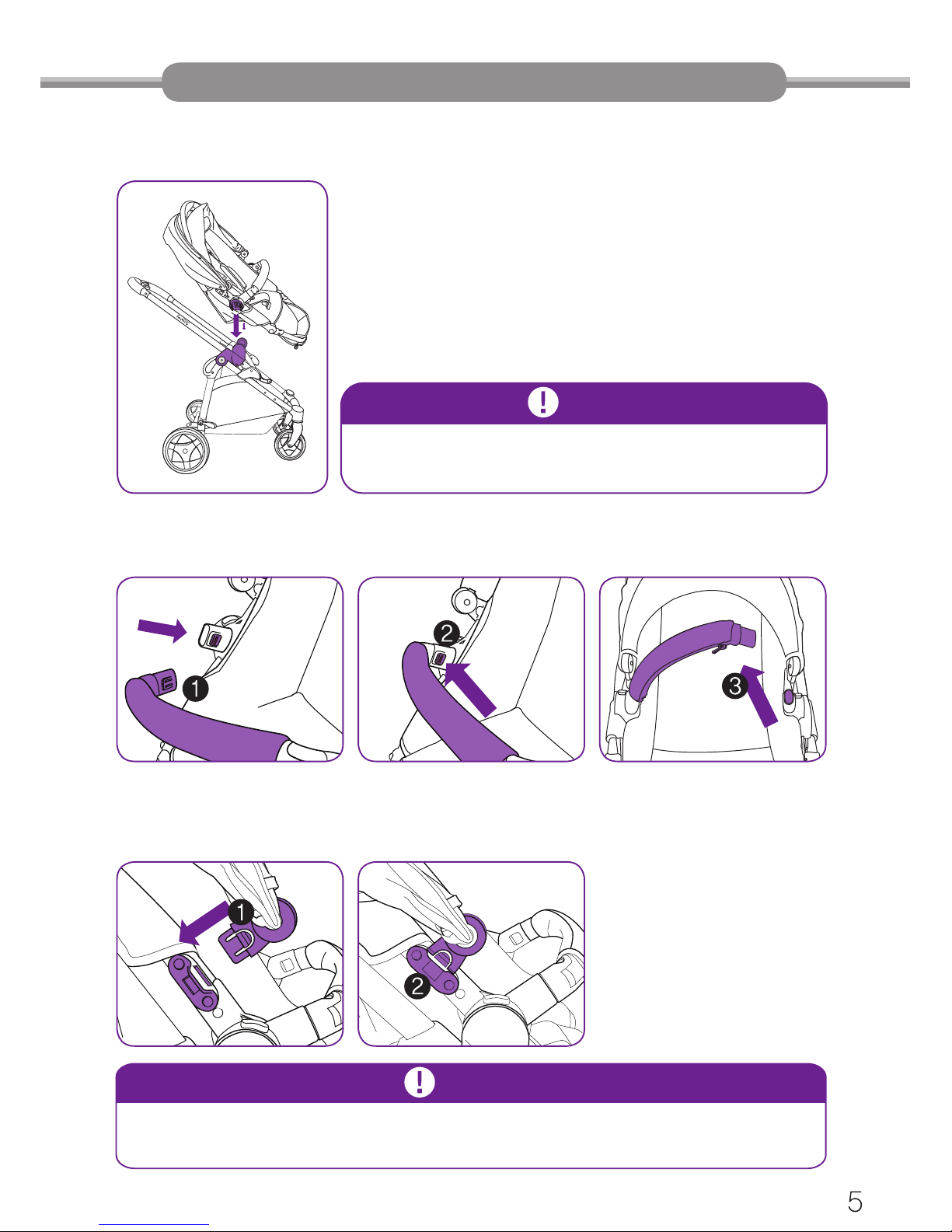

4. Safety guard / canopy assembly
To maximize the safety of the child, safety guard is installed in addition to the seat belt. Safety guard
is installed by inserting guard release button into guard holder ②. Guard release button in opposite
side can be installed by same manner by rotating same direction as arrow ③.
Make sure safety guard is installed correctly before use.
Canopy installation can be done by
connecting shade release button ①
to the shade holder ② as shown on
the picture in left.
Please pay attention not to put your hand in the gap when installing safety guard.
In case angles of the canopy release button on both sides are different, install the
canopy after checking “Other instructions” in page 12.
Attention
Attention
4. How to operate
1. Folding 一 This product can be folded for storage and movement purpose.
Firstly, press the safety lock device (black color) ① located on the bottom part of the center of the
stroller handle to arrow direction and at the same time press the folding button (gray color) ② by
pressing to arrow direction and release it. Release the folding button and push down the handle to
arrow ③ direction.
Stroller can be tipped over when pressed excessively hard.
Hold the folding safety knob located at the right side with right hand and press the folding safety lock
④ located at the top of the left folding knob with left hand.
Folding safety lock can be damaged in case it is pressed too strongly.
Attention
Attention
4. How to operate
Hold the right side folding knob and press the folding safety lock at left side of folding knob to arrow ⑤
direction, and pull it gently until the end.
Pull it toward body until the end with two hands.
Attention
When folding or unfolding the stroller, keep the baby away from the stroller.
Make sure the folding lock device ⑥ which operates auto
matically is fastened properly.
Take the reverse order for unfolding.
Attention
In case it does not operate properly, stop using and contact the store where you bought the product.
4. How to operate
2. Seat operation (reclining adjustment / seat separation for rear-facing)
Attention
Seat reclining can be adjusted up to 170 ◦ degrees via 3 step. Desired angle can be adjusted by
lifting up seat reclining lever ① as shown by arrow. Seat reclining can be adjusted up to 3 levels
for both of forward-facing and rear-facing.
1step : Seat mode 2step : Rest mode 3step : Sleep mode
Seat of this stroller can be separated
and available for both forward-facing
or rear-facing position. Seat can be
separated by pressing seat separation
button ® on the right and left side of
t
he safety guard and pull it to upward
direction.
When adjusting seat reclining angle, make sure to use it after locking the break.
3. Footrest adjustment / safety guard adjustment
Press the footrest adjustment button ①
located at both ends of both footrest
and desired angle adjustment can be
done via 8 step.
Safety guard can be opened and used
as shown in arrow ②.
4. How to operate
Warning
4. Front wheel direction setting / Break operation
When road surface level is flat
(fixed status is released)
When road surface is not flat
(fixed status is maintained) Break set Break release
Use this stroller with the condition that direction of front wheel is fixed toward front side in order wheel
is fixed and moves only forward. When using this on the even road, move down the front wheel lever
and release the fixing before use.
The stroller is fixed when the break located between the rear wheels is pushed down.
(To release, lift the break up conversely, then fixing is released and stroller can move.)
When the front wheel fixing lever is lifted up, front wheel is fixed and only forward movement is possible.
Even though break is set, do not leave the baby alone to prevent any emergency case happen.
5. Safety belt adjustment
Warning
Make sure of fastening the safety belt when seating the baby.
Adjust the belt to fit the baby’s body shape.
As shown on the left picture, insert the left and right clip of
waist belt into buckle.
(When releasing, push down the buckle①, then clip is separated.)
Adjust the length of the belt according to body shape of the
baby using regulating ring.
