FEITIAN K33 Bedienungsanleitung
K33 Demo guide with Microsoft services
Contents
1. Introduction..................................................................................................................................................2
2. Security key management.......................................................................................................................2
3. HID interface................................................................................................................................................6
3.1 Microsoft account ........................................................................................................................6
3.2 Windows Hello for business (Azure Active Directory) .................................................. 10
4. BLE interface ............................................................................................................................................. 19
4.1 Microsoft account ..................................................................................................................... 21
4.2 Windows Hello for business (Azure Active Directory) .................................................. 21
5. NFC interface............................................................................................................................................ 22
1. Introduction
This document describes how to use FEITIAN’s K33 to demo Microsoft’s services via HID,
BLE and NFC interfaces.
2. Security key management
Note: enrollment of fingerprint needs to be done via USB cable.
Users can manage fingerprints, PIN or reset a security key straight from Settings if the
platform is Windows 10 Insider Preview Build 18298 (19H1) and above or 1903 and above
via the selection of Sign-in options/Security Key tab.
Note: Reset requires to be done with 10 seconds after powering up, and a touch is
needed to prove user presence.
Figure 1 Windows 10 Security Key Settings Page
Users can manage fingerprint, PIN or reset a security key by using FEITIAN’s BioPass FIDO2 manager
on the Microsoft Store if platform is lower than Insider Build 18298 (19H1) or lower than 1903.
This guide will explain enrolling a fingerprint on the BioPass FIDO2 Manager.
Before using the Feitian BioPass FIDO2, users are required to initialize and enroll a fingerprint onto
the security key using ‘BioPass FIDO2 Manager’. The application can be downloaded via Microsoft
Store.
Enroll your first fingerprint.
1) Launch the BioPass FIDO2 Manager and plug in the FEITIAN BioPass FIDO2. Figure 2, see below,
will appear.
Figure 2 BioPass FIDO2 Manager
2) Click “Add Fingerprint.” You can choose using fingerprint only or set both pin and fingerprint for
a verification method as shown in Figure 3. (Once you choose one option, you cannot change to
the other option without resetting the device)
Figure 3 Verification Settings Page
3) If you choose “PIN and Fingerprint,” you will then be prompted to set a PIN. Numbers, letters
and special symbols are supported.
Note: Setting up a PIN requires user to touch the sensor to prove user presence.
Figure 4 PIN Setup
4) Add a fingerprint by following the instructions.
Figure 5 Fingerprint Enrollment
5) After a fingerprint has been successfully enrolled, a fingerprint will be listed in the text box.
Figure 6 BioPass FIDO2 Manager with Fingerprint Enrolled
6) The BioPass FIDO2 Manager allows you to test your fingerprint, remove your fingerprint and
change your pin to enjoy your secure authentication experience.
Test Fingerprint
This function is for the user to test the fingerprint verification.
Note: This testing function will trigger the block device procedure mentioned above.
Remove fingerprint
1) Choose the fingerprint you want to delete. (“Fingerprint 2” as shown in Figure 7)
Figure 7 BioPass FIDO2 Manager with Fingerprint Enrolled
2) If a Pin has been enrolled, you will need to choose a verification option
Figure 8 Verification Options
3) After verification, the fingerprint will be removed.
Change Pin
Press “Change PIN” in the BioPass FIDO2 manager to change a PIN.

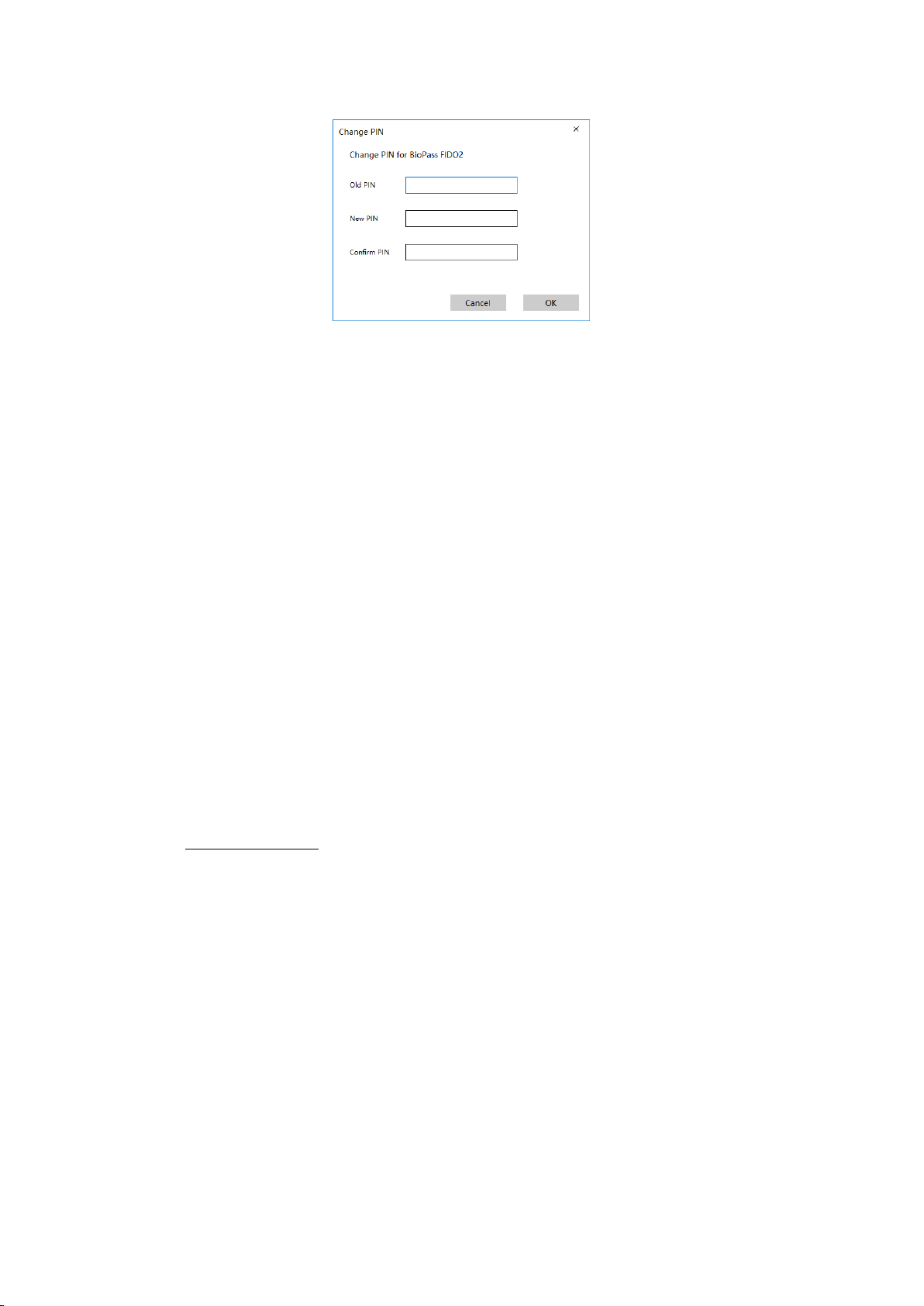

Figure 9 Change PIN
Reset Device
Note: when you reset your device, all data stored will be deleted including your credentials.
This operation need to be done with 10 seconds after the security key is powered up, and a touch
is needed to prove user presence.
3. HID interface
K33 security key is plugged into your PC via a USB cable.
3.1 Microsoft account
Requirement: Windows 10 Version 1809 or later and the Microsoft Edge browser
Provision a security key to your Microsoft Account
Go to the Microsoft account page and sign in as you normally would.
Select
Security > Update
Figure 10 Microsoft Account Settings Page
Choose
More security options
.
Figure 11 Microsoft Account Basic Security Settings
Under Windows Hello and security keys, select
Set up a security key.
Figure 12 Microsoft Account Security Page
Identify what type of key you have (USB or NFC) and select
Next
.
Figure 13 Security Key Setup
You will be redirected to the setup experience where you will insert or tap your key.
Figure 14 Security Key Setup
Create a PIN (or enter an existing PIN if you have already created one), otherwise if you
have already enrolled a fingerprint, you will only need to verify the fingerprint.
Figure 15 Security Key Setup
Take the follow-up action by touching either the button or gold disk if your key has one (or
read the instruction manual to figure out what else it might be).
Name your security key so that you can distinguish it from other keys.
Figure 16 Security Key Setup
Sign out and open Microsoft Edge, select Use Windows Hello or security key instead, and
sign in by inserting or tapping your key.
3.2 Windows Hello for business (Azure Active Directory)
Set up shared Windows (Joined AAD)
This chapter introduces how we FEITIAN setup the joined PC environment and provisioning a
security key to your account.
Requirement: Windows RS5 or above.
Go to setting’s page and click
‘Access work or school’
selection in
‘Account’
. Click
‘Connect’
button.
On Pup-up window, click
‘Join this device to Azure Active Directory’
and click
‘Next’.
