Ferplast Cayman 40 plus Bedienungsanleitung

cayman 40 plus

cayman 40 colour

cayman 40 classic

tridonic, philips

SOSTITUZIONE REATTORE ELETTRONICO

N.B. Prima di svolgere qualsiasi operazione,

scollegare la spina dalla rete di alimentazione.

Tali operazioni devono essere svolte da Personale

Qualiﬁcato.

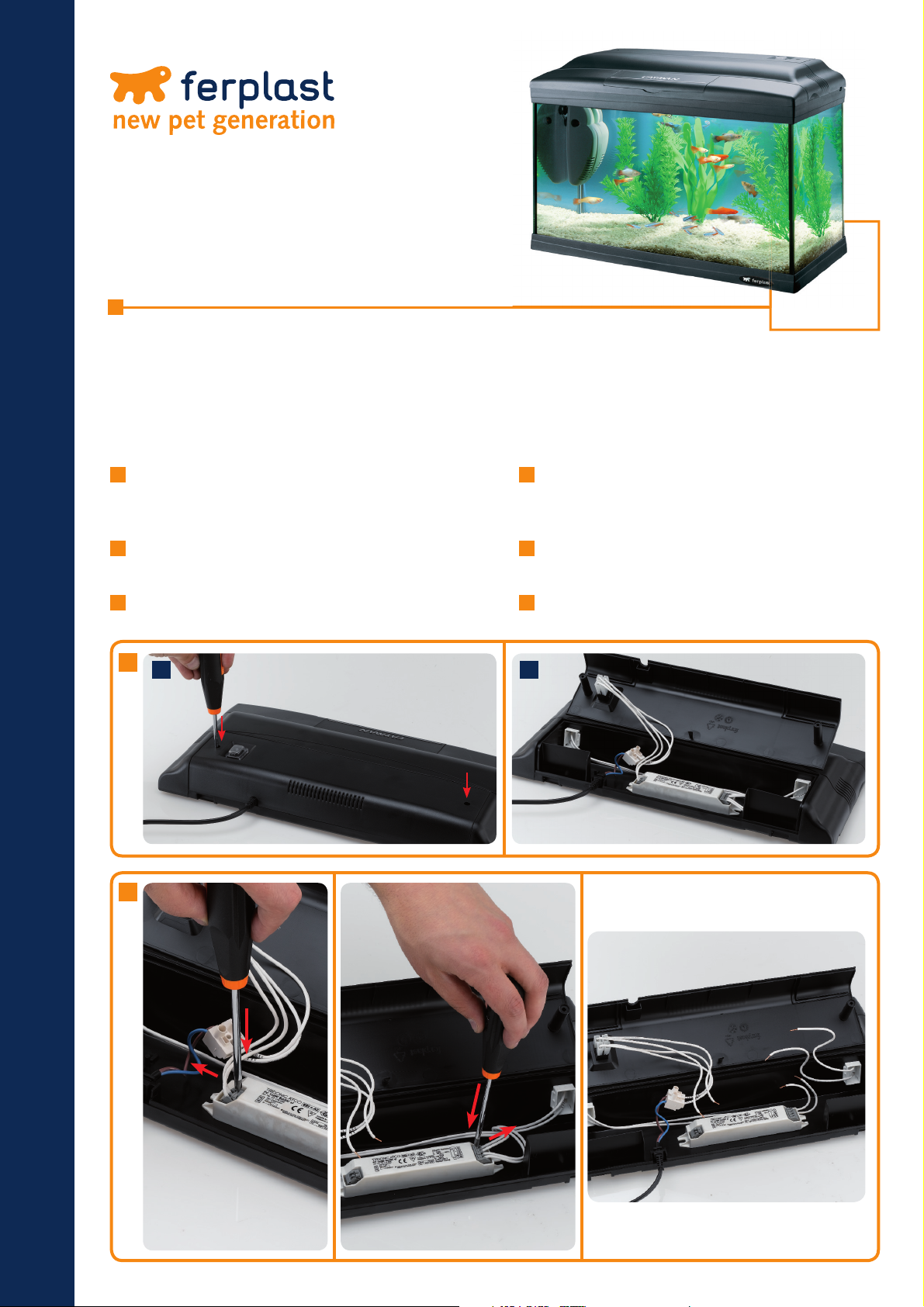

Svitare le due viti presenti nella parte posteriore del

coperchio (a) e sollevare lo sportello posizionandolo

come indicato in ﬁgura (b).

Scollegare i cavi del reattore elettronico premendo

con un cacciavite sui bottoni della morsettiera.

Staccare il reattore elettronico, ﬁssato alla base da un

biadesivo.

ELECTRONIC BALLAST REPLACEMENT

N.B. The following operations must be done by

a qualiﬁed electrician. Before carrying out any

installation it is recommended to pull out the

plugs from the power supply

Unscrew the rear part of the aquarium cover (a),

open it and put in the same position as shown in

the picture (b).

Disconnect the electronic ballast by pressing on the

buttons of the terminal board using a screwdriver.

Remove the electronic ballast, which was ﬁxed on

the lid by means of a biadhesive tape.

a b

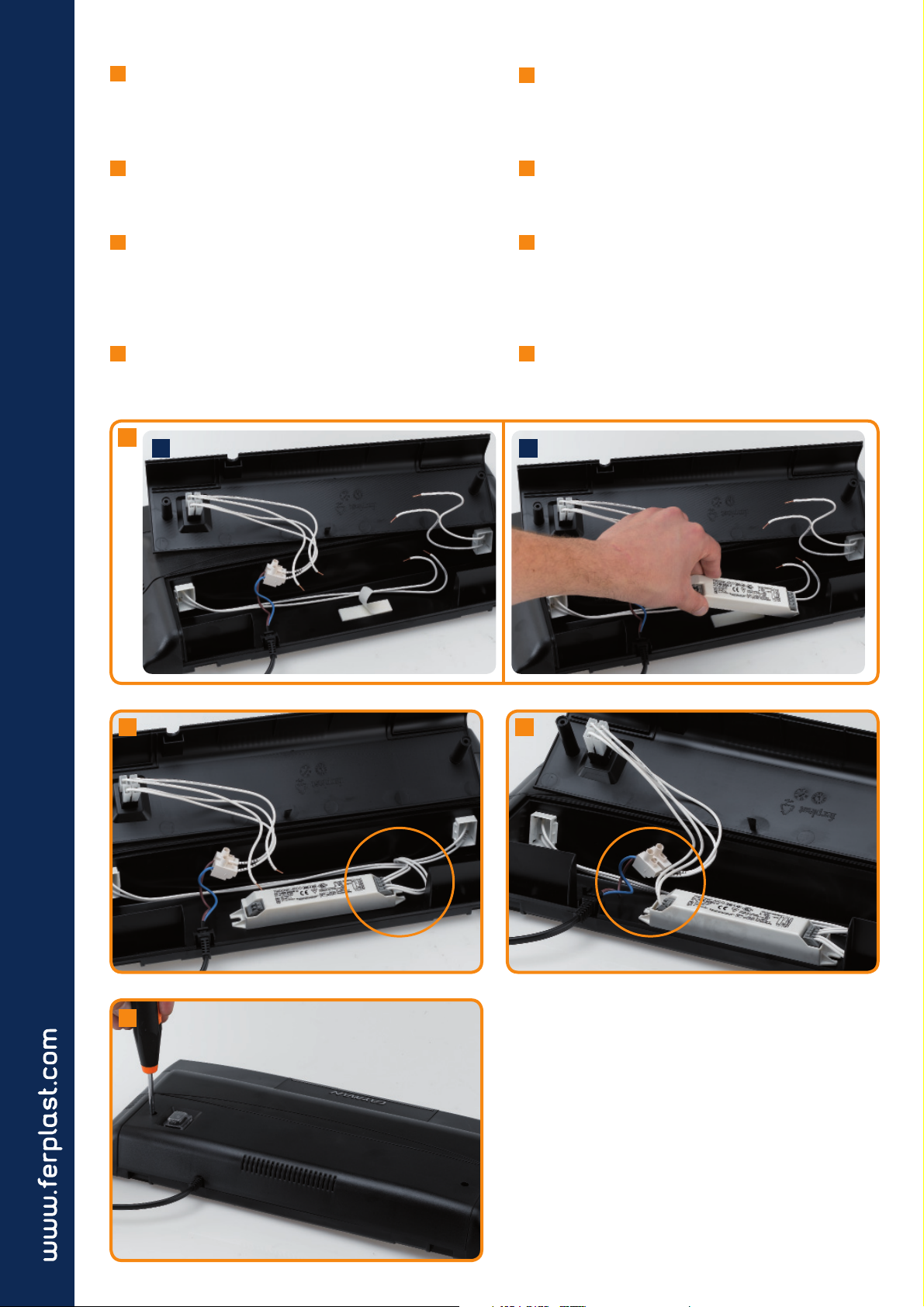

Place the new electronic ballast on its proper hou-

sing, ﬁxing it by a new biadhesive tape, to be stick

on the lid before this operation.

Connect the cables coming from the nearest lamp

holder to terminal board 3 and 4, the cables from

the farther lamp holder to terminal board 1 and 2.

Bipolar version: connect the cables coming from

the switch to the ballast terminal board.

Unipolar version: connect the cable from the

switch and the one from the terminal board to the

ballast.

Assemble the rear cover and screw it.

Posizionare il nuovo reattore elettronico

nell’apposita sede (b), ﬁssandolo con del nuovo

biadesivo, precedentemente applicato sul

coperchio (a).

Collegare i cavi provenienti dal portalampada

più vicino ai morsetti 3 e 4, mentre i cavi del

portalampada più lontano ai morsetti 1 e 2.

Versione bipolare: collegare i cavi provenienti

dall’interruttore ai morsetti del reattore.

Versione monopolare: collegare il cavo

proveniente dalla morsettiera e quello proveniente

dall’interruttore ai morsetti del reattore.

Riassemblare il coperchio posteriore ﬁssandolo con

le 2 viti.

5 5

7 7

363179-1

6 6

4a b

5 6
