Domino JointerPage 1

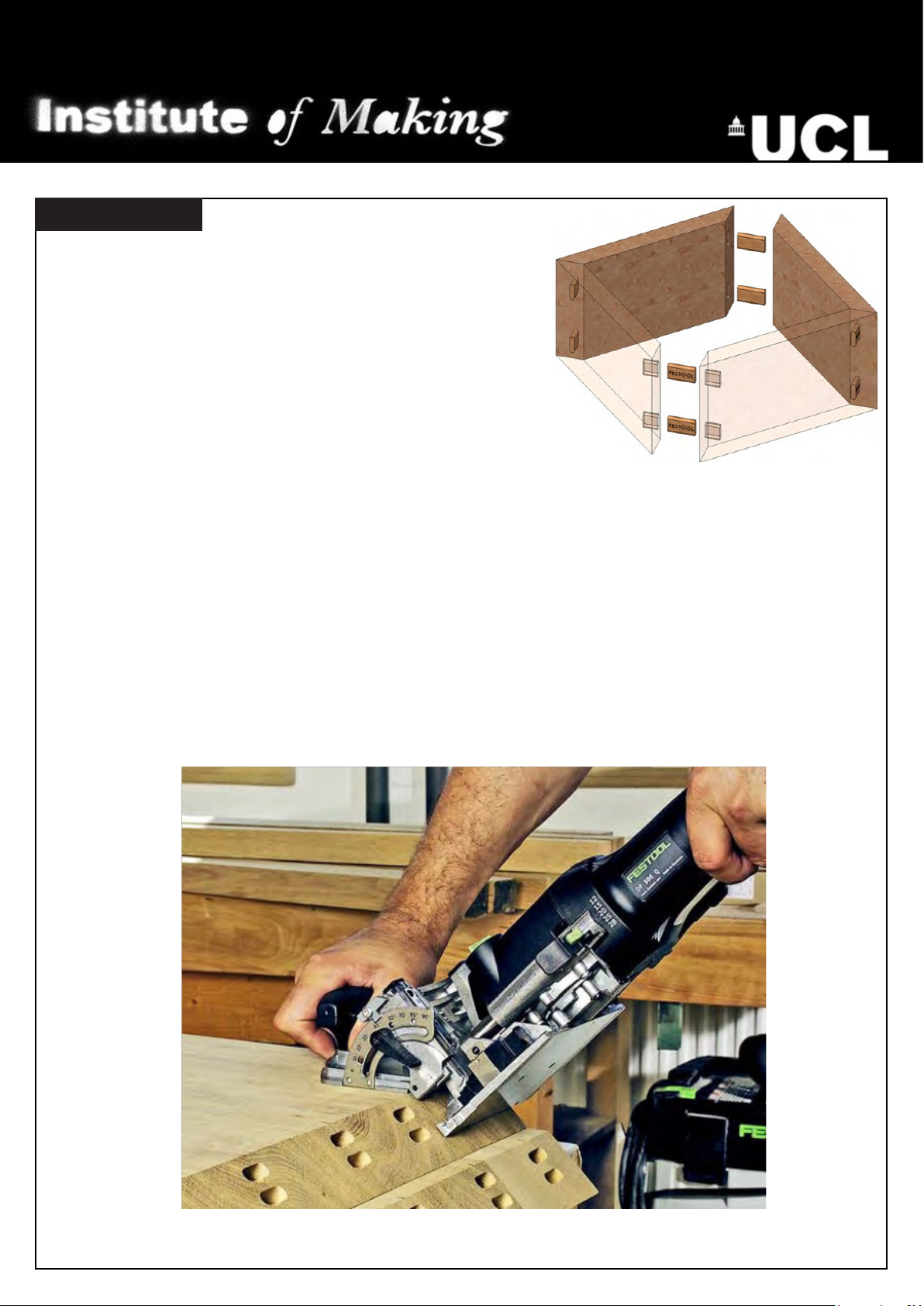

Tool Description

This tool cuts mortises in the manner of a biscuit joiner. A drill-like

rotating cutter cuts a round-ended mortise. Each plunge creates

a mortise that is sized to accept a Domino loose tenon, creating

joints in stock.

General Tool Safety

PPE

• Always wear eye protection.

• Wear a dust mask were appropriate.

• Wear hearing protection.

• DO NOT wear gloves.

• If you are in doubt, ask a technician.

Safe working area

• Do not wear loose clothing.

• Remove Jewellery.

• Keep hair tied up.

Consider those working around you, inform them before starting the equipment so they can

use relevant PPE, ensure there are no trip hazards and reassess the area once all cables and

extraction hoses are connected.

Do not use a power tool while tired or rushed. A moment of inattention and incorrect use of PPE

while operating power tools may result in serious personal injury and or death.

Power Tool Use and Care

Do not put the power tool under undue force. It should be easy to cut into the material.

Check you are using the correct settings and ask a technician for help if needed.

Do not use the power tool if it makes a loud or irregular noise.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot

be controlled with the switch is dangerous and must be brought to the attention of a technician

before further use.

Disconnect the plug from the power source before making any adjustments, changing

accessories, or storing the tool. This will reduce the risk of starting the tool accidentally.

Use sharp and clean cutters. If the cutting tool looks blunt, worn or chipped, bring this to the

attention of a technician before continuing. Properly maintained tools with sharp cutting edges are

less likely to bind (get stuck) and are easier to control.

Domino JointerPage 2

Check material condition before cutting. Remove any foreign objects such as nails or screws

from the material to prevent damaging the tool and its cutters. Do not use green or wet wood as the

water and sap content can damage the tool and its cutters.

Functional Description

A Domino Joiner is used to cut mortises in wood for oating tenon joinery. Mortise and tenon

joinery is one of the oldest and strongest methods of joining pieces of wood together. A rotating and

oscillating cutter sweeps across the workpiece to quickly and effortlessly cut a uniform mortise, in

which a Domino oating tenon is inserted with wood glue.

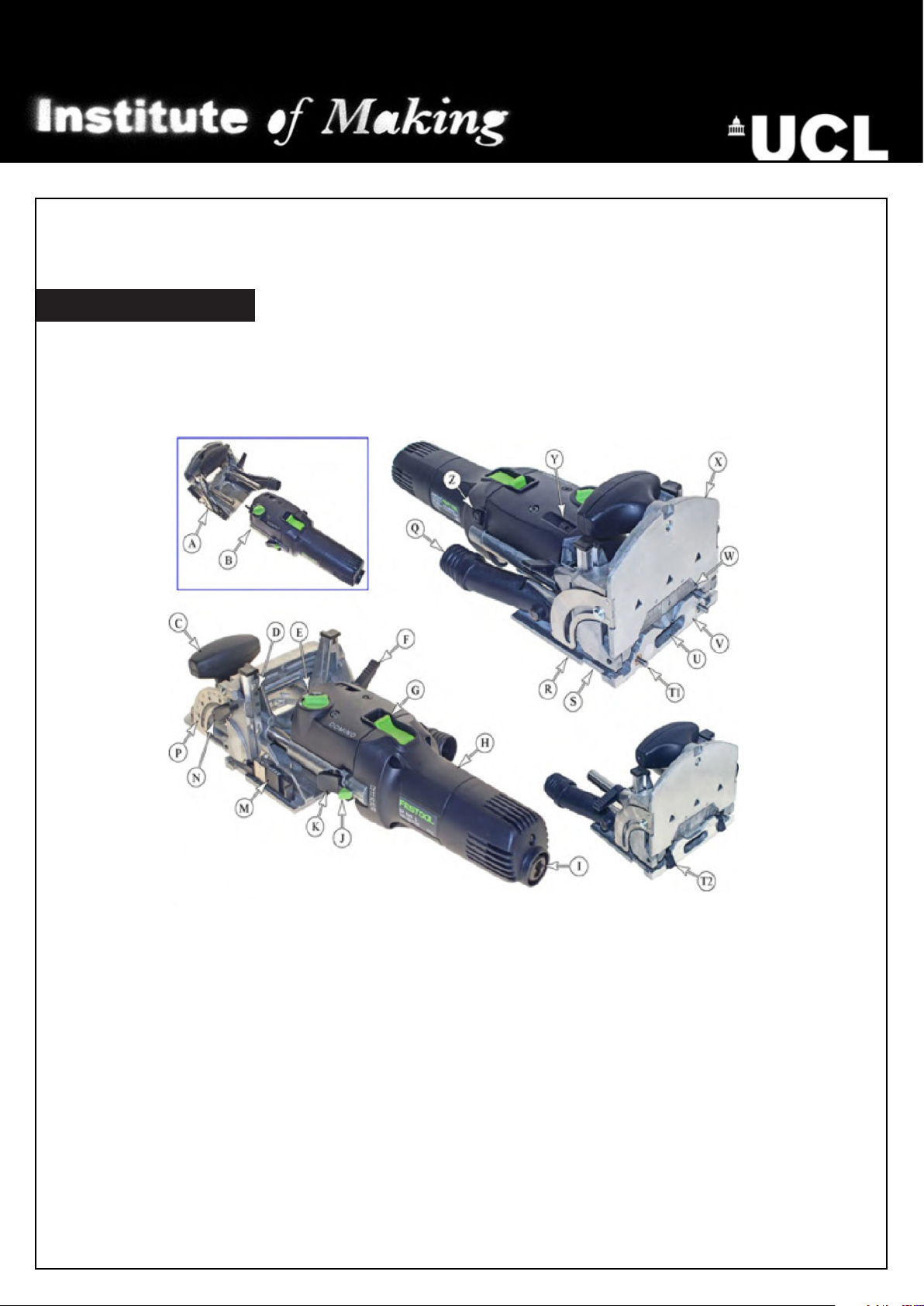

Item Name or Description

A Fence Body

B Motor Housing

C Auxiliary Handle

D Fence Height Gauge

E Mortise Width Dial

F Fence Height Locking Lever

G Power Switch

H Main Handle (barrel grip)

I Plug It® Power Inlet

J Depth Adjust Lever

K Depth Adjust Lock

M Board Thickness Gauge

Item Name or Description

N Fence Angle Locking Lever

P Fence Angle Gauge

Q Dust Extraction Port

R Baseplate

S Outrigger Mounting Slot

T1 Locating Pins (qty. 2)

T2 Edge Stop Dogs (qty. 2)

U Mortising Bit roat Opening

V Friction Pads (qty. 2)

W Horizontal Position Gauge

X Adjustable Fence Face

Y Fence Body Release Lever

Z Spindle Lock

Domino JointerPage 3

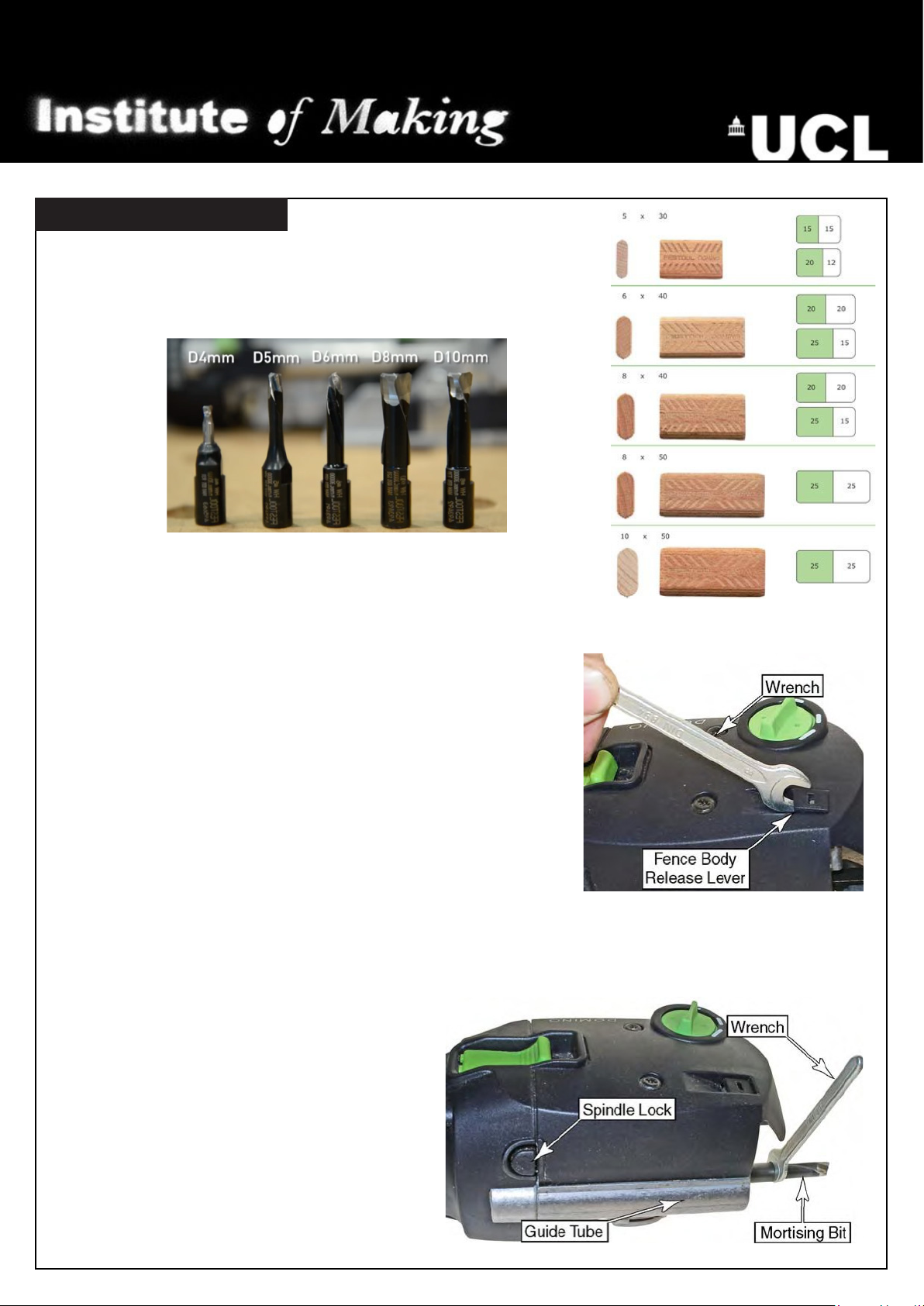

Changing the Mortising Bit

Different mortising bits are available for a variety of Domino tenon

sizes.

1. Using the provided 8mm wrench, pry up on the fence body

release lever, and slide the fence body off the motor housing.

2. Press and hold the spindle lock button. This stops the spindle

from turning while you loosen the mortising bit.

3. Loosen the mortising bit by turning it counter-clockwise

(standard right-hand thread).

4. Insert a new mortising bit and start the threads by hand to

avoid cross-threading.

5. Press in on the spindle lock while tightening the bit. Do not over tighten the bit.

6. Carefully reinstall the fence body onto the motor housing and push the fence body in until the

latch clicks. Make sure there is no sawdust

inside the guide tubes (hollow tubes) before

inserting the fence body.

Domino JointerPage 4

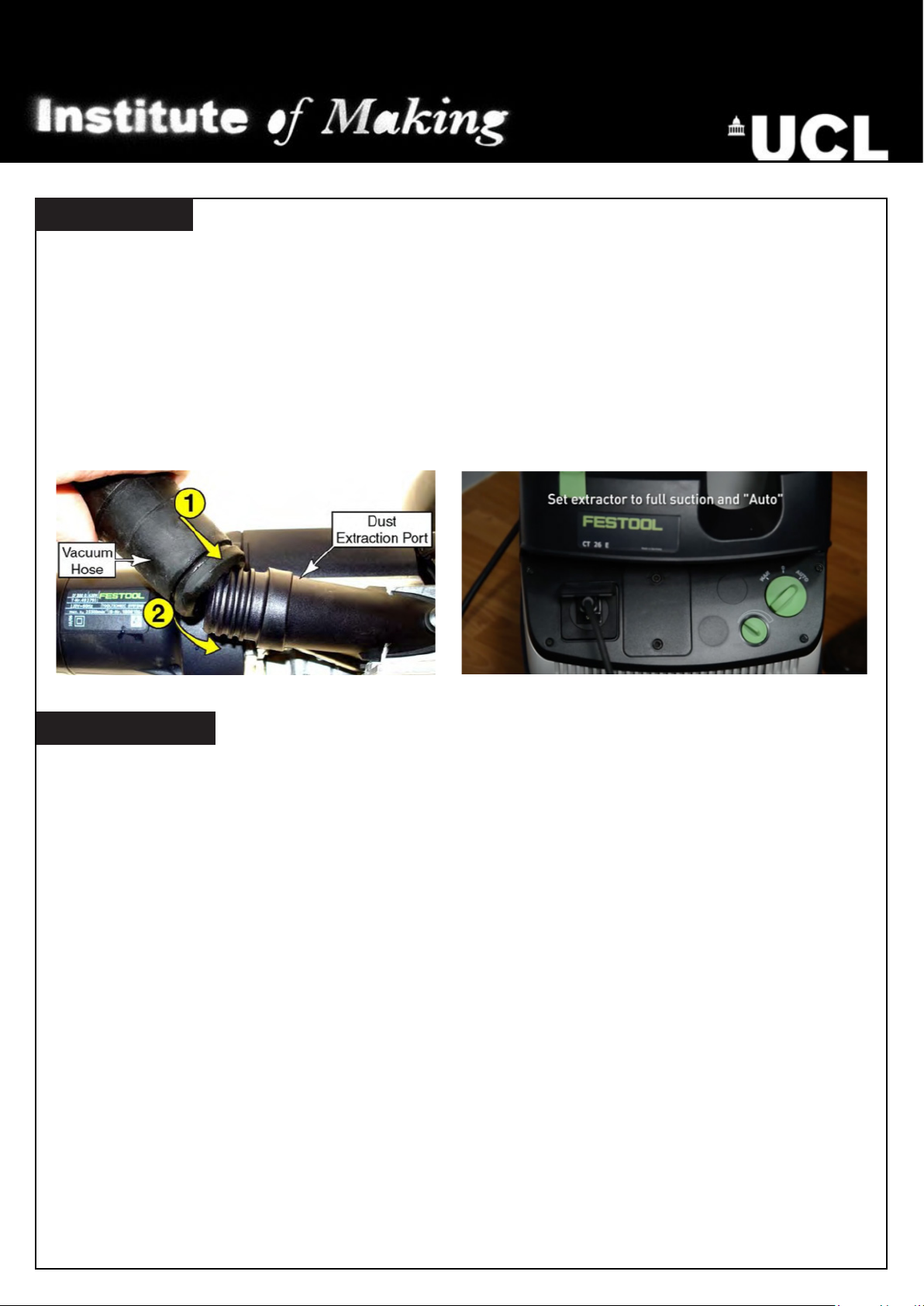

Dust Extraction

The Domino joiner is intended to be used with a dust extraction system. Using the machine without

dust extraction will cause it to clog with wood chips.

When installing a Festool dust extraction hose onto the dust port of the machine, it is easiest to

insert the hose at an angle and then push it on the rest of the way, as shown in the photo.

Plug the power tool cable into the front of the extractor and set to full suction and Auto.

If you need to make further adjustments to the tool, ensure the extraction is not plugged in so the

tool cannot accidently start.

Fence Adjustment

Fence Height. The height of the fence needs to be adjusted depending on the type of joint being

made and the thickness of the material being joined.

There are two features available for setting the fence height; the height gauge and the board

thickness gauge.

The Height Gauge shows the distance between the bottom of the fence face and the centre line of

the mortising bit. Use this gauge to set the mortise height relative to the surface of the workpiece.

The Board Thickness Gauge numbers printed on the gauge represent the thickness of the

workpiece (in mm) and the mortise height will be centred in the workpiece. Use this gauge for

setting the fence height based on the thickness of the workpiece without needing to calculate the

centre distance.

Domino JointerPage 5

1. Loosen the fence height locking lever by turning it

¼-turn counter clockwise.

2. To use the board thickness gauge:

• Raise the fence above the board thickness gauge.

• Slide the gauge in or out until the thickness of the

workpiece (in mm) is shown in the window.

• Lower the fence down until it touches the gauge.

• Tighten the locking lever.

3. To use the height gauge:

• Make sure the board thickness gauge is retracted

out of the way.

• Raise or lower the fence until the pointer is pointing

to the desired height on the gauge.

• Tighten the locking lever.

Setting the Fence Angle.

Some joints require the fence to be set to an angle from

the mortising bit. The most common application is for

making a mitered joint.

• Loosen the fence angle locking lever by rotating it

counter clockwise about a ¼-turn.

• Rotate the fence face to the desired angle and tighten

the locking lever.

• The fence has detent stops at 22½, 45, 67½, and 90

degrees.

• Use the gauge pointer for setting the fence to angles

other than the ones listed above.

• For greater stability, the locking lever clamps down on

both the right and the left sides of the fence.

The table below provides some common mitre angles for easy reference.

Domino JointerPage 6

Mortise size setting

Setting the mortise width

The width of the mortise slot can be increased to permit some side-to-side exibility in the tenon

position. The mortise width dial has three positions. In the standard (smallest) position, the Domino

tenon will t snugly into the mortise slot. In the middle position, the mortise slot will be 6 mm wider

than the Domino tenon. In the widest position the mortise slot will be 10 mm wider than the Domino

tenon.

Setting the Mortise Depth

The mortising depth determines how deep into the workpiece the mortising bit penetrates. This

needs to be adjusted for different sized tenons. In most cases, the tenon should be centred across

the joint, and the depth of the mortise should be ½ the length of the tenon.

1. Press in on the depth adjust lock.

2. Move the depth adjust lever to the stepped position of the

desired depth.

3. Release the depth adjust lock.

However, in some cases you may want to have more of

the tenon in one piece than the other (lower Domino tenon

pictured below). In this case, the sum of the two depths must

equal the length of the tenon. (In the offset tenon example

below, the Domino tenon is 40 mm long, the left mortise is 28

mm deep, and the right mortise is 12 mm deep.)

Domino JointerPage 7

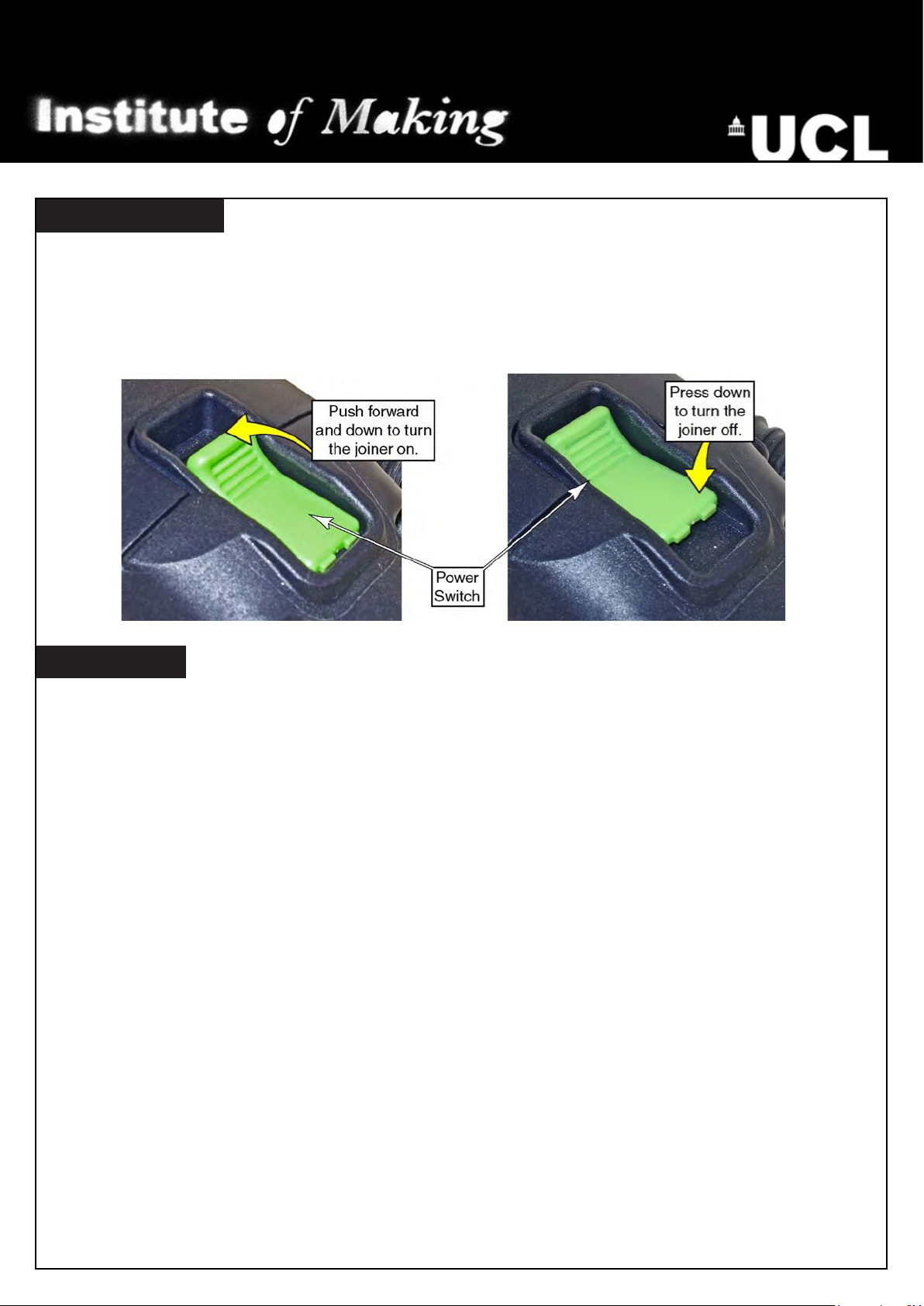

Turning On & Off

The power switch for the Domino joiner locks into the “On” position when activated. When working

with the tool for the rst time, it is recommended that you become familiar with the operation of the

switch before you plug the tool into a power outlet.

To turn the joiner on, push forward and down on the power switch. To turn the joiner off, press down

on the back of the power switch to release the latch.

Housekeeping

Before starting any cleaning, disconnect the tool from the power supply.

You may need to intermittently stop operations to clean away dust build from the area of work and

the tool.

The tool should be cleaned after every use. Use a vacuum with the brush attachment for the

outside of the tool. For safe and proper working, always keep the machine and ventilation slots

clean.

Never used compressed air to clean the tool. This will cause dust to be pushed into the atmosphere

for you and others to breath in as well force dust into the motor and xings of the tool.

Ensure the tool and accessories are placed back where they belong.

Do not leave tools out. If you are unsure where tools are stored, please speak to a technician.

Induction nished

Below is an insight into just some of the ways the Domino Jointer can be put to use.

Familiarise yourself with the tool and ask a technician to assist you with your particular set

up needs.

Use this link to see video set ups

https://youtu.be/sD2QxrwuvJk

or type ‘Getting Started with the Festool Domino DF 500 Joiner’ into YouTube.

Domino JointerPage 8

Edge joining boards

Edge joining boards is a common method for creating wide boards from a series of narrower

boards. The Domino tenons add strength to the joint and help with aligning the boards to be ush.

Butt the two pieces of wood together and mark with a pencil were a series of mortise holes can be

made down the length of the wood.

The rst tenon is used to register the two boards horizontally and is milled at standard width. The

remaining tenons align the board ush and may be milled away with an oversized width.

Mortise into the face of board material

Creating Butt Box Joints will require you to mill into

the face of a board. Consider your plunge depth

as not to fully penetrate the wood. You may need to

use the support bracket and reset the angle of the fence.

Domino JointerPage 9

Machining Tenons

Machining the Captive-Side Tenons

• Choose a Domino tenon size to be less than

or equal to 1/3 of the board’s thickness.

• Set the height of the fence so the Domino

tenons are in the centre of the board’s

thickness.Set the mortise depth.

• Clamp the Captive boards at to your

workbench.

• Grasp the Domino joiner by the auxiliary

handle, hold it rmly down to the workpiece,

and slowly plunge the cutter into its edge.

Machining the Cap-Side Tenons

• Don’t change the fence height from the

previous operation. It is used to register the

mortise placement from the edge of the board.

• Install the Base Support Bracket

• If necessary, change the mortise depth setting.

• When plunging, hold it rmly against the face

of the workpiece.

Domino JointerPage 10

Mitre Box Joints

Generally, mitre box joints are fairly weak because the joint

is predominately end grain to end grain. Tenons signicantly

increase the strength of the joint and make it easier to

assemble and clamp the pieces.

For thinner materials, keep the mortise close to the inside

corner. This minimizes the chances of boring all the way

through the workpiece.

For very thin materials, it may be necessary to shorten the

Domino tenon length.

For thicker materials, stacked mortises can be used as shown in the picture below.

Setup and Machining

• Tilt the fence to the appropriate angle.

• Lower the fence to the desired height. Note that the mortise should be close to the inside corner

to avoid penetrating through the workpiece.

• Tip: Before milling the mortise, double check your depth settings to ensure you don’t cut all the

way through.

• Plunge the joiner as shown below.

• The stacked mortises are used for thicker stock.

• Grasp the joiner by the auxiliary handle for best control.

Andere Festool Elektrowerkzeuge Handbücher

Festool

Festool Trion PS 300 EQ Montageanleitung

Festool

Festool CARVEX PSBC 420 Montageanleitung

Festool

Festool GM 145 Montageanleitung

Festool

Festool Precisio CS 50 EB Bedienungsanleitung

Festool

Festool PSC 420 EB Bedienungsanleitung

Festool

Festool Domino DF 500 Bedienungsanleitung

Festool

Festool Domino DF 500 Q Bedienungsanleitung

Festool

Festool PS420EBQ Betriebsanleitung

Festool

Festool OSC 18 Bedienungsanleitung

Festool

Festool Trion PS 300 EQ Bedienungsanleitung

Festool

Festool ETS EC 150/3 A EQ Montageanleitung

Festool

Festool Trion PS 300 EQ Bedienungsanleitung

Festool

Festool LEX 2 150/3 Bedienungsanleitung

Festool

Festool TDK 12 Bedienungsanleitung

Festool

Festool Compact Saw and Cordless Drill Bedienungsanleitung

Festool

Festool RAS 180.03 E-HR Bedienungsanleitung

Festool

Festool AH-ES-ETS Bedienungsanleitung

Festool

Festool Domino DF 500 Q Montageanleitung

Festool

Festool KA 65 Bedienungsanleitung

Festool

Festool OF 1400 EQ Bedienungsanleitung

Festool

Festool PS 2 E Bedienungsanleitung

Festool

Festool DX 93 E Bedienungsanleitung

Festool

Festool RW 1000 EQ Bedienungsanleitung

Festool

Festool OSC 18 Bedienungsanleitung

Beliebte Elektrowerkzeuge Handbücher anderer Marken

AEG

AEG OMNI-JS Bedienungsanleitung

SIP

SIP 01533 Bedienungsanleitung

Ribimex

Ribimex PRS499 Bedienungsanleitung

3M Fiber Optic Connector Crimp Tool Bedienungsanleitung

Ryobi

Ryobi P524 Bedienungsanleitung

ROJEK

ROJEK FSN 300A Bedienungsanleitung

Kemper

Kemper 1740PRO Bedienungsanleitung

WABCO

WABCO OptiTire Bedienungsanleitung

EINHELL

EINHELL TE-MS 18/210 Li Bedienungsanleitung

Orgapack

Orgapack OR-T 85 Kurzanleitung

TOUGHCUT

TOUGHCUT Diamond 400 Bedienungsanleitung

Yaros

Yaros PB-3603 Bedienungsanleitung

Fein

Fein BSS 2.0 E Einrichtungshandbuch

Baileigh Industrial

Baileigh Industrial SS-2725 Bedienungsanleitung

Milwaukee

Milwaukee 2674-20 Bedienungsanleitung

Fein

Fein BLs 1.6 Bedienungsanleitung

Princess

Princess Electric Multi Sharpener Bedienungsanleitung

FOREDOM

FOREDOM K.1050 Handbuch
