FIBARO ROLLER SHUTTER 3 Bedienungsanleitung

CONTENTS

#1: Description and features 3

#2: Installation 4

#3: Adding the device 8

#4: Removing the device 9

#5: Positioning calibration 10

#6: Operating roller blinds 13

#7: Operating gate motors 14

#8: Menu 15

#9: Resetting to factory defaults 16

#10: Power and energy consumption 17

#11: Associations 18

#12: Z-Wave range test 19

#13: Activating scenes 20

#14: Z-Wave specication 21

#15: Advanced parameters 24

#16: Specications 32

#17: Regulations 33

OPERATING

MANUAL EN

FIBARO

ROLLER SHUTTER 3

FGR-223

v1.0

Important safety information

Read this manual before attempting to install the device!

Failure to observe recommendations included in this manual

may be dangerous or cause a violation of the law. The manufacturer,

Fibar Group S.A. will not be held responsible for any loss or damage

resulting from not following the instructions of operating manual.

Danger of electrocution!

FIBARO Roller Shutter 3 is designed to operate in electrical

home installation. Faulty connection or use may result in re or elec-

tric shock.

All works on the device may be performed only by a qualied and

licensed electrician. Observe national regulations.

Even when the device is turned o, voltage may be present at its ter-

minals. Any maintenance introducing changes into the conguration

of connections or the load must be always performed with disabled

fuse.

Caution

It is not recommended to operate all of the roller blinds simul-

taneously. For safety reasons, at least one roller blind should be con-

trolled independently, providing safe escape route in case of emer-

gency.

DESCRIPTION AND FEATURES

Main features of FIBARO Roller Shutter 3:

• Compatible with any Z-Wave or Z-Wave+ Controller,

• Supports Z-Wave network Security Modes: S0 with AES-128

encryption and S2 Authenticated with PRNG-based encryption,

• To be installed with roller blind motors with electronic or

mechanical limit switches,

• Advanced microprocessor control,

• Active power and energy metering functionality,

• Works with various types of switches – momentary, toggle and

dedicated roller blind switches,

• To be installed in wall switch boxes.

FIBARO Roller Shutter 3 is a device designed to control roller blinds,

awnings, venetian blinds, gates and other single phase, AC powered

devices.

Roller Shutter 3 allows precise positioning of roller blinds or venetian

blind lamellas. The device is equipped with power and energy

monitoring. It allows to control connected devices either via the

Z-Wave network or via a switch connected directly to it.

#1: Description and features

FIBARO Roller Shutter 3 is a fully

compatible Z-Wave PLUS device.

NOTE

The device is a Secu-

rity Enabled Z-Wave

Plus product and a Se-

curity Enabled Z-Wave

Controller must be

used in order to fully

utilize the product.

NOTE

This device may be

used with all de-

vices certied with

the Z-Wave Plus cer-

ticate and should be

compatible with such

devices produced by

other manufacturers.

All non-battery oper-

ated devices within

the network will act as

repeaters to increase

reliability of the net-

work.

INSTALLATION

#2: Installation

Connecting the Roller Shutter 3 in a manner inconsistent

with this manual may cause risk to health, life or material

damage.

• Connect only in accordance with one of the diagrams,

• Do not connect DC powered motors, the device is dedicated to

operate AC powered electric motors,

• Do not connect the device to loads exceeding recommended

values,

• The device should be installed in a wall switch box compliant with

a relevant national safety standards and with depth no less than

60mm,

• Electrical switches used in installation should be compliant with the

relevant safety standards,

• Length of wires used to connect the control switch should not

exceed 20m,

• Connect roller blind motors with electronic or mechanical limit

switches only.

Notes for the diagrams:

S1 - terminal for 1st switch (used to add/remove

the device)

S2 - terminal for 2nd switch

Q2 - 2nd output terminal for shutter motor

Q1 - 1st output terminal for shutter motor

L- terminal for live lead

N- terminal for neutral lead

B- service button (used to add/remove the de-

vice and navigate the menu)

Roller

Shutter 3

L NS1 S2 Q2

Tips for arranging the antenna:

• Locate the antenna as far from metal elements as possible

(connecting wires, bracket rings, etc.) in order to prevent

interferences,

• Metal surfaces in the direct vicinity of the antenna (e.g. ush

mounted metal boxes, metal door frames) may impair signal

reception!

• Do not cut or shorten the antenna - its length is perfectly matched

to the band in which the system operates.

• Make sure no part of the antenna sticks out of the wall switch box.

INSTALLATION

Installation with standard blinds:

1. Switch o the mains voltage (disable the fuse).

2. Open the wall switch box.

3. Connect with the following the diagram:

Wiring diagram - standard blinds

4. Verify if the device is connected correctly.

5. Arrange the device and its antenna in a wall switch box.

6. Close the wall switch box .

7. Switch on the mains voltage.

Roller

Shutter 3

L NS1 S2

INSTALLATION

Installation with blinds with built-in driver:

1. Switch o the mains voltage (disable the fuse).

2. Open the wall switch box.

3. Connect with the following the diagram:

Wiring diagram - blinds with built-in driver

4. Verify if the device is connected correctly.

5. Arrange the device and its antenna in a wall switch box.

6. Close the wall switch box .

7. Switch on the mains voltage.

Roller

Shutter 3

L NS1 S2

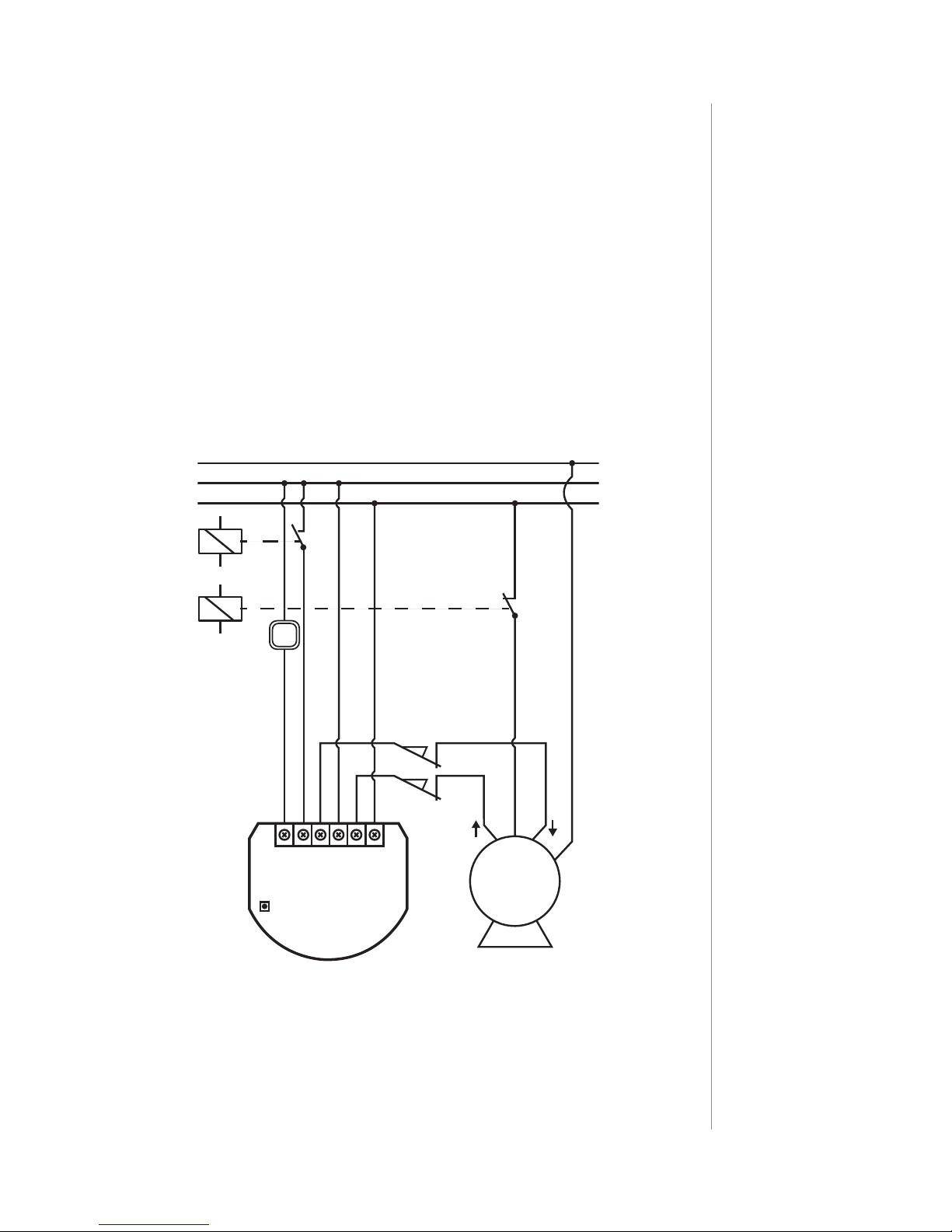

INSTALLATION

Installation with gate motors:

• Installation of the gate driver may be performed only by certied

professionals.

• The motor must be equipped with the appropriate limit switches.

• It is recommended to connect a NC (normally closed) contact of

an IR barrier to S2 terminal. Opening the contact will stop the gate.

• In addition, it is recommended to connect an emergency stop

button to the motors neutral (N) wire. In emergency, pushing the

emergency stop button will cut the power and stop the gate.

safety switch

sensor

Roller

Shutter 3

limit

switches

L NS1 S2 Q2 Q1

Wiring diagram - gate motors

1. Switch o the mains voltage (disable the fuse).

2. Open the installation box.

3. Connect with the following the diagram:

4. Verify if the device is connected correctly.

5. Arrange the device and its antenna in the installation box.

6. Close the installation box.

7. Switch on the mains voltage.

ADDING THE DEVICE

#3: Adding the device

Adding (Inclusion) - Z-Wave device learning mode, allowing to add

the device to existing Z-Wave network.

To add the device to the Z-Wave network manually:

1. Power the device.

2. Identify the S1 switch.

3. Set the main controller in (Security/non-Security Mode) add mode

(see the controller’s manual).

4. Quickly, triple click the S1 switch.

5. If you are adding in Security S2 Authenticated, scan the DSK QR

code or input the 5-digit PIN code (label on the bottom of the

box).

6. Wait for the adding process to end.

7. Successful adding will be conrmed by the Z-Wave controller’s

message.

NOTE

In case of problems

with adding using the

S1 switch, use B-but-

ton instead (located

on the housing).

NOTE

SmartStart ena-

bled products can be

added to SmartStart

enabled Z-Wave con-

troller by scanning

the Z-Wave QR Code

present on the prod-

uct. SmartStart prod-

uct will be added

automatically within

10 minutes of being

switched on in the

network range.

To add the device to the Z-Wave network using Smart Start:

1. Set the main controller in Security S2 Authenticated add mode

(see the controller’s manual).

2. Scan the DSK QR code or input the 5-digit PIN code (label on the

bottom of the box)

3. Power the device (turn on the mains voltage).

4. LED will start blinking yellow, wait for the adding process to end.

5. Successful adding will be conrmed by the Z-Wave controller’s

message.

REMOVING THE DEVICE

Removing (Exclusion) - Z-Wave device learning mode, allowing to

remove the device from existing Z-Wave network.

Removing the device restores all the default parameters of the de-

vice, but does not reset power metering data.

#4: Removing the device

NOTE

In case of problems

with removing using

the S1 switch, use

B-button instead (lo-

cated on the housing).

To remove the device from the Z-Wave network:

1. Make sure the device is powered.

2. Identify the S1 switch.

3. Set the main controller in remove mode (see the controller’s

manual).

4. Quickly, triple click the S1 switch.

5. Wait for the removing process to end.

6. Successful removing will be conrmed by the Z-Wave controller’s

message.

NOTE

If parameter 40 ena-

bles scenes for triple

S1 click, disable it or

use B-button instead

to remove the device.

NOTE

If parameter 24 is set

to 1, use S2 switch in-

stead to remove the

device.

POSITIONING CALIBRATION

#5: Positioning calibration

Calibration is a process during which a device learns the position of

the limit switches and a motor characteristic.

Calibration is mandatory in order for the device to correctly recognize

a roller blind position.

The procedure consists of an automatic, full movement between the

limit switches (up, down, and up again).

Description:

– switch connected to the S1 terminal

– switch connected to the S2 terminal

Calibration using connected momentary switch

1. Make sure:

• the device is supplied,

• momentary switch is connected to S1 and S2 terminals,

• the device added to the Z-Wave network,

• parameter 151 is set to 1 or 2.

2. Press and hold or switch for at least 3 seconds

3. Press and hold the same switch again for at least 3 seconds.

4. Press and hold the same switch again for at least 3 seconds.

5. The device will perform the calibration process, completing

full cycle – up, down and up again.

6. Test whether the positioning works correctly.

Standard roller blind positioning

Calibration using the B-button

1. Make sure:

• the device is supplied,

• the device added to the Z-Wave network,

• parameter 151 is set to 1 or 2.

2. Press and hold the B-button.

3. Wait for the LED to glow white.

4. Quickly release and click the B-button again.

5. The device will perform the calibration process, completing

full cycle – up, down and up again

6. Test whether the positioning works correctly.

NOTE

If you notice the cali-

bration process fail

(e.g. it does not start,

movement times are

really short or high-

ly inaccurate), adjust

parameter 155 value

(e.g. reduce it by half).

Andere Handbücher für ROLLER SHUTTER 3

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere FIBARO Controller Handbücher

FIBARO

FIBARO THE BUTTON Bedienungsanleitung

FIBARO

FIBARO ROLLER SHUTTER 2 Bedienungsanleitung

FIBARO

FIBARO FGPB-101-5 Bedienungsanleitung

FIBARO

FIBARO RGBW Controller Bedienungsanleitung

FIBARO

FIBARO FGBHRGBW-041-1 Bedienungsanleitung

FIBARO

FIBARO FGS-214 Bedienungsanleitung

FIBARO

FIBARO FGPB-101 Bedienungsanleitung

FIBARO

FIBARO SWIPE FGGC-001 Bedienungsanleitung

FIBARO

FIBARO FGPB-101 Bedienungsanleitung

FIBARO

FIBARO WALLI FGWCEU-201 Bedienungsanleitung

FIBARO

FIBARO Home Center Lite Bedienungsanleitung

FIBARO

FIBARO FIBEFGWCEU-201-B Bedienungsanleitung

FIBARO

FIBARO FGRGBW-442 Bedienungsanleitung

FIBARO

FIBARO ROLLER SHUTTER 2 Bedienungsanleitung

FIBARO

FIBARO FGPB-101 Bedienungsanleitung

FIBARO

FIBARO KEYFOB FGKF-601 Bedienungsanleitung

FIBARO

FIBARO FGRGBWM-441 Bedienungsanleitung

FIBARO

FIBARO SWIPE FGGC-001 Bedienungsanleitung

FIBARO

FIBARO RGBW CONTROLLER 2 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
